StarTech.com DK30CH2DEPUE laptop dock / port replicator

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Power supply: 100 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave,..., Other operating systems supported: ChromeOS

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 2x 4K 60Hz DP + HDMI

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

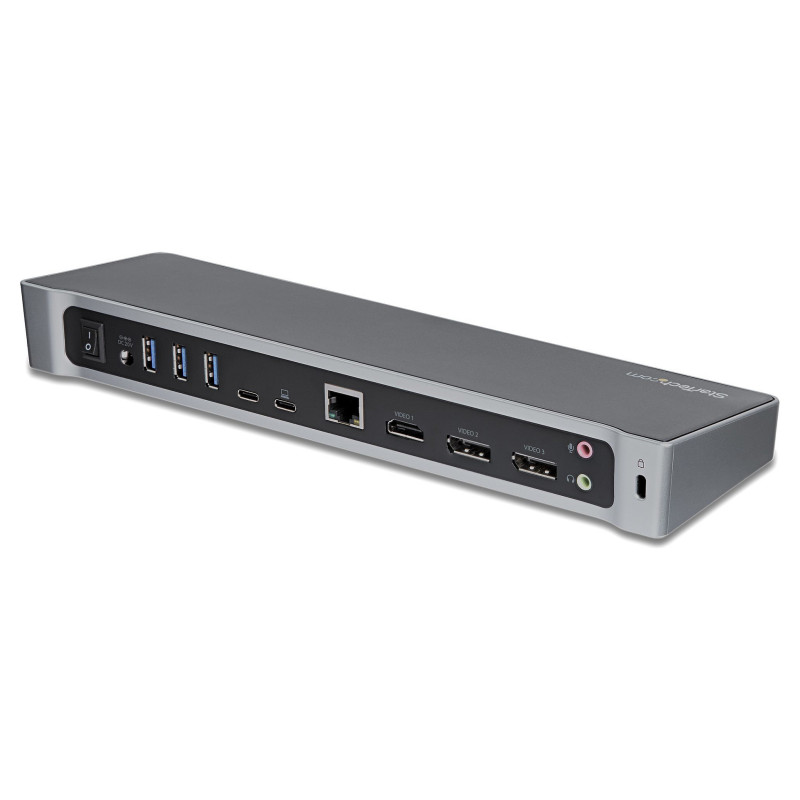

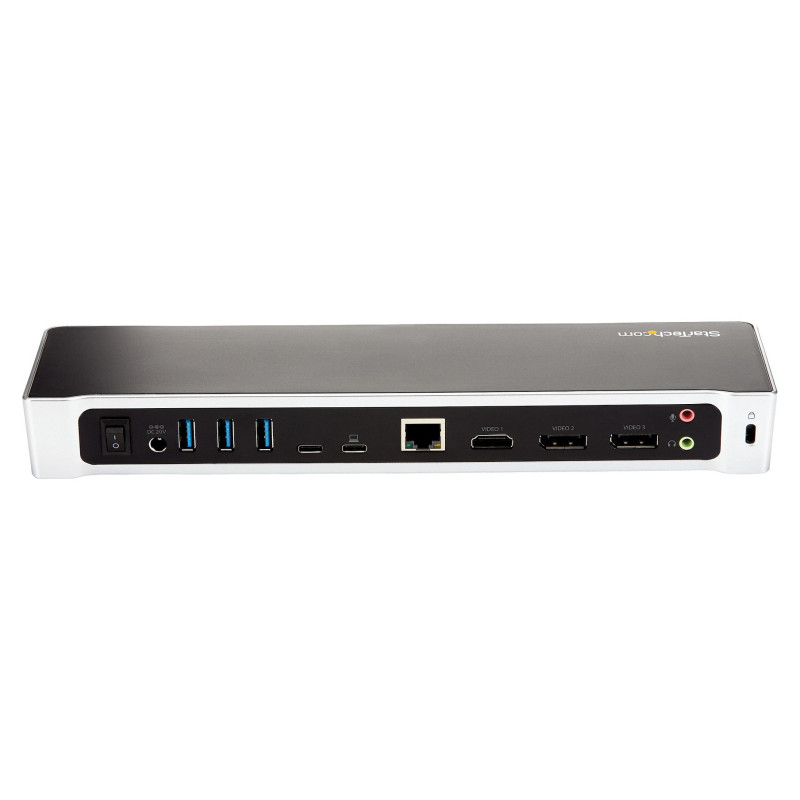

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

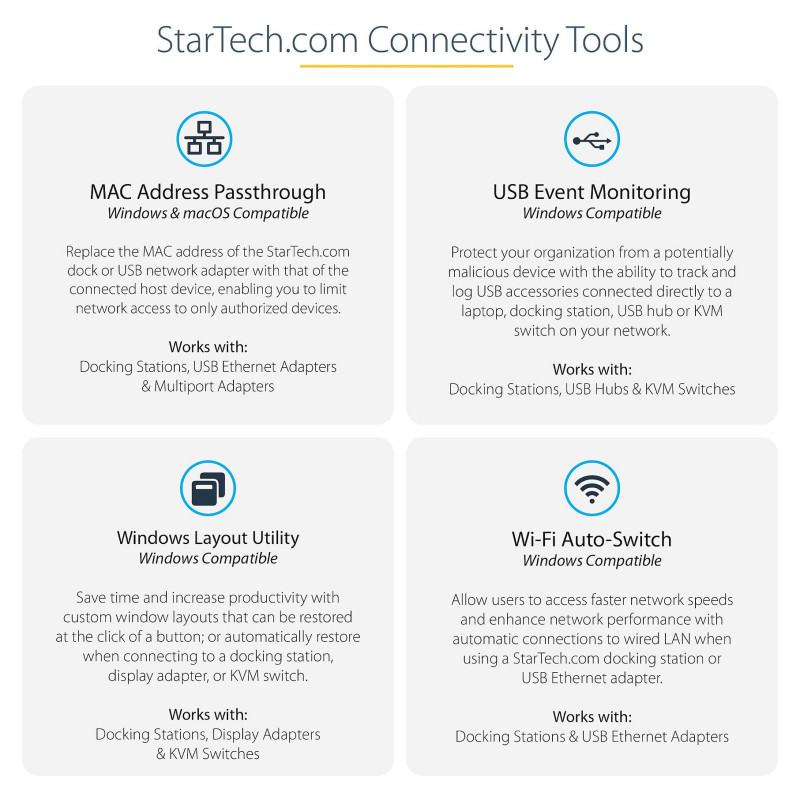

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
DisplayPorts quantity: 2
Feature: Microphone in
Feature: Combo headphone/mic port
Headphone outputs: 2
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Full duplex

Performance

Data transfer rate: 5 Gbit/s
Maximum digital resolution: 5120 x 2880 pixels
Feature: Cable lock slot
Product colour: Black, Silver
Feature: On/off switch
Feature: UASP support
Feature: Rubber feet
Housing material: Plastic
Certification: CE, FCC, TAA, REACH

Power

AC input voltage: 100 - 240 V
Input current: 2.5 A
Power supply: 100 W
Output voltage: 20 V
Output current: 7.5 A
Power plug type: Type N
Compatible power plug types: EU, UK

Software

Feature: Mac compatibility
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 70%

Weight & dimensions

Width: 82 mm
Depth: 270 mm
Height: 34 mm
Weight: 382 g

Packaging data

Package width: 160 mm
Package depth: 320 mm
Package height: 80 mm
Package weight: 1.7 kg

Packaging content

Cables included: USB Type-C
Feature: AC adapter included
Feature: Manual

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 8 pc(s)
Master (outer) case width: 365 mm
Master (outer) case length: 370 mm
Master (outer) case height: 370 mm
Harmonized System (HS) code: 84733020

Other features

Chipset: DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176
