StarTech.com DK30C2DAGPD laptop dock / port replicator

StarTech.com USB C Dock - 4K Dual Monitor DisplayPort - Mini Laptop Docking Station - 100W Power Delivery Passthrough - GbE, 2-Port USB-A Hub - USB Type-C Multiport Adapter - 3.3' Cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB, Power supply: 100 W, Power consumption (typical): 15 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...

USB C Multiport Adapter | 4K 30Hz | 100W PD 3.0 | 2 USB A Ports | GbE | DP Alt-Mode Switch

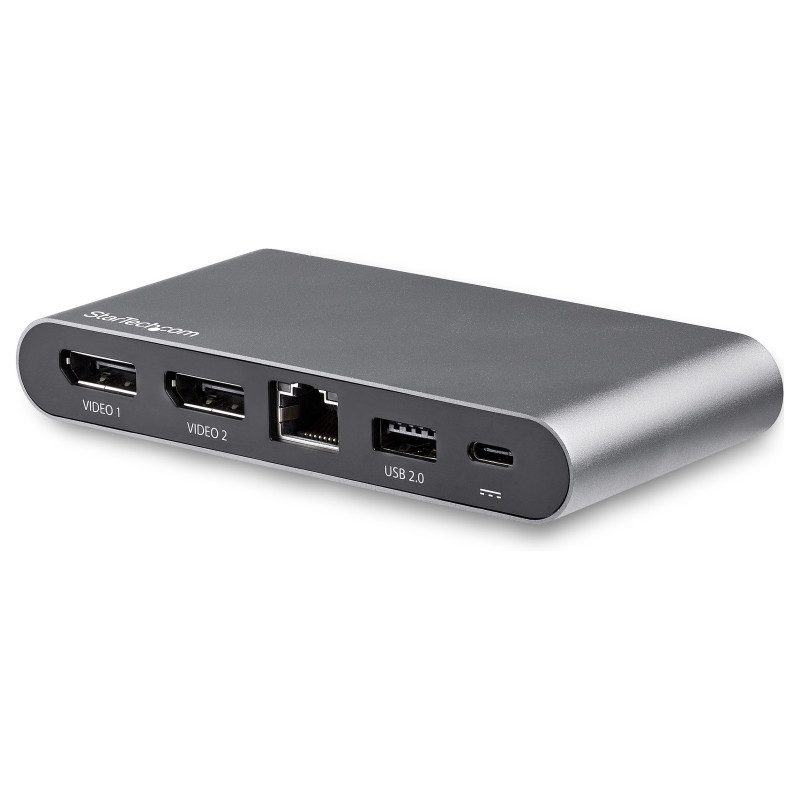

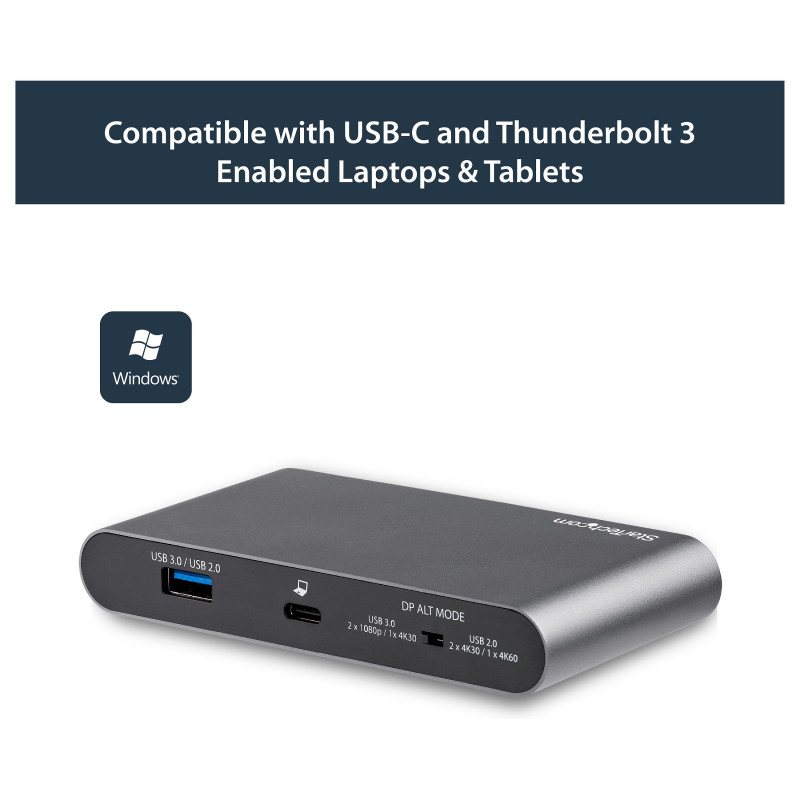

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

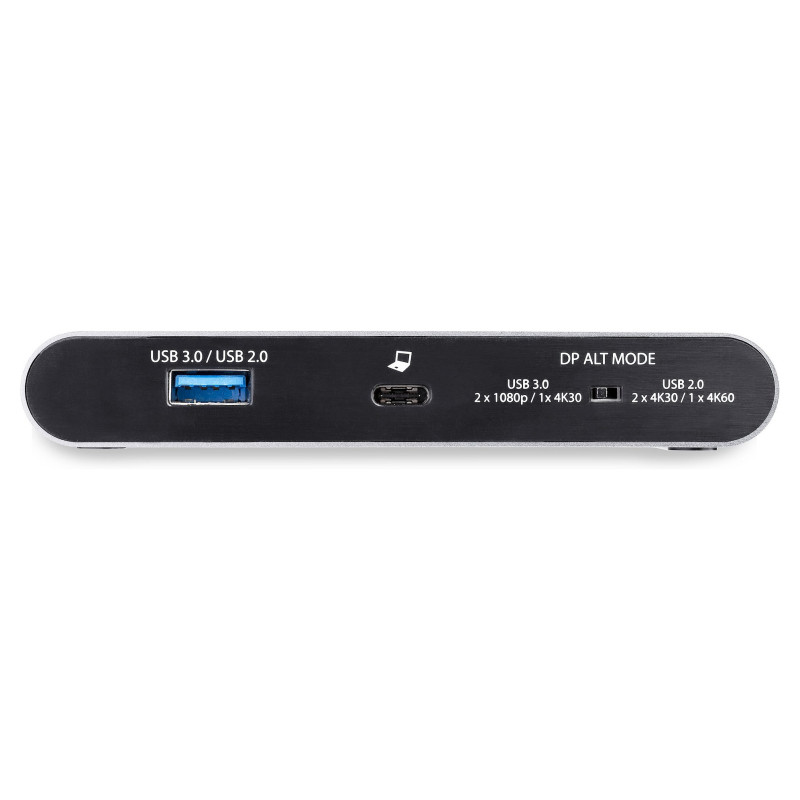

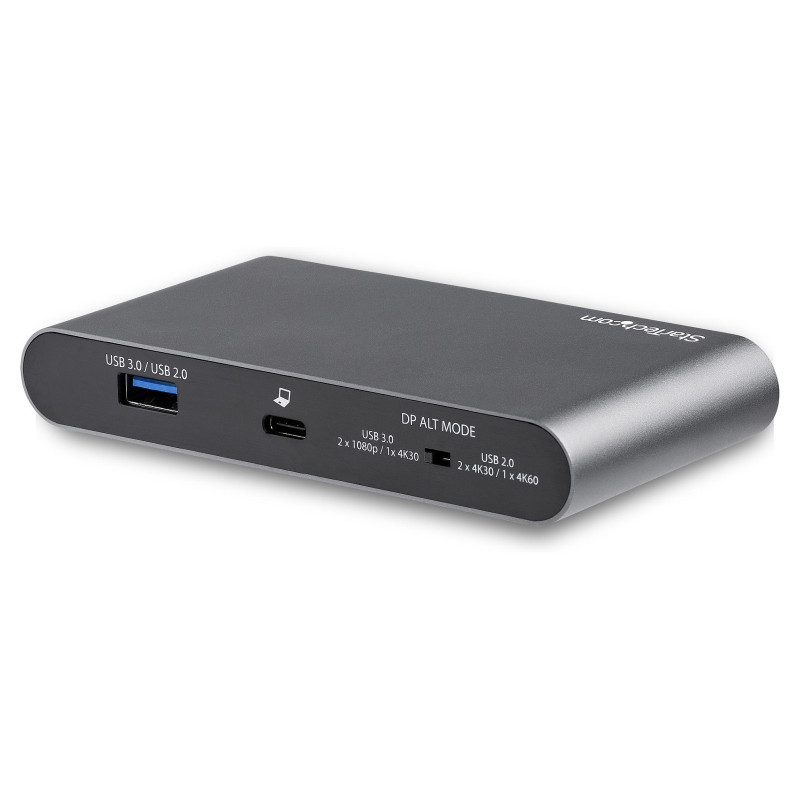

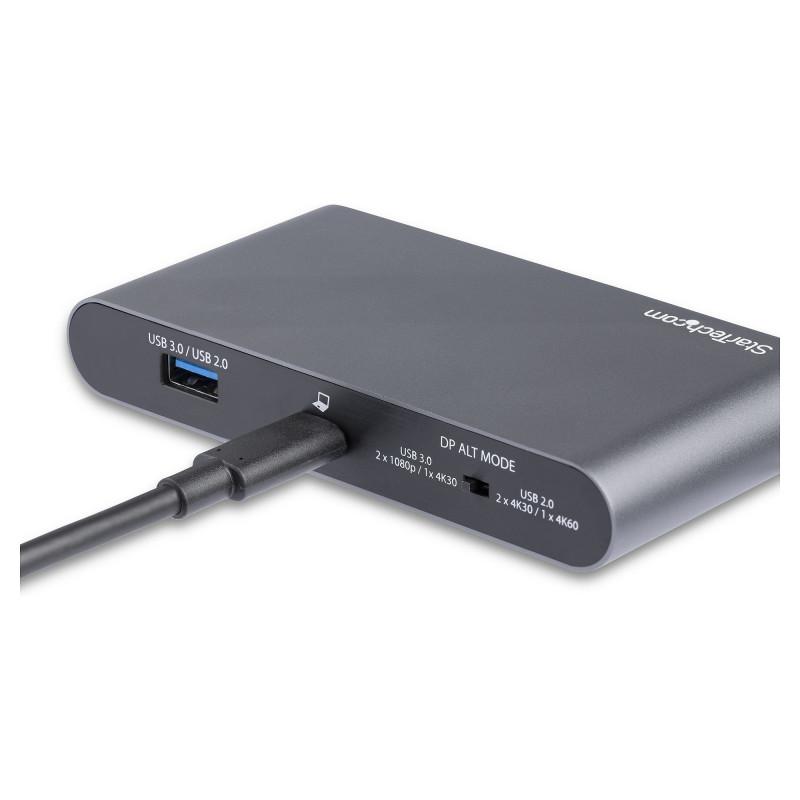

DisplayPort™ Alternate Mode to Choose Your Video Display Output

Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.

Switch Left

Switch Right

2 Lane DP Alt- Mode

4 Lane DP Alt Mode

USB 3.0

(5Gbps)

USB 2.0

(480 Mbps)

Dual 1080p Monitors

or

Single 4K 30Hz Monitor

Dual 4K 30Hz Monitors

or

Single 4K 60Hz Monitor

Reliable 100W Power Delivery Passthrough

The USB-C multiport adapter uses your USB-C laptop's power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.

Multi-Stream Transport for Driverless Displays

The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.

The StarTech.com Advantage

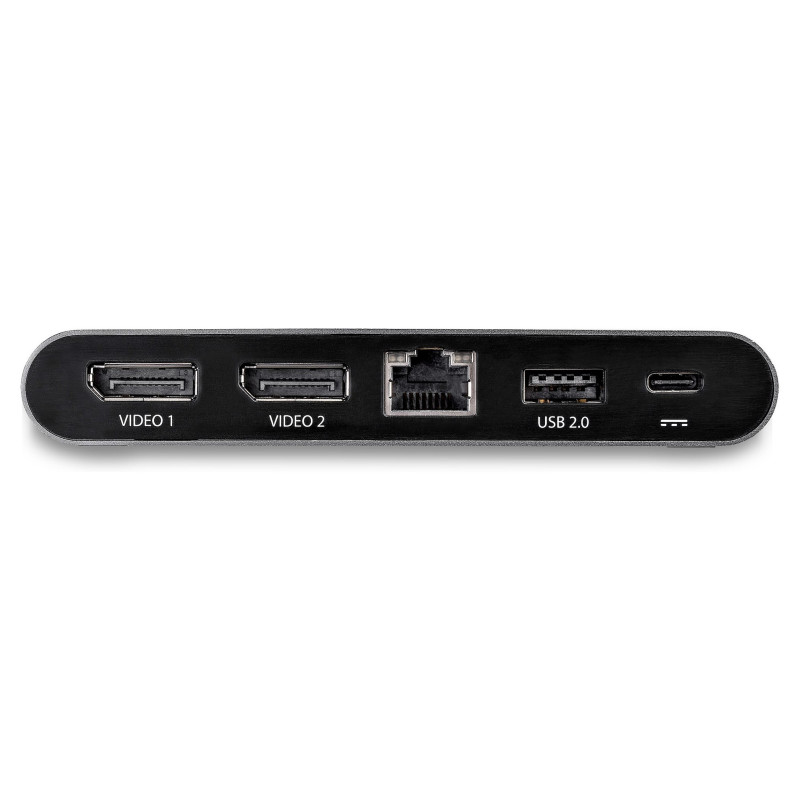

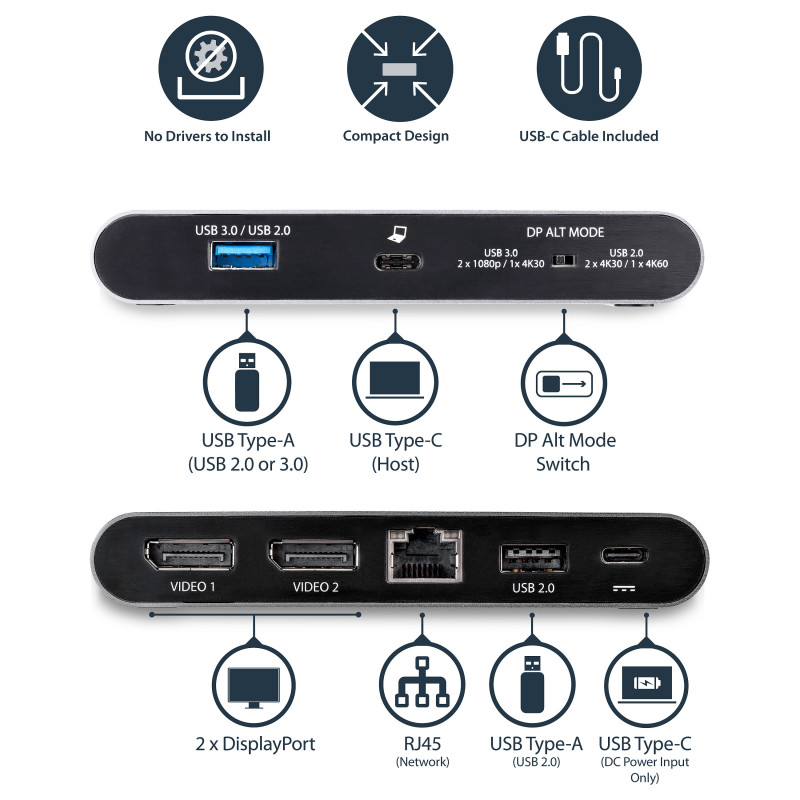

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
DisplayPorts quantity: 2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Auto MDI/MDI-X
Feature: Full duplex

Performance

Data transfer rate: 5 Gbit/s
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Black
Feature: UASP support
Housing material: Plastic
Brand compatibility: Any brand
Certification: CE, FCC, REACH

Power

Power source type: USB
Power supply: 100 W
Power consumption (typical): 15 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

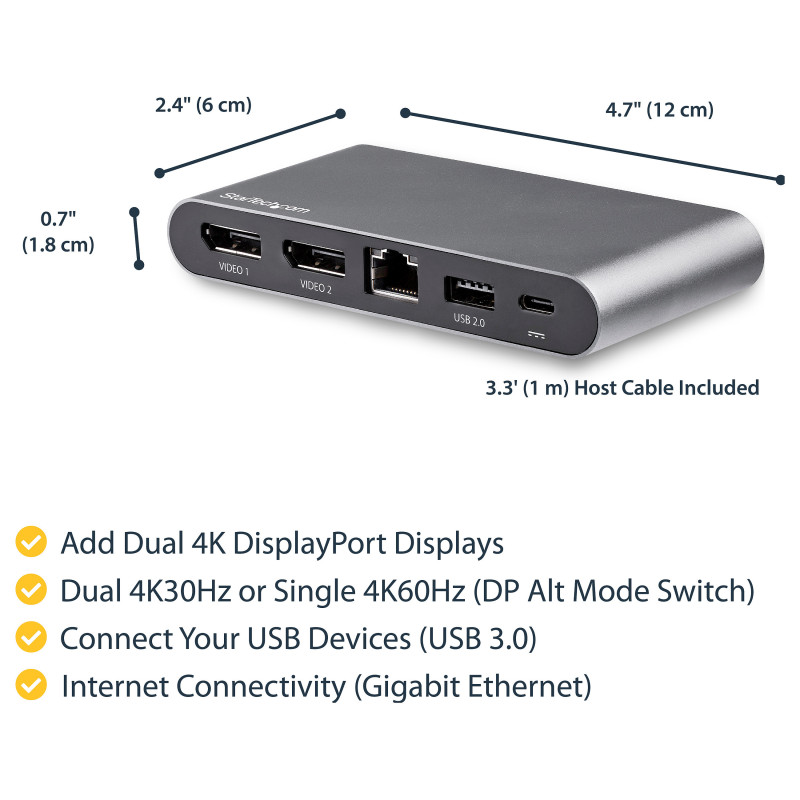

Weight & dimensions

Width: 60 mm
Depth: 120 mm
Height: 18.8 mm
Weight: 150 g

Packaging data

Package width: 145 mm
Package depth: 208 mm
Package height: 42 mm
Package weight: 300 g

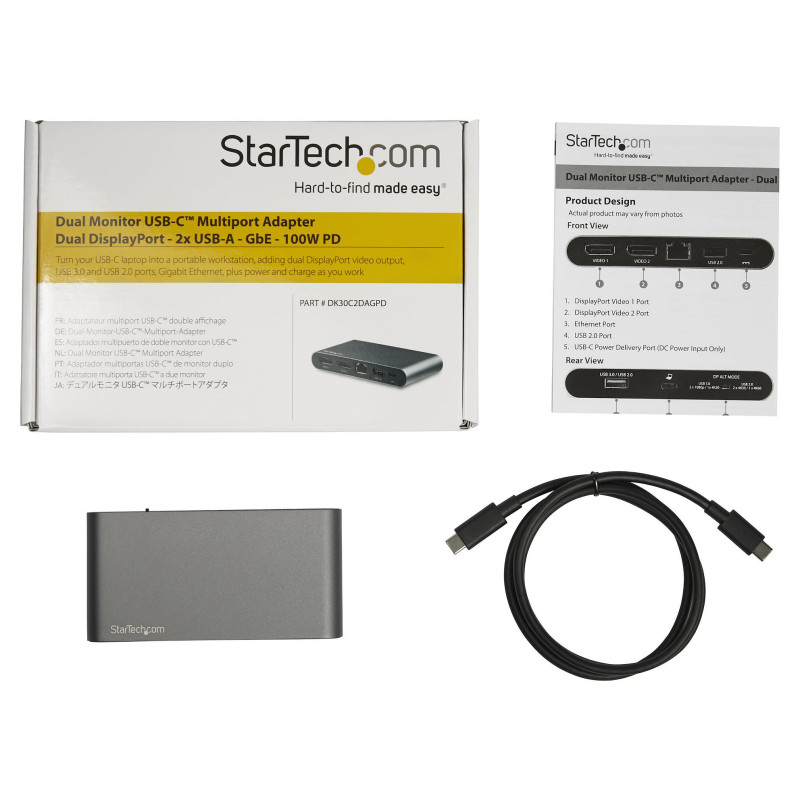

Packaging content

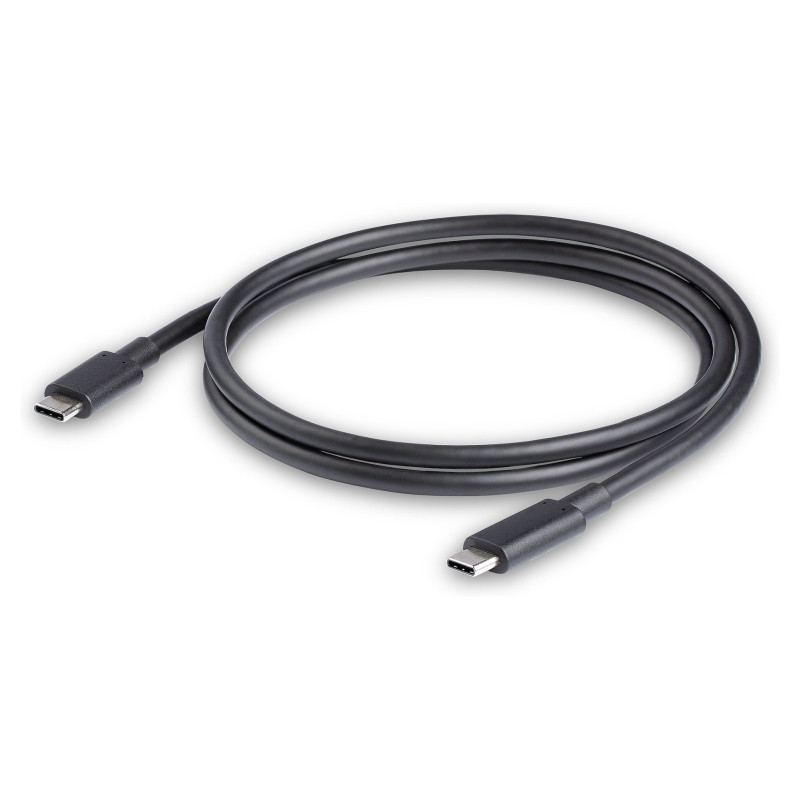

Cables included: USB Type-C
Feature: Quick start guide

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 24 pc(s)
Master (outer) case width: 310 mm
Master (outer) case length: 450 mm
Master (outer) case height: 280 mm
Harmonized System (HS) code: 84733020

Other features

Chipset: VIA/VLI - VL102, VIA/VLI - VL170, VIA/VLI - VL817, MegaChips - STDP4320, RealTek - RTL8153
