StarTech.com 5G7AIBS-USB-HUB-EU interface hub

StarTech.com 7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 (5Gbps) Expansion Hub with Power Supply, Desktop Laptop USB-C to USB-A Splitter. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Grey, Housing material: Plastic. Power supply type: DC, Power consumption (typical): 65 W, Input voltage: 110 - 240 V. Width: 188 mm, Depth: 59 mm, Height: 21 mm. Package width: 225 mm, Package depth: 170 mm, Package height: 70 mm

7-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3ft (1 m) USB-C & USB-A Host Cables Included

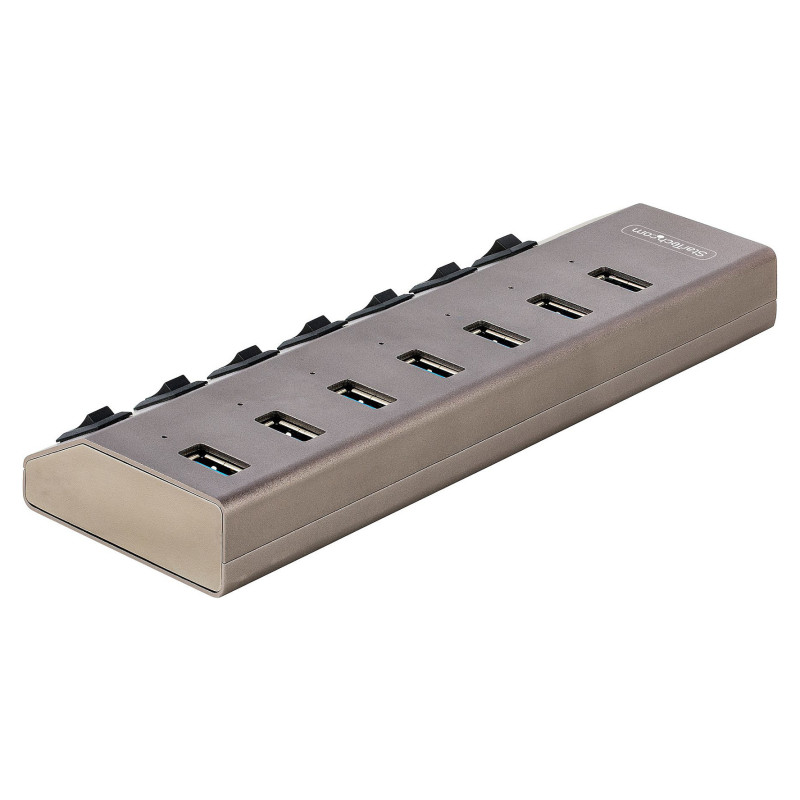

This 7-Port USB 5Gbps Hub adds seven USB Type-A ports to a computer, with the added benefit of each port having an individual on/off switch. The USB hub is self-powered with an included power adapter. It connects to a USB-A, or USB-C port on a laptop or desktop computer.

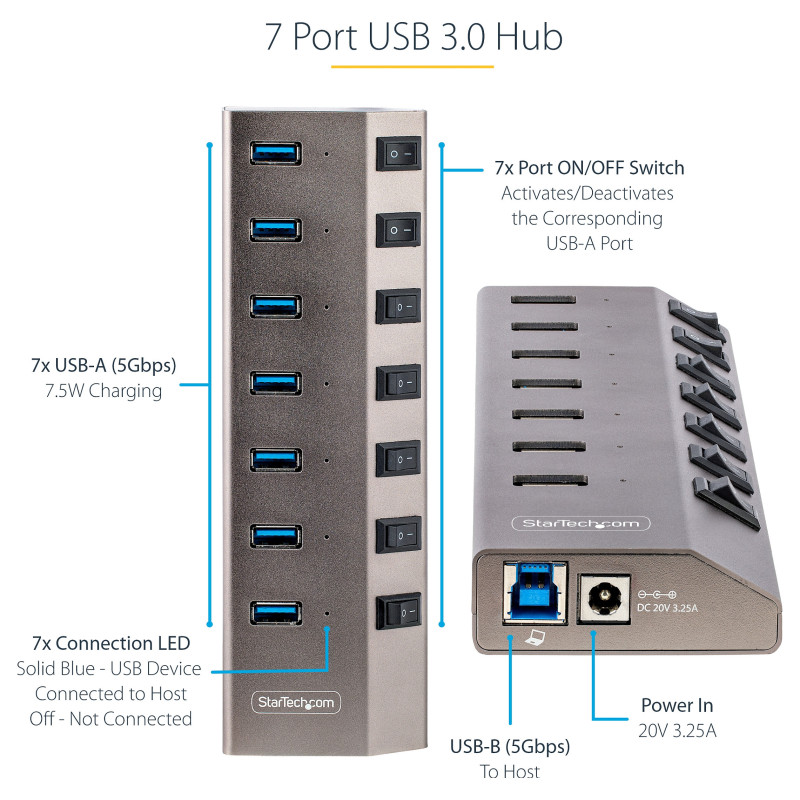

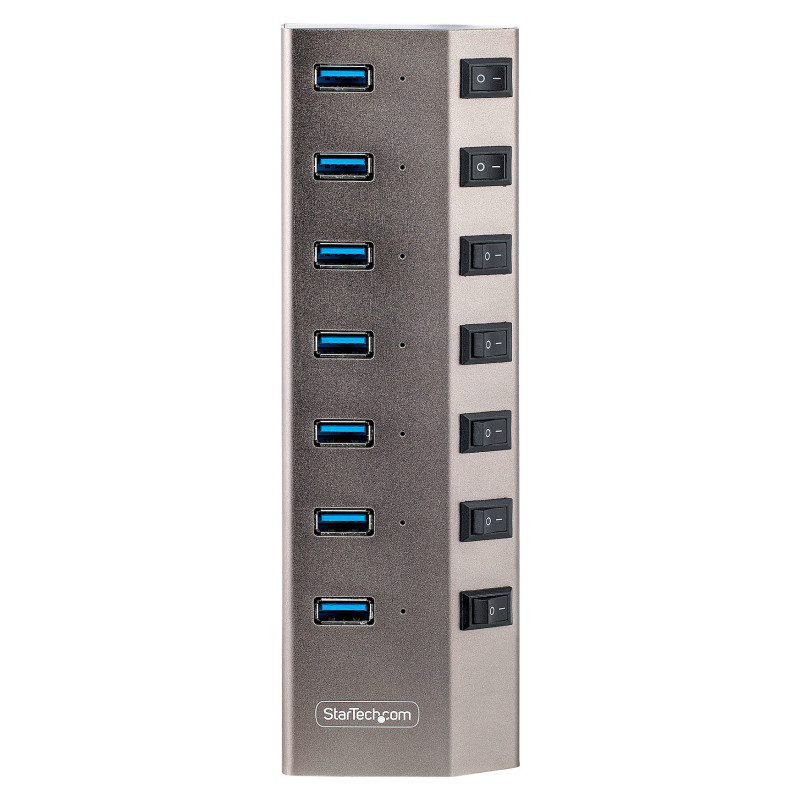

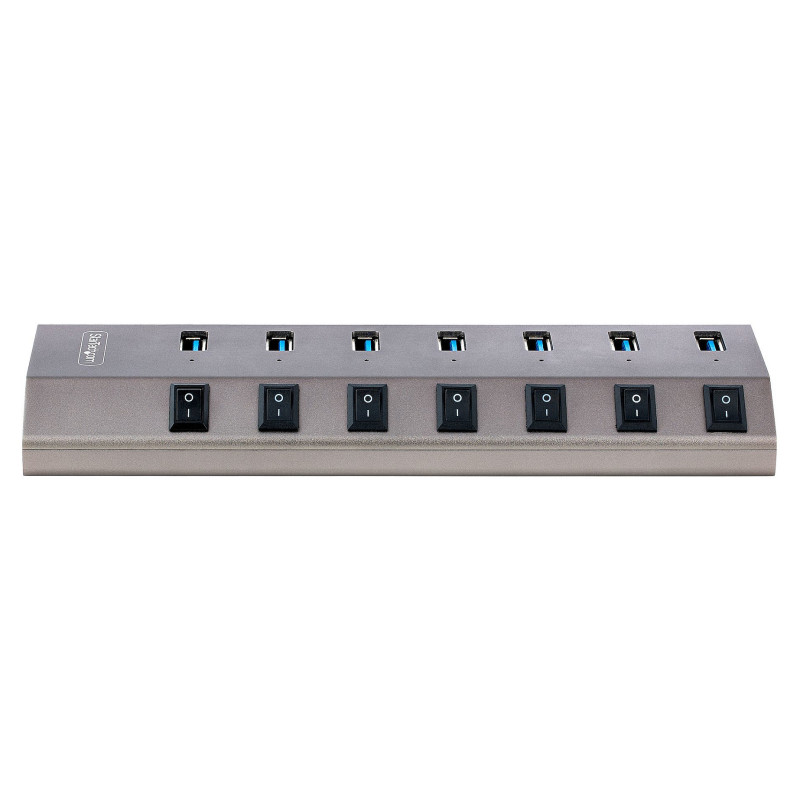

Seven On/Off Switches

The seven ports on the USB Hub feature a power switch to turn off the computers power connection to the attached device when it's not being used. This means you can turn off individual USB ports to reduce power consumption, without having to physically disconnect the device or cable. Also, this feature can ensure privacy by turning off cameras or external data storage devices that contain sensitive data, when they're not in use.

Power and Charge USB Devices

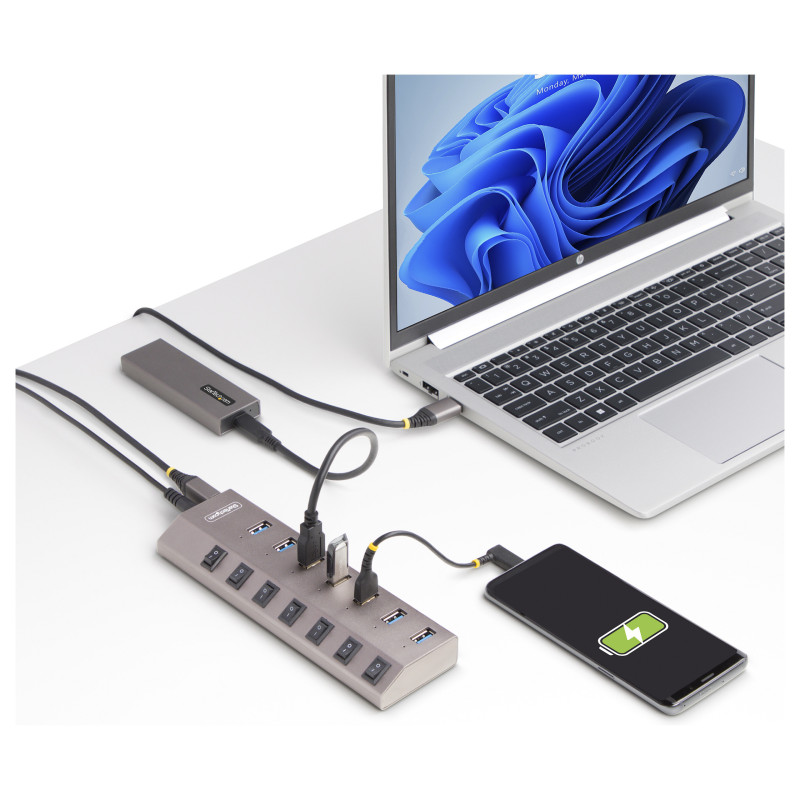

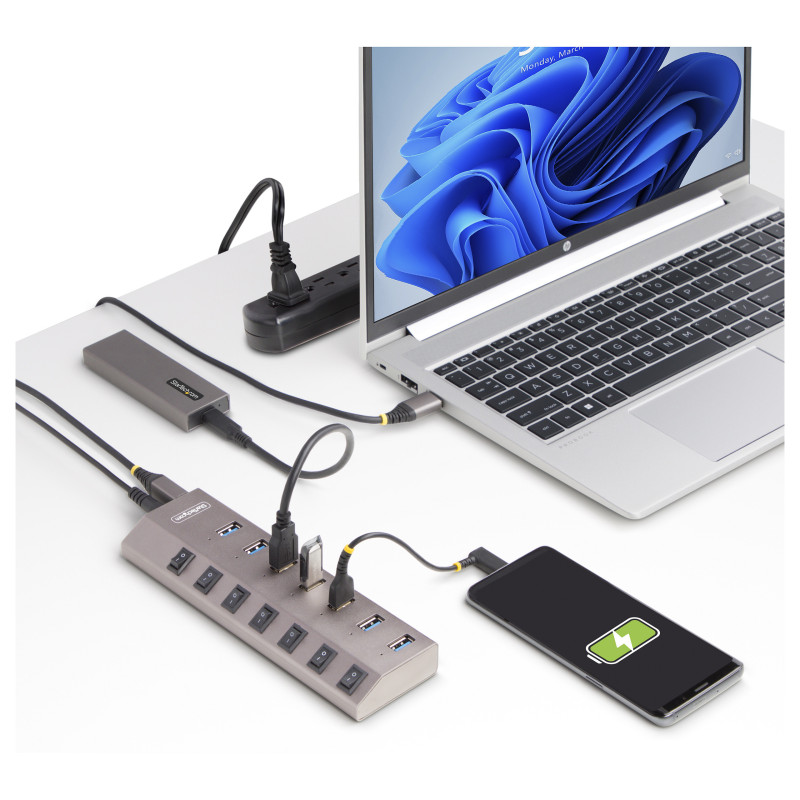

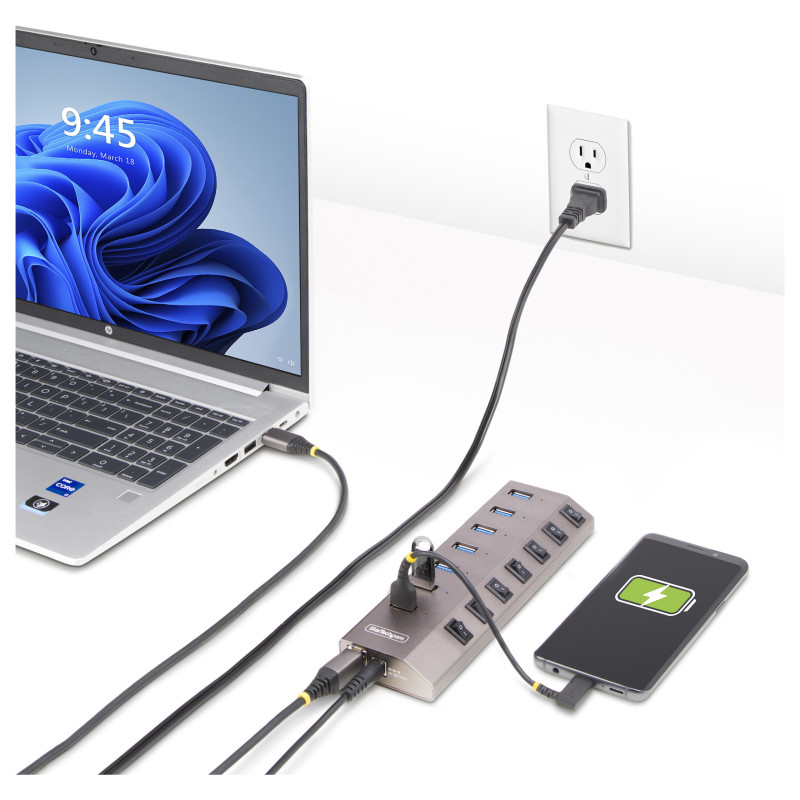

The USB hub is self-powered, with an included 65W power adapter. This enables all seven ports on this USB hub to support BC 1.2, providing 1.5A (7.5W) of power simultaneously (52.5W total), making it ideal to charge battery powered USB devices like Smartphones, and Tablets, while also providing a data connection. The USB hub will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications.

Add Seven USB Ports, to Connect USB Devices

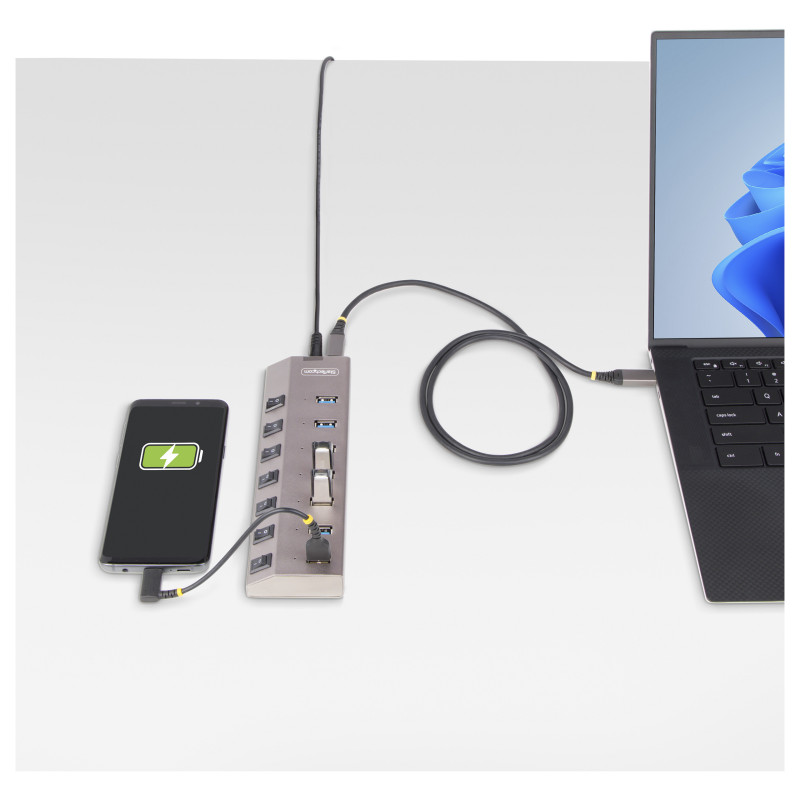

The 7-port USB Hub expands computer's USB connectivity, adding seven USB-A ports from a single USB-A or USB-C port. The USB hub is backward compatible with older USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB devices such as external storage devices (thumb drives, HDDs/SSDs), HD Cameras, mice, keyboards, webcams, and USB headsets.

USB 5Gbps is also known as USB 3.2 Gen 1, and USB 3.0.

Hassle-Free, Plug-and-Play Installation

The 7-Port USB Hub is OS independent supporting all operating systems including Windows, macOS, Chrome OS, iPad OS and Android, and installs automatically when connected to a computer. To ensure wide compatibility with USB host devices, individual 3.3 ft. (1 m) USB-A, and USB-C host cables are included.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 7
Ports quantity: 7

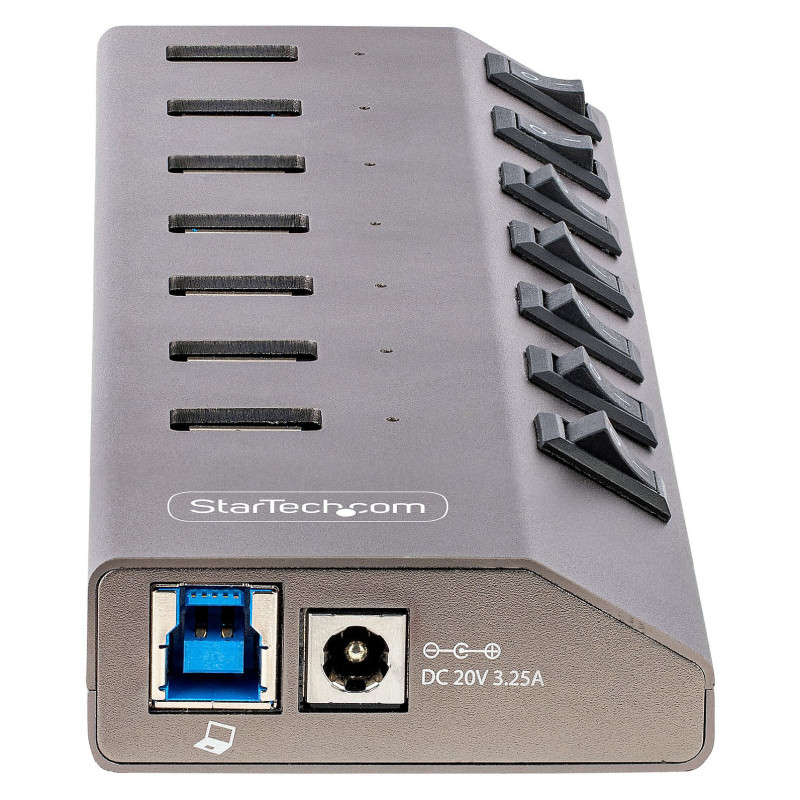

Feature: DC-in jack

Features

Data transfer rate: 5000 Mbit/s
Product colour: Grey
Housing material: Plastic
Feature: Fast charging
LED indicators: Yes
Cable length: 1 m
Feature: Plug and Play

Network

Feature: UASP support

Power

Power supply type: DC
Power consumption (typical): 65 W
Input voltage: 110 - 240 V
Output voltage: 20 V
Output current: 3.25 A
Power plug type: Type M

Weight & dimensions

Width: 188 mm
Depth: 59 mm
Height: 21 mm
Weight: 208 g

Packaging data

Package width: 225 mm
Package depth: 170 mm
Package height: 70 mm
Package weight: 5 kg

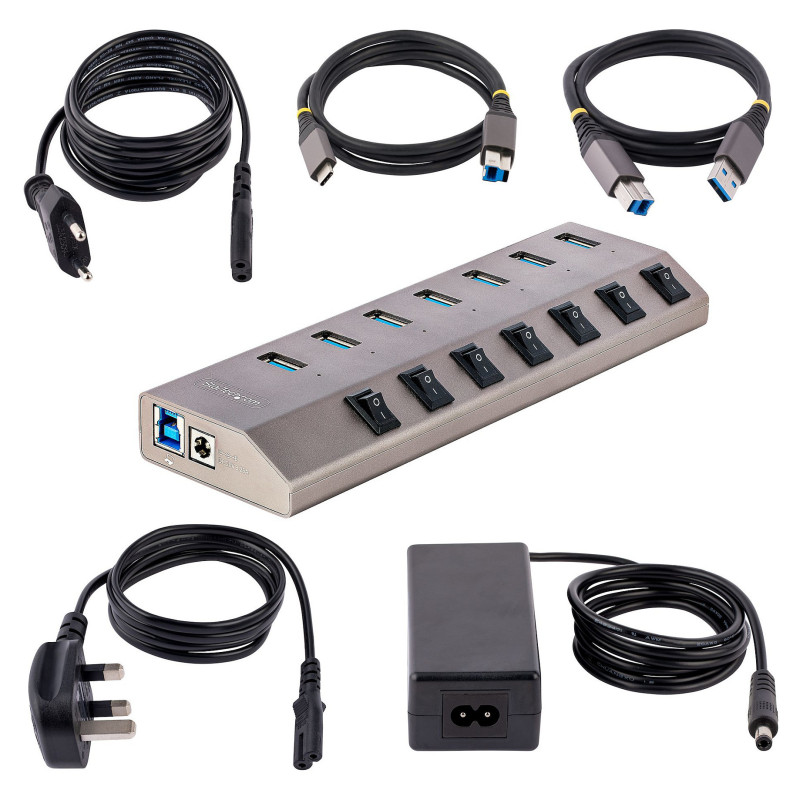

Packaging content

Feature: AC adapter included
Included power plug types: EU, UK
Cables included: USB

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Performance

Mean time between failures (MTBF): 50000 h

Sustainability

Feature: Sustainability compliance

Logistics data

Master (outer) case width: 470 mm
Master (outer) case length: 380 mm
Master (outer) case height: 190 mm
Products per master (outer) case: 10 pc(s)
Harmonized System (HS) code: 84719000

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: VIA - VL817
