StarTech.com 5G4AINDNP-USB-A-HUB interface hub

StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Steel. Power plug type: Type M. Width: 59 mm, Depth: 178 mm, Height: 23 mm. Package width: 151 mm, Package depth: 216 mm, Package height: 55 mm
Connect four USB Type-A 3.2 Gen 1 (5Gbps) devices to a single USB port on your computer, using a USB hub that's suitable for harsh industrial/commercial environments
Increase USB scalability in industrial environments, product and repair labs, conference rooms or office workstations, using this 4-Port Industrial USB Hub.
Functional in Harsh Environments
This industrial USB hub delivers reliable performance in harsh environments with its heavy-duty, metal housing.
Perfect for factory environments, the rugged hub features ESD protection to each USB port, which aids in preventing damage to any connected devices.

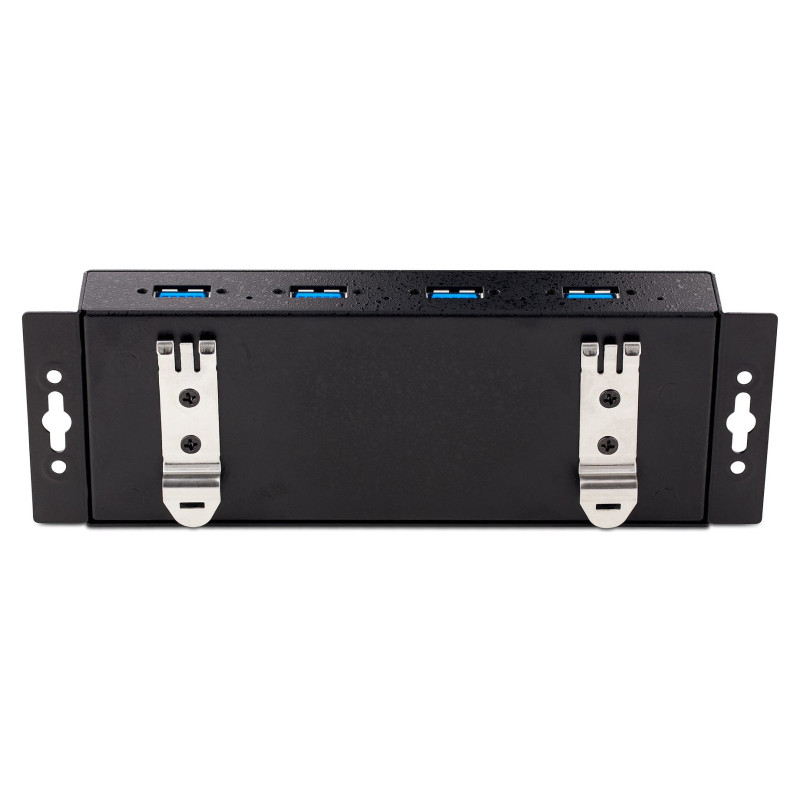

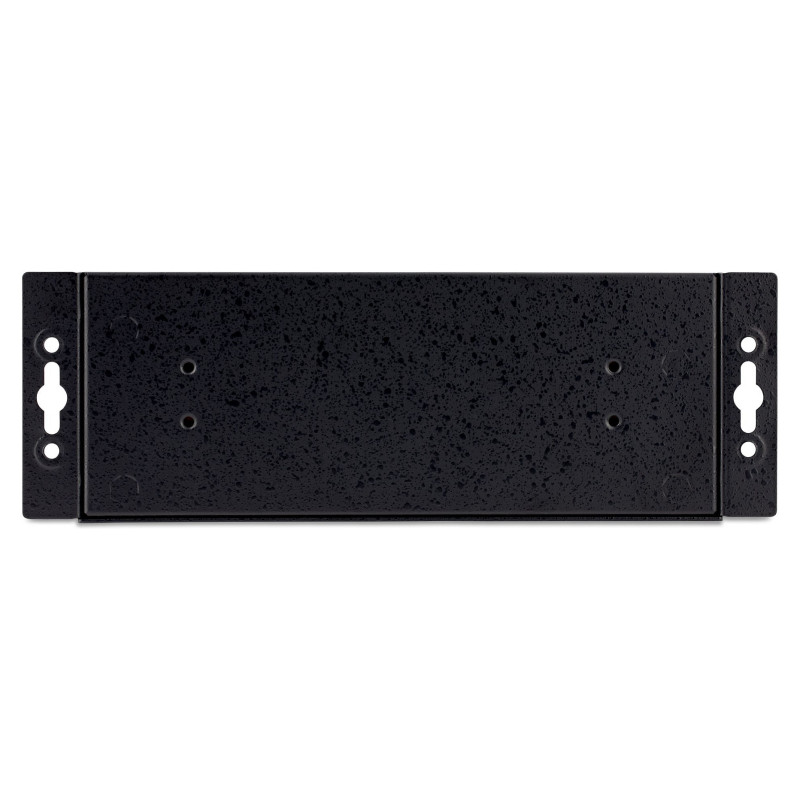

Mount to a Wall, Desk or DIN-Rail
Install the hub where it's best suited for your application. Securely mount the hub to a variety of surfaces, including a wall, desk, or rack, using the built-in mounting brackets and included hardware.
Connect and Charge USB Devices

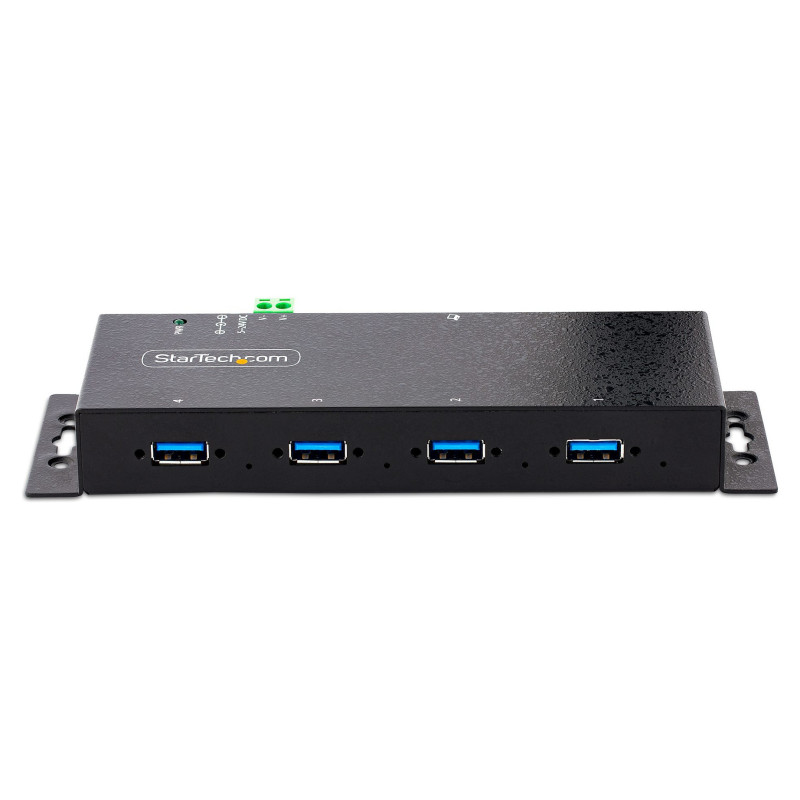

This robust heavy-duty USB 3.0 hub offers four connection ports for connecting USB devices/peripherals.

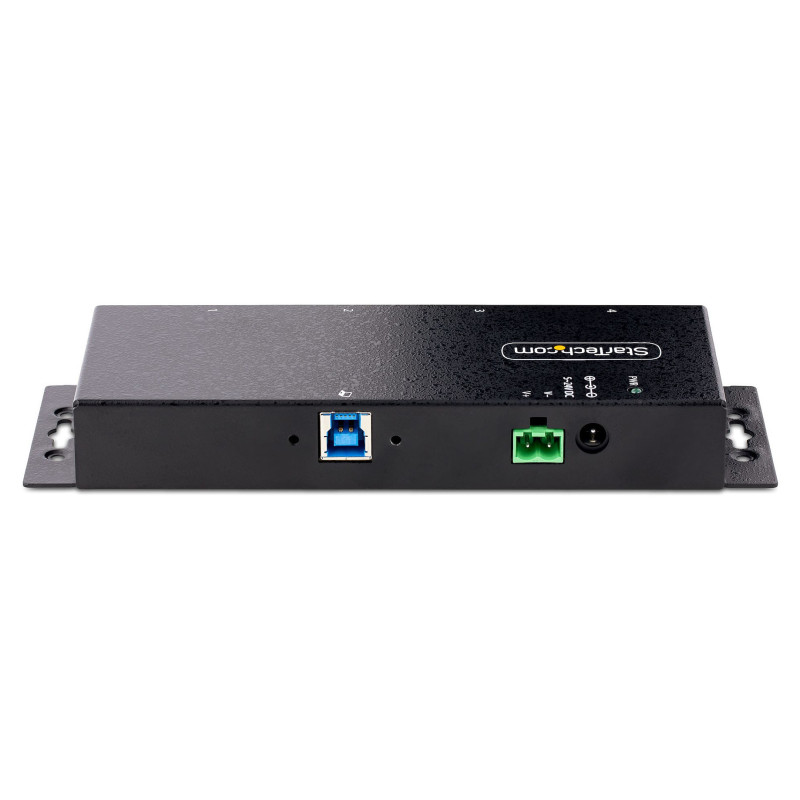

The industrial USB hub supports 5-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input options.
StarTech.com offers external power adapters, ITB20D3250 and SVA12M5NA, sold separately.
With the optional power adapter, the hub supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 30W total, so you can charge your mobile devices faster than traditional USB ports allow.
Wide Device Compatibility
The hub is OS independent ensuring support on a wide range of platforms including Windows, macOS and Linux.

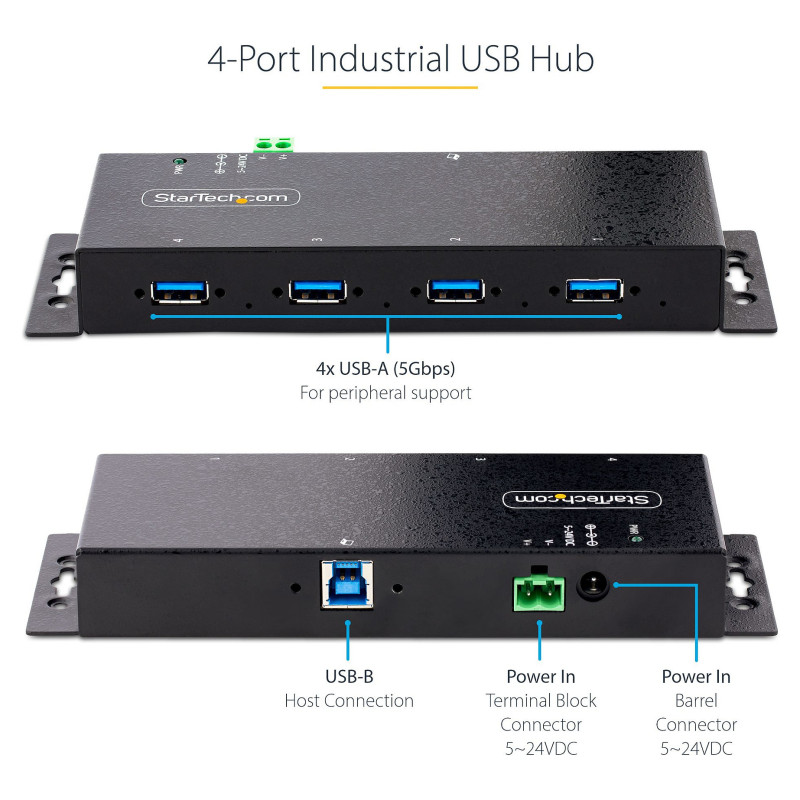

Ports interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ports quantity: 4
Terminal block port: Yes
DC-in jack: Yes

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Steel
LED indicators: Yes
Cable length: 1.8 m
Plug and Play: Yes

Power

Power plug type: Type M

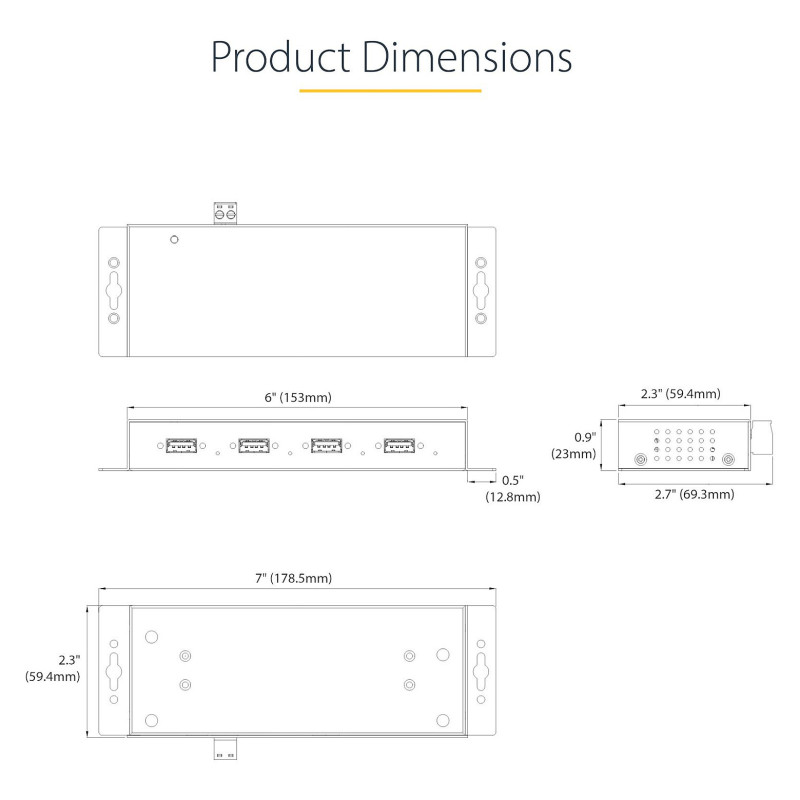

Weight dimensions

Width: 59 mm
Depth: 178 mm
Height: 23 mm
Weight: 280 g

Packaging data

Package width: 151 mm
Package depth: 216 mm
Package height: 55 mm
Package weight: 500 g

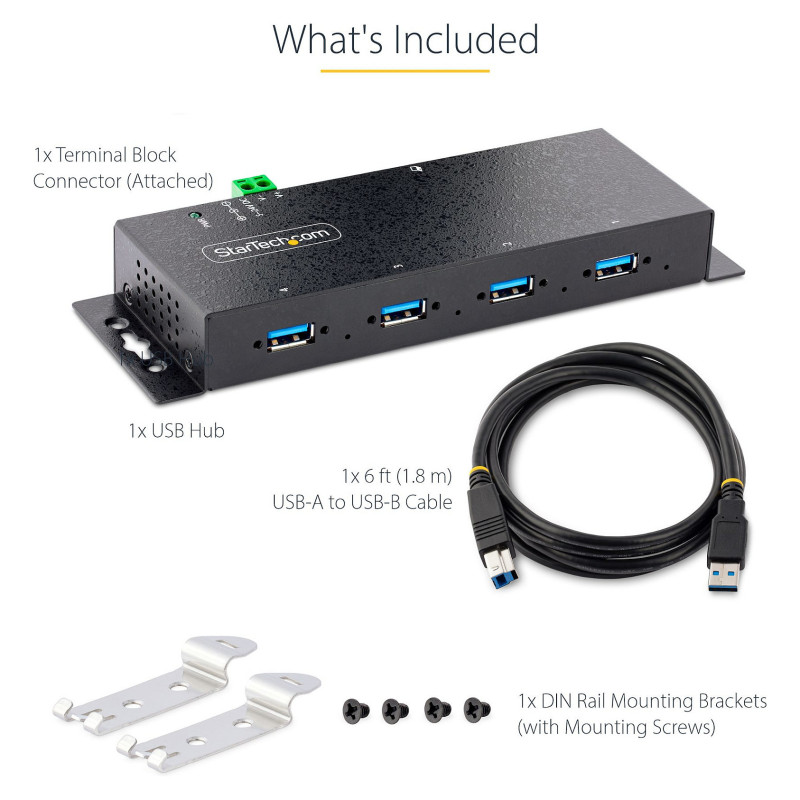

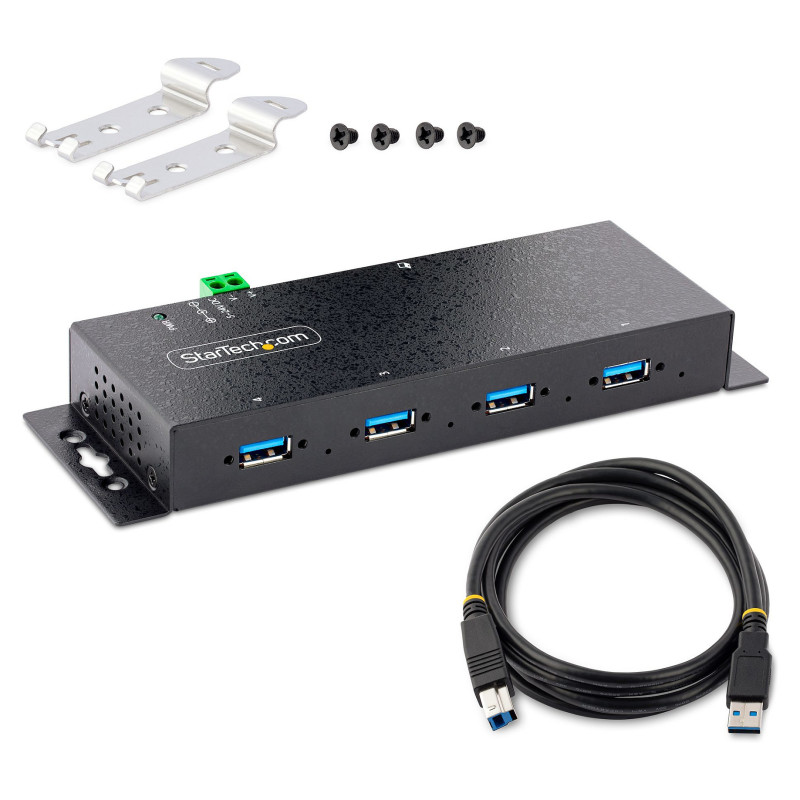

Packaging content

Cables included: USB Type-A to USB Type-B
Quick start guide: Yes

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -20 - 75 °C
Operating relative humidity (H-H): 5 - 95%

Performance

Mean time between failures (MTBF): 243753 h

Sustainability

Sustainability compliance: Yes

Logistics data

Master (outer) case width: 525 mm
Master (outer) case length: 439 mm
Master (outer) case height: 268 mm
Products per master (outer) case: 25 pc(s)

Technical details

Compliance certificates: RoHS

Other features

Chipset: VIA/VLI - VL817-Q7
