StarTech.com 5G4AB-USB-A-HUB interface hub

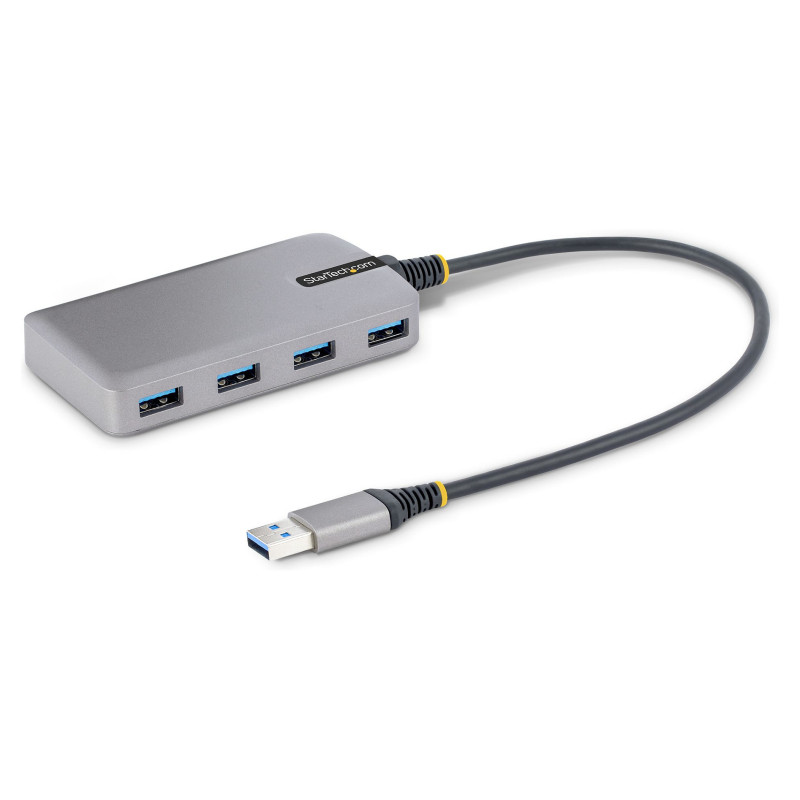

StarTech.com 4-Port USB Hub - USB 3.0 5Gbps, Bus Powered, USB-A to 4x USB-A Hub w/ Optional Auxiliary Power Input - Portable Desktop/Laptop USB Hub, 1ft/30cm Cable, USB Expansion Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: Micro-USB, USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Grey, Housing material: Plastic. Power supply type: USB, Output voltage: 5 V, Output current: 0.9 A. Width: 54 mm, Depth: 420 mm, Height: 16 mm. Package width: 170 mm, Package depth: 146 mm, Package height: 32 mm

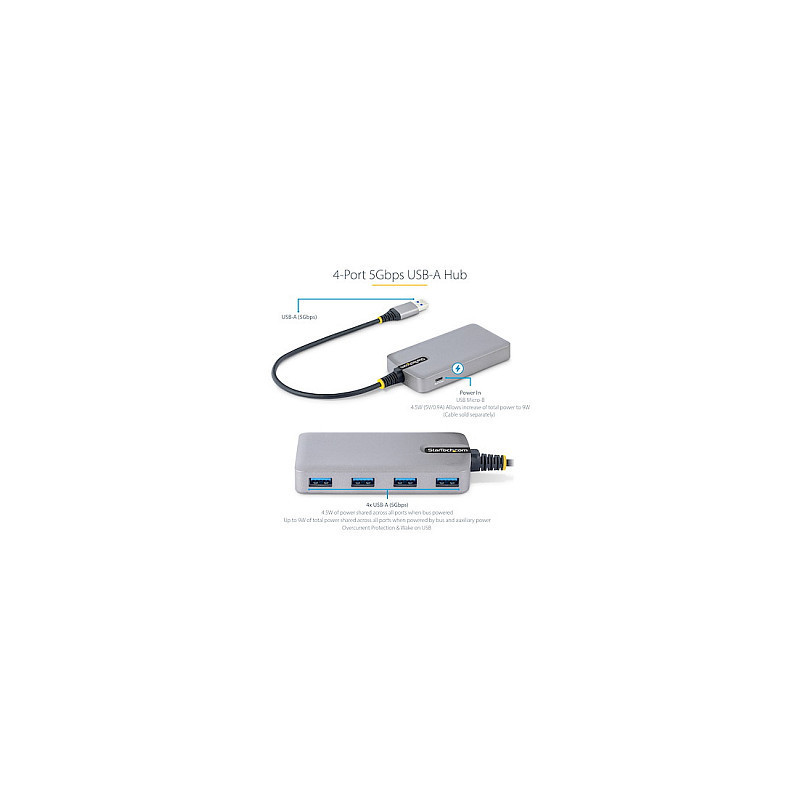

USB Type-A to 4x USB Type-A | USB 3.2 Gen 1 (5Gbps) | Auxiliary Micro USB Power Input (up to 4.5W)

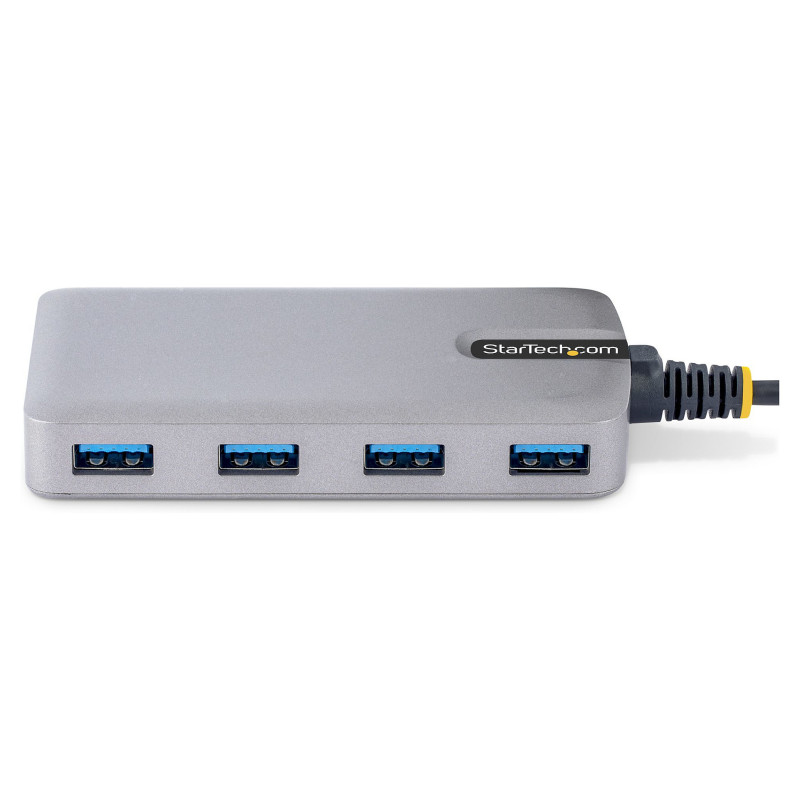

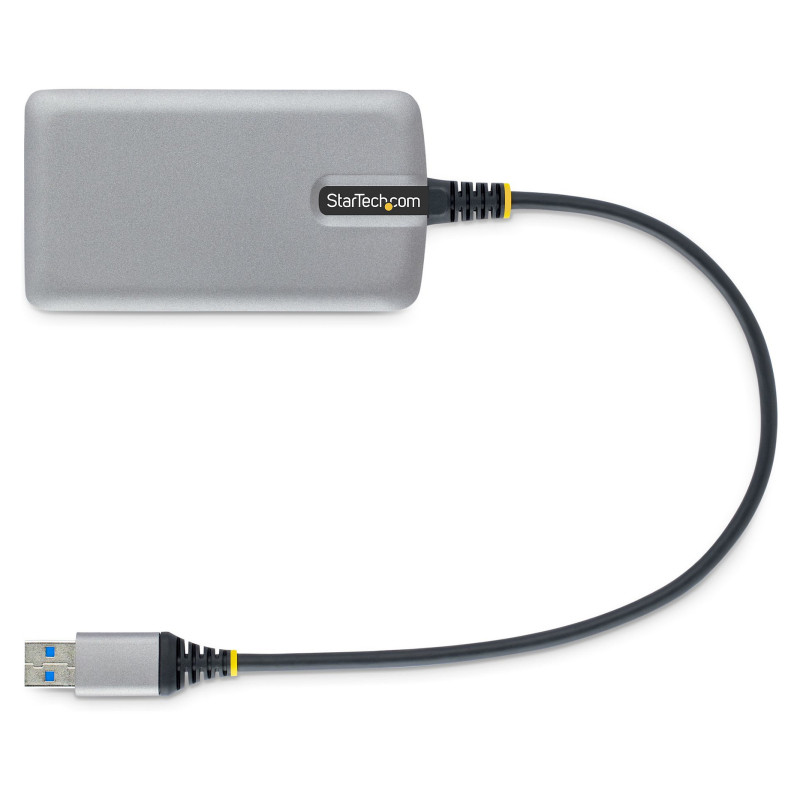

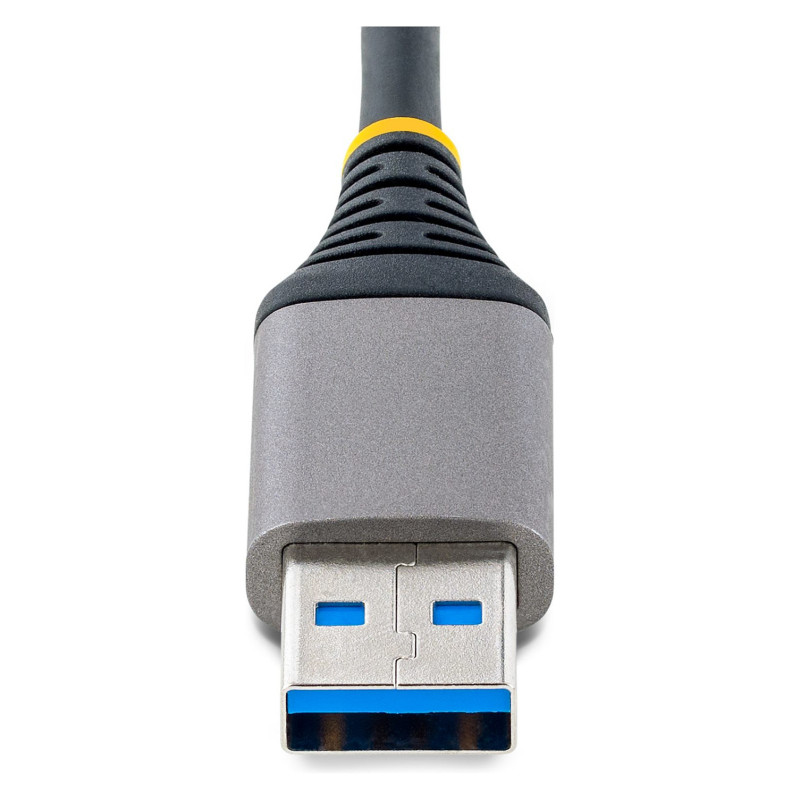

This USB Hub adds four USB-A 3.2 Gen 1 (5Gbps) ports to a USB-A enabled desktop or laptop computer. The USB Hub connects to a USB-A port on a computer, using the built-in 1ft. (30cm) host cable. The USB hub is backward compatible with USB 2.0 (480Mbps) devices, ensuring support for a wide range of modern and legacy USB peripherals (e.g., thumb drives, external HDDs/SSDs, HD cameras, mice, keyboards, webcams, and audio headsets).The USB hub is compact in size, facilitating portability when travelling.

Bus-Powered with Optional Auxiliary Power

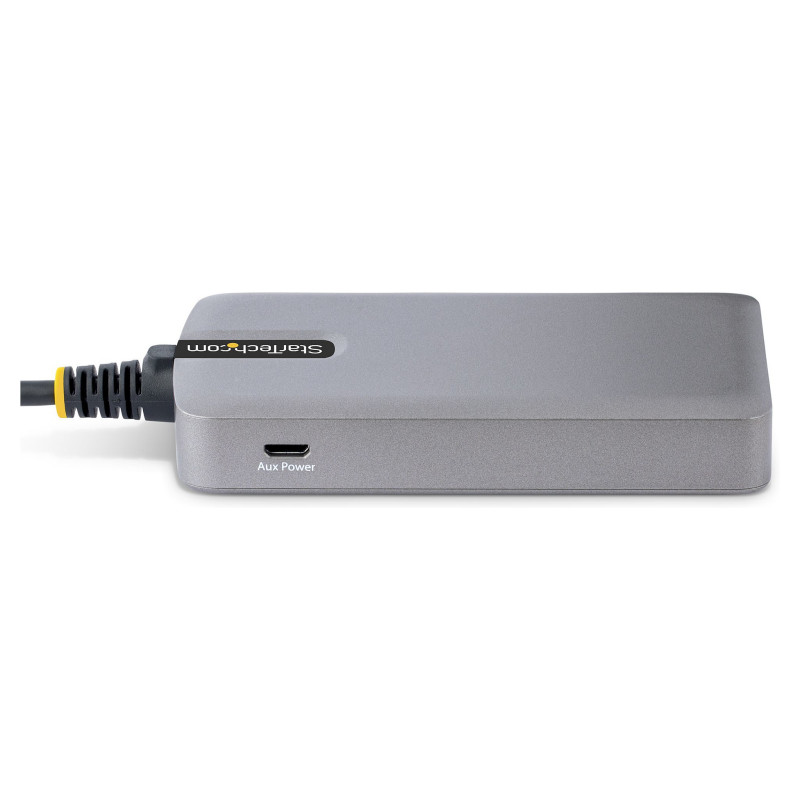

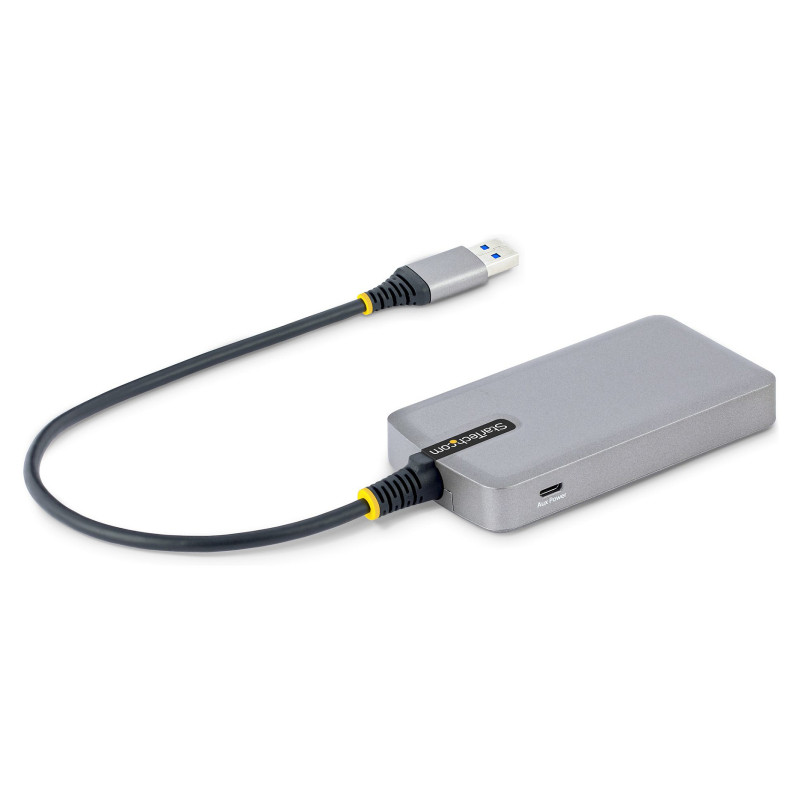

The USB hub can operate with bus power alone, but features a Micro USB power input that can be connected to a USB power adapter (not included), providing up to 4.5W (5V/0.9A) of power in addition to the 4.5W of bus power from the USB host. This flexibility is ideal for applications where additional power may be required, such as connecting a high-powered USB device, like an external SSD, while using the other ports to connect lower powered devices. The downstream ports are each capable of providing up to 4.5W of power to the connected peripherals. For added protection to this USB hub and the connected host device, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play

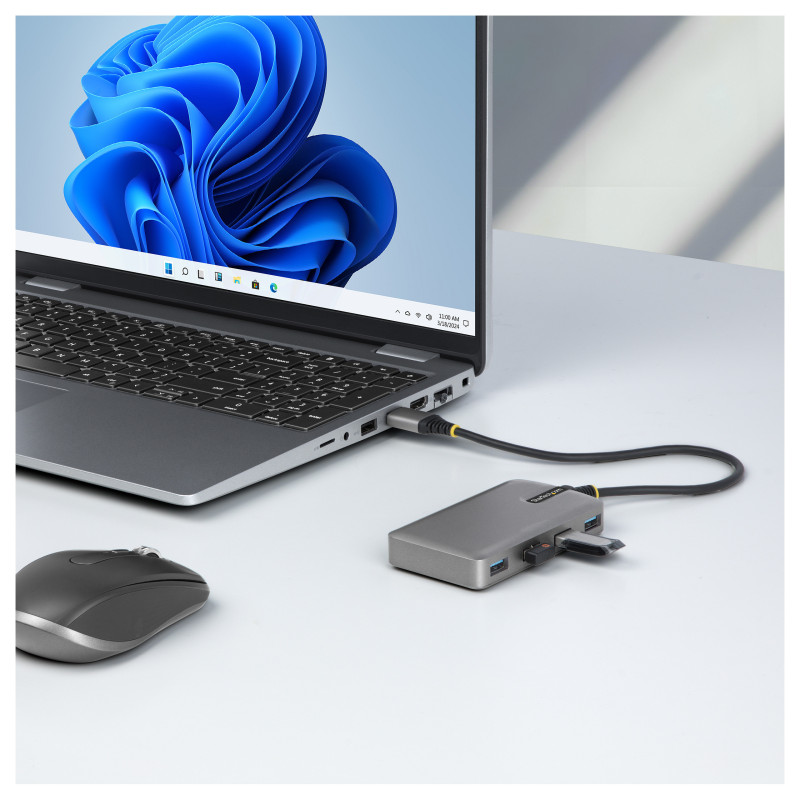

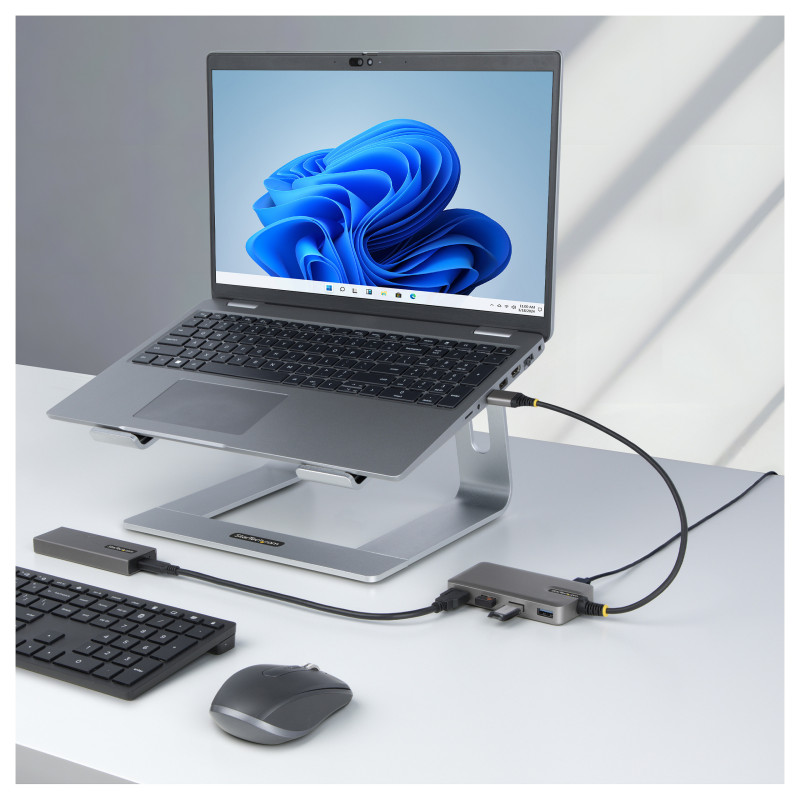

This device is OS independent, supporting all operating systems, including Windows, macOS, ChromeOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer, such as Apple MacBook, Lenovo X1 Carbon, and Dell XPS. The extra long built-in 1ft. (30 cm) USB-A host cable enables quick and convenient setup and reduces connector strain on 2-in-1 devices, such as the Surface Pro 7 and laptops on riser stands.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log any connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces: Micro-USB, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Micro-USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ports quantity: 5

Features

Data transfer rate: 5000 Mbit/s
Product colour: Grey
Housing material: Plastic
Cable length: 0.3 m

Power

Power supply type: USB
Output voltage: 5 V
Output current: 0.9 A

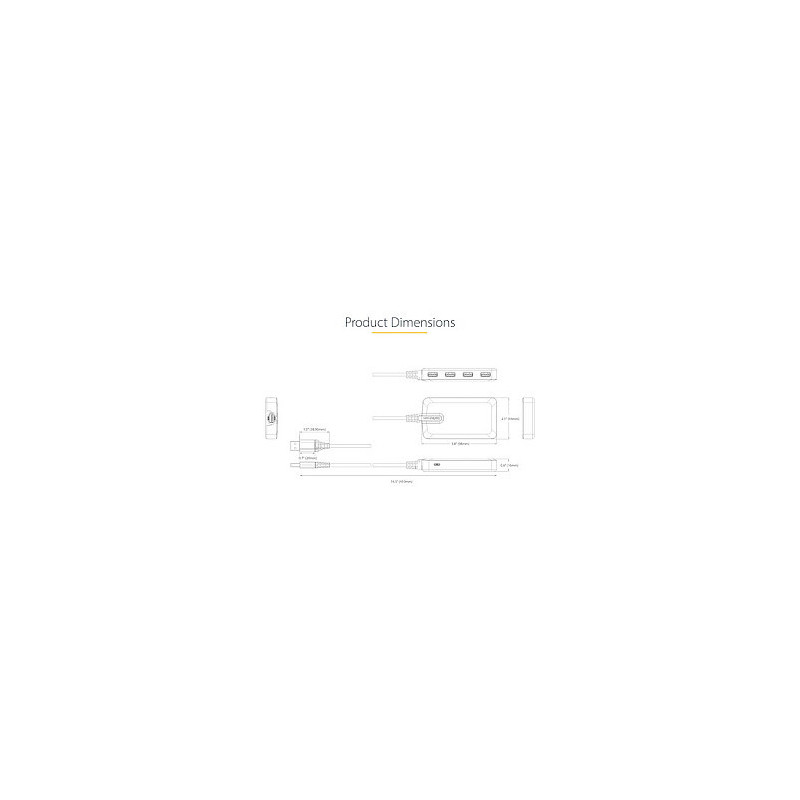

Weight & dimensions

Width: 54 mm
Depth: 420 mm
Height: 16 mm
Weight: 82 g

Packaging data

Package width: 170 mm
Package depth: 146 mm
Package height: 32 mm
Package weight: 133 g

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 0 - 85%

Sustainability

Feature: Sustainability compliance

Logistics data

Master (outer) case width: 479 mm
Master (outer) case length: 343 mm
Master (outer) case height: 447 mm
Products per master (outer) case: 70 pc(s)

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: VIA - VL817
