StarTech.com 1P6FFC-USB-SERIAL serial cable

StarTech.com 6.6ft (2m) USB to Serial Adapter Cable, COM Retention, Interchangeable Screws/Nuts, USB-A to DB9 RS232, FTDI IC, ESD Protection, Windows/macOS/Linux. Product colour: Black, Cable length: 2 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package width: 199 mm, Package depth: 142 mm. Master (outer) case width: 581 mm, Master (outer) case length: 364 mm, Master (outer) case height: 302 mm

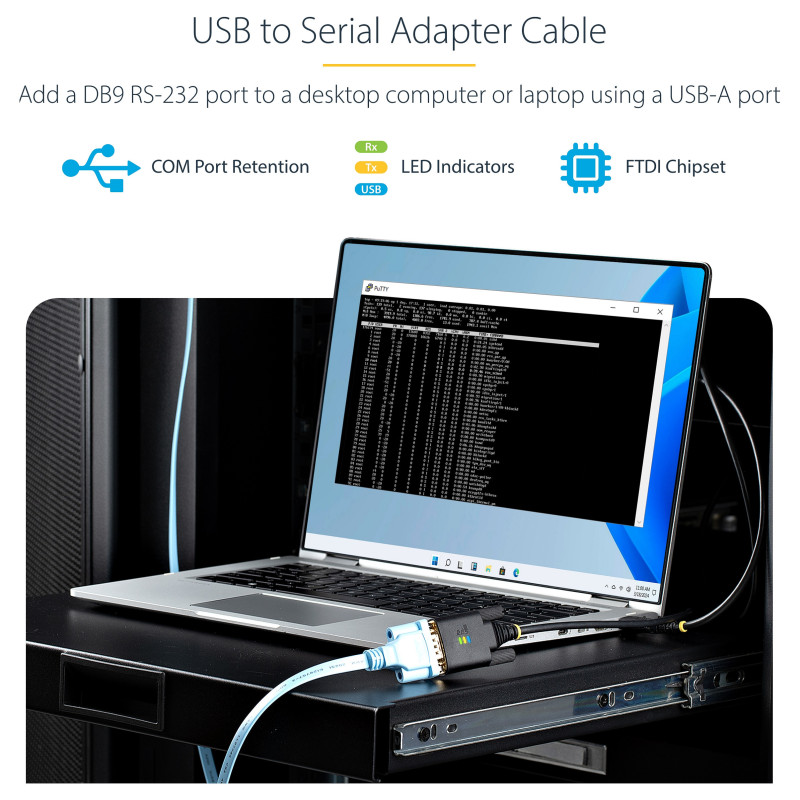

Add an RS232 serial port to a laptop or desktop, using an available USB-A port

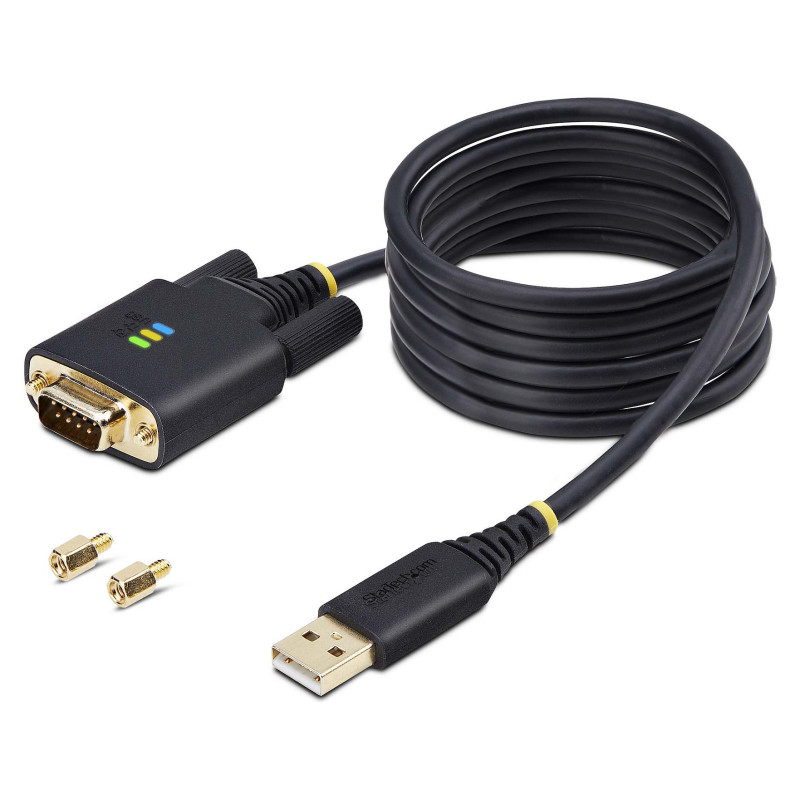

Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 6.6-foot (2-meter) straight through USB to Serial Adapter Cable.

Serial Port Expansion

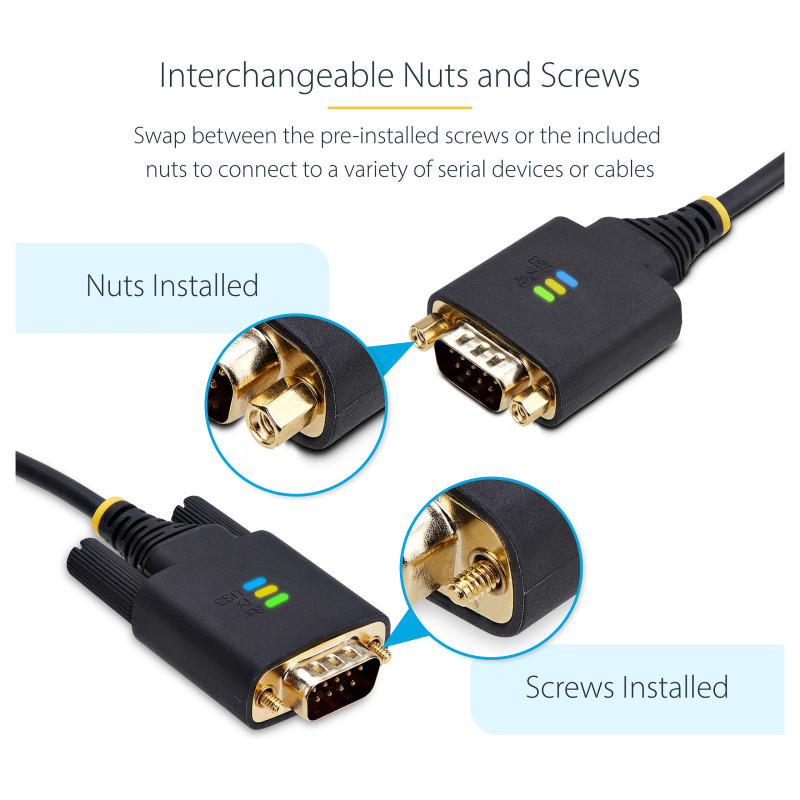

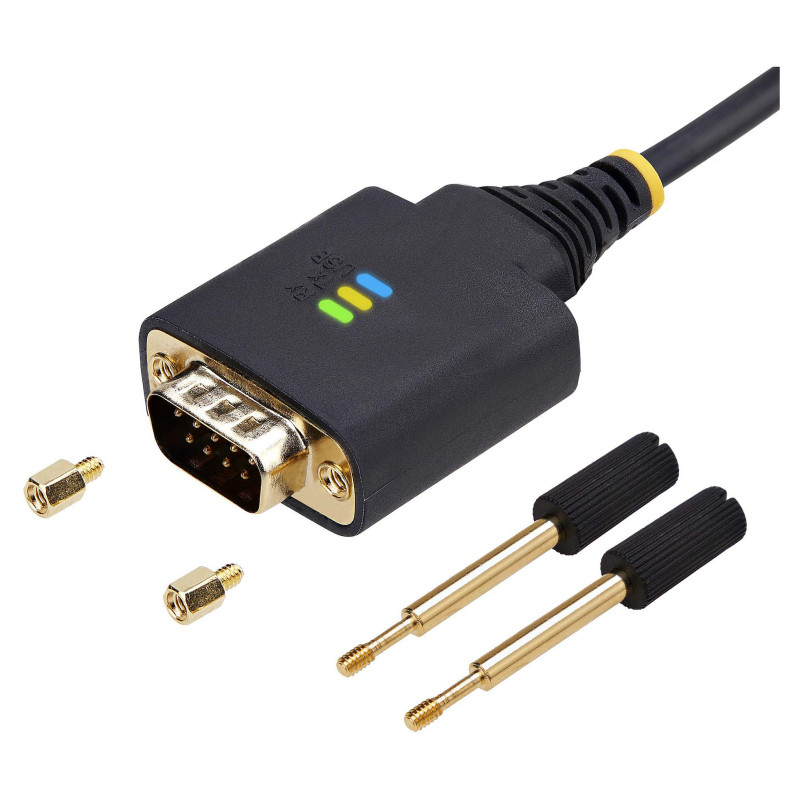

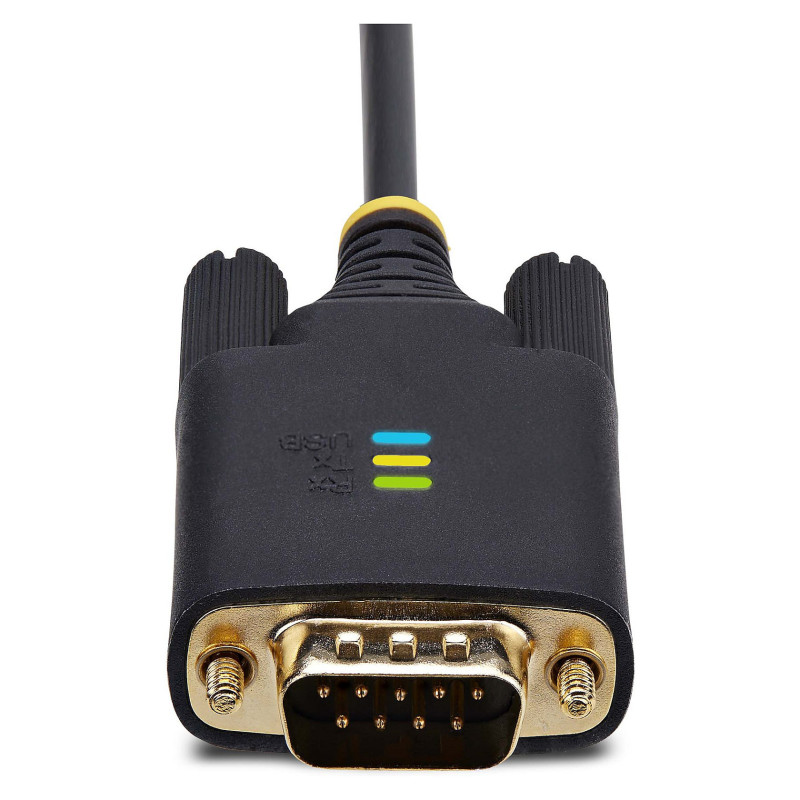

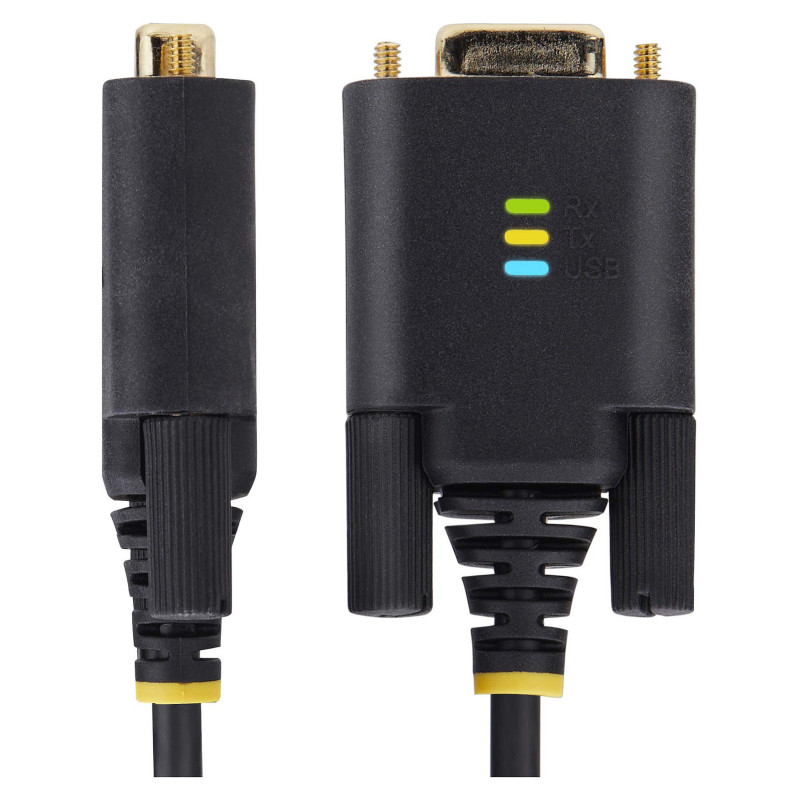

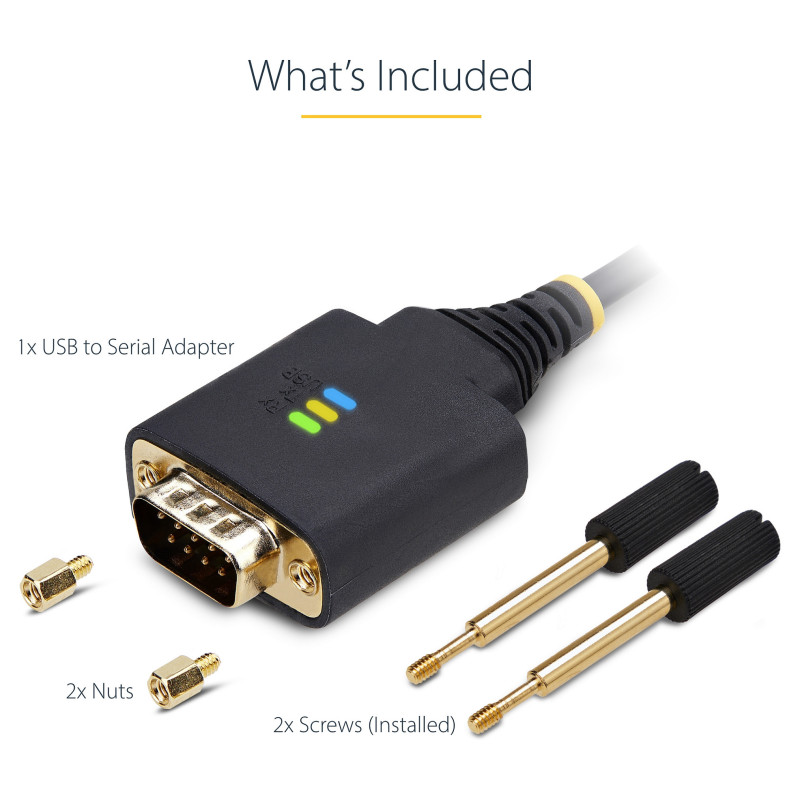

The USB Serial Adapter adds an RS-232 serial DB/DE-9 (male) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.

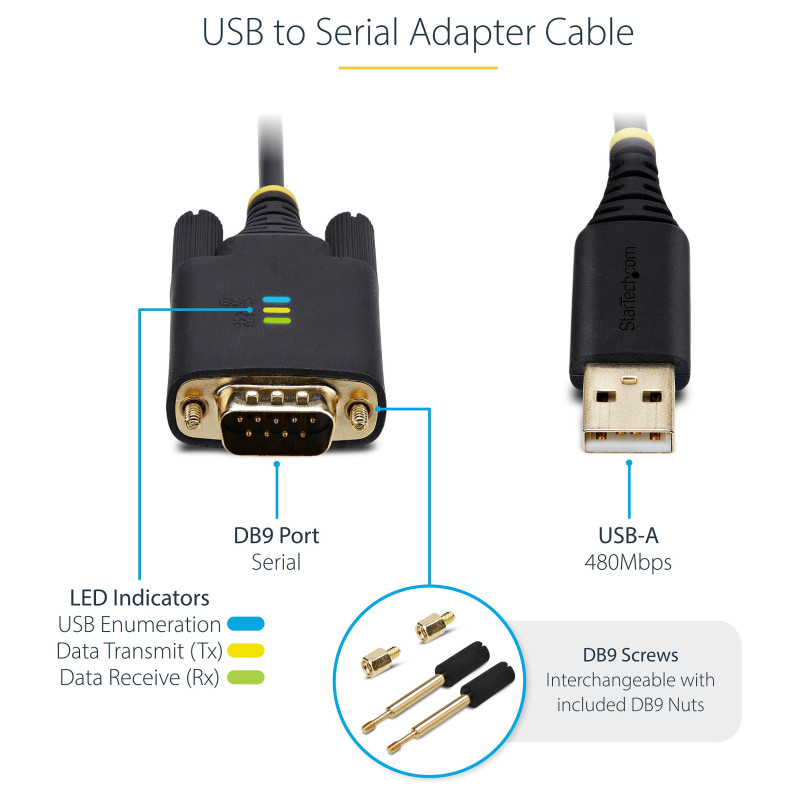

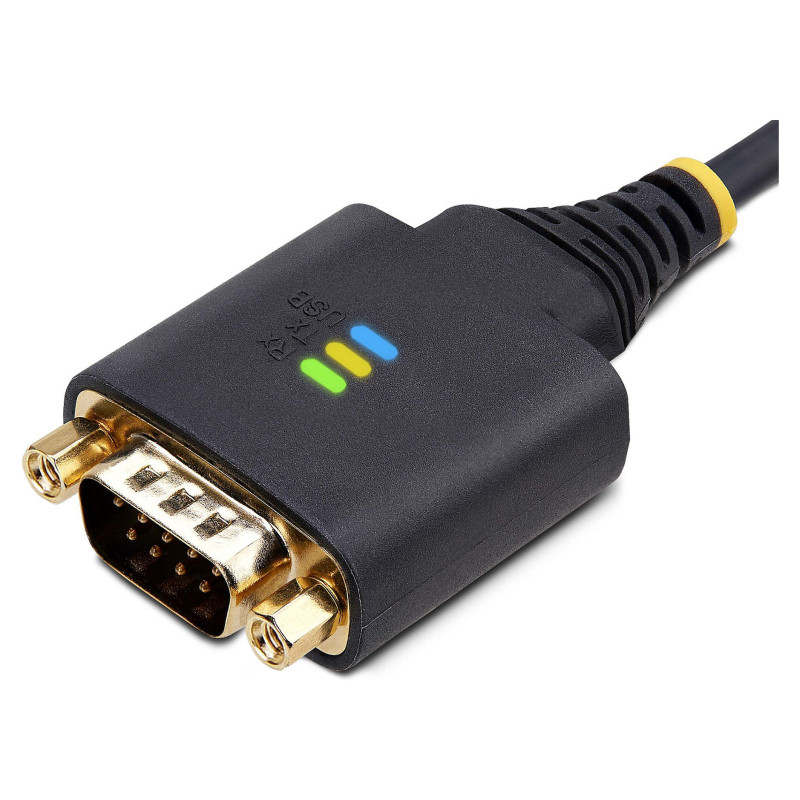

LED Indicators

Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enumerated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.

Seamless Connectivity

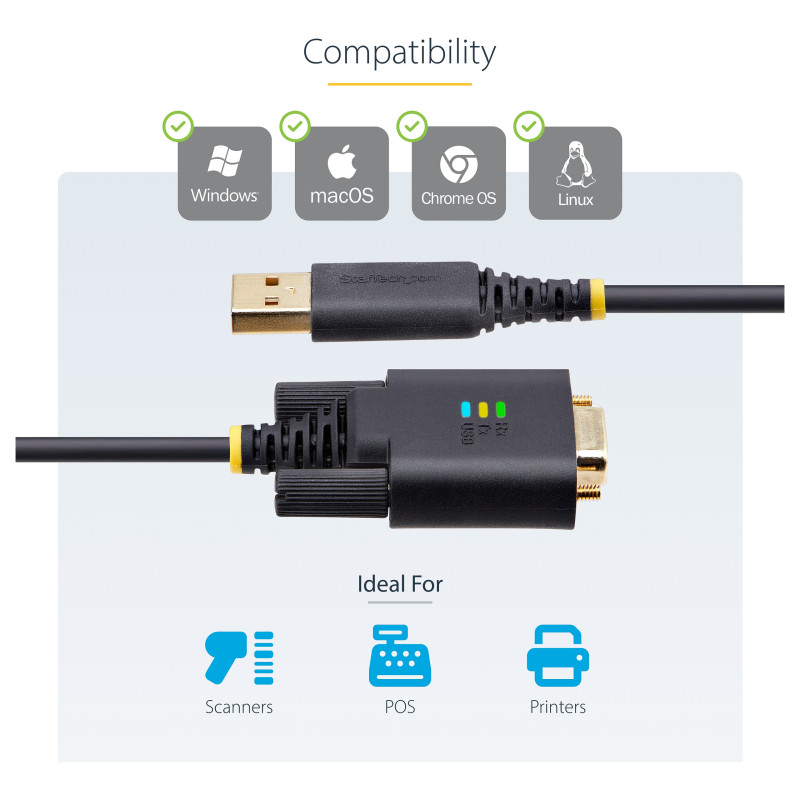

The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.

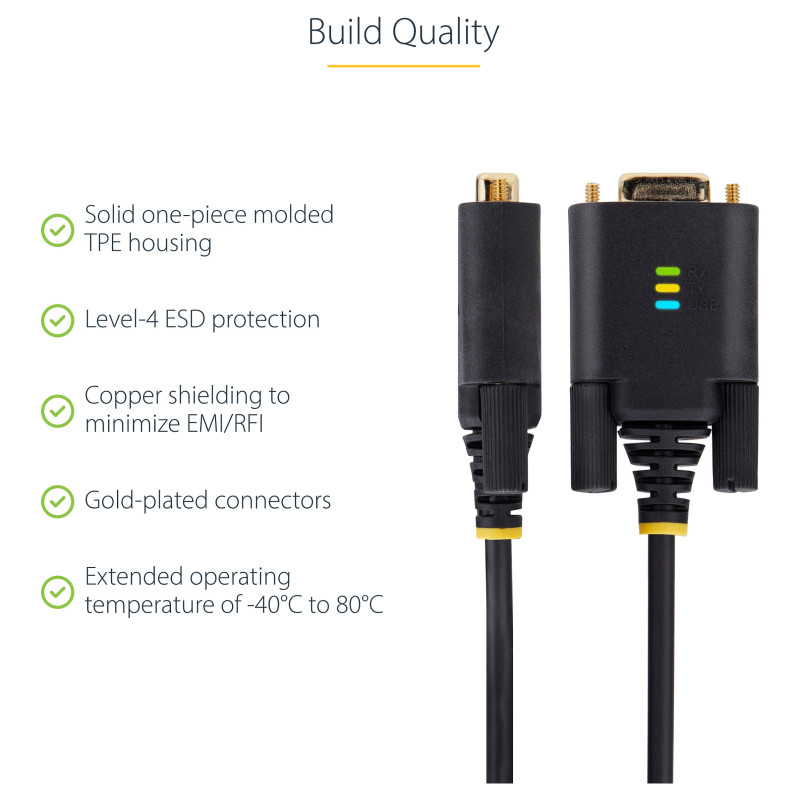

Built To Last

The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.

Features

Product colour: Black
Cable length: 2 m

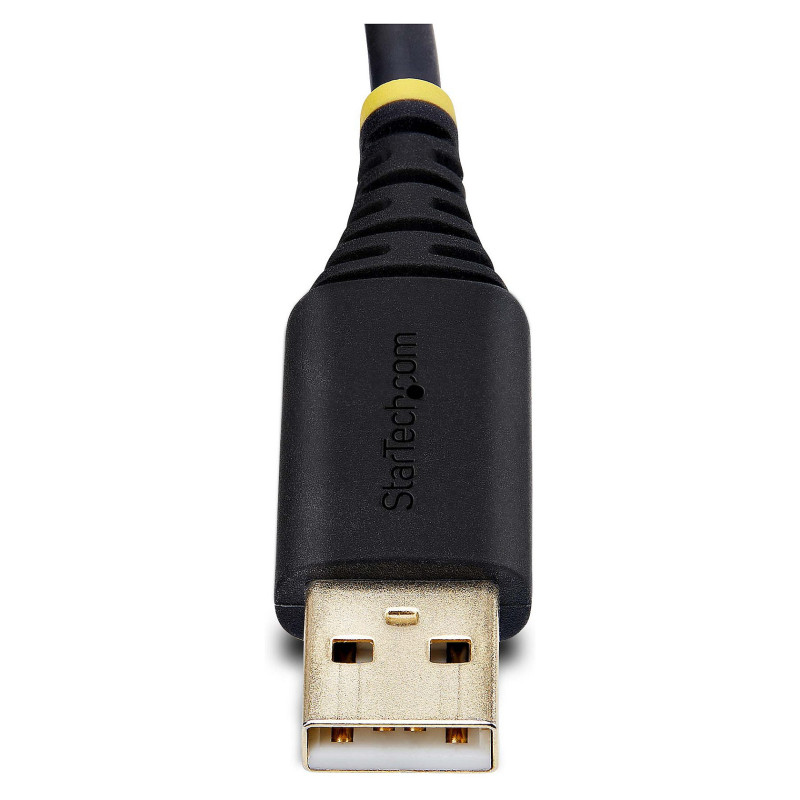

Connector 1: USB Type-A
Connector 2: DB-9
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Chipset: FTDI - FT232R
Baud rate: 921.6 Kbit/s
Data bits: 7, 8
FIFO (First In, First Out): 256 B
Parity bit: Even, Mark, No, Odd, Space
Stop bits: 1, 2
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Packaging data

Quantity per pack: 1 pc(s)
Package width: 199 mm
Package depth: 142 mm
Package height: 21 mm
Package weight: 95 g

Operational conditions

Operating temperature (T-T): -40 - 80 °C
Storage temperature (T-T): -40 - 80 °C
Operating relative humidity (H-H): 0 - 95%

Packaging content

Feature: Manual

Logistics data

Master (outer) case width: 581 mm
Master (outer) case length: 364 mm
Master (outer) case height: 302 mm
Products per master (outer) case: 40 pc(s)
