StarTech.com 199UE-USBC-DOCK laptop dock / port replicator

StarTech.com USB-C Docking Station Triple 4K Displays (2x 4K 60Hz, 1x 4K 30Hz), 100W Power Delivery, 6 USB Ports (10Gbps), Gigabit Ethernet, DisplayPort + HDMI, Driverless Windows Laptop Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 24 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Linux operating systems supported: Ubuntu 24.04 LTS

Transform a USB-C laptop into a multi-monitor workstation with DisplayPort and HDMI video, plus USB-A and USB-C ports

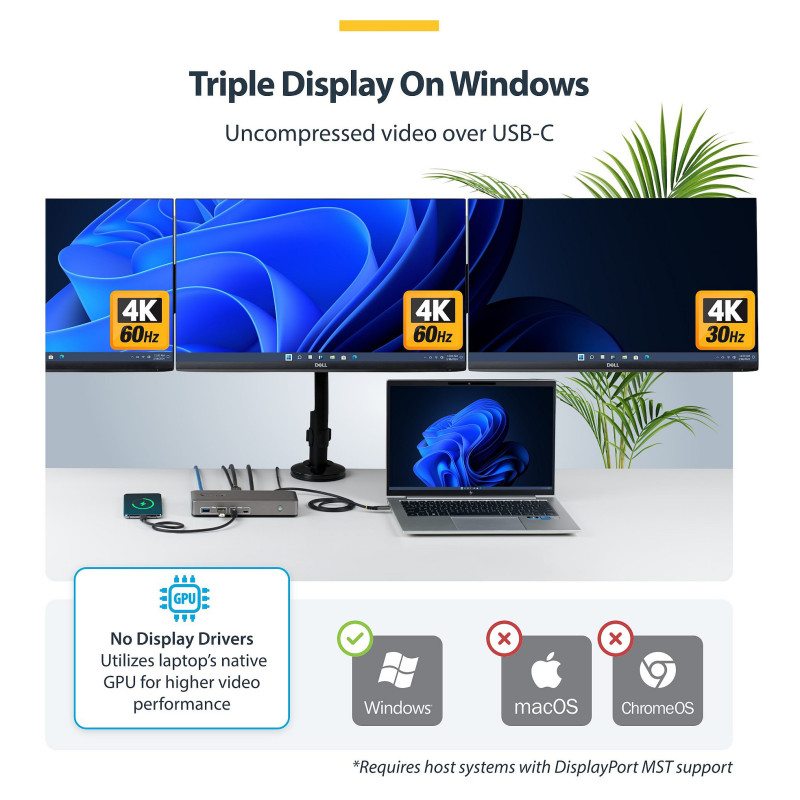

Connect up to three 4K displays (2x DisplayPort and 1x HDMI) through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

Uncompressed Video Over USB-C

Connect three 4K displays (2x 4K 60Hz and 1x 4K 30Hz) with 2x DP and 1x HDMI through a single USB Type-C port with uncompressed video powered by your laptop's native GPU. Drive demanding workflows with high-performance visuals and no software compression

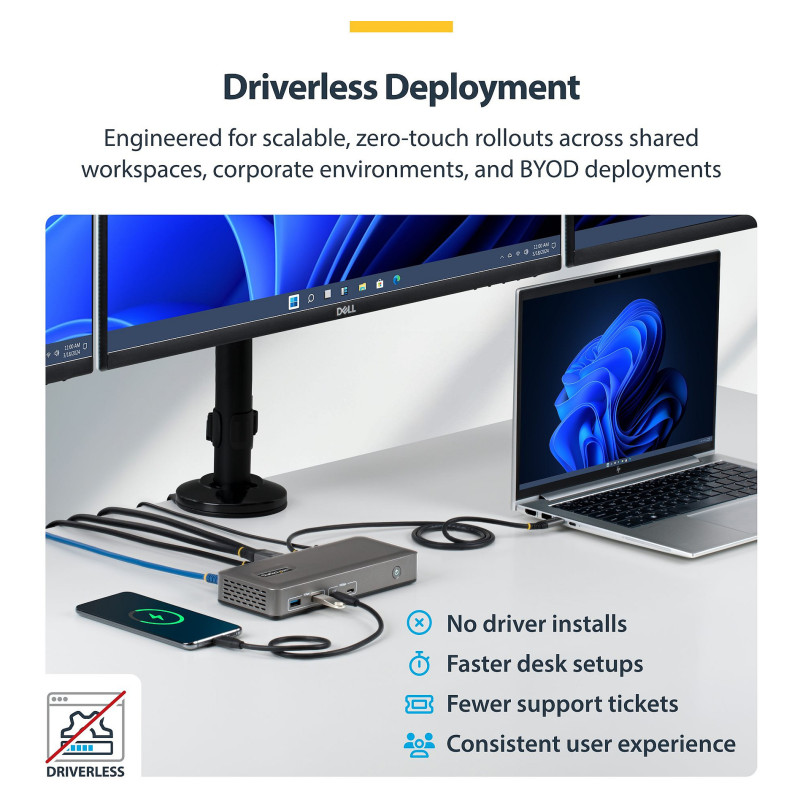

Driverless Deployment

Features plug-and-play functionality on Windows with no drivers or software required*. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

Flexible, High-Speed I/O

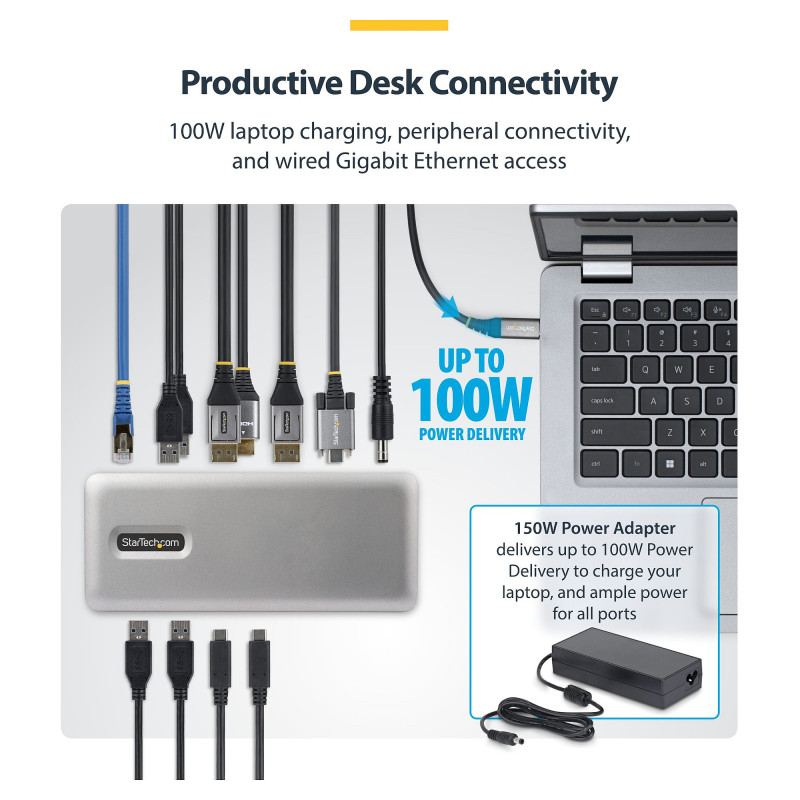

This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

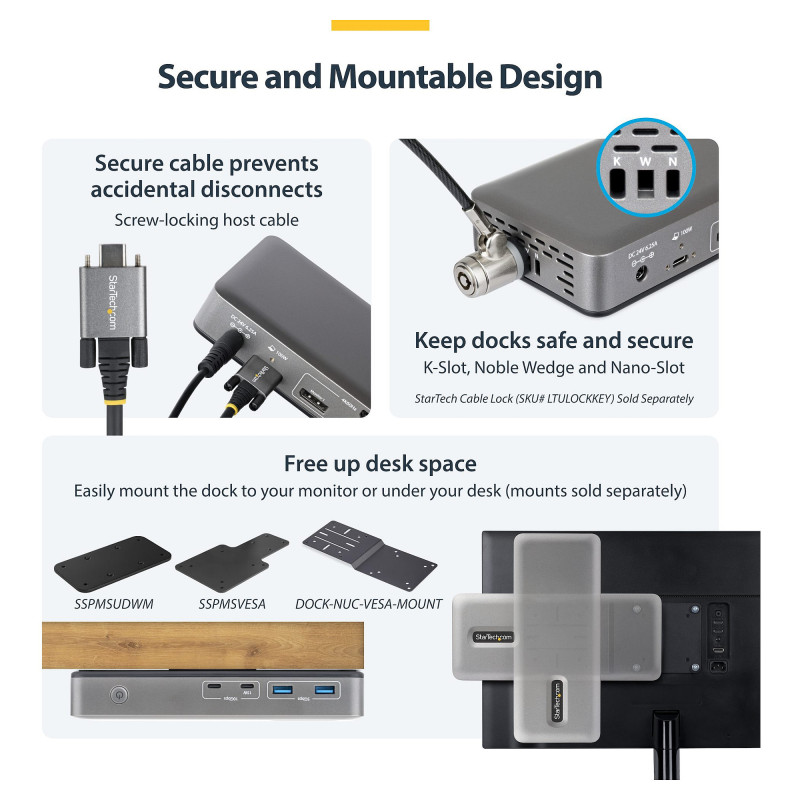

Mounting and Security

This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).

*Note: Not compatible with macOS or ChromeOS

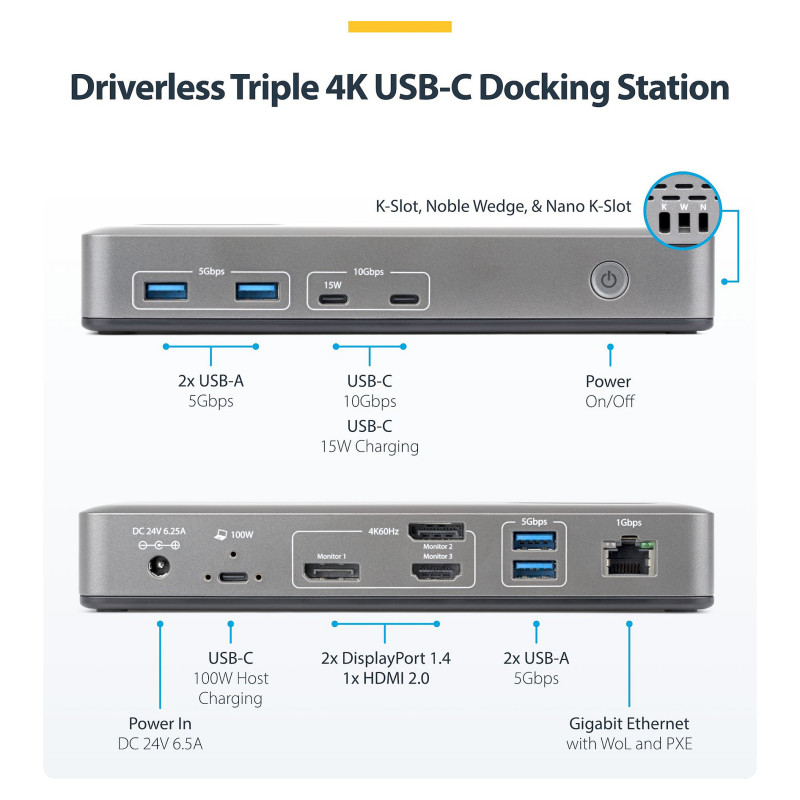

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
HDMI ports quantity: 1
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wake-on-LAN ready
Feature: Full duplex

Performance

Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 4096 x 2160 pixels
Number of displays supported: 2
Feature: Cable lock slot
Cable lock slot type: Kensington, Nano, Wedge, Noble
Product colour: Grey
Feature: On/off switch
LED indicators: Yes
Mean time between failures (MTBF): 84290 h

Power

AC input voltage: 100 - 240 V
Input current: 2.5 A
Output voltage: 24 V
Output current: 6.25 A
Power consumption (typical): 150 W
Compatible power plug types: EU, UK

Software

Linux operating systems supported: Ubuntu 24.04 LTS

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): 10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Weight & dimensions

Width: 79 mm
Depth: 190 mm
Height: 27 mm
Weight: 300 g

Packaging data

Package width: 250 mm
Package depth: 205 mm
Package height: 50 mm
Package weight: 1 kg

Packaging content

Cables included: USB Type-C
Feature: AC adapter included

Technical details

Compliance certificates: RoHS, Federal Communications Commission (FCC)

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 430 mm
Master (outer) case length: 270 mm
Master (outer) case height: 280 mm

Other features

Chipset: VMM5320, VL103R, VL171, VL822, VP226, VL817, RTL8153E
