StarTech.com 127B-USBC-MULTIPORT laptop dock / port replicator

StarTech.com USB C Multiport Adapter, 4K 60Hz HDMI Video, 3 Port 5Gbps USB Hub, 100W Power Delivery Pass-Through, GbE, 12"/30cm Cable, Mini Travel Dock, Laptop Docking Station. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power consumption (typical): 15 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Mobile operating systems supported: Android, iPadOS

Portable Docking Station | Mac and Windows® | 4K 60Hz | GbE | Thunderbolt™ 3 and Thunderbolt™ 4 Compatible

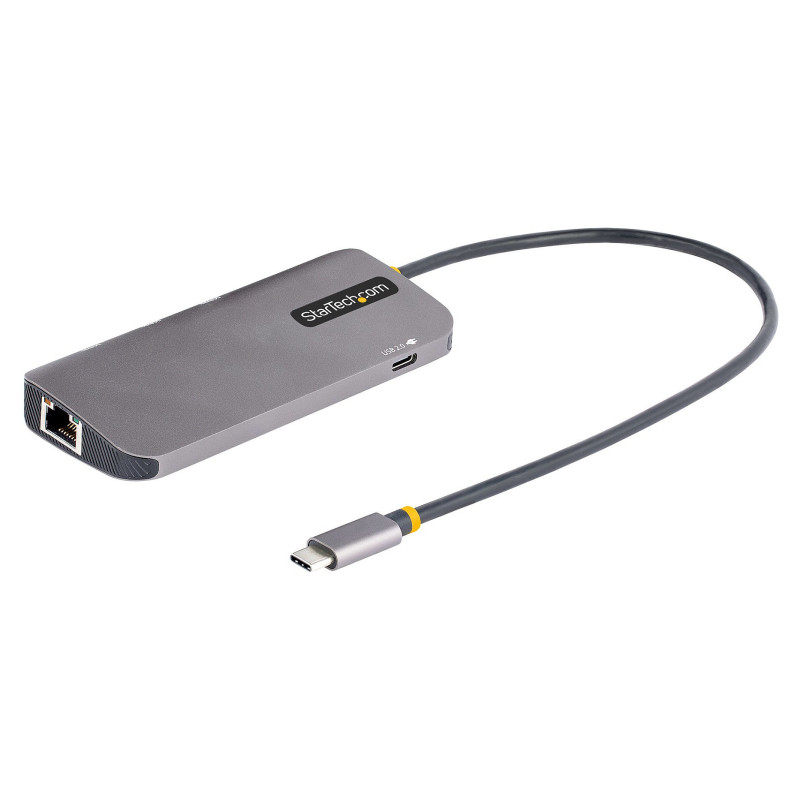

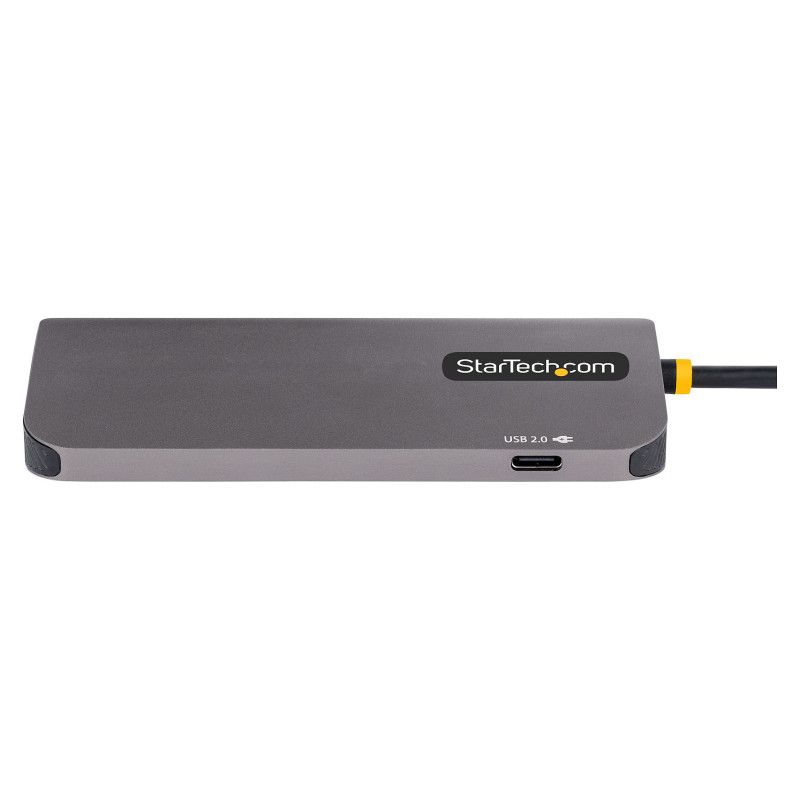

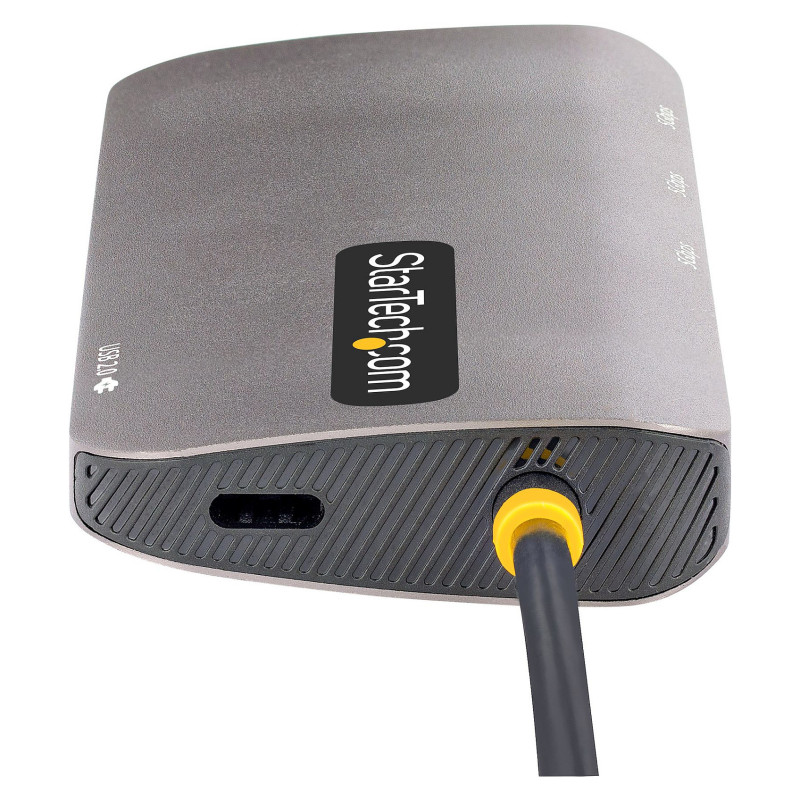

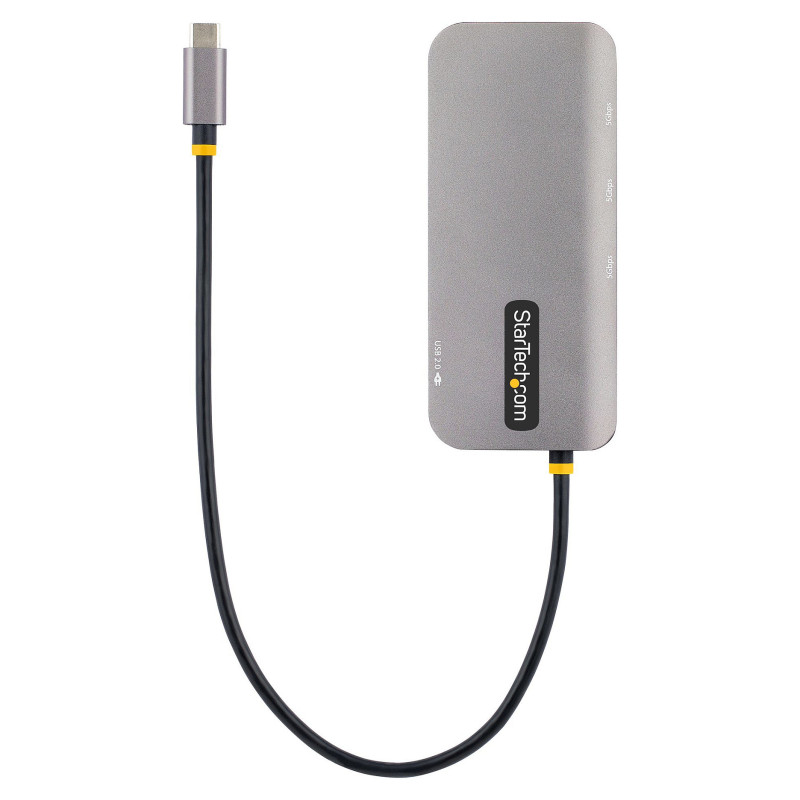

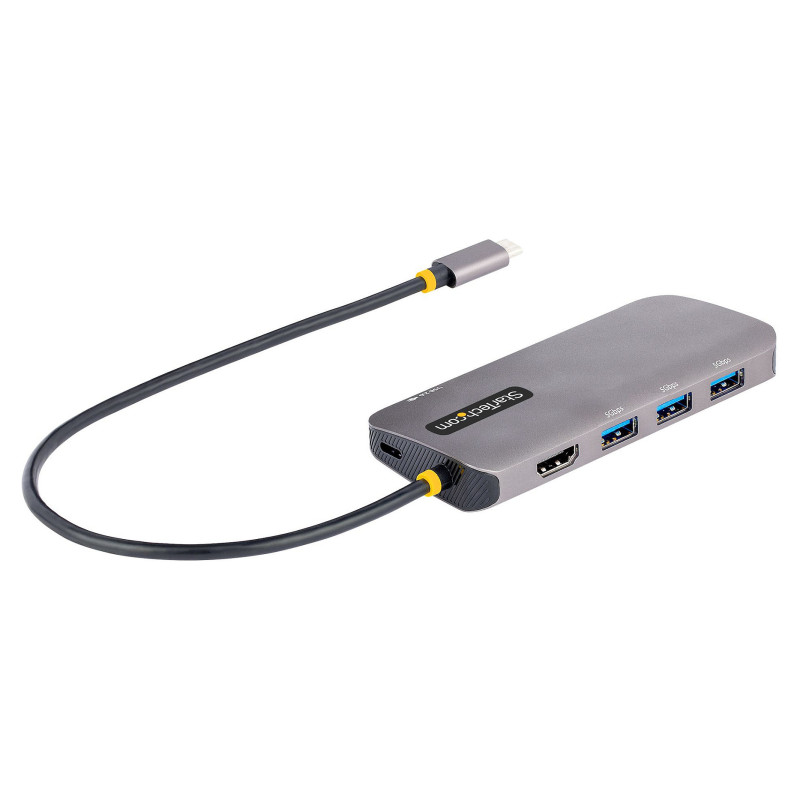

This USB-C™ Multiport Adapter with DP 1.4 Alt Mode supports 4K 60Hz HDMI® (HDR) and turns your MacBook, Dell XPS, or other USB-C laptop or tablet into a workstation, anywhere you go. The USB Type-C™ Multiport Adapter features one 4K HDMI video output, three USB 3.2 Gen 1 Type-A (5Gbps) ports, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C, USB4, or Thunderbolt 3/4™ port. In addition, it offers advanced charging and flexibility through a shared USB-C Power Delivery 3.0 and Data port; this port can be used to connect peripherals, whenever a power source is not connected, at USB 2.0 data transfer speeds (480Mbps). The Multiport Adapter features an extra-long attached 12-inch (30 cm) host cable - for an extended reach, to offer more setup flexibility.

Enhance Productivity

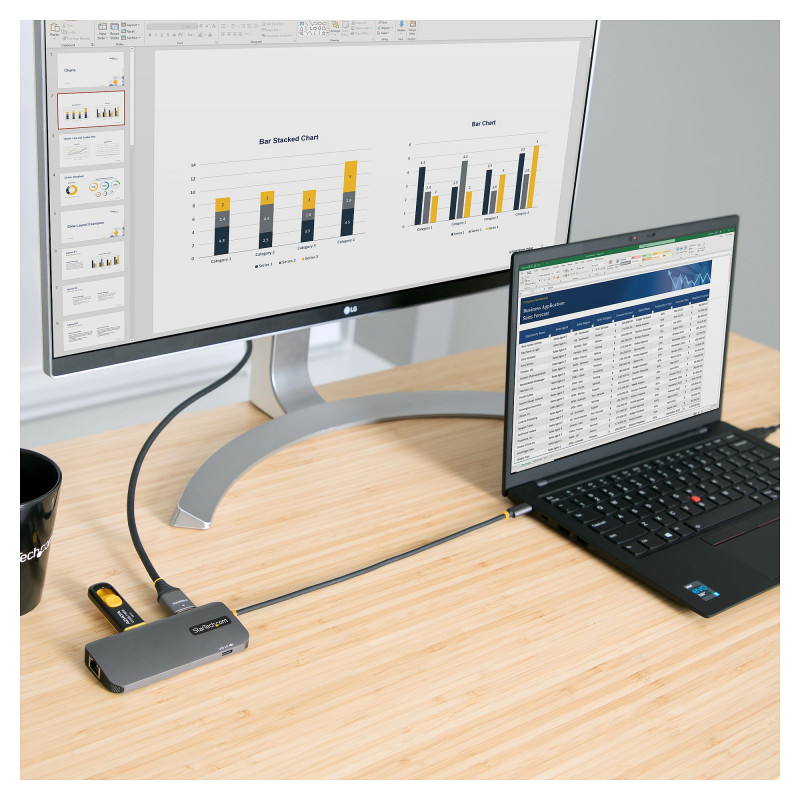

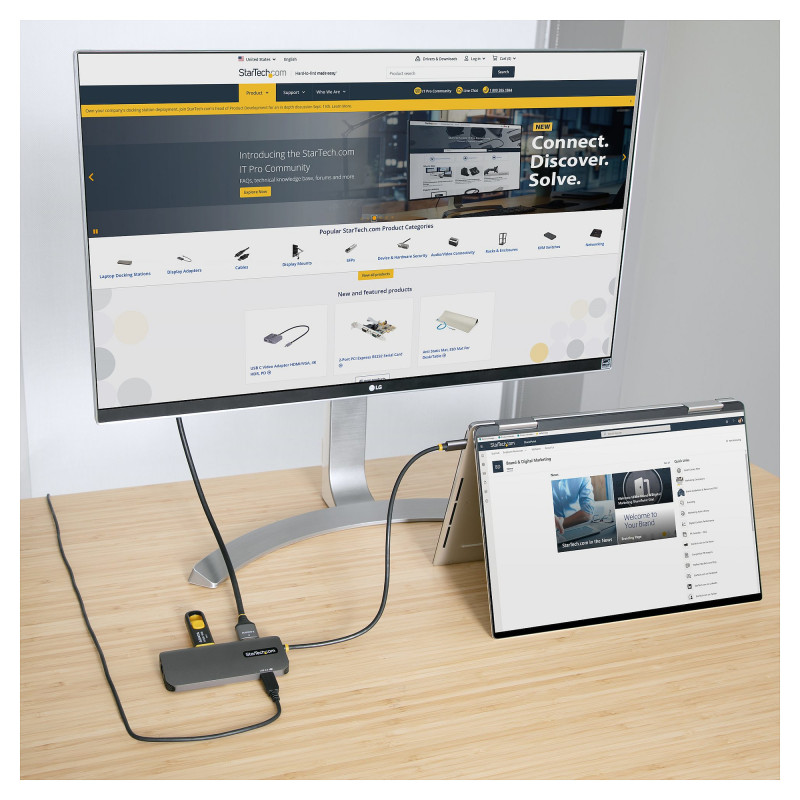

The portable docking station enables the connection of a 4K 60Hz HDMI monitor (4096 x 2160p), or an ultrawide monitor, to your laptop, in order to create a powerful workstation.

Connect Your USB Devices

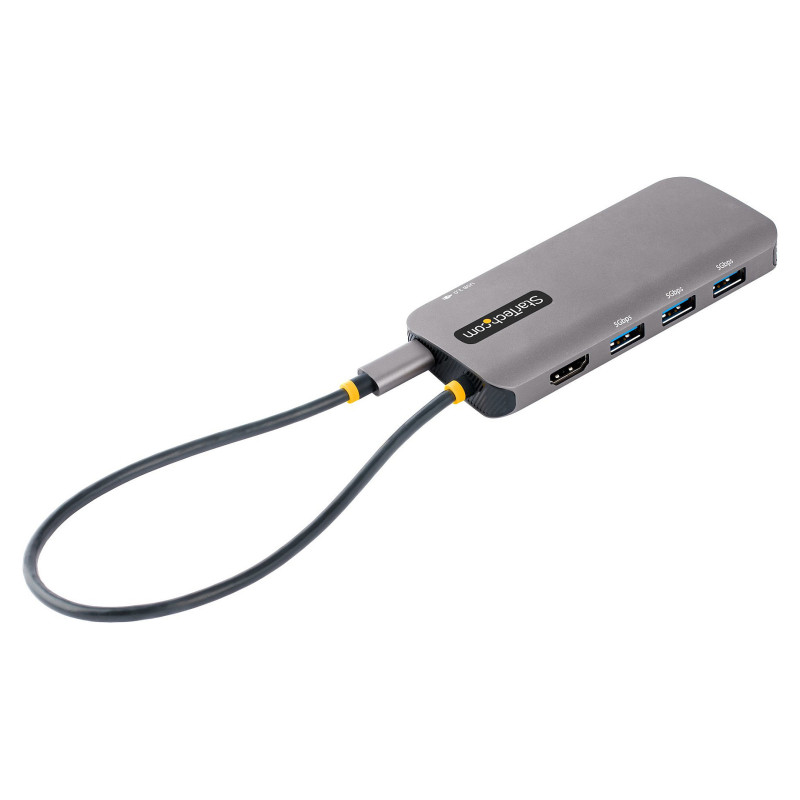

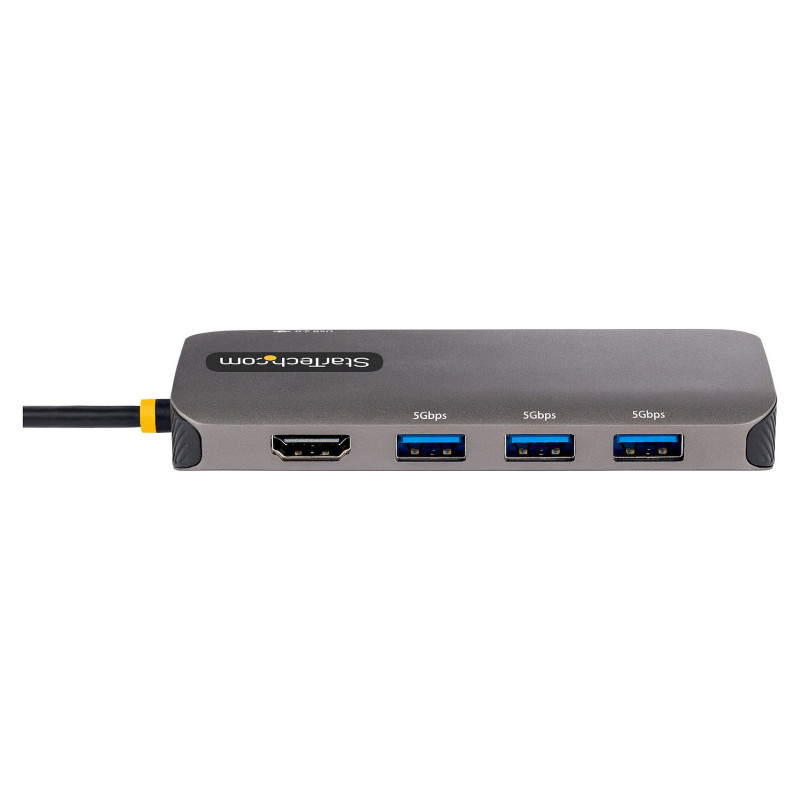

The USB-C to USB 3.2 Gen 1 hub features three USB-A (5Gbps) ports for connecting your USB devices.

Multiple Use Cases

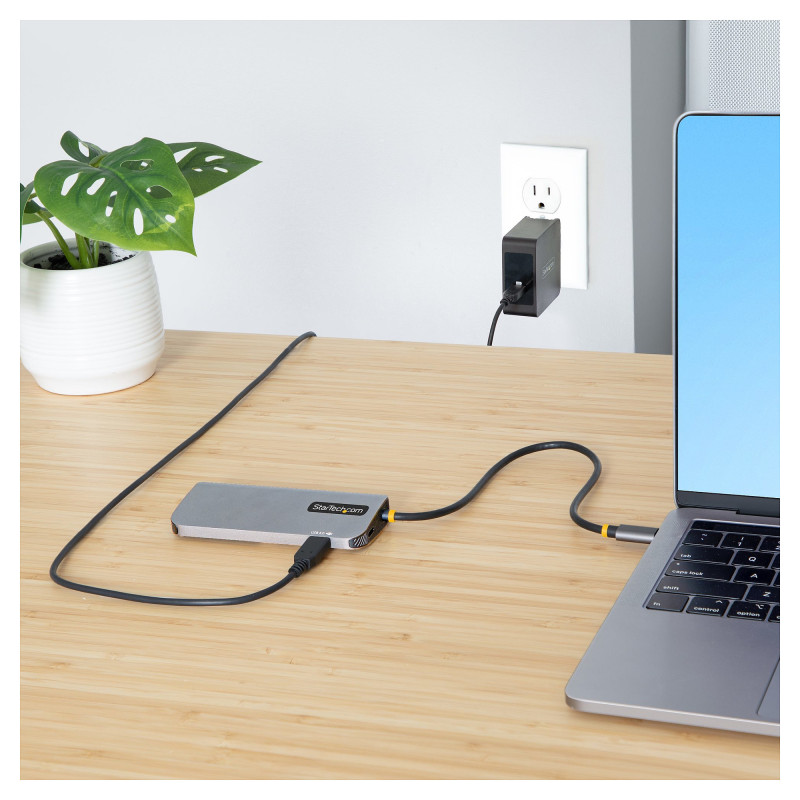

A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom, it is portable enough to be carried in your bag or backpack for mobile use. This lightweight USB-C Adapter can be bus-powered. Alternatively, connect your laptop's USB-C power adapter to charge your laptop and USB peripherals.

Charge Your Laptop

With support for USB Power Delivery 3.0 pass through (up to 100W), the USB Type-C Multiport Adapter allows you to power and charge your laptop, when connected to a USB-C power source. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when you switch power sources (USB-C power adapter to bus power).

Reliable Network Connectivity

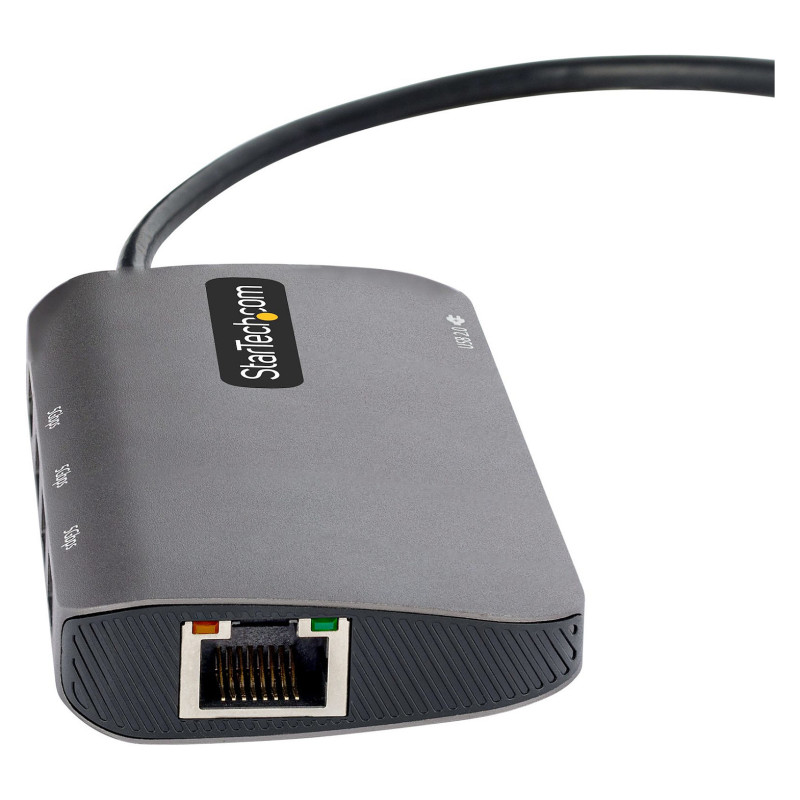

The Gigabit Ethernet port ensures reliable wired network access, with support for PXE Boot and WoL.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : Setup and save custom windows layouts.

• MAC Address Pass-Through Utility : Improve network security.

• USB Event Monitoring Utility : Track and log connected USB devices.

• Wi-Fi Auto Switch Utility : Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The 127B-USBC-MULTIPORT is backed by a StarTech.com 3-year warranty and a lifetime of free technical support.

Ports & interfaces

Connectivity technology: Wired

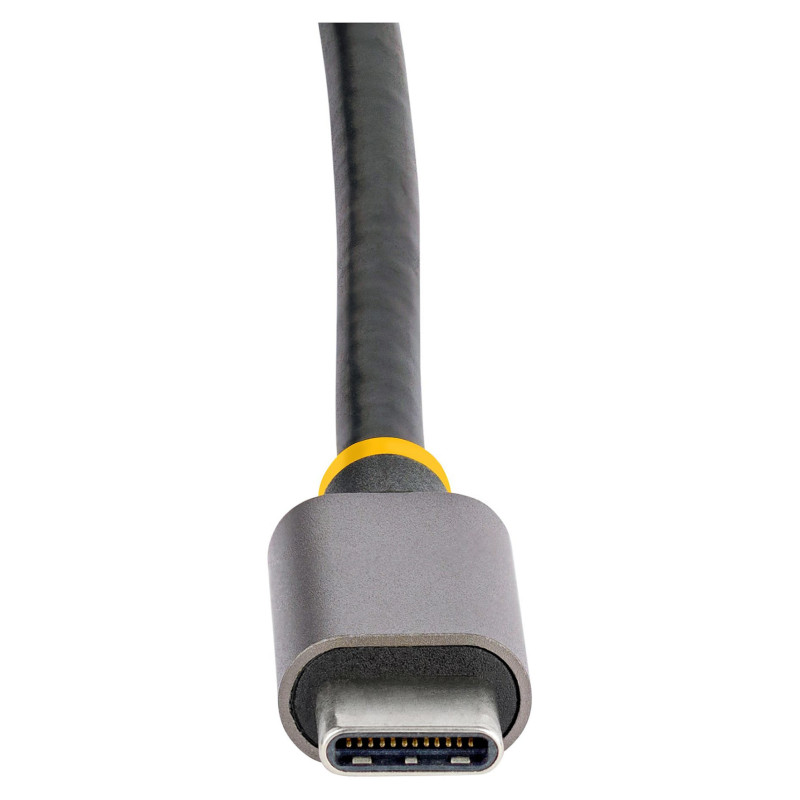

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
HDMI version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Feature: Full duplex

Performance

Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 4096 x 2160 pixels
Product colour: Grey
Feature: High Dynamic Range 10 (HDR10)
LED indicators: Yes
Feature: UASP support
Housing material: Aluminium

Power

Power source type: USB
Power consumption (typical): 15 W

Software

Linux operating systems supported: Yes
Mobile operating systems supported: Android, iPadOS
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight & dimensions

Width: 427 mm
Depth: 50 mm
Height: 12 mm
Weight: 70 g

Packaging data

Package width: 174 mm
Package depth: 150 mm
Package height: 31 mm
Package weight: 200 g

Packaging content

Feature: Quick start guide

Technical details

Compliance certificates: CE

Logistics data

Products per master (outer) case: 24 pc(s)
Master (outer) case width: 384 mm
Master (outer) case length: 340 mm
Master (outer) case height: 246 mm
Harmonized System (HS) code: 84733020

Other features

Cable length: 0.3 m
Chipset: VIA - VL102, VIA - VL817, Realtek - RTL8153, Realtek - RTD2172A, Terminus Tech - FE1.1S
