StarTech.com 10G8A2CS-USB-C-HUB interface hub

StarTech.com 10-Port USB-C Hub - 8x USB-A/2x USB-C - Self-Powered w/65W Power Supply - USB 3.1 10Gbps - Desktop/Laptop USB Hub w/USB-IF Certified 3ft Locking Cable, USB C Hub - TAA. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Grey, LED indicators: Status. Power supply type: DC, Power consumption (typical): 65 W, Input voltage: 110 - 240 V. Width: 80 mm, Depth: 115 mm, Height: 30 mm. Package width: 172 mm, Package depth: 251 mm, Package height: 99 mm

Add 8x USB-A and 2x USB-C ports to a USB-C enabled Desktop/Laptop

Add ten USB 3.2 Gen 2 (10Gbps) ports (8x USB-A, 2x USB-C) to a USB-C computer using this 10-Port USB-C Hub. The USB Hub is self-powered with an included power adapter. The USB Hub features Overcurrent Protection (OCP). OCP aids in preventing peripherals from overdrawing power, avoiding USB device dropouts and computers from shutting down unexpectedly. Support for Wake On USB enables USB communications, from devices connected to the hub, to take the computer out of standby or other power saving/sleep modes.

High Performance USB 3.2 Gen 2 (10Gbps) Hub

The USB Hub shares 10Gbps of bandwidth from the USB host device, enabling high-speed data transfers for high-performance applications. The USB hub is backward compatible with previous USB versions, including USB 3.2 Gen 1 (5Gpbs), USB 2.0 (480Mbps), and USB 1.1 (12Mbps). It features eight USB-A ports and two USB-C ports. This combination of ports enables support for a wide range of modern and legacy USB devices, such as external storage devices (e.g., thumb drives, HDDs/SSDs), HD Cameras (e.g., webcams), mice, keyboards, and USB headsets.

Power and Charge USB Devices

The USB hub is self-powered, using the 65W power adapter. The hub features two USB BC 1.2 ports (1x USB-A, 1x USB-C), each providing 2.4A (12W) of power simultaneously, making it ideal to charge battery powered USB devices like smartphones, and tablets, while also providing a data connection. These ports will provide power with or without a host computer connected, with support for both CDP (Charging Downstream Port) & DCP (Dedicated Charging Port) applications. The hub features seven USB-A, and one USB-C port that each provide the USB 3.2 standard of 0.9A (4.5W) of power. The included power adapter ensures that all ports will always provide specified power regardless of how many devices are connected.

USB-IF Certified Host Cable

A high-quality USB-IF certified USB-C host cable is included. The cable features a screw-locking, connector to ensure a secure and reliable connection to the USB hub. The Thermoplastic Elastomer (TPE) cable jacket is softer and more flexible than PVC jacketed cables.

Plug-and-Play Installation

The 10-Port USB Hub is OS independent supporting all operating systems, including Windows, macOS, ChromeOS, iPadOS and Android. Installation is automatic upon connection to a host computer.

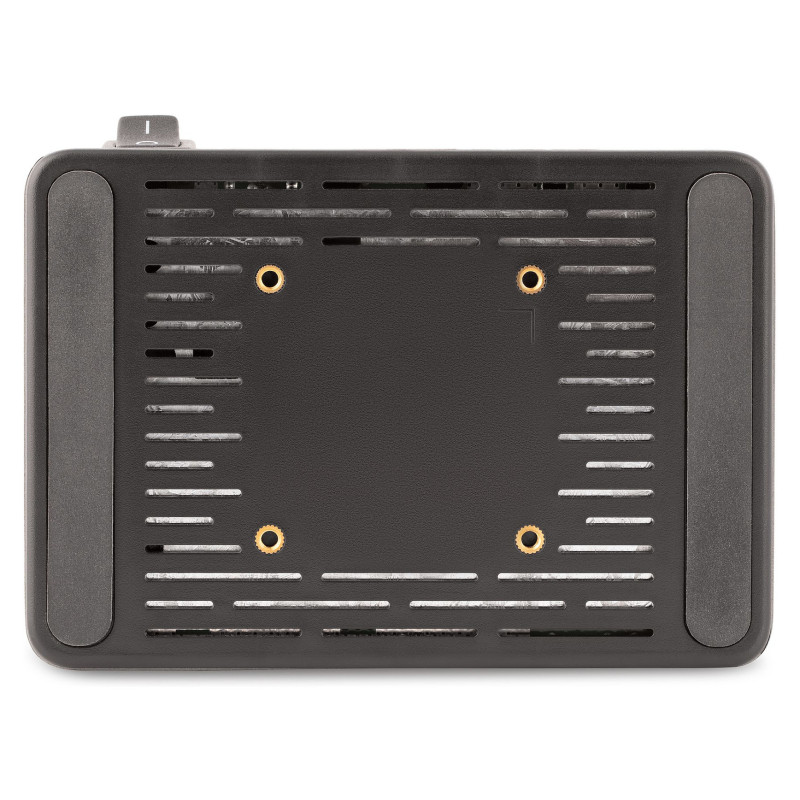

Mount the USB Hub to a wall, desk, or VESA mount, using StarTech.com hub mounts: SSPMSVESA or SSPMSUDWM.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that is compatible with a wide variety of IT connectivity accessories. The applicable software for this product is the USB Event Monitoring Utility. Use this utility to track and log any connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

This product is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces: USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ports quantity: 10
Feature: DC-in jack

Features

Data transfer rate: 10000 Mbit/s
Product colour: Grey
Feature: Overcurrent protection
LED indicators: Status
Cable jacket material: Thermoplastic elastomer (TPE)
Cable length: 1 m

Power

Power supply type: DC
Power consumption (typical): 65 W
Input voltage: 110 - 240 V
Output voltage: 19 V
Output current: 3.42 A
Power plug type: Type M

Weight & dimensions

Width: 80 mm
Depth: 115 mm
Height: 30 mm
Weight: 287 g

Packaging data

Package width: 172 mm
Package depth: 251 mm
Package height: 99 mm
Package weight: 287 g

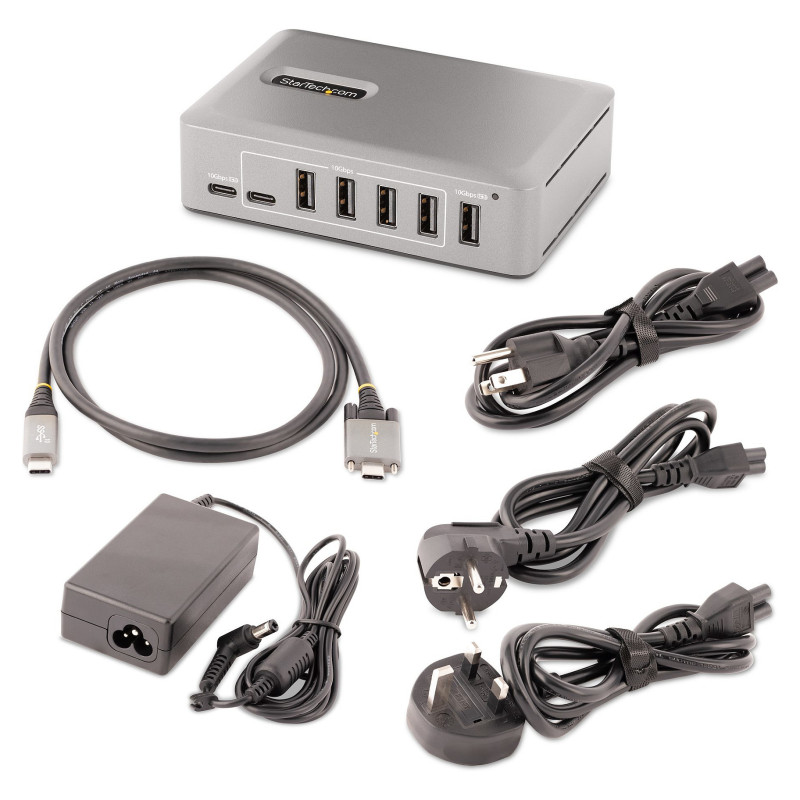

Packaging content

Feature: AC adapter included
Included power plug types: EU, NA, UK
Cables included: USB Type-C to USB Type-C

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 95%

Sustainability

Feature: Sustainability compliance

Logistics data

Master (outer) case width: 381 mm
Master (outer) case length: 294 mm
Master (outer) case height: 529 mm
Products per master (outer) case: 10 pc(s)

Technical details

Compliance certificates: CE, RoHS

Other features

Chipset: VIA - VL822-Q7, VIA - VL162
