Manhattan 190398 laptop dock / port replicator

Manhattan USB-C Dock/Hub with Card Reader and MST, Ports (x7): Ethernet, HDMI (x2 4k@60Hz), USB-A (x3) and USB-C, with Power Delivery (PD) 100W- requires external USB-C charger (not included). USB powered (no external power supply required) when PD is not in use. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, USB cable length: 0.5 m. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Mobile operating systems supported: Android, Other operating systems supported: ChromeOS

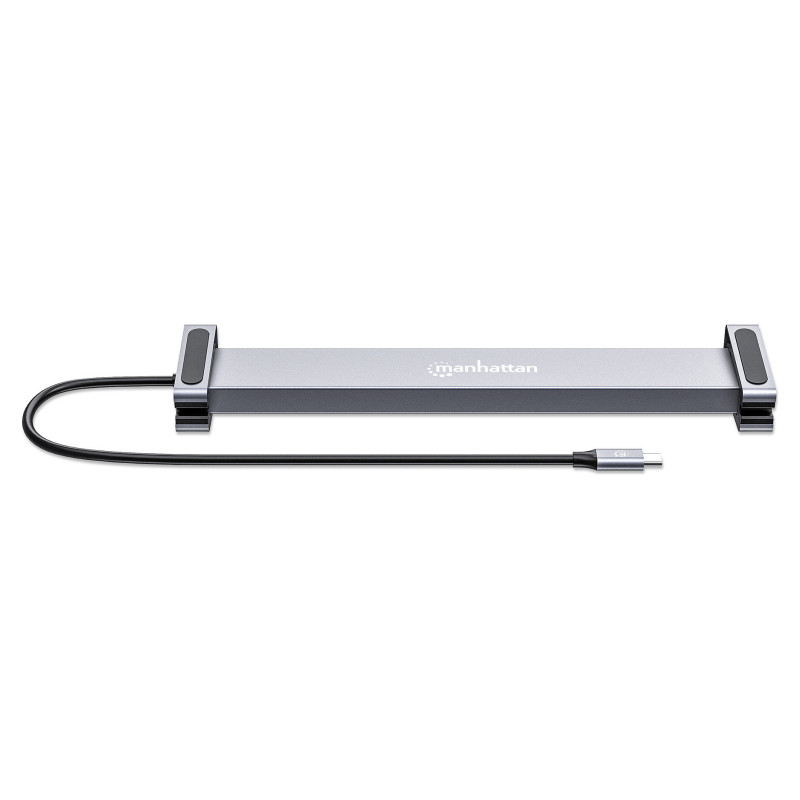

Multiport Adapter / Docking Station for Laptop and MacBook® - use two 4K HDMI monitors with 10 connections to your device

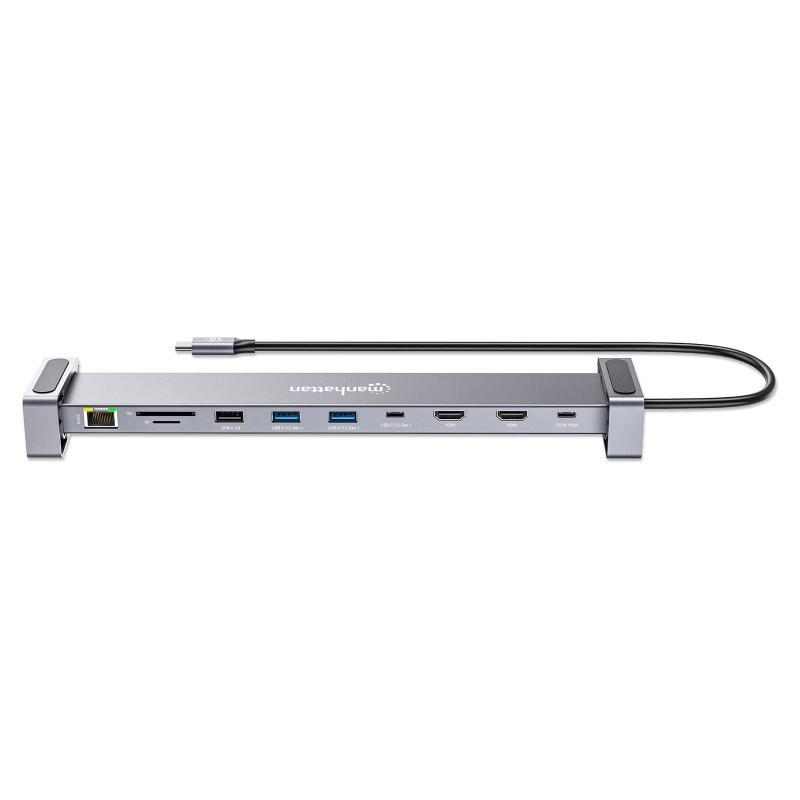

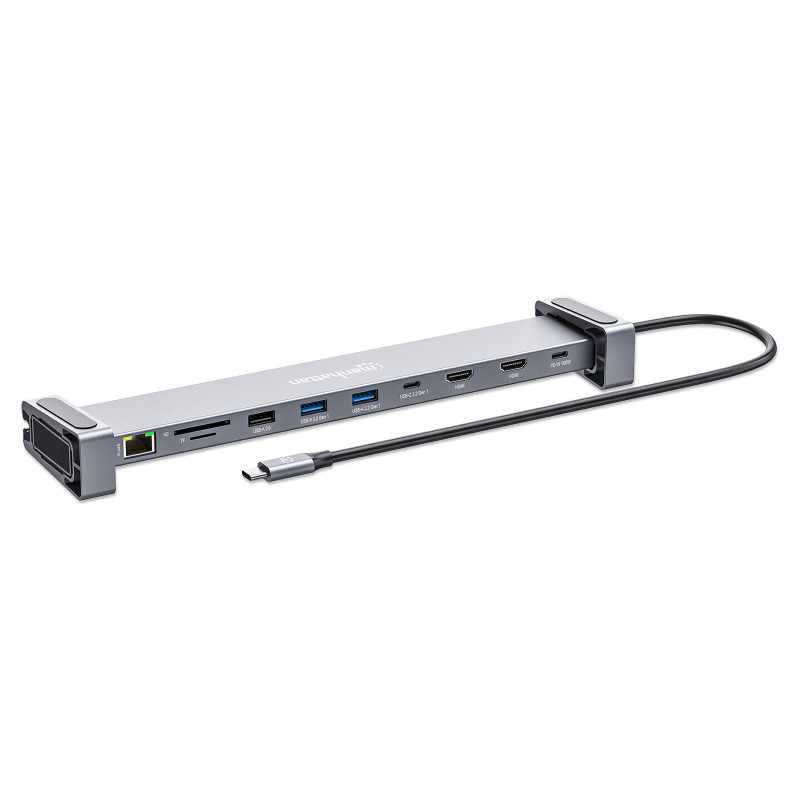

Elevate your device's connectivity with the Manhattan 10-in-1 Multiport Adapter. This versatile docking station fills the gaps in your laptop or MacBook®, offering essential connections such as HDMI, Power Delivery, Ethernet, card reader, and USB ports.

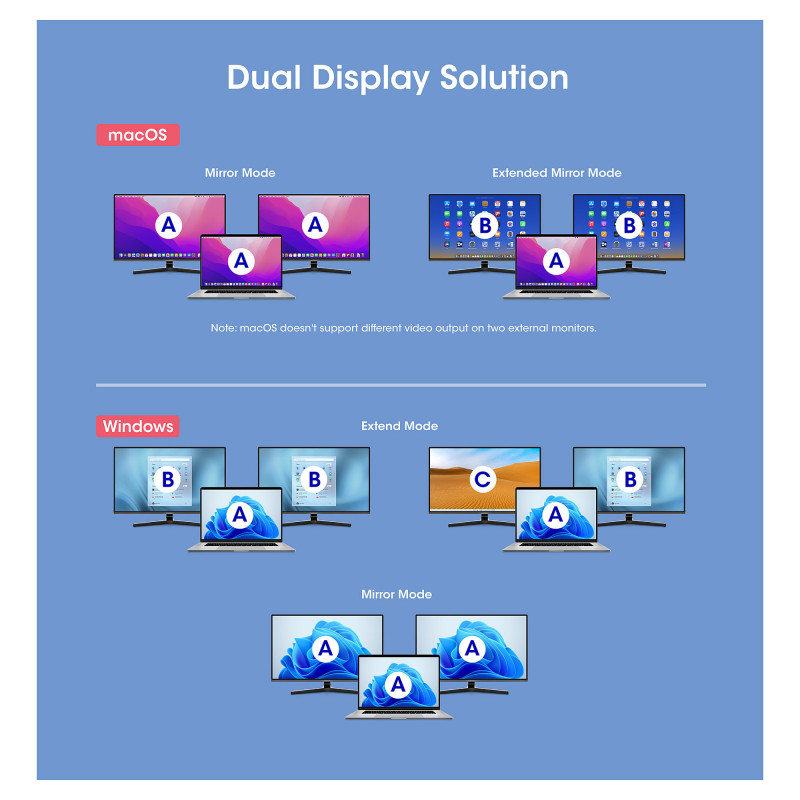

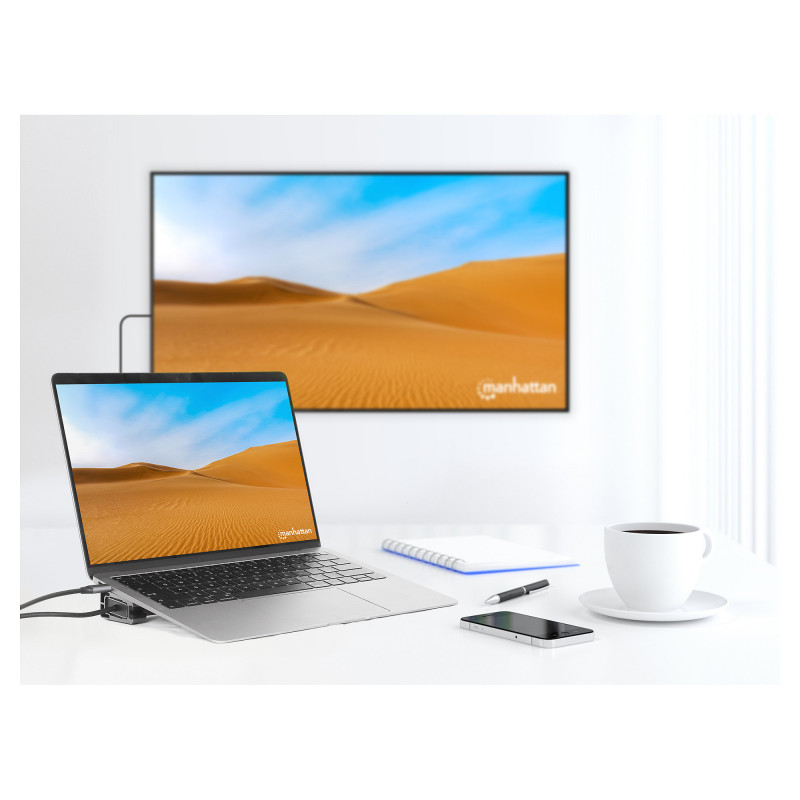

Dual display connectivity in 4K without down-scaling

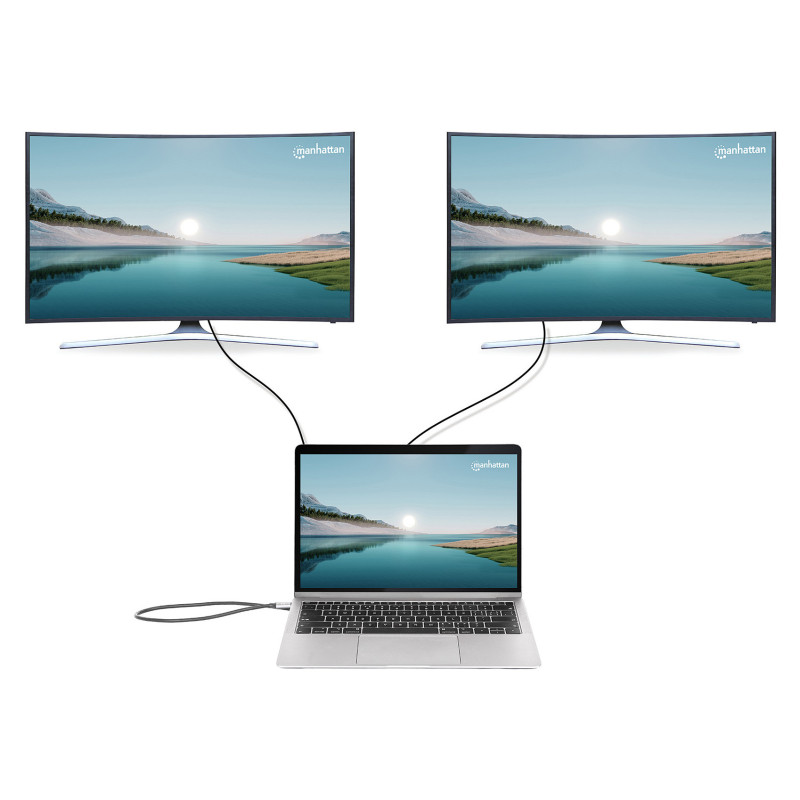

The two HDMI ports let you multitask on more monitors at once. While other dual monitor docking stations often need to reduce the fps (frames per second) to 30, this one will let you display in high-performance 4K@60Hz.

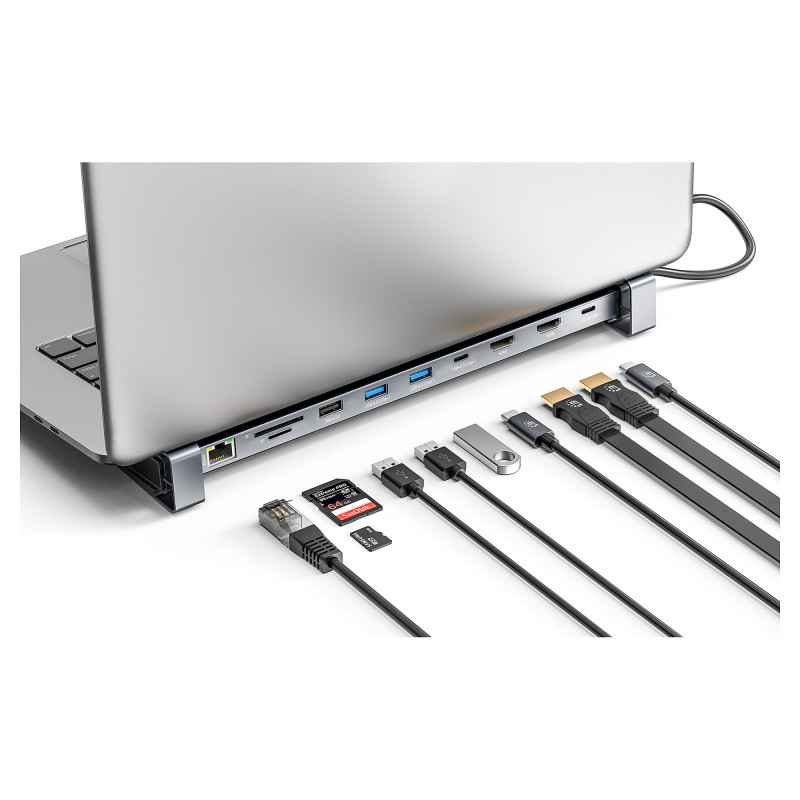

Versatile Connectivity for Your Peripherals and Wired Network
You're also able to meet most connectivity needs with three USB-A ports that connect and charge compatible devices fast, as well as a SuperSpeed USB-C data-transfer port to connect high-bandwidth devices. Address the absence of wired network connectivity in most contemporary Ultrabooks™ and MacBooks® by utilizing the Gigabit RJ45 port for reliable 10/100/1000 Mbps speeds. Thanks to two slots for SD/microSD cards, you don't need an external card reader anymore.

Powerful Charging with up to 100 W

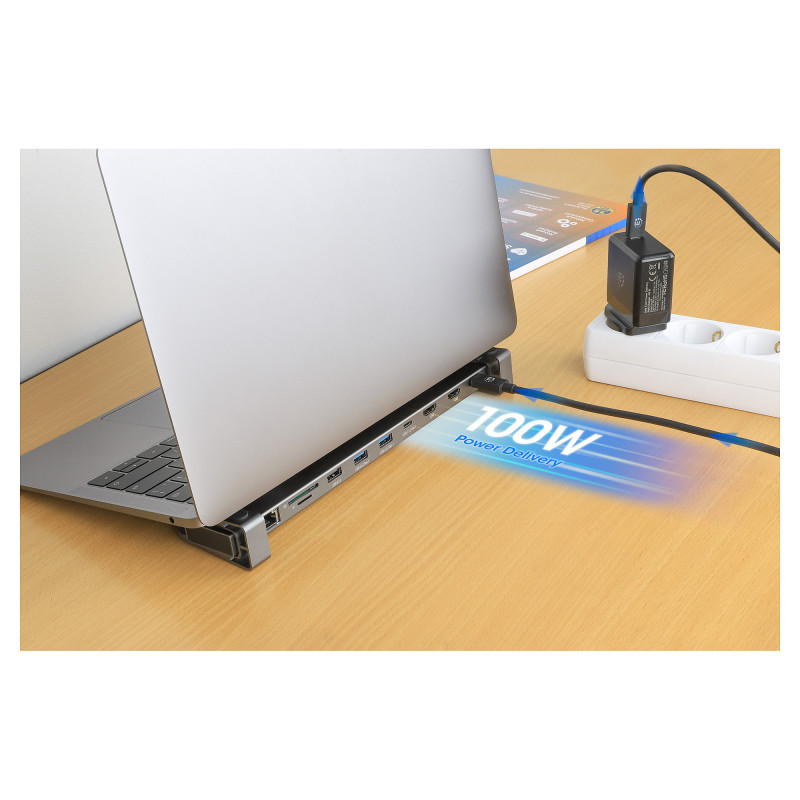

Charge your notebook with up to 100 W through the featured USB-C PD port. Simultaneously charge other mobile devices like tablets or smartphones through the USB-A connections. The Power Delivery feature intelligently determines the power requirements of compatible devices, ensuring safe charging, faster than standard chargers.

Seamless Phone-to-Screen Experience
Connect any Android 9 and later smartphone supporting video output over USB-C DP Alt Mode. Enjoy your apps and media on a larger scale by watching videos or presenting slides directly from your phone to your monitor.

A Portable Companion for Your Travels

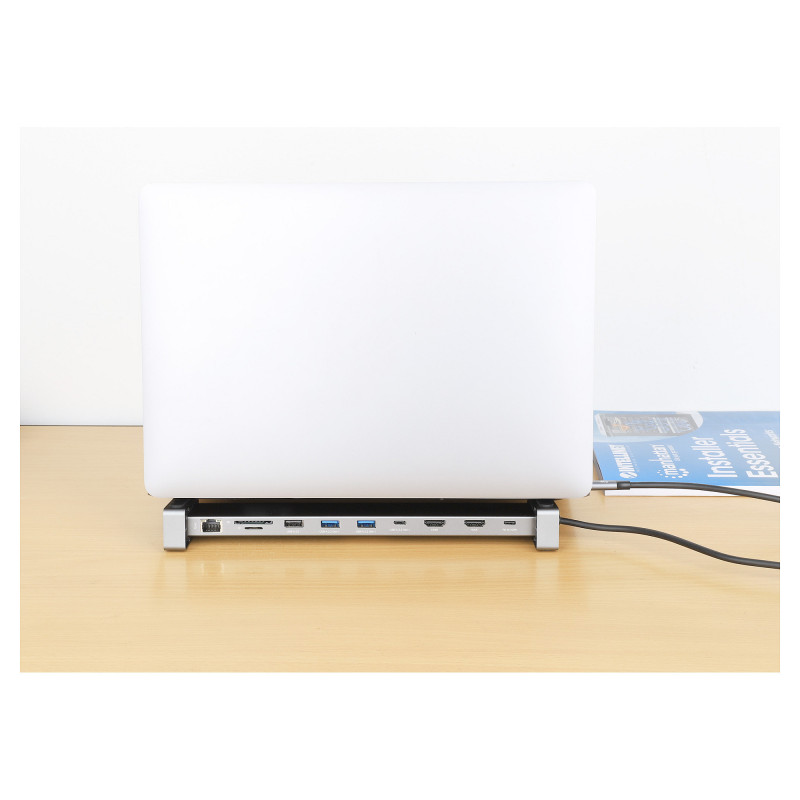

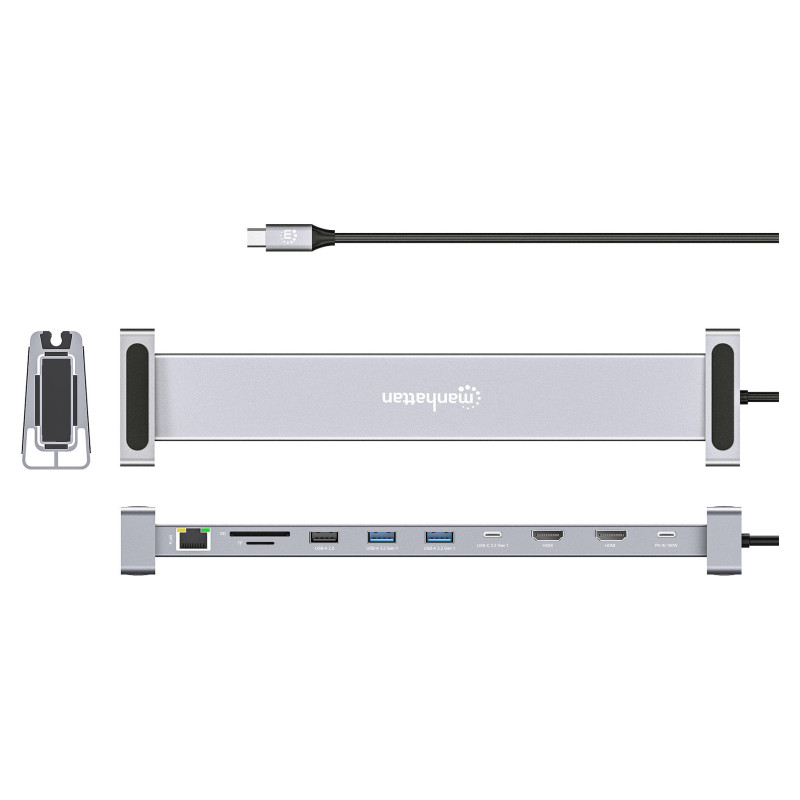

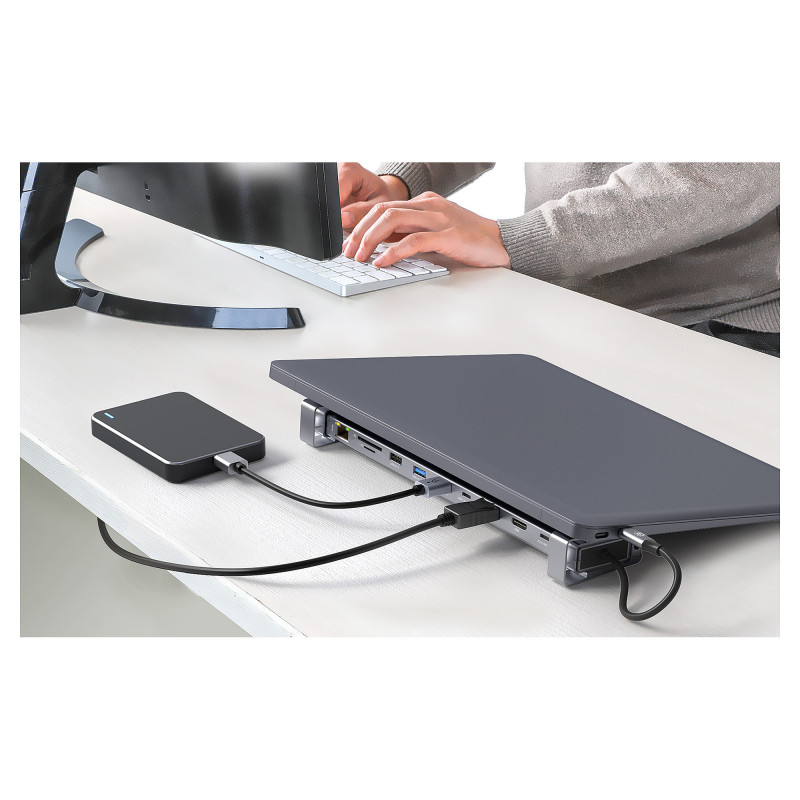

Encased in sturdy aluminum, this multiport adapter is designed to be your ideal travel companion. Compact enough to easily fit alongside your primary device in your computer bag or backpack, it ensures that connectivity is never compromised on the go. You can place your notebook on top of the docking station, saving desk space. The built-in cable is long enough to connect to any USB-C port on your laptop, whether it's on the left or right side of the device.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPort version: 1.4
Feature: HDCP
HDCP version: 2.2
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Grey
LED indicators: Yes
Feature: Plug and Play
Housing material: Aluminium

Power

Power source type: USB
USB cable length: 0.5 m

Software

Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supported: Yes
Mobile operating systems supported: Android
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 0 - 85%

Weight & dimensions

Width: 60 mm
Depth: 269 mm
Height: 30 mm
Weight: 182 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 310 mm
Package depth: 35 mm
Package height: 110 mm
Package weight: 260 g

Packaging content

Feature: Manual

Technical details

Warranty period: 3 year(s)
Compliance certificates: CE, REACH, RoHS, UKCA, Federal Communications Commission (FCC)

Logistics data

Products per master (outer) case: 20 pc(s)
Master (outer) case width: 355 mm
Master (outer) case length: 395 mm
Master (outer) case height: 250 mm
Master (outer) case gross weight: 5.2 kg
