Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock

Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock. Connectivity technology: Wired, Host interface: Thunderbolt 4, Headphone connectivity: 3.5 mm. Product colour: Black, Data transfer rate: 40 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Input current: 6.75 A, Power consumption (max): 100 W. Width: 220 mm, Depth: 80 mm, Height: 30 mm. Package width: 270 mm, Package depth: 195 mm, Package height: 85 mm

A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.

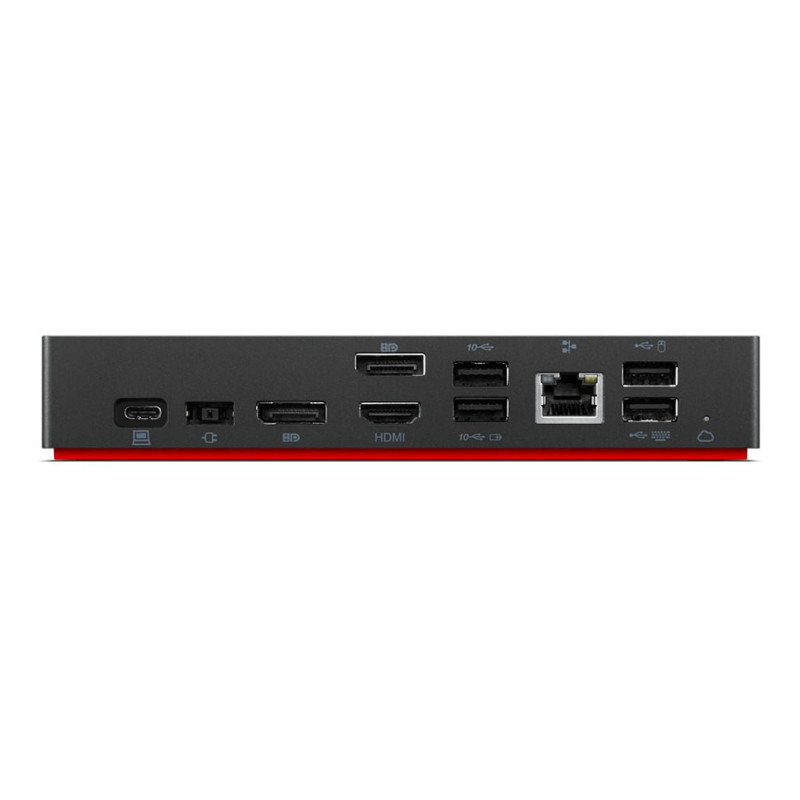

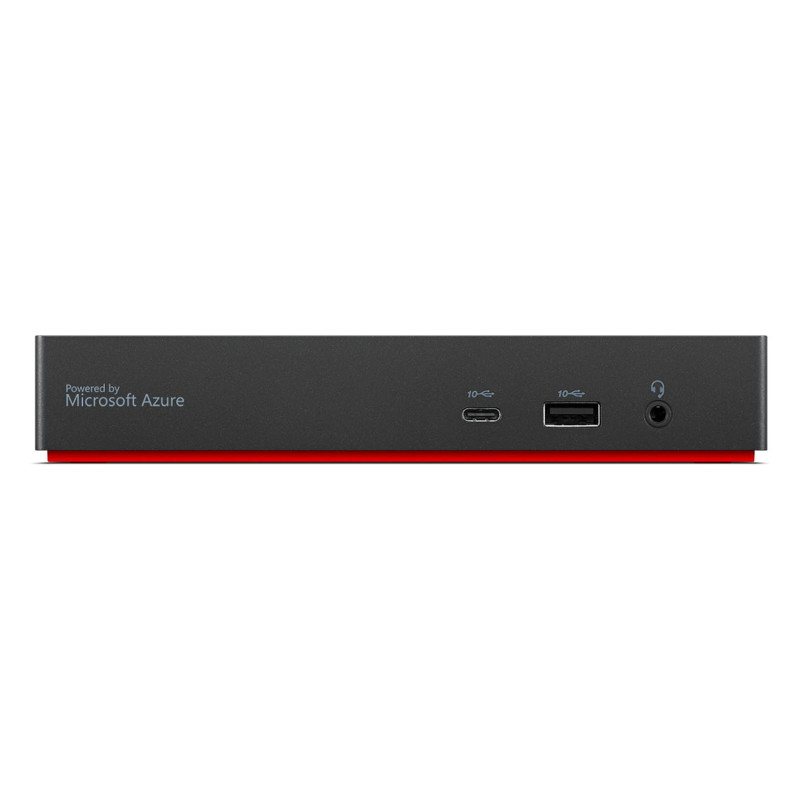

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Thunderbolt 4 ports quantity: 1
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Performance

Data transfer rate: 40 Gbit/s
Number of displays supported: 4
Maximum refresh rate: 60 Hz
Product colour: Black
Certification: cULus, FCC, ICES, NOM

Power

Power source type: DC
Input current: 6.75 A
Power consumption (max): 100 W

Software

Windows operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 220 mm
Depth: 80 mm
Height: 30 mm
Weight: 460 g

Packaging data

Package width: 270 mm
Package depth: 195 mm
Package height: 85 mm
Package weight: 1.23 kg

Packaging content

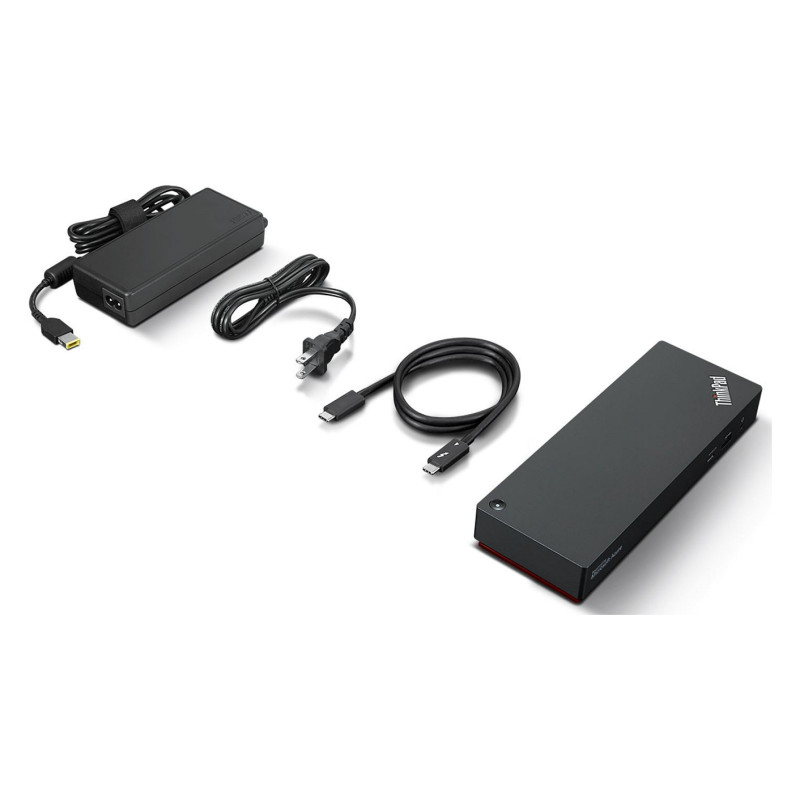

Cables included: AC, Thunderbolt
Feature: AC adapter included

Logistics data

Harmonized System (HS) code: 84733020
