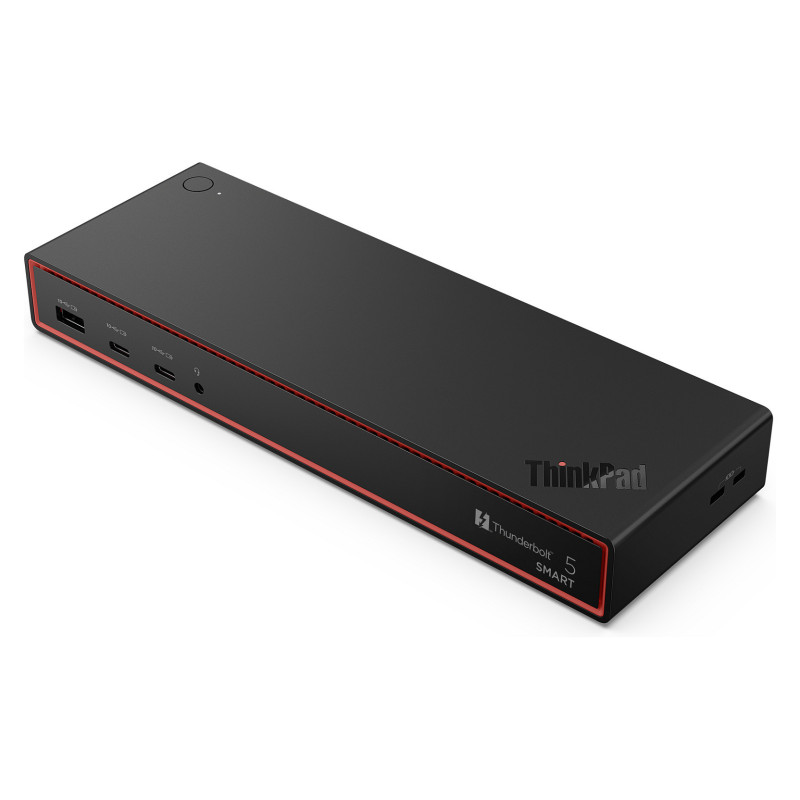

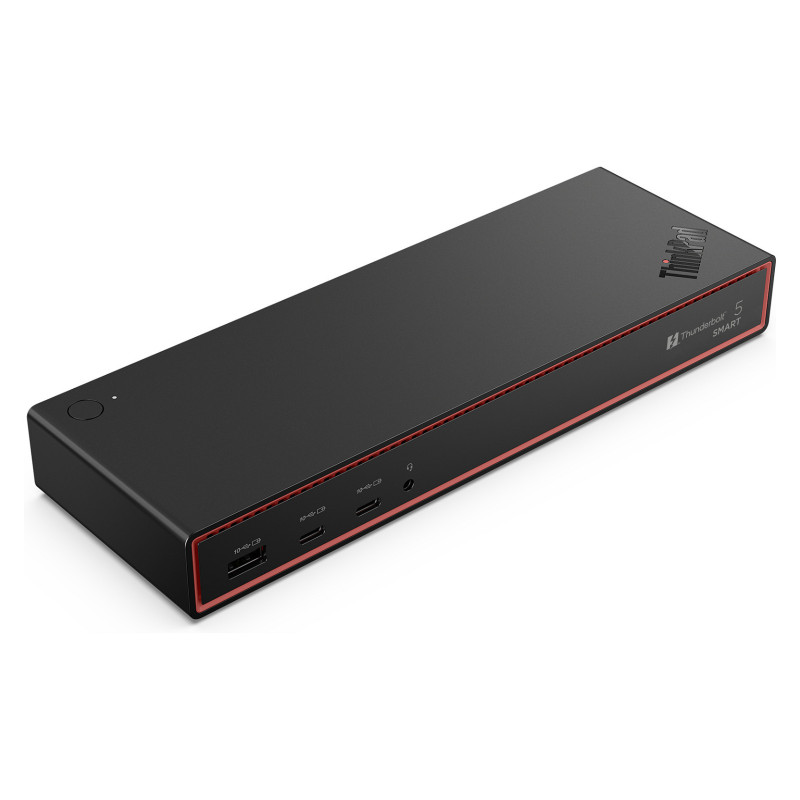

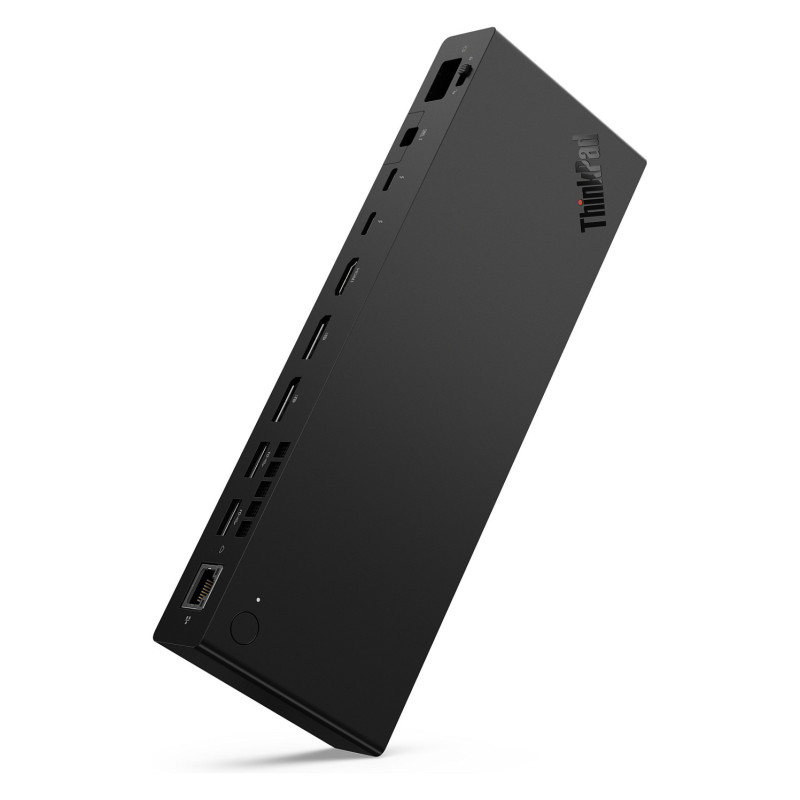

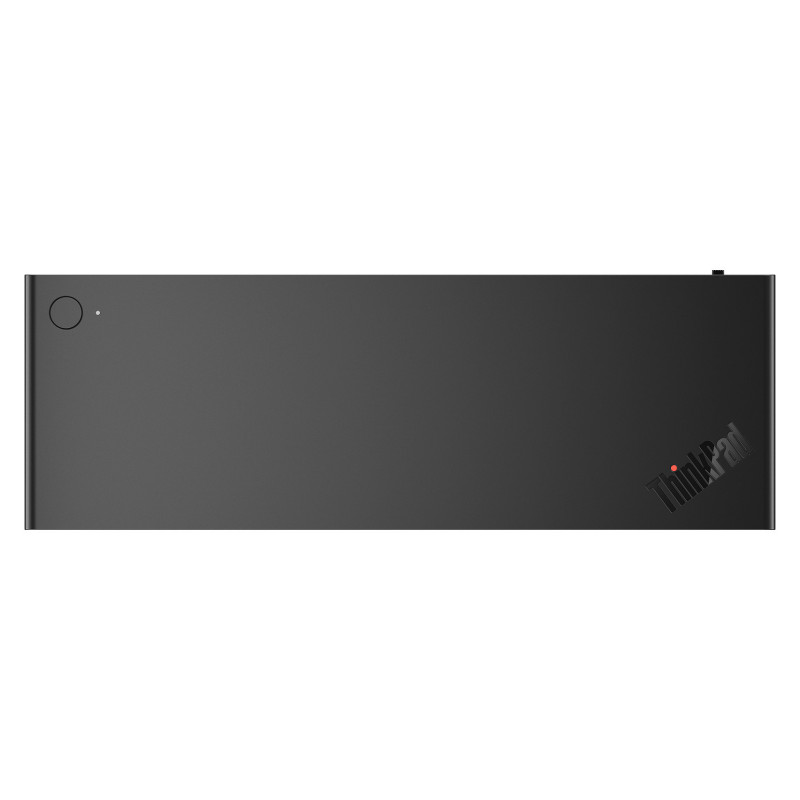

Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500

Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500. Connectivity technology: Wired, Host interface: Thunderbolt 5, USB Power Delivery up to: 180 W. Ethernet LAN data rates: 2500 Mbit/s. Product colour: Black, Colour name: Eclipse Black, HD type: 8K Ultra HD. Power source type: AC, Power supply: 265 W. Width: 235 mm, Depth: 80 mm, Height: 30 mm
New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.

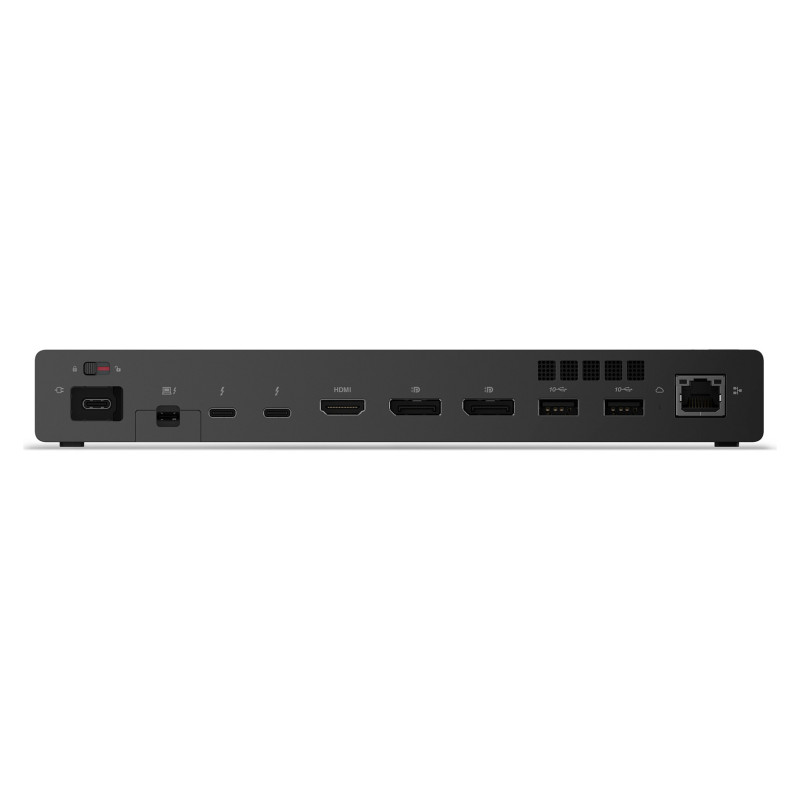

Ports interfaces

Connectivity technology: Wired

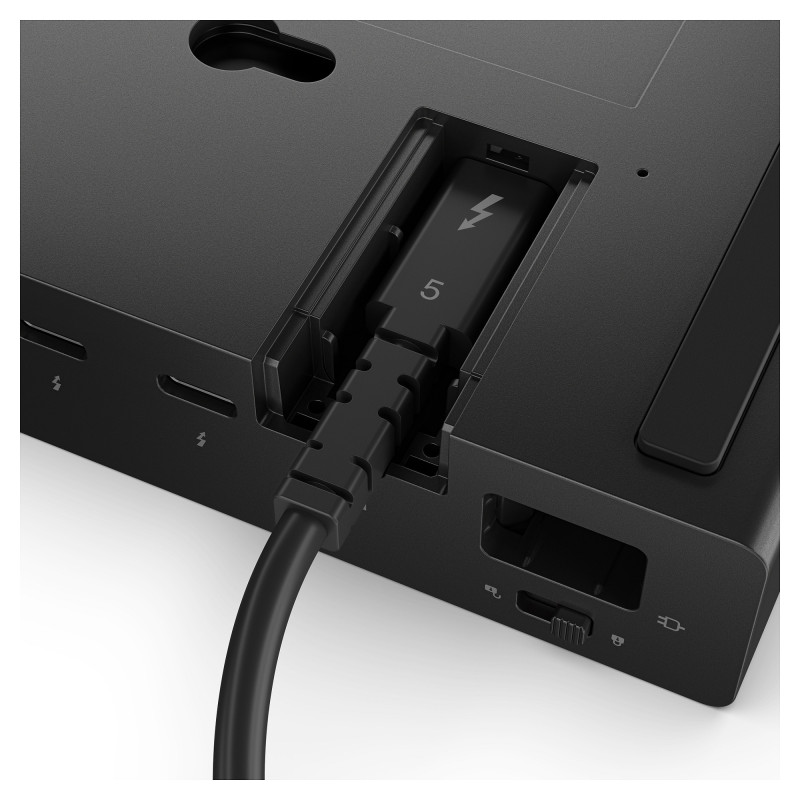

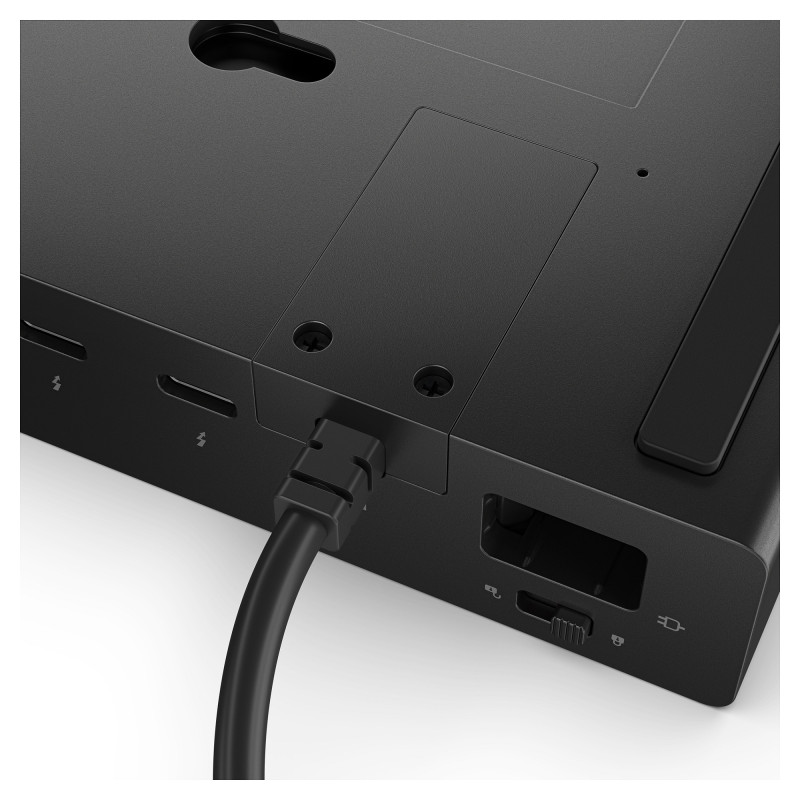

Host interface: Thunderbolt 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 180 W
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 2.1
Thunderbolt 5 ports quantity: 2
Feature: Combo headphone/mic port
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 2500 Mbit/s

Performance

Colour name: Eclipse Black
HD type: 8K Ultra HD
Number of displays supported: 4
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black

Power

Power source type: AC
Power supply: 265 W

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Weight dimensions

Width: 235 mm
Depth: 80 mm
Height: 30 mm
Weight: 585 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 260 mm
Package depth: 165 mm
Package height: 74 mm
Package weight: 1.73 kg

Packaging content

Feature: Warranty card
Feature: AC adapter included
