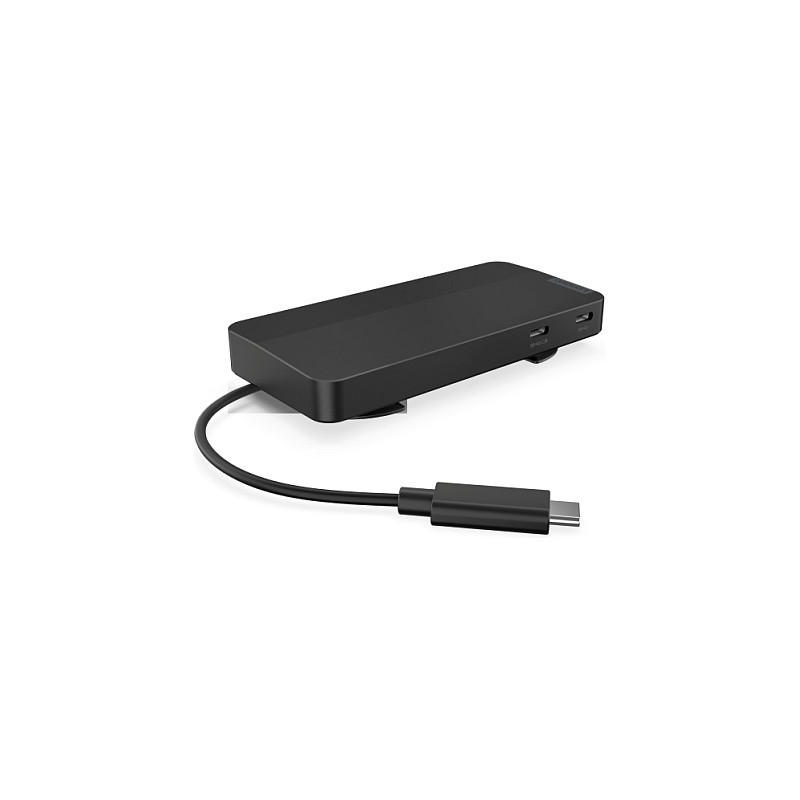

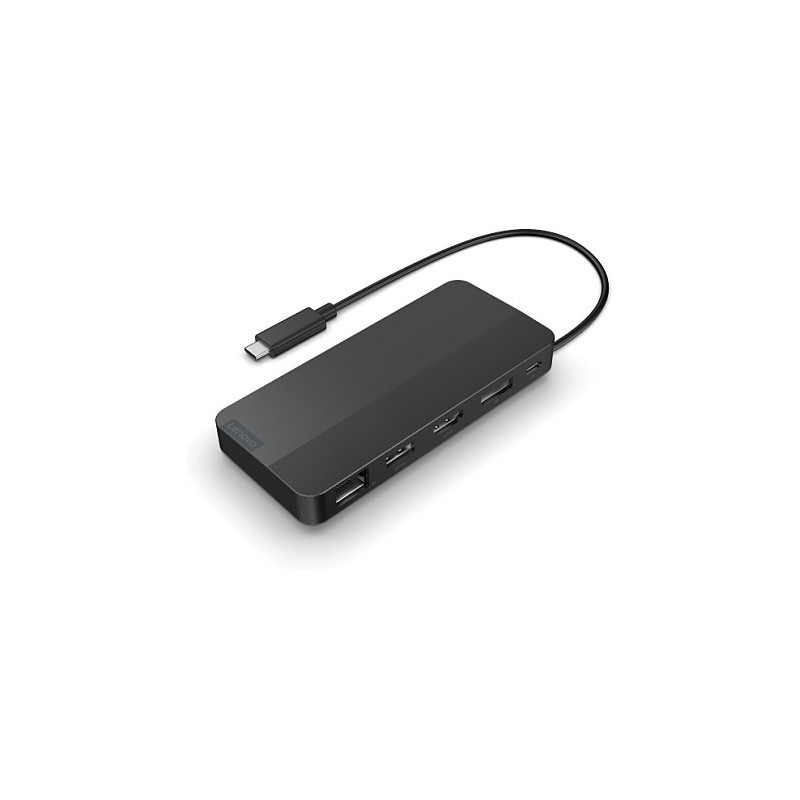

Lenovo 40B90000WW laptop dock / port replicator

Lenovo 40B90000WW. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 1000 Mbit/s. Product colour: Black, Colour name: Eclipse Black, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Power plug type: No plug. Windows operating systems supported: Windows 10, Windows 11

The Lenovo USB-C Dual Display Travel Dock is an essential companion for the modern remote professional. This compact dynamo supports dual 4K displays and powers your USB-C laptop with up to 100W PD (with an additional 135W USB-C adapter.) Crafted with 66% post-consumer recycled content in the chassis, it's designed to lighten your carbon footprint. And don't forget the adjustable cable management, balancing efficiency and convenience flawlessly. It's a true productivity booster at home, work, or anywhere in between.

DISCLAIMER: Lenovo USB-C & Thunderbolt Docks are compatible with notebooks supporting industry-standard USB-C Alt-Mode or Thunderbolt protocols via their USB Type C port.

- Powerful Performance: Ultimate Productivity Companion
Achieve more with 7 expertly engineered ports: Two video ports for dual 4K displays that transform your workspace into a visual powerhouse. All while the super-fast USB and ethernet ports redefine connectivity. Power. Performance. Productivity. All in your pocket.

- Modern Aesthetic: Sustainable, Innovative, Elegant
Reimagining your workspace, our USB-C Travel Dock merges style, productivity, and sustainability. Encased in a modern Eclipse Black design, it makes a minimalist statement with 66% Post-Consumer Recycled Content (PCC) in the chassis, leading our portfolio as the greenest dock offering yet.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000 Mbit/s

Performance

Colour name: Eclipse Black
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 60 Hz
Product colour: Black
Feature: Plug and Play
Certification: FCC/ICES; CE; KCC; RCM; BSMI; VCCI; CB; cULus; EAC; TUV- Mark; LoA; Ukraine DoC; NOM

Power

Power source type: USB
Power connector: USB Type-C
Power plug type: No plug

Software

Windows operating systems supported: Windows 10, Windows 11

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%

Weight & dimensions

Width: 120 mm
Depth: 55 mm
Height: 20 mm
Weight: 137 g
