Kensington SD5000T5 EQ Thunderbolt 5 Triple 4K Docking Station with 140W PD - Windows/macOS. Host interface: Thunderbolt 5, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Compatible memory cards: SD, MicroSD (TransFlash), Data transfer rate: 80 Gbit/s, HD type: 8K Ultra HD. Quantity per pack: 1 pc(s), Package width: 125 mm, Package depth: 264 mm. Products per master (outer) case: 6 pc(s), Master (outer) case width: 282 mm, Master (outer) case length: 395 mm

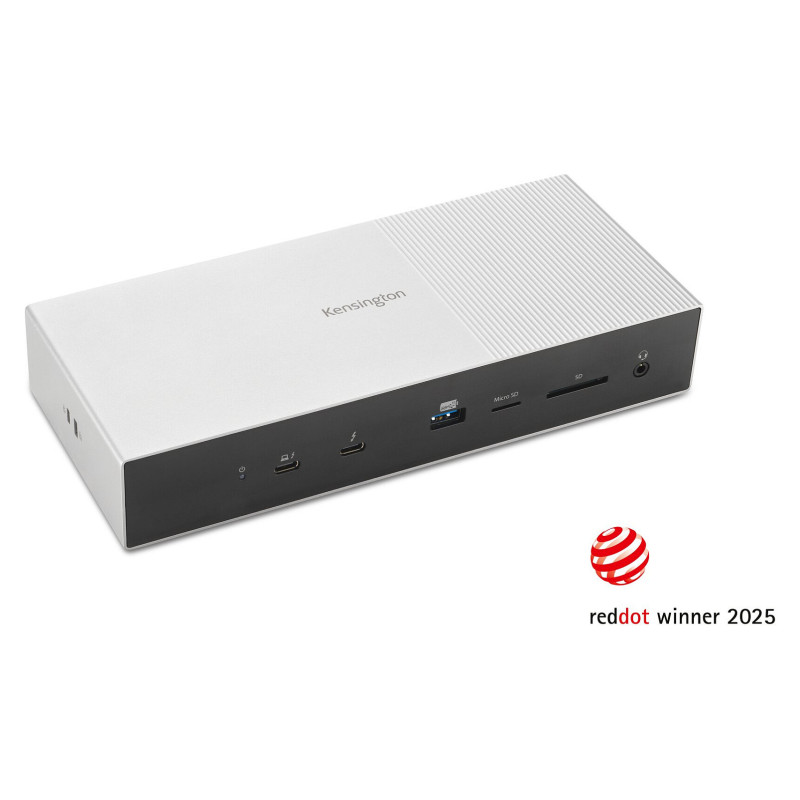

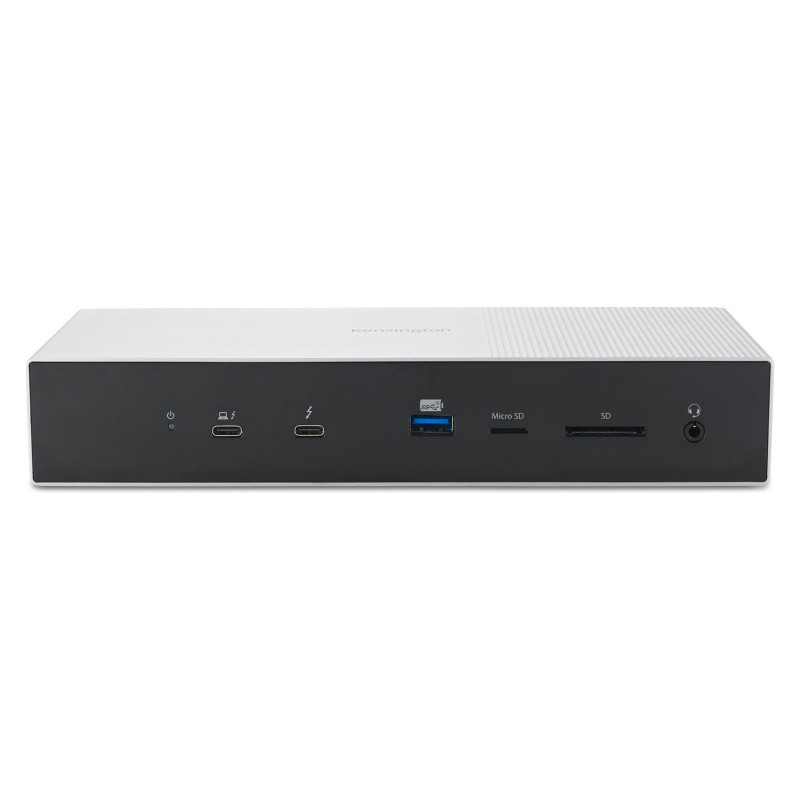

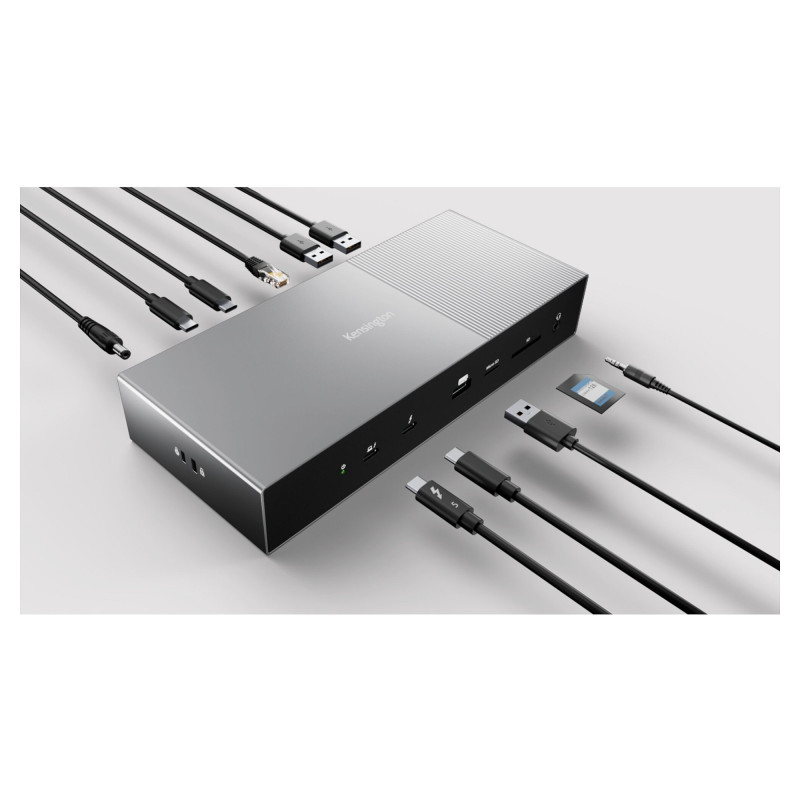

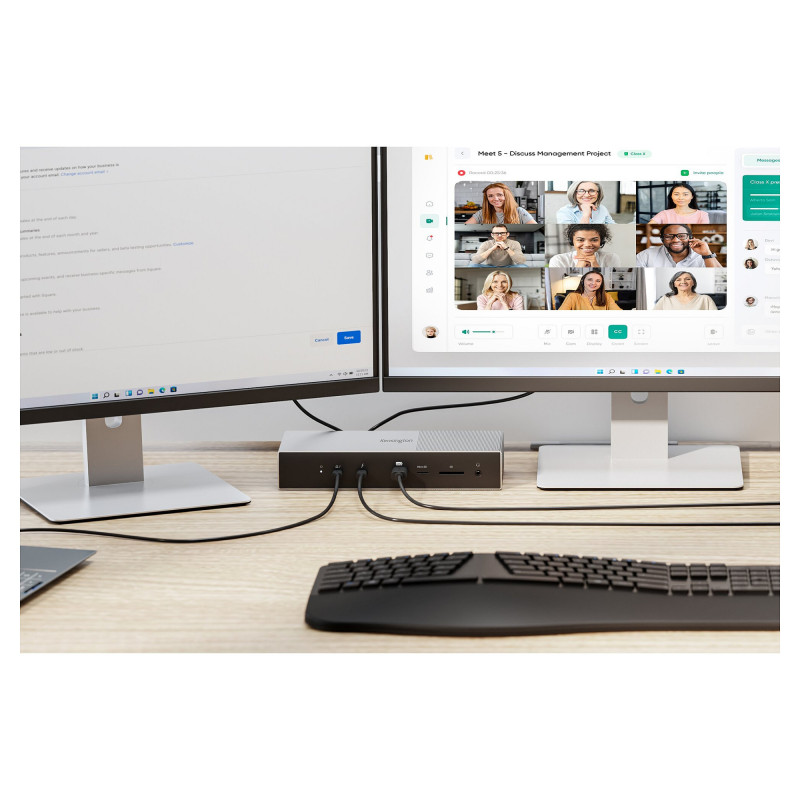

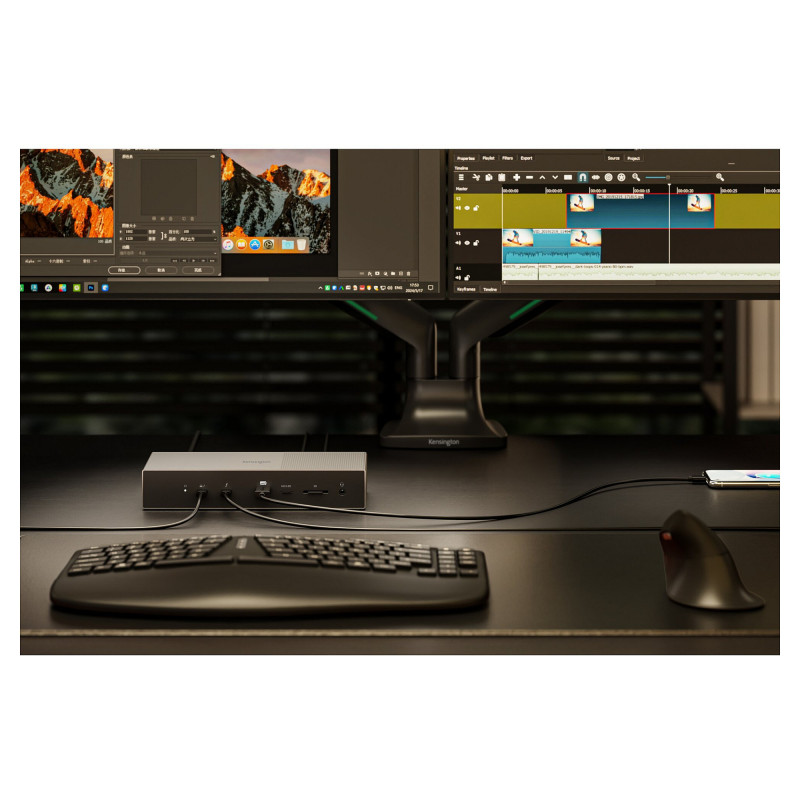

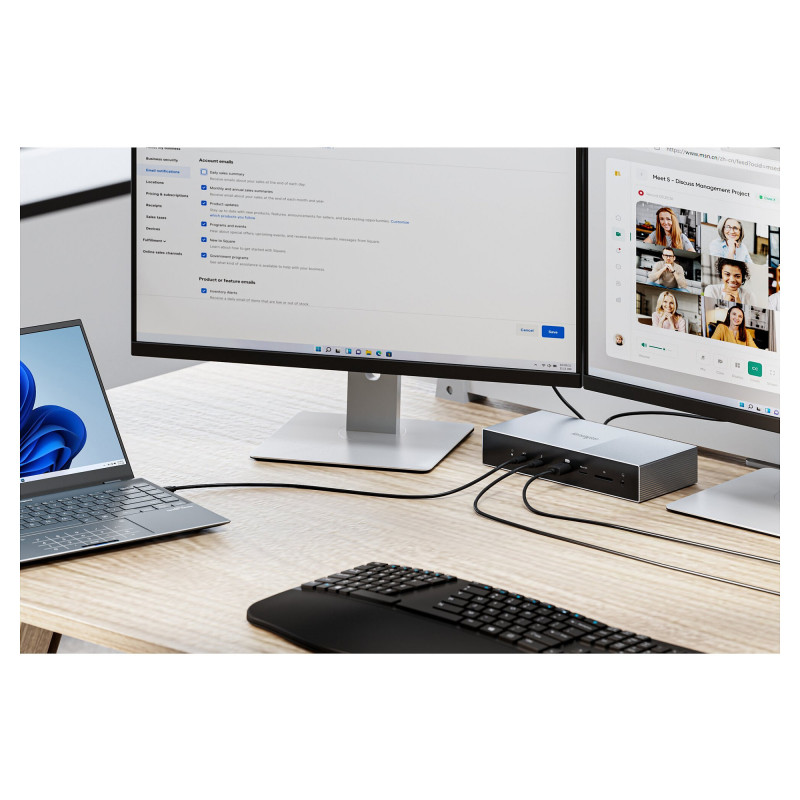

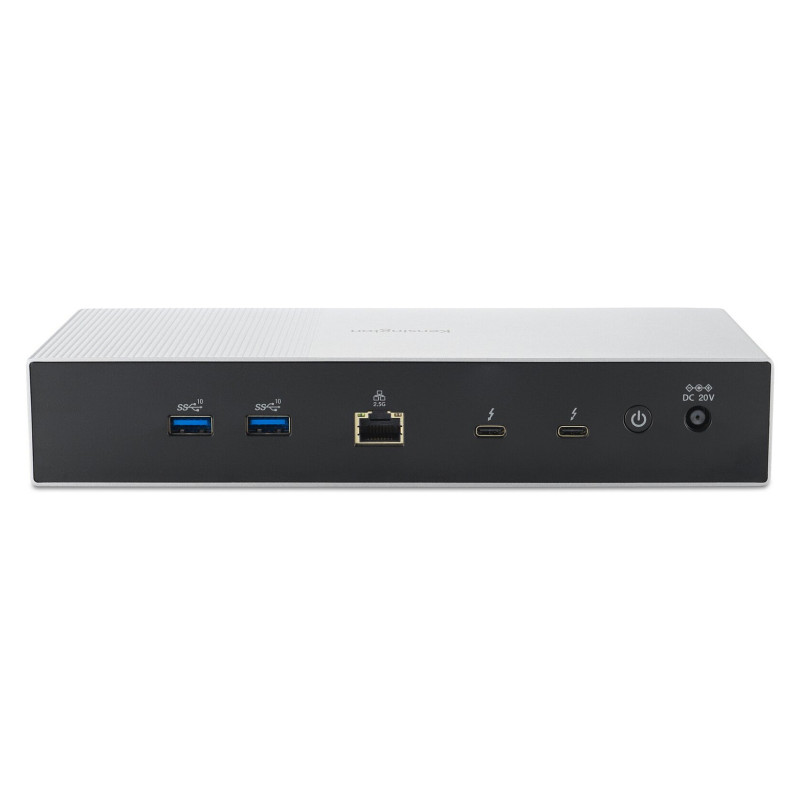

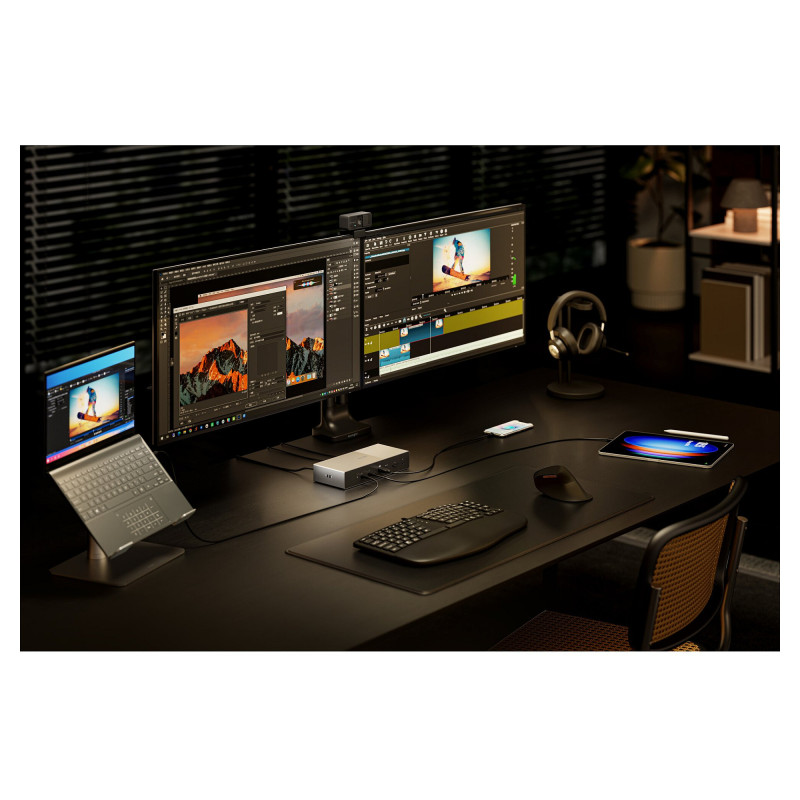

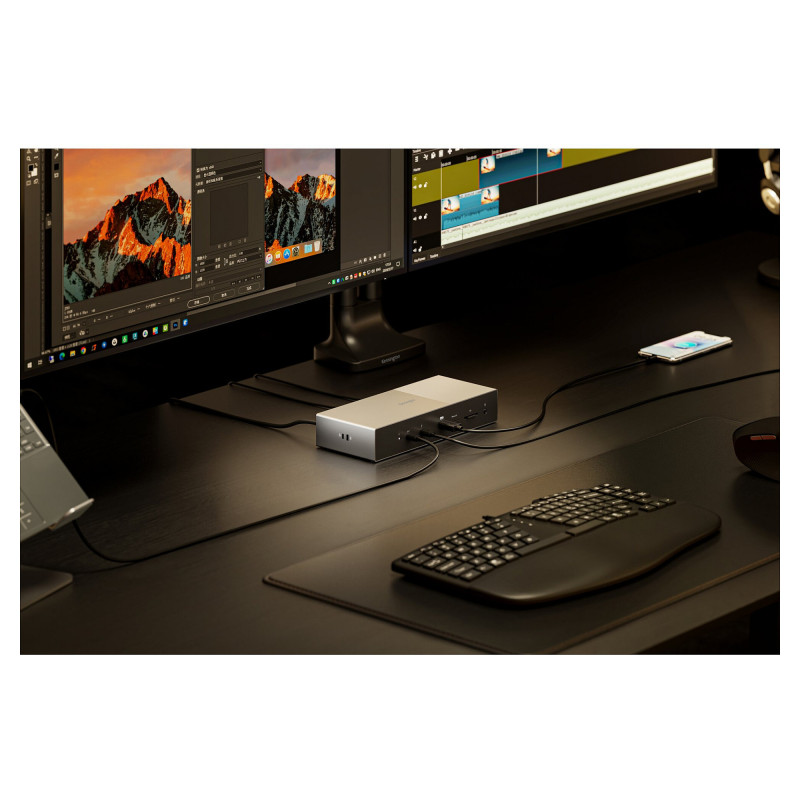

The SD5000T5 EQ ThunderboltTM 5 Docking Station is designed for professionals requiring the highest performance. Windows and macOS compatible, the SD5000T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers—and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to three 4K monitors @ 144Hz or two 8K monitors @ 60Hz, ensuring high-quality visuals and smooth multitasking. The single-cable solution delivers up to 140W Power Delivery to your laptop and peripherals—supporting low-latency efficiency and less cable clutter. Boasting 3 x ThunderboltTM 5 downstream ports, 1 x ThunderboltTM 5 host, 3 x USB-A 3.2 Gen2 ports, an audio jack, dual SD/Micro Card readers, and 2.5Gbps Ethernet, this docking station maximizes productivity with cutting-edge technology. The SD5000T contains 100% post-consumer recycled (PCR) aluminum*. It includes Kensington DockWorksTM Software and is supported by a 3-year limited warranty. This warranty does not affect your statutory rights. * The outer casing of the docking station is made of aluminium, excluding the PCBA and any related inner components.

Ports & interfaces

Host interface: Thunderbolt 5
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 140 W
Feature: Combo headphone/mic port

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 100,1000,2500 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: SD, MicroSD (TransFlash)
Data transfer rate: 80 Gbit/s
HD type: 8K Ultra HD

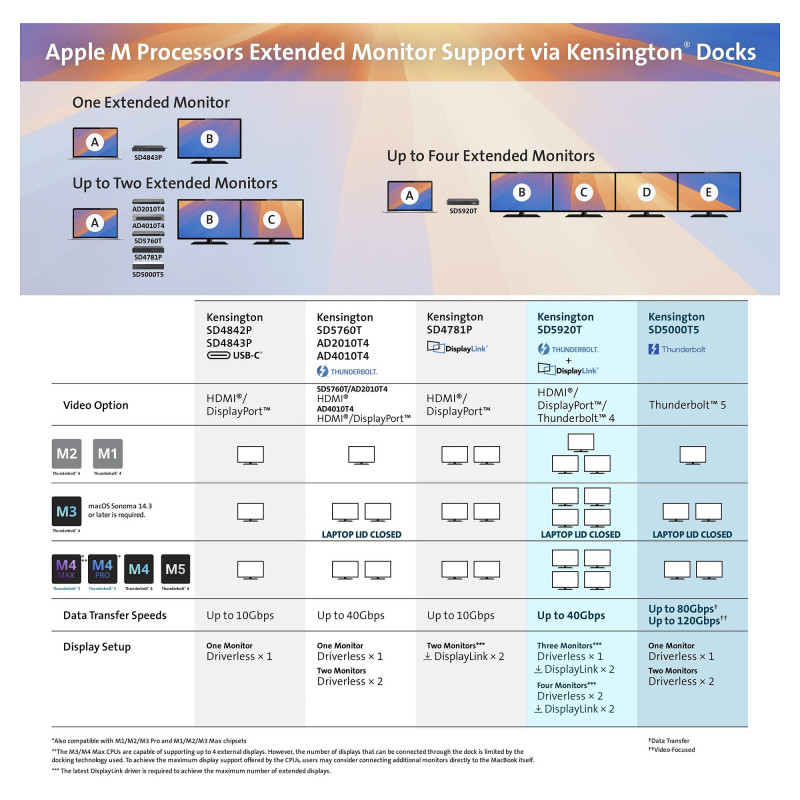

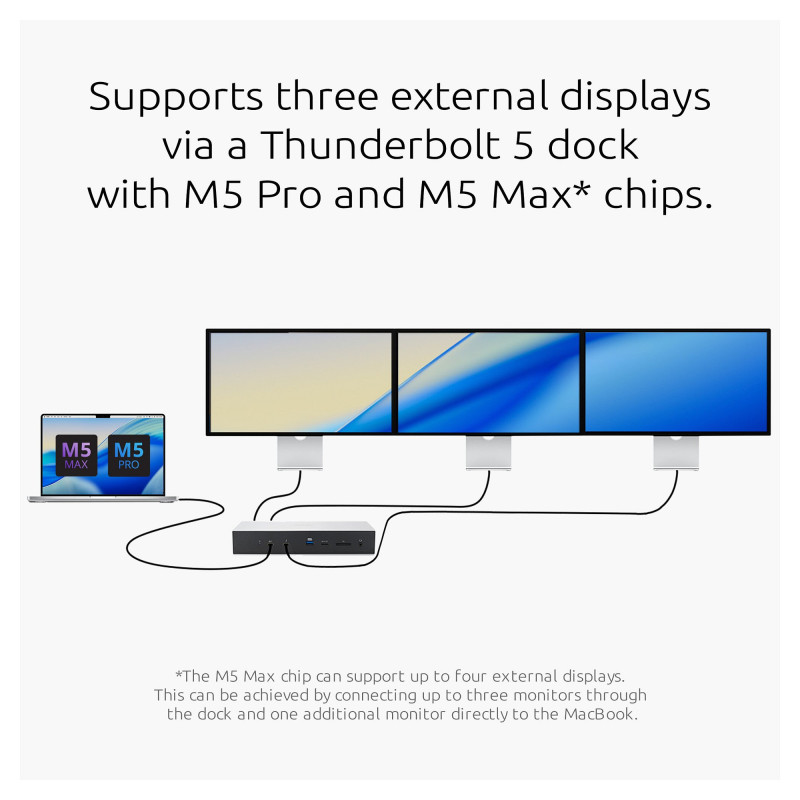

Number of displays supported: 3

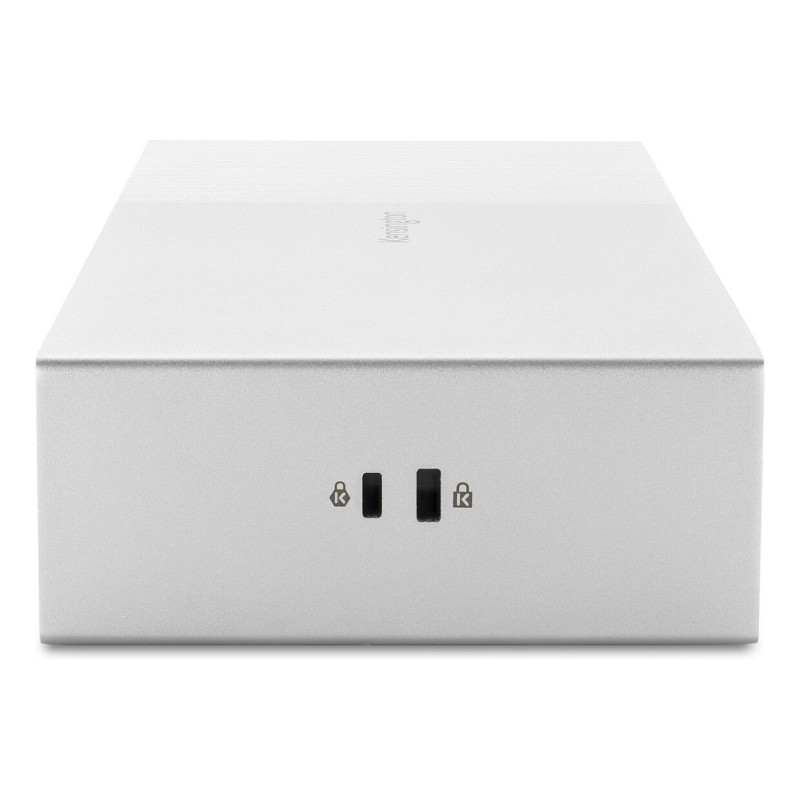

Feature: Cable lock slot
Cable lock slot type: Nano, Kensington
Feature: Plug and Play

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Packaging data

Quantity per pack: 1 pc(s)
Package width: 125 mm
Package depth: 264 mm
Package height: 154 mm
Package weight: 1.9 kg

Logistics data

Products per master (outer) case: 6 pc(s)
Master (outer) case width: 282 mm
Master (outer) case length: 395 mm
Master (outer) case height: 352 mm
Master (outer) case gross weight: 12.1 kg
Master (outer) case net weight: 12.1 kg

Other features

Compatible operating systems: macOS 14.5 or above; Windows 11 (23H2 or later)
Special features: EQ
USB ports quantity: 3
