ICY BOX IB-DK4062-CPD

ICY BOX 12-in-1 DockingStation with triple video output. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Power connector: USB Type-C, Power cable length: 0.2 m. Mobile operating systems supported: Android, Other operating systems supported: ChromeOS

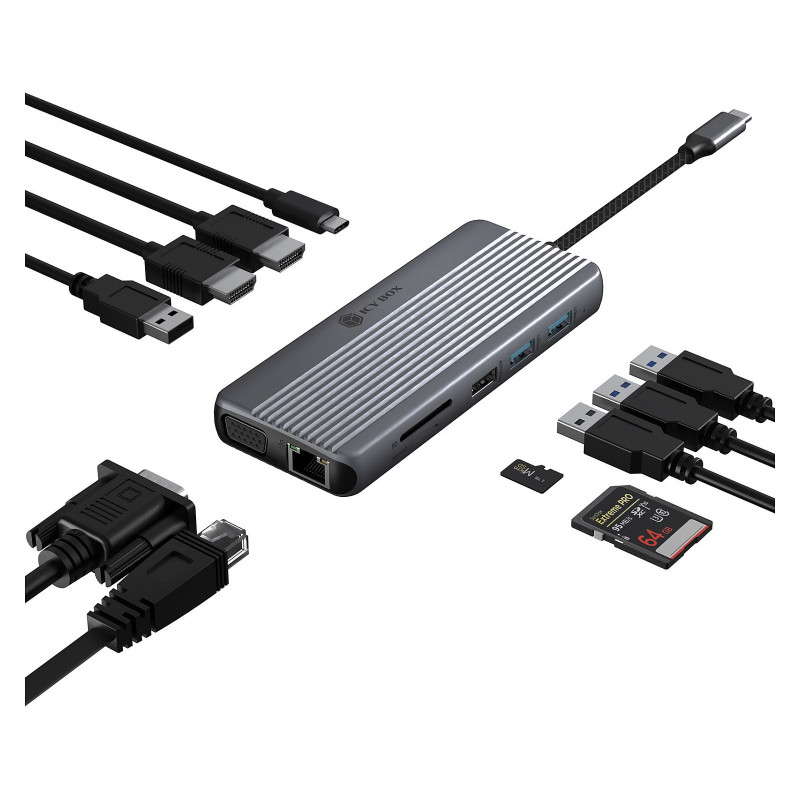

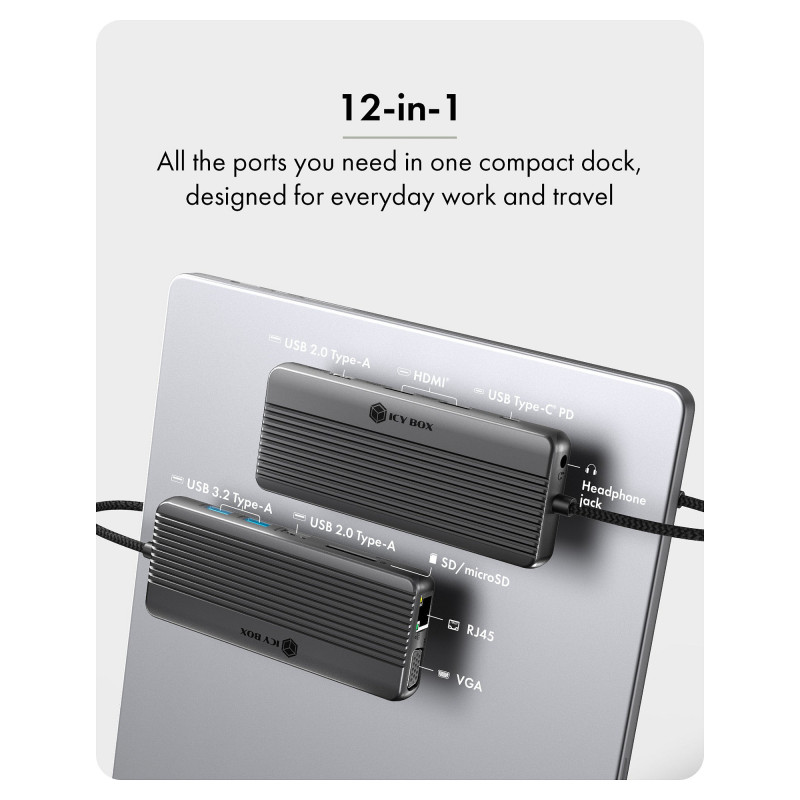

12-in-1 Connectivity
Everything you need in one place. IB-DK4062-CPD helps keep your desk neat by combining multiple connections into a single device. No more reaching for different adapters or cables. It offers USB Type-A, USB Type-C®, PD, HDMI®, VGA, Ethernet, audio, and card reader slots to keep you connected and organized.

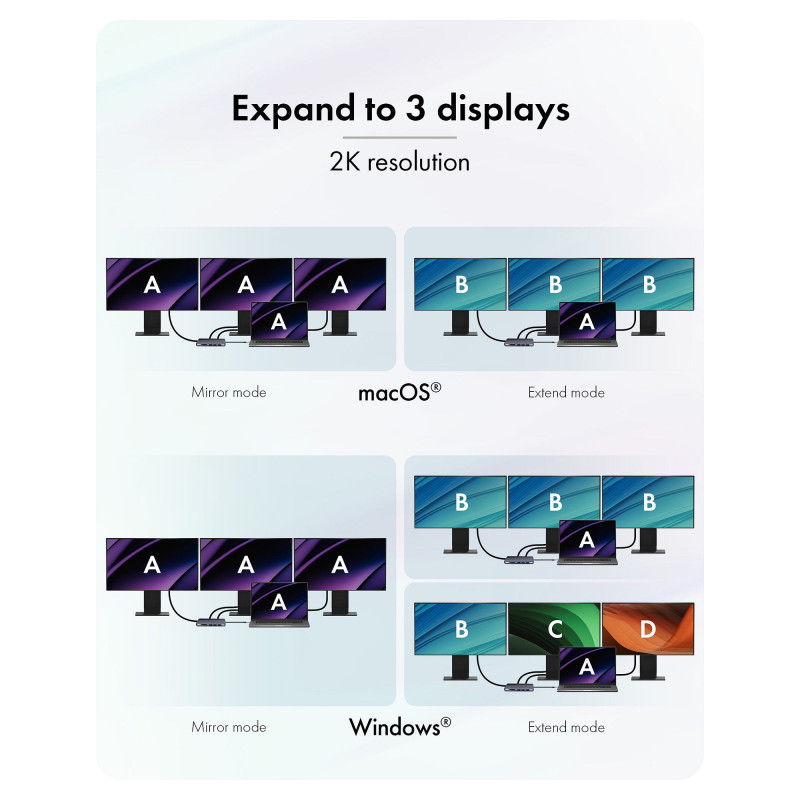

Triple Display Option

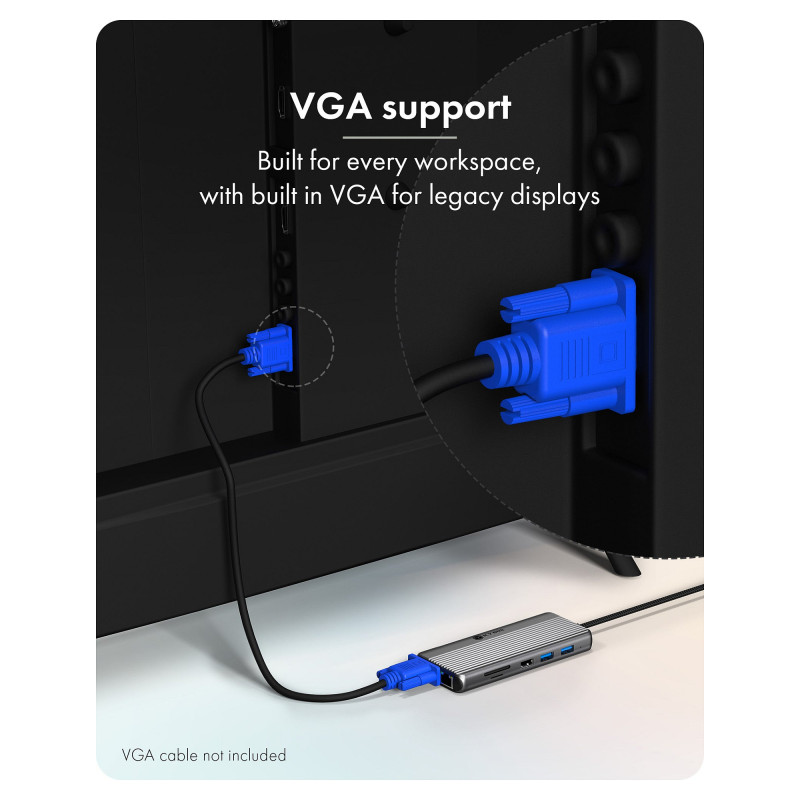

IB-DK4062-CPD supports up to 3 external displays. With 2x HDMI® and 1x VGA ports, it runs 1920x1080 at 60Hz for 3 monitors at the same time. Enjoy high resolution with single HDMI® for up to 3840x2160 at 30 Hz.

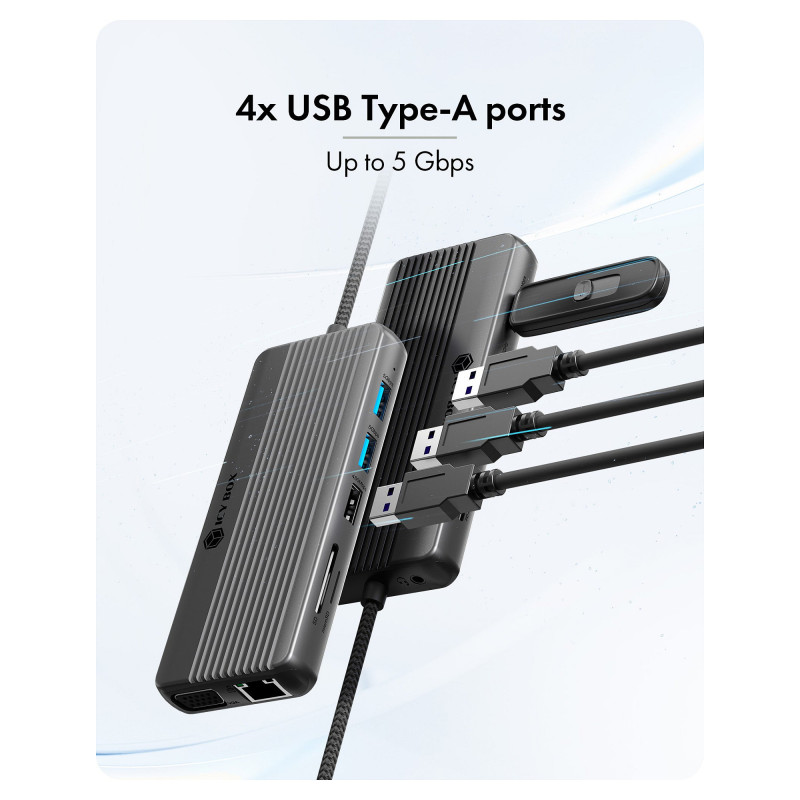

USB Type-A Ports
IB-DK4062-CPD comes with 4 USB type-A ports, with 2x USB 3.2 Gen 1 offering up to 5 Gbps and 2x USB 2.0 ports offering up to 480 Mbps. It allows you to connect other devices such as mice, keyboards, USB drives, or enclosures.

More than just USB Ports
Beyond standard connectivity, this Dock adds practical extras: Take Gigabit Ethernet for stable internet. Or a 3.5 mm audio jack for your headset or speakers. What about SD/microSD card slots with speeds up to 104 Mbps? IB-DK4062-CPD simply ideal for quick access to media files or expanding storage options.

Power Delivery 3.0
With support for USB Type-C® Power Delivery 3.0, IB-DK4062-CPD provides up to 100 W upstream charging. It can keep your notebook powered through a single USB Type-C® connection, making it especially useful for devices with only one port.

Operating System
Compatible with Windows®, macOS®, Chrome OS™, and Linux®, IB-DK4062-CPD connects easily to a variety of systems. No matter which OS you are working with: no need for extra configuration, making it especially useful when switching between environments or use multiple types of devices.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity: 2
USB 2.0 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: Microphone in
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
HD type: 4K Ultra HD
Maximum refresh rate: 60 Hz
Product colour: Anthracite
Feature: Plug and Play
Feature: UASP support
Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
Power connector: USB Type-C
Power cable length: 0.2 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Mobile operating systems supported: Android
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 55 mm
Depth: 133 mm
Height: 17 mm
Weight: 135 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 100 mm
Package depth: 200 mm
Package height: 25 mm
Package weight: 200 g

Packaging content

Feature: Manual
