ICY BOX IB-DK2262AC

ICY BOX IB-DK2262AC. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 55 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Compatible memory cards: MicroSD (TransFlash), SD, HD type: 4K Ultra HD. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Other operating systems supported: ChromeOS

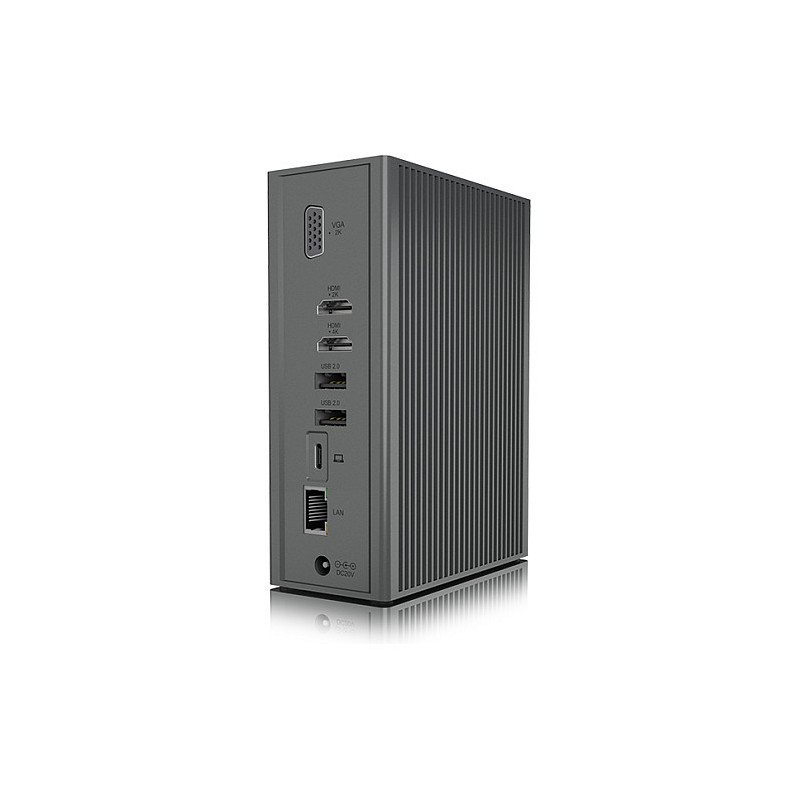

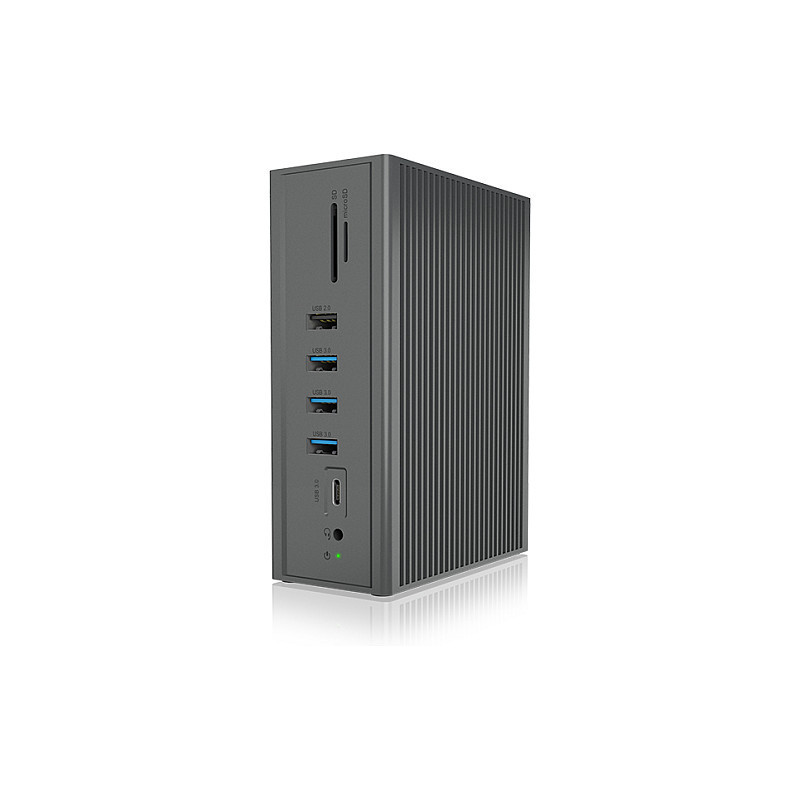

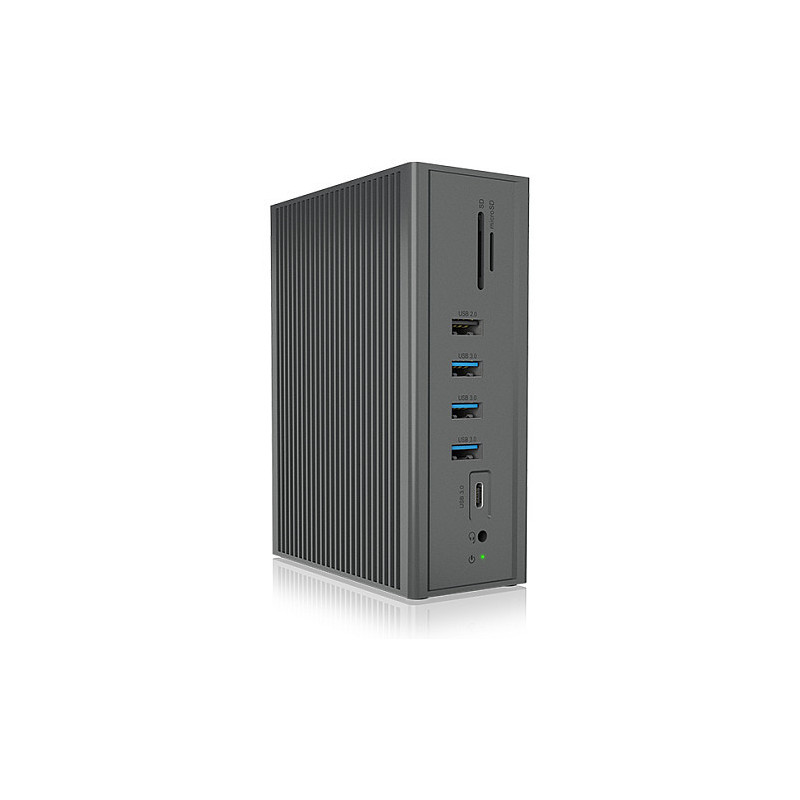

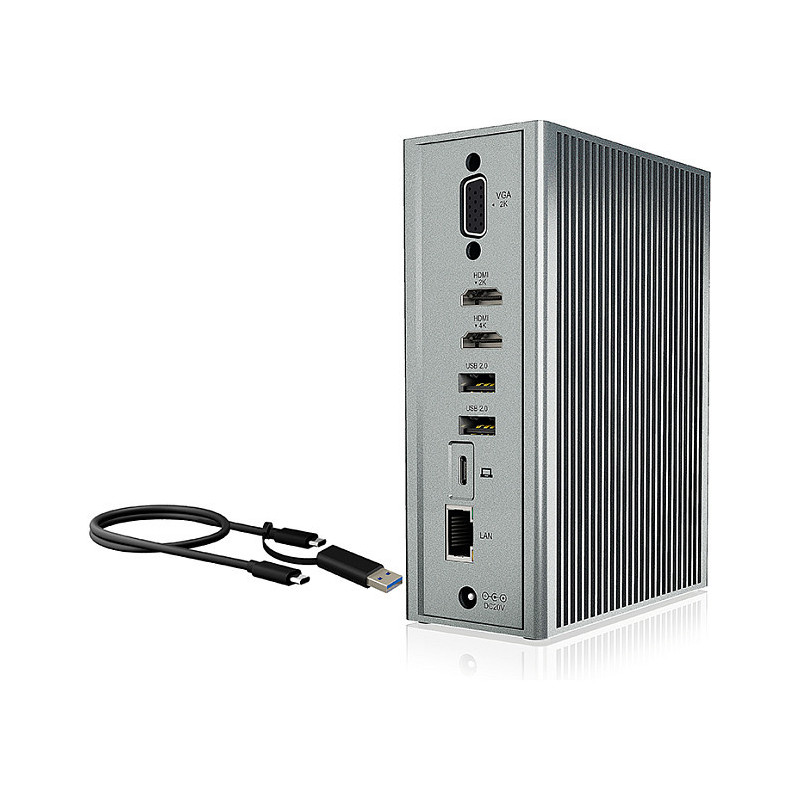

Rugged aluminium design
The IB-DK2262AC's solid housing is made of strong aluminium alloy, which makes this housing more durable than ordinary aluminium or plastic products, effectively protecting the DockingStation and equipping it for a wide range of use conditions. The aluminium material and the heat sink design with cooling fins support heat dissipation for an excellent passive cooling effect and protect the unit from overheating even under heavy use.

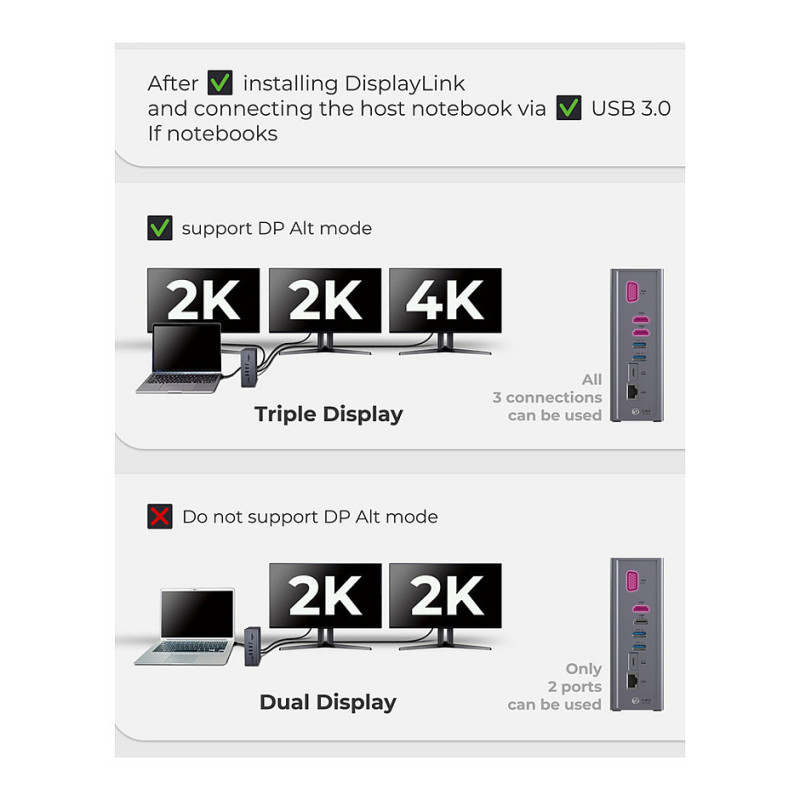

Triple video output
The IB-DK2262AC provides up to three video interfaces of different resolutions with two HDMI® and one VGA connection, enabling the simultaneous connection of HDMI® and VGA display devices in expansion mode. This is achieved by combining state-of-the-art technologies such as DisplayLink® and DisplayPort™ Alt Mode.

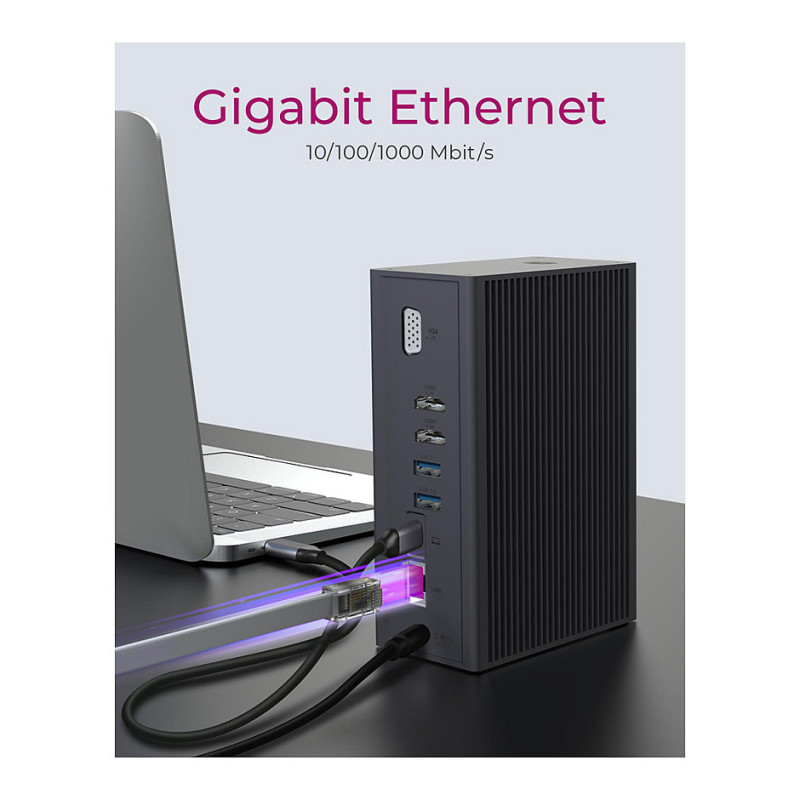

LAN port - fast and safe
Wireless devices are certainly more convenient and good to use in many situations, and yet there are better options if you need high data transfer rates, for example. In addition, wired connections are more secure than wireless connections. Especially if you don't want to or can't fully exploit the security measures available via WLAN, LAN connections offer less risk. Then an Ethernet interface is the best way to transfer files between devices with high security and maximum transfer rate.

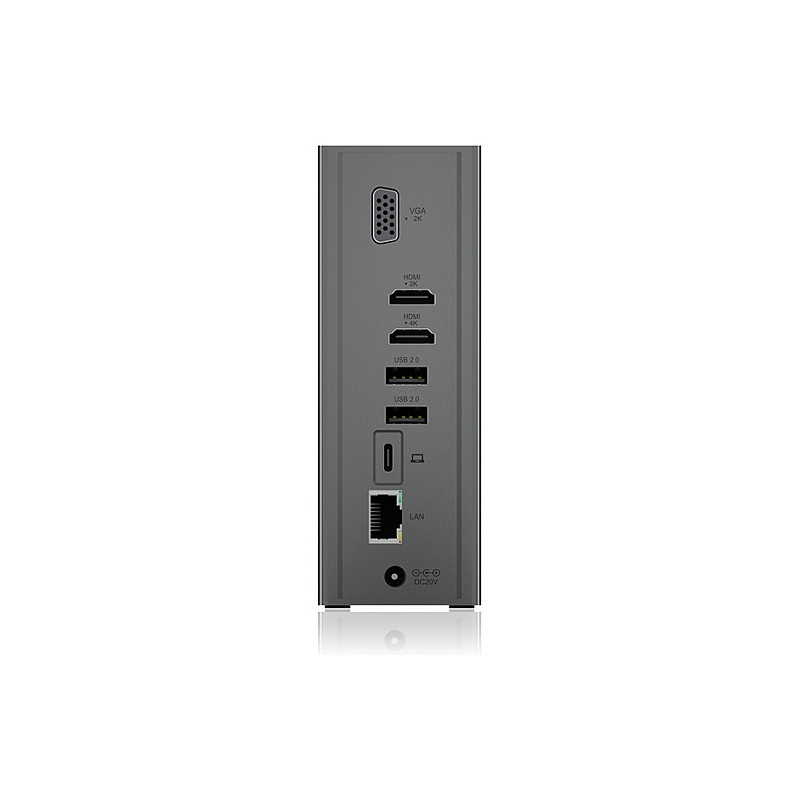

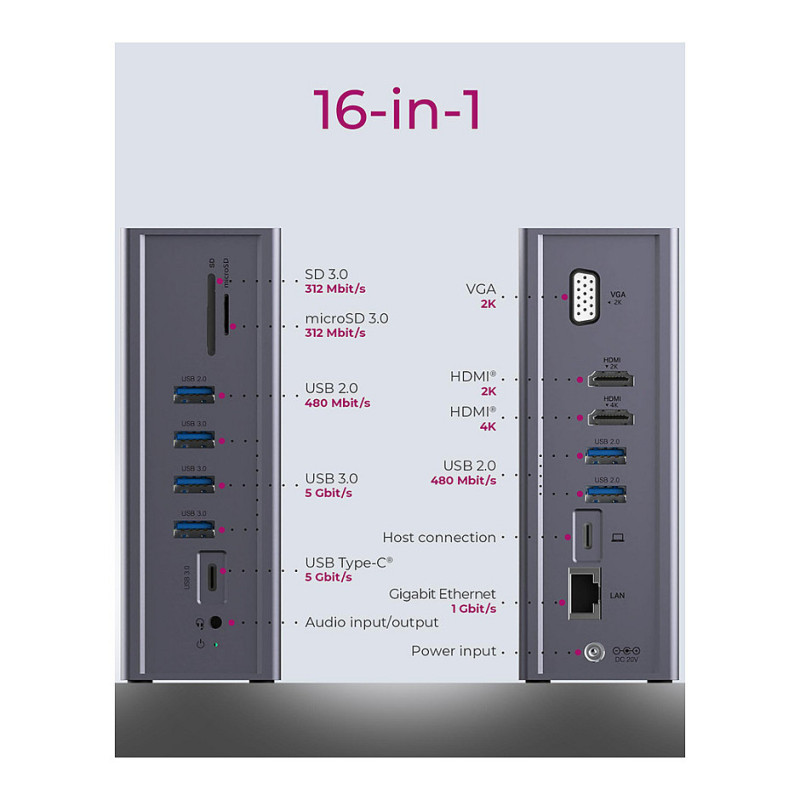

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C

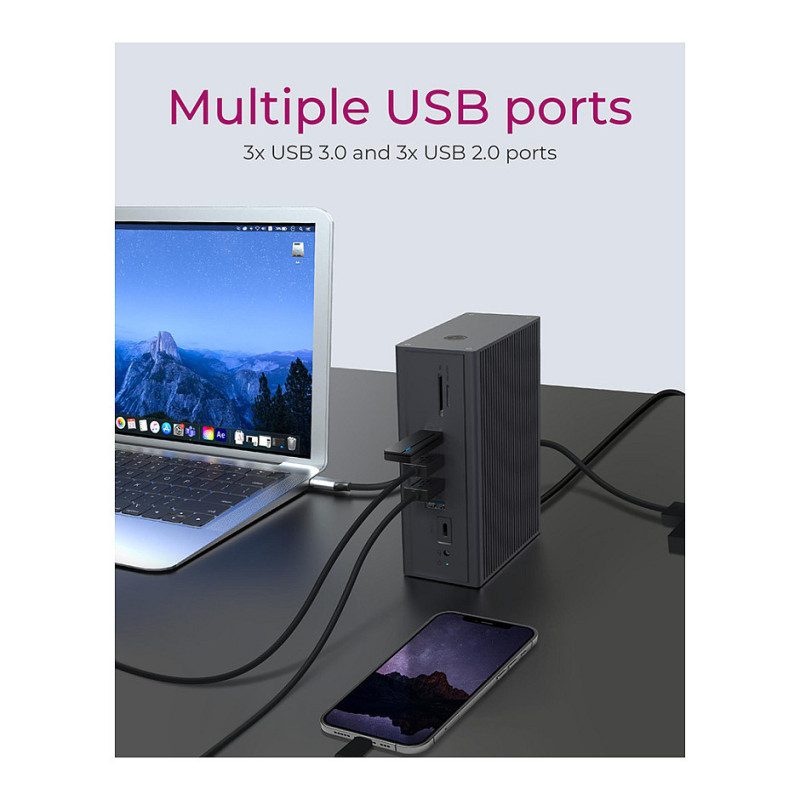

USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2

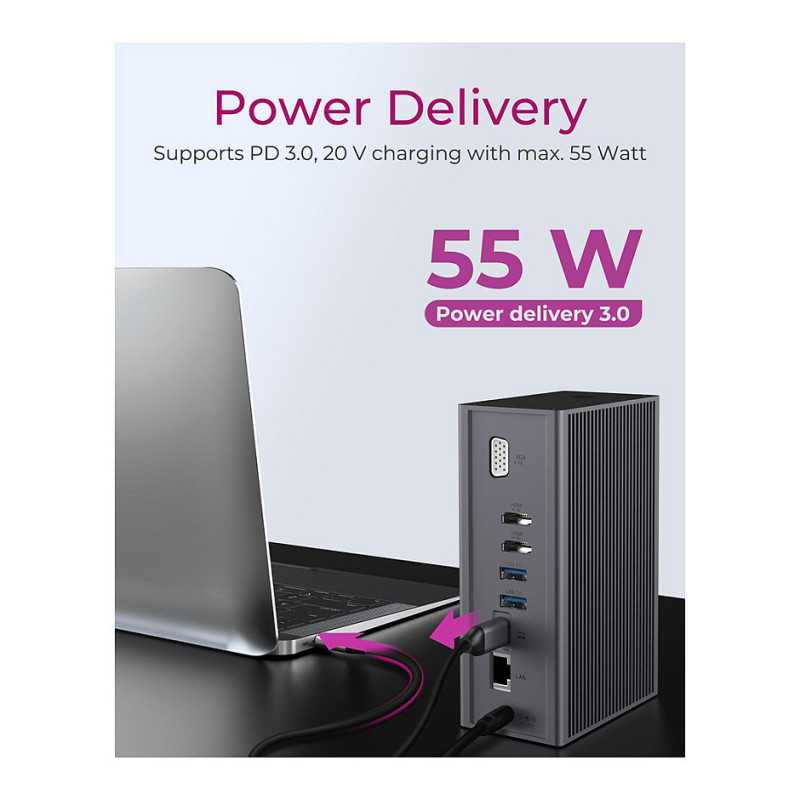

Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 55 W
HDMI ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: Combo headphone/mic port
Headphone outputs: 1
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum analog resolution: 1920 x 1080 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Anthracite
LED indicators: Power
Housing material: Aluminium
Country of origin: China

Power

Power source type: AC
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz
Power supply: 65 W
Output voltage: 20 V
Output current: 3.25 A

Software

Windows operating systems supported: Windows 10, Windows 11, Windows 8
Mac operating systems supported: Yes
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 50 mm
Depth: 103 mm
Height: 140 mm
Weight: 480 g

Packaging data

Quantity per pack: 1 pc(s)
Package weight: 1.19 kg

Packaging content

Cables included: AC, USB Type-C to USB Type-C
Feature: AC adapter included
Feature: Manual
Interface adapters included: USB Type-A male - USB Type-C female

Logistics data

Products per master (outer) case: 12 pc(s)
Master (outer) case width: 210 mm
Master (outer) case length: 350 mm
Master (outer) case height: 455 mm
Master (outer) case gross weight: 14.3 kg
Harmonized System (HS) code: 84718000
