Icy Box IB-DK2246AC

ICY BOX 11 in 1 Hybrid DockingStation with triple video output. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-A. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 3840 x 2160 pixels, Maximum refresh rate: 60 Hz. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Other operating systems supported: ChromeOS

Safe companion

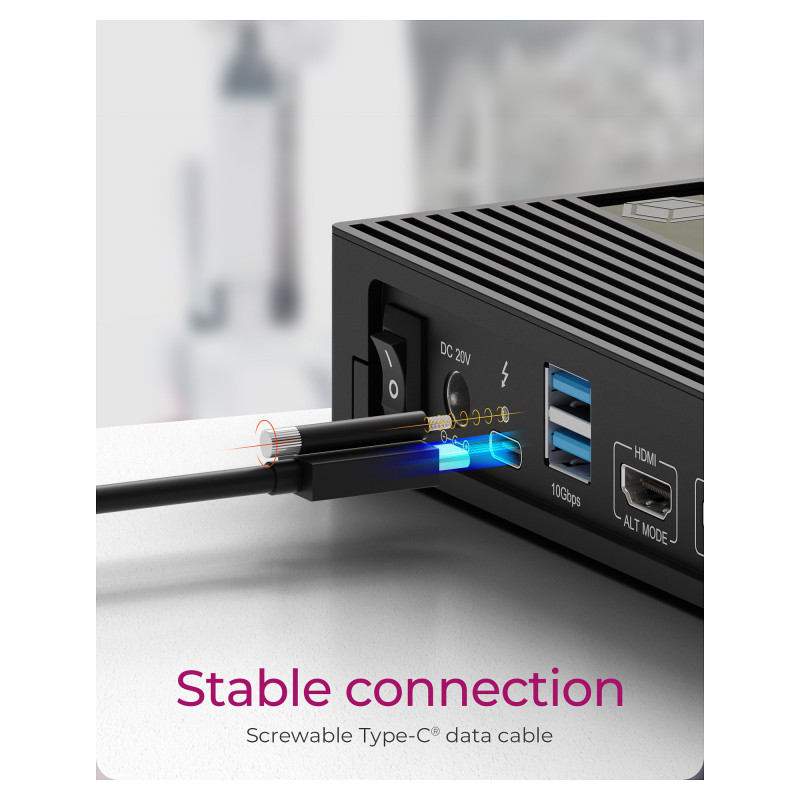

The screwable Type-C® data cable ensures a reliable and secure connection between notebook and DockingStation. The intelligent heat dissipation enhanced by cleverly placed ventilation inlets and outlets serves to extend the service life. These ensure maximum performance even under heavy use.

Hidden talents
The practical solution for a tidy and productive workplace - Notebook DockingStation with VESA® mounting bracket! With this clever method, you can attach your DockingStation directly to a VESA® support behind your monitor, creating a tidy desk.

Powerful support

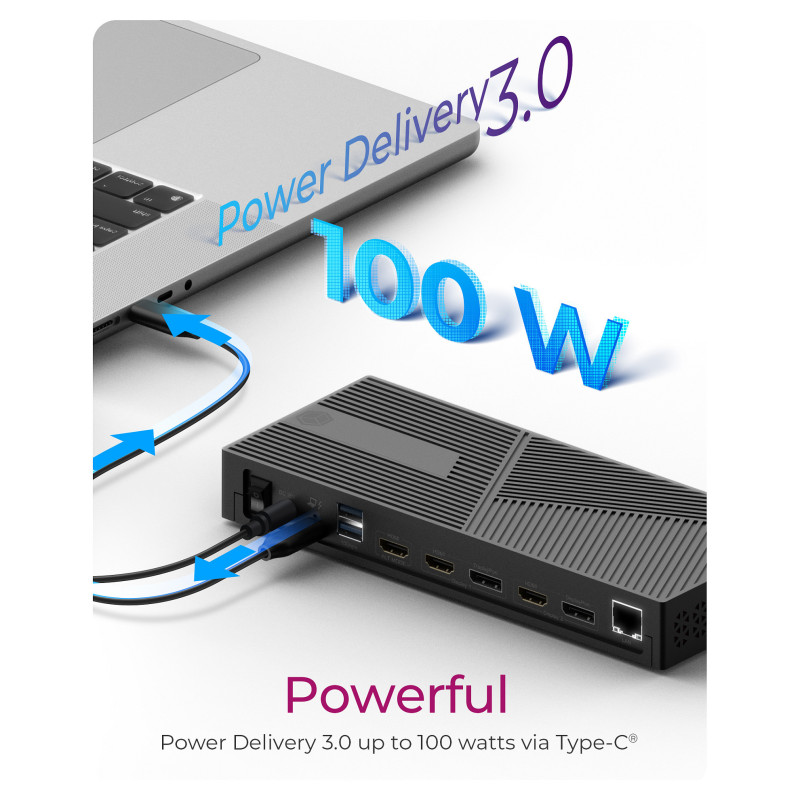

Our Notebook DockingStation with Power Delivery guarantees fast and secure charging of your devices with up to 100 watts. This allows you to charge even powerful notebooks in the shortest possible time. The builtin intelligent protection mechanisms prevent overheating and overcharging of your connected devices.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
HDMI ports quantity: 3
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Headphone outputs: 1
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Maximum VESA mount: 100 x 100 mm
Product colour: Black

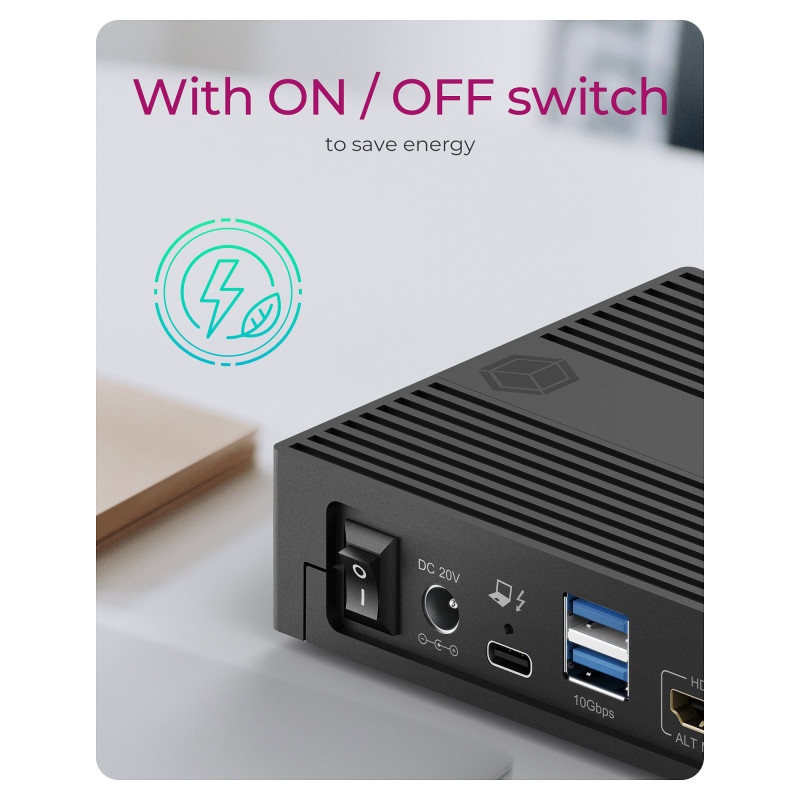

Feature: On/off switch
LED indicators: Power
Feature: UASP support
Housing material: Acrylonitrile butadiene styrene (ABS)
Country of origin: China

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power supply: 130 W
Output voltage: 20 V
Output current: 6.5 A
USB cable length: 1 m

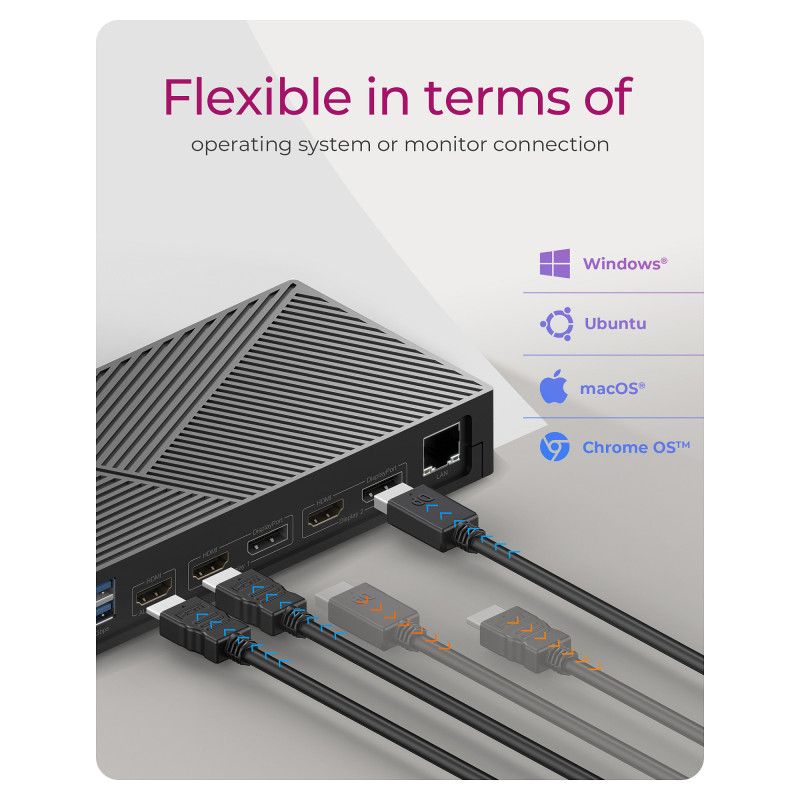

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 224 mm
Depth: 91 mm
Height: 29 mm
Weight: 380 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 139 mm
Package depth: 229 mm
Package height: 103 mm
Package weight: 1.79 kg

Packaging content

Cables included: AC, USB Type-A to USB Type-C
Feature: AC adapter included
Feature: Manual

Logistics data

Products per master (outer) case: 10 pc(s)
Master (outer) case width: 285 mm
Master (outer) case length: 540 mm
Master (outer) case height: 310 mm
Master (outer) case gross weight: 17.9 kg
Harmonized System (HS) code: 84718000
