ICY BOX IB-180MC-C31

ICY BOX IB-180MC-C31. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: PCI Express, Serial ATA III, Maximum storage capacity: 2 TB. Data transfer rate: 10 Gbit/s. Product colour: Black. USB connector type: USB Type-C

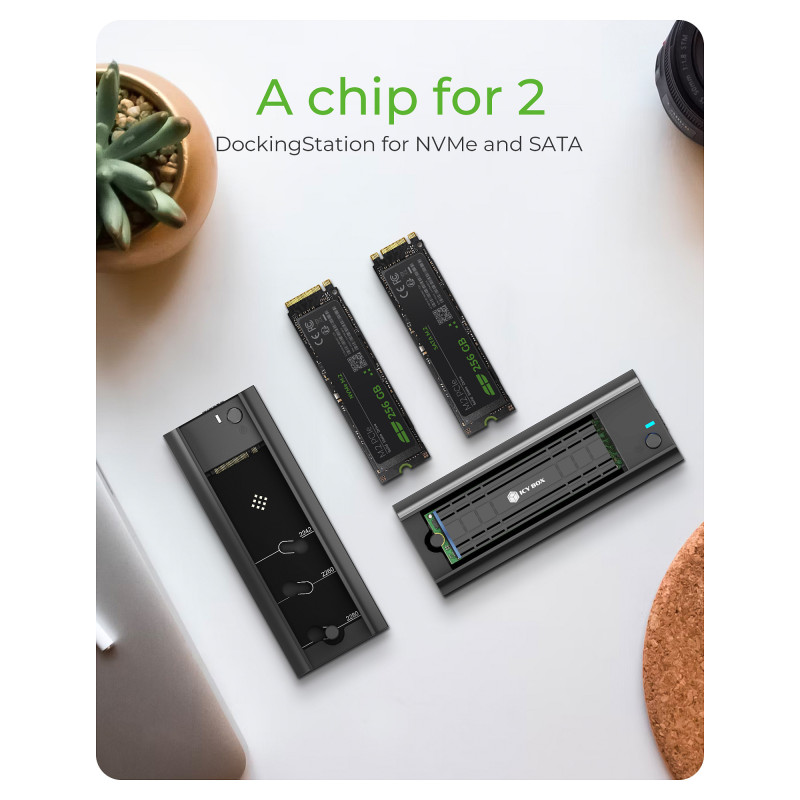

With the DockingStation IB-180MC-C31 from ICY BOX® you can expand your storage possibilities. It enables you to easily change M.2 NVMe or SATA data media without tools. The DockingStation is connected to the PC or notebook via the included USB Type-C cable, which has an integrated adapter to Type-A. This way you can easily connect your storage device and achieve data transfer rates of up to 10 Gbit/s thanks to USB 3.2 (Gen 2). The DockingStation is suitable for M.2 SSDs in the format 22x 42, 60 or 80 mm.

Easily docked

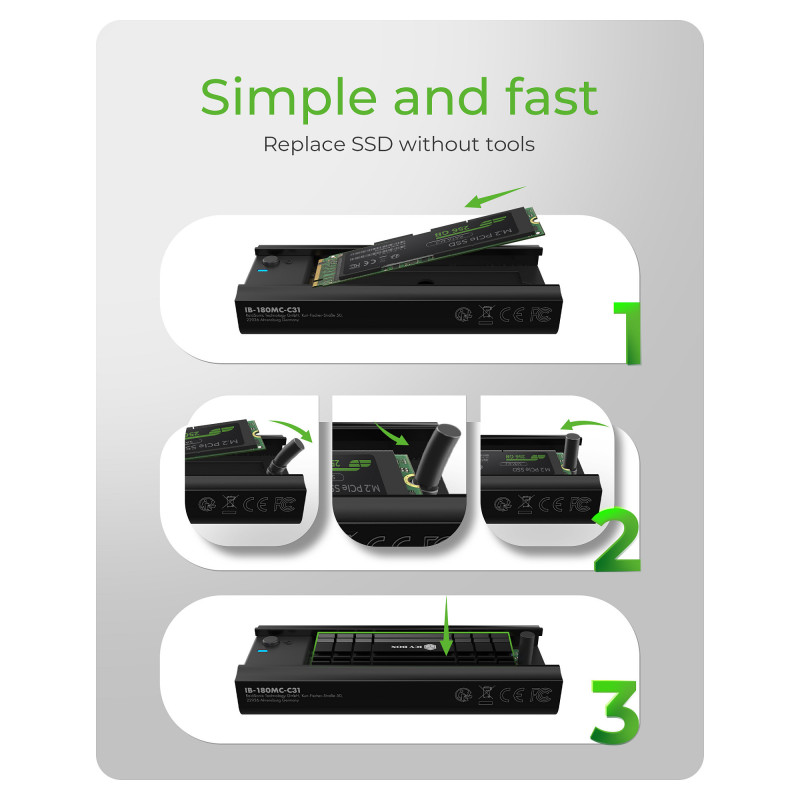

Change your M.2 SSD without tools and expand your storage on your PC and notebook quickly and easily. Connect the IB-180MC-C31 with the included USB Type-C cable and switch to maximum storage with the "On" button. This way you can save your precious data without much effort.

Stay cool

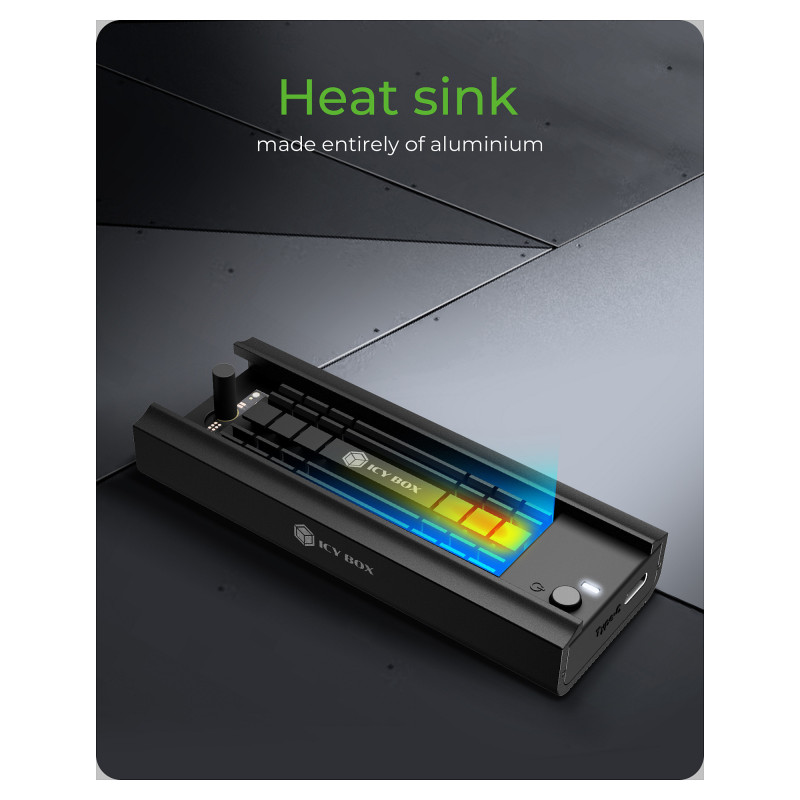

Under heavy workloads, the memory can sometimes run hot. To avoid this, the IB-180MC-C31 has an
aluminium heat sink. In addition, heat conduction pads ensure optimal heat dissipation. This means that the storage media in the DockingStation always remain within the correct temperature range.

Flexibility is standard
Regardless of whether you want to use an M.2 SSD in NVMe or SATA standard, with the IB-180MC-C31 DockingStation you make the right choice. M.2 storage in sizes of 22x 42, 60 or 80 mm find their place here and you have fast data access thanks to transfer rates of up to 10 Gbit/s.

Storage

Number of storage drives supported: 1
Storage drive size: M.2
Supported storage drive interfaces: PCI Express, Serial ATA III
Supported storage drive heights: 22 mm
Supported storage drive lengths: 42,60,80 mm
Feature: NVMe
Maximum storage capacity: 2 TB

Ports & interfaces

Feature: USB connectivity

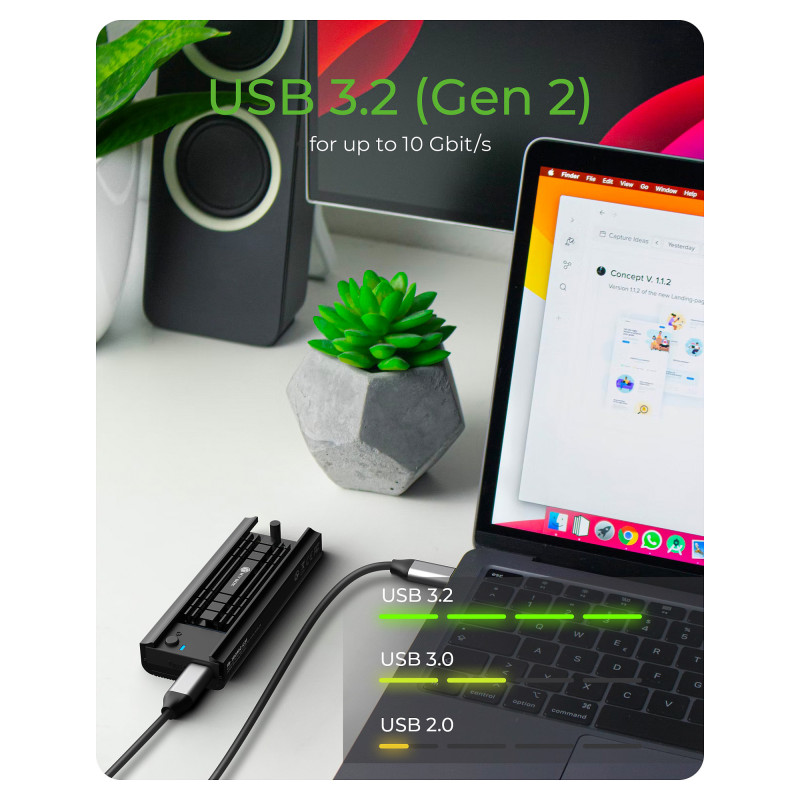

USB version: 3.2 Gen 2 (3.1 Gen 2)
USB connector type: USB Type-C
USB connector gender: Female
USB ports quantity: 1

Design

Product type: SSD enclosure
Product colour: Black

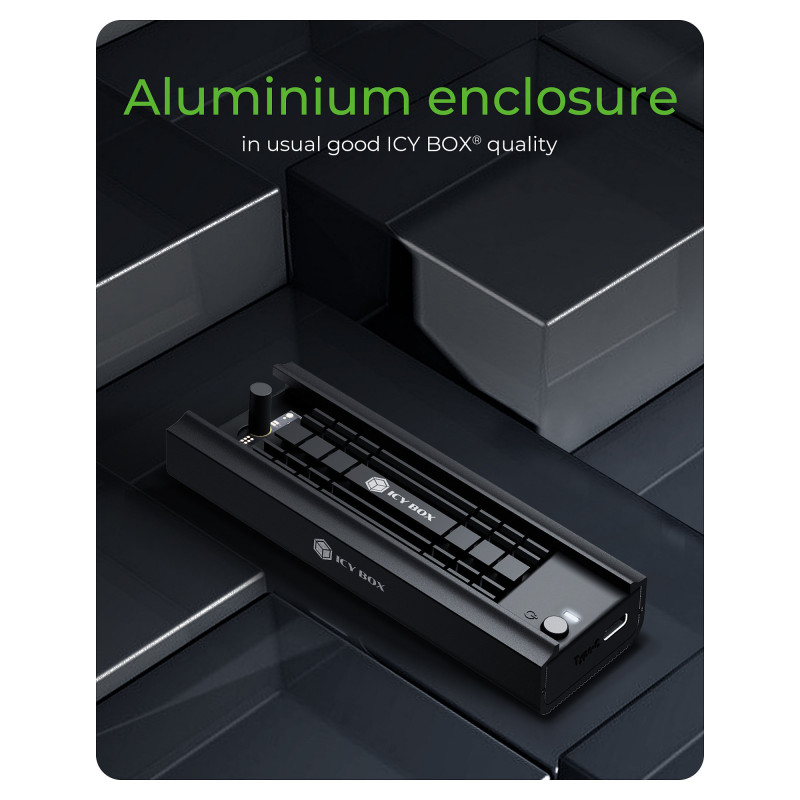

Material: Aluminium, Plastic
LED indicators: Yes
Feature: On/off switch

Performance

Data transfer rate: 10 Gbit/s
Feature: Plug and Play
Country of origin: Taiwan

Power

Power source type: USB

System requirements

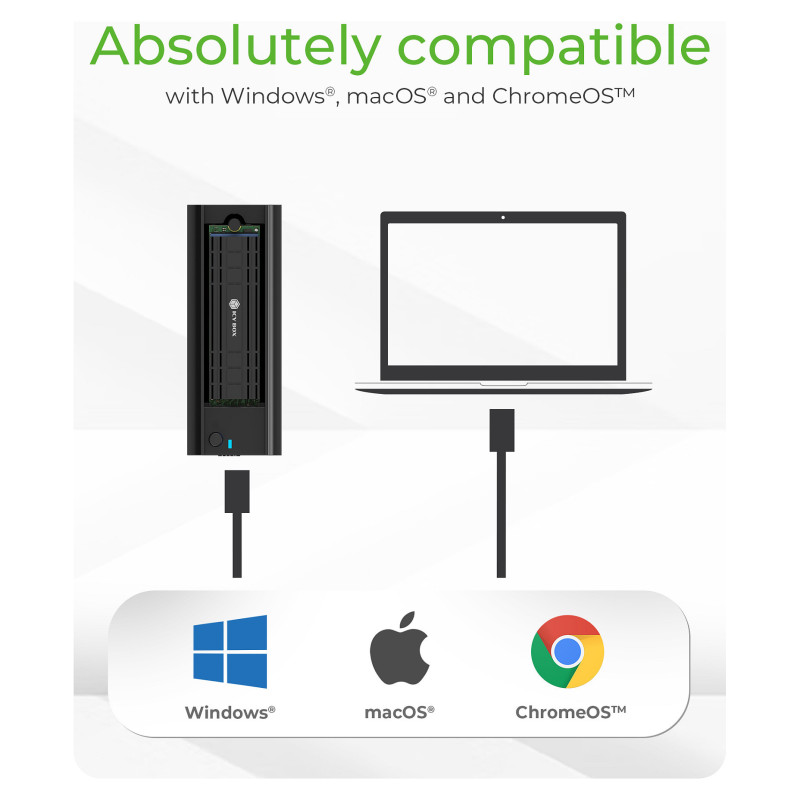

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 41 mm
Depth: 108 mm
Height: 19 mm
Weight: 65 g
Cable length: 0.45 m
Package width: 105 mm
Package depth: 200 mm
Package height: 28 mm
Package weight: 185 g

Packaging content

Cables included: USB Type-C to USB Type-C

Logistics data

Harmonized System (HS) code: 84718000
Products per master (outer) case: 40 pc(s)
