ICY BOX Heart Dock 2300

ICY BOX Heart Dock 2300, 11-in-1 DockingStation with dual video output and LCD display. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Anthracite, Data transfer rate: 10 Gbit/s, HD type: 4K DCI. Power source type: AC, AC input voltage: 230 V, USB cable length: 1 m. Width: 155 mm, Depth: 77 mm, Height: 65 mm

What you see is what you get

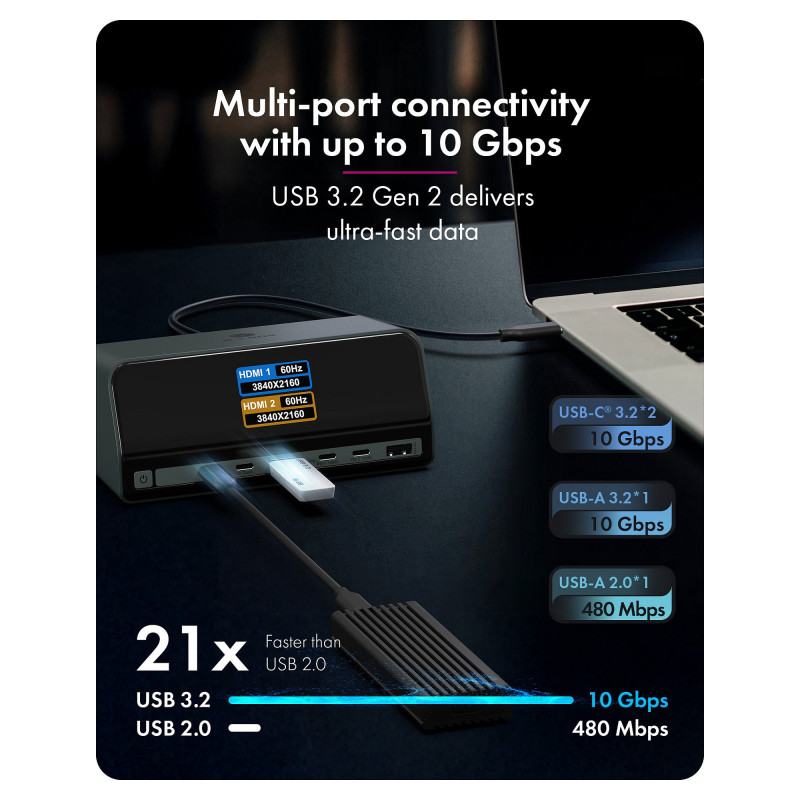

Heart Dock 2300 brings together a wide range of ports in one compact DockingStation. With dual HDMI®, multiple USB ports, Ethernet, and charging support, it covers everyday work scenarios without overcomplicating things. Each connection has a clear purpose, making it easy to build a functional workspace.

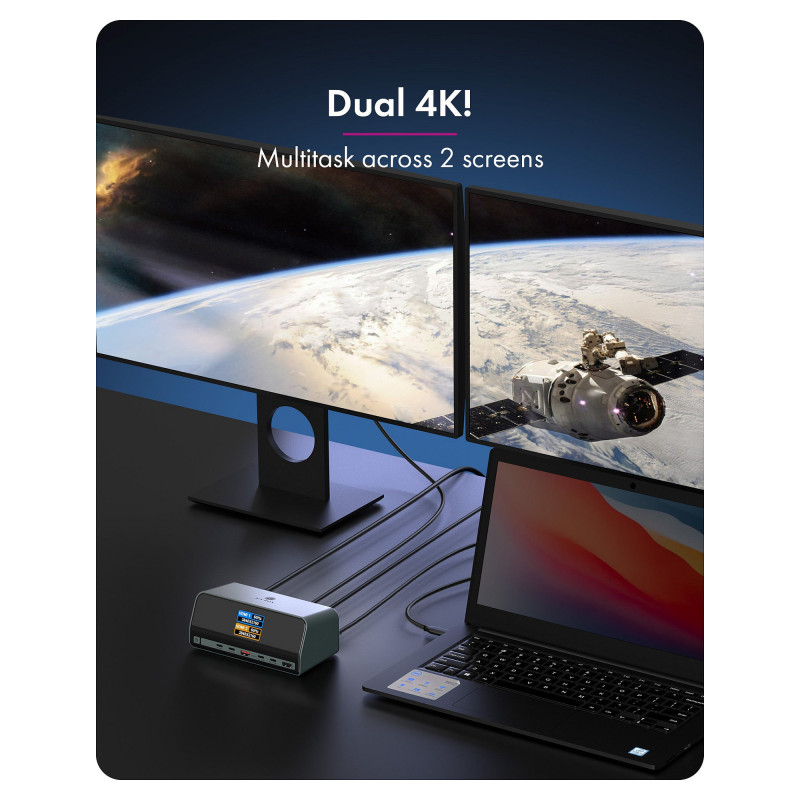

Dual 4K!
2 HDMI® ports mean up to 2 external displays. You can run dual 4K at 60 Hz or a single display at up to 4K at 120 Hz. This gives you more screen space for multitasking, presentations, or creative work.

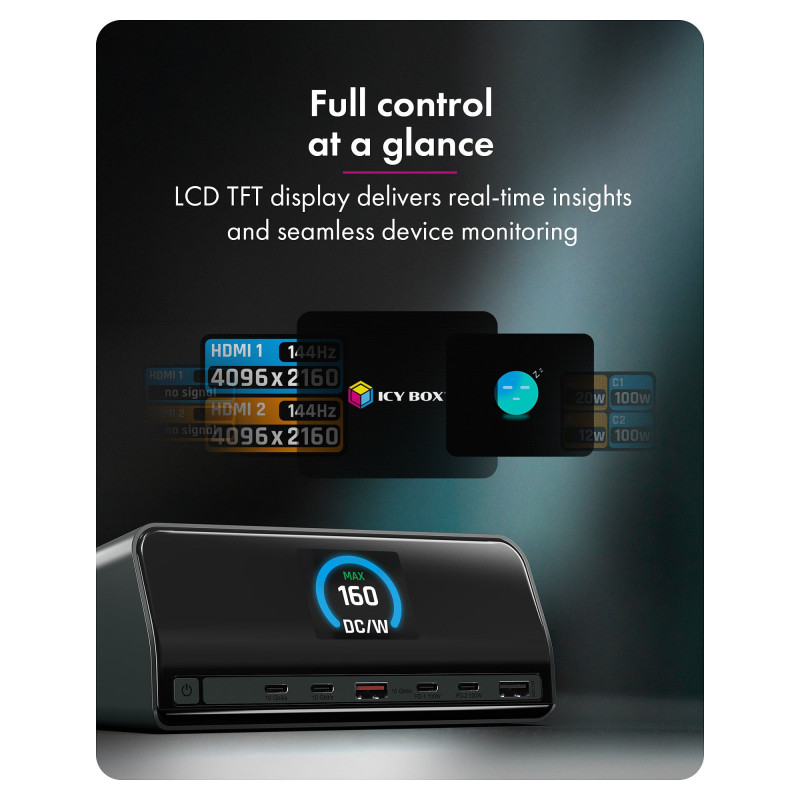

LCD TFT: the most beautiful letters
The built in TFT display gives you real time insight into your setup. It shows useful information such as power usage and display status, so you always know what is happening.

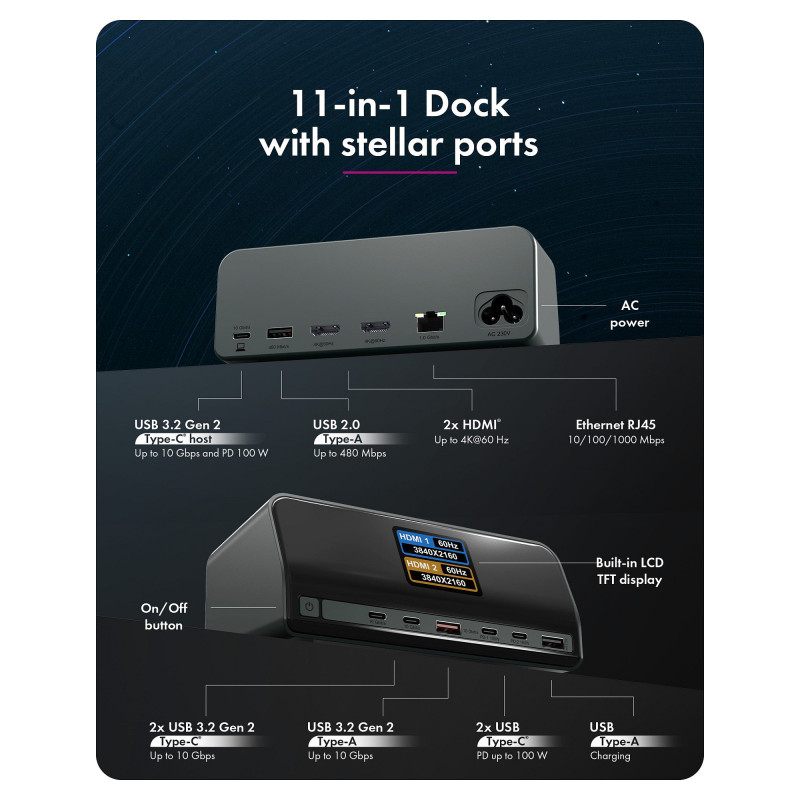

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity: 2
USB 2.0 Type-C ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 3
HDMI version: 2.0

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 10 Gbit/s
HD type: 4K DCI
Maximum digital resolution: 3840 x 2160 pixels
Number of displays supported: 2
Maximum refresh rate: 120 Hz
Product colour: Anthracite
Feature: On/off switch
Housing material: Polycarbonate (PC)
Country of origin: China

Power

Power source type: AC
AC input voltage: 230 V
USB cable length: 1 m

Weight & dimensions

Width: 155 mm
Depth: 77 mm
Height: 65 mm
Weight: 971 g

Packaging data

Package width: 200 mm
Package depth: 80 mm
Package height: 180 mm
Package weight: 1.23 kg

Packaging content

Cables included: USB Type-C to USB Type-C, AC
Feature: Manual

Logistics data

Products per master (outer) case: 12 pc(s)
Master (outer) case width: 390 mm
Master (outer) case length: 425 mm
Master (outer) case height: 280 mm
Master (outer) case gross weight: 15.8 kg
Harmonized System (HS) code: 84718000

Other features

Display: LCD
