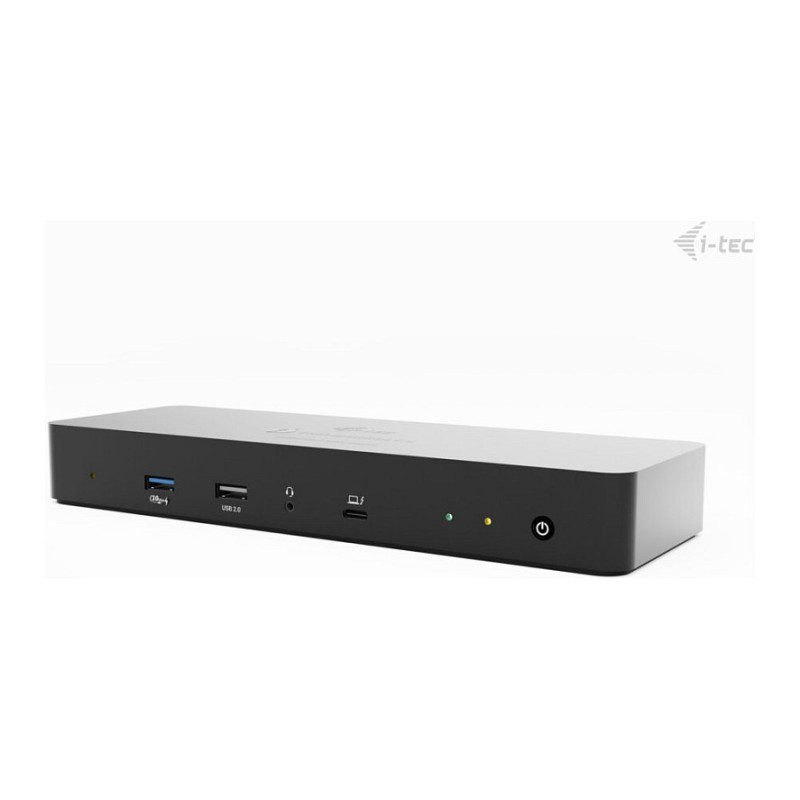

i-tec TB4INTGDUAL4KDOCPD laptop dock / port replicator

i-tec Thunderbolt 4 Intelligent Dual Display Docking Station + Power Delivery 90W. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 90 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 7680 x 4320 pixels. Power supply: 135 W, Output voltage: 20 V, Output current: 6.75 A. Other operating systems supported: Android, ChromeOS, iPadOS

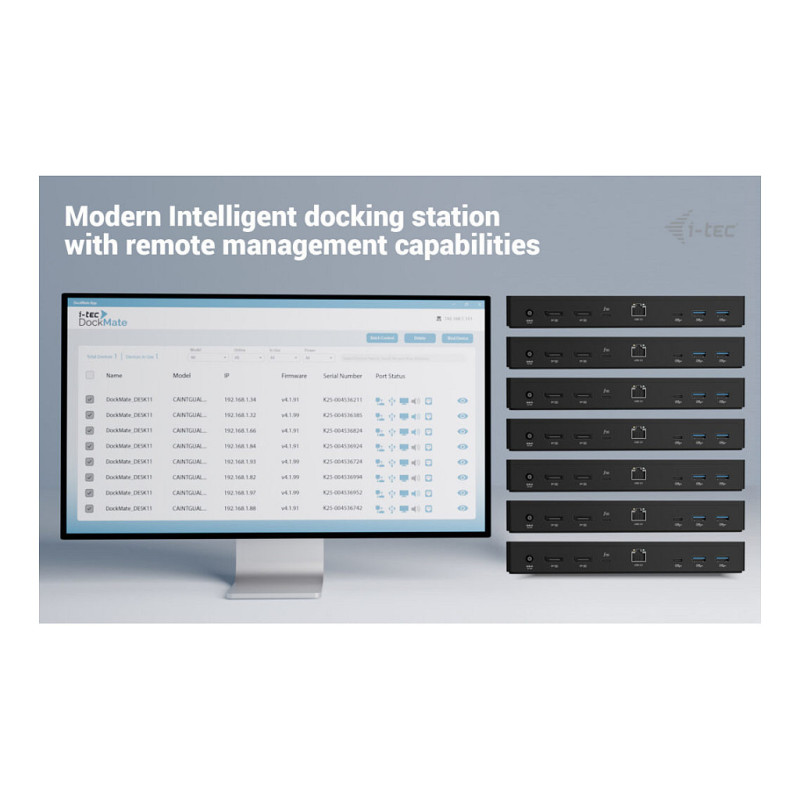

Experience a breakthrough in docking technology with a high-performance, universal docking station designed for full remote management. Thanks to its dedicated LAN port, IT administrators can control the dock from anywhere *. The remote management software is available as an optional add-on and can be purchased at any time. Of course, the docking station operates at full functionality even without it; the only limitation is the absence of remote management features. And best of all - Manageability works without a host connection — just power and LAN required. NOTE: The software is available for Windows computers only.

A next-generation, high-performance Thunderbolt" 4 docking station that delivers output to up to two external 4K monitors or a single 8K display. Compatible with virtually all notebooks equipped with USB-C**, USB4, or Thunderbolt" 3/4/5 ports, and supporting all major operating systems.

With multiple USB ports (including USB 3.2 Gen 2 with speeds up to 10 Gbps), a Thunderbolt" 4 port offering either 8K video or ultra-fast 40 Gbps data transfer, and a reliable, high-speed LAN connection, this docking station is the ideal solution for demanding professionals. Naturally, it also supports up to 90W power delivery to keep your notebook or tablet charged.

- Connect a single 8K display or up to two external monitors in resolutions up to 4K**

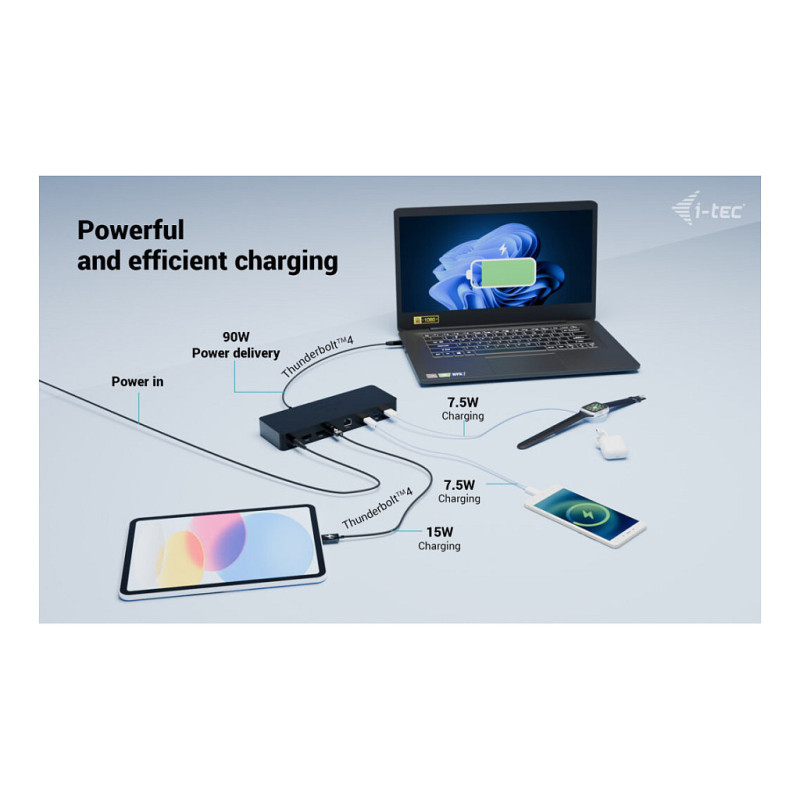

- Power delivery up to 90 W

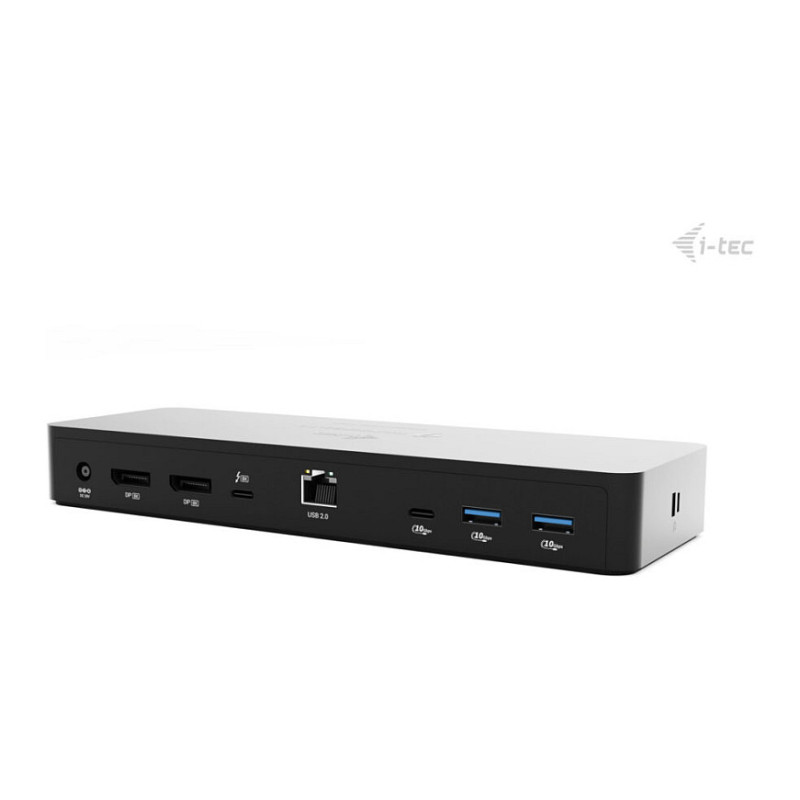

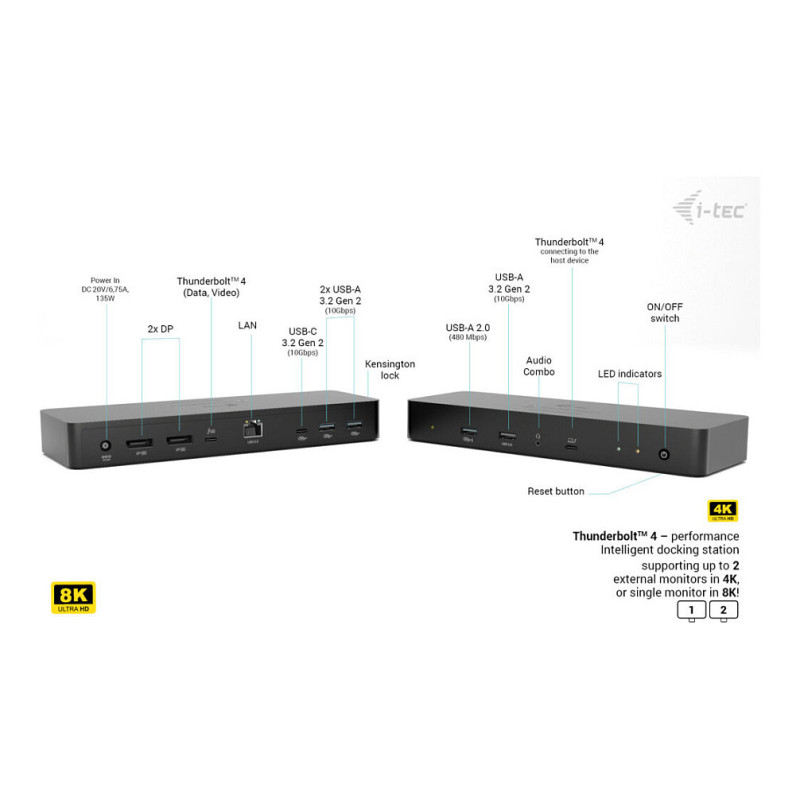

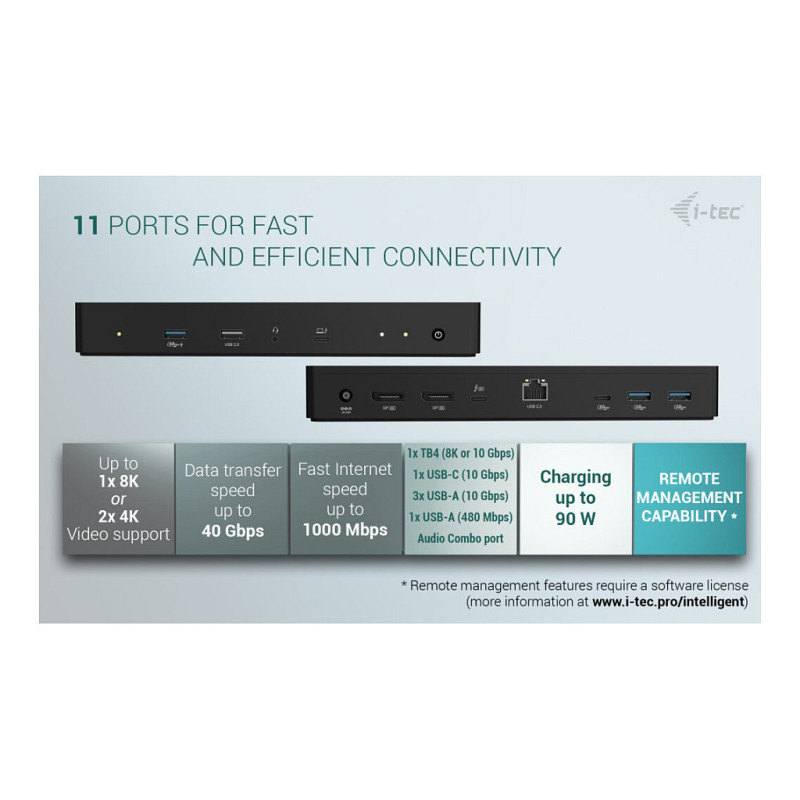

- 2× DisplayPort and 1× Thunderbolt" 4 port available
- 5× USB ports: 1× USB-A (10 Gbps, BC 1.2 fast charging), 2× USB-A (10 Gbps), 1× USB-A (2.0), and 1× USB-C (Gen 2, 10 Gbps)
- Intelligent Gigabit Ethernet (RJ-45) provides reliable, high-speed connectivity with 10/100/1000 Mbps support and seamless remote management functionality
- Combined audio/microphone jack
- Kensington lock slot provides anti-theft protection, ideal for shared office spaces or public areas
- Power switch on the docking station allows maximum energy savings
- Supports Windows 10/11, macOS, iPadOS, Android, ChromeOS, and Linux (latest versions)

* Because of the way Thunderbolt" technology works, i-tec DockMate can manage the docking station itself (such as remote on/off, scheduled power saving, or firmware updates), but it cannot directly control individual ports like USB, LAN, audio or display outputs.

** Only one external monitor is supported when connected via a USB-C port.

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 4
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 90 W
DisplayPorts quantity: 2
DisplayPort version: 1.4
Thunderbolt 4 ports quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 40 Gbit/s
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 2
Maximum refresh rate: 360 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: On/off switch
LED indicators: Yes

Power

Power supply: 135 W
Output voltage: 20 V
Output current: 6.75 A
Compatible power plug types: EU
Power cable length: 1.5 m
Thunderbolt 4 cable length: 1 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS, iPadOS

Weight & dimensions

Width: 220 mm
Depth: 75 mm
Height: 30 mm
Weight: 295 g

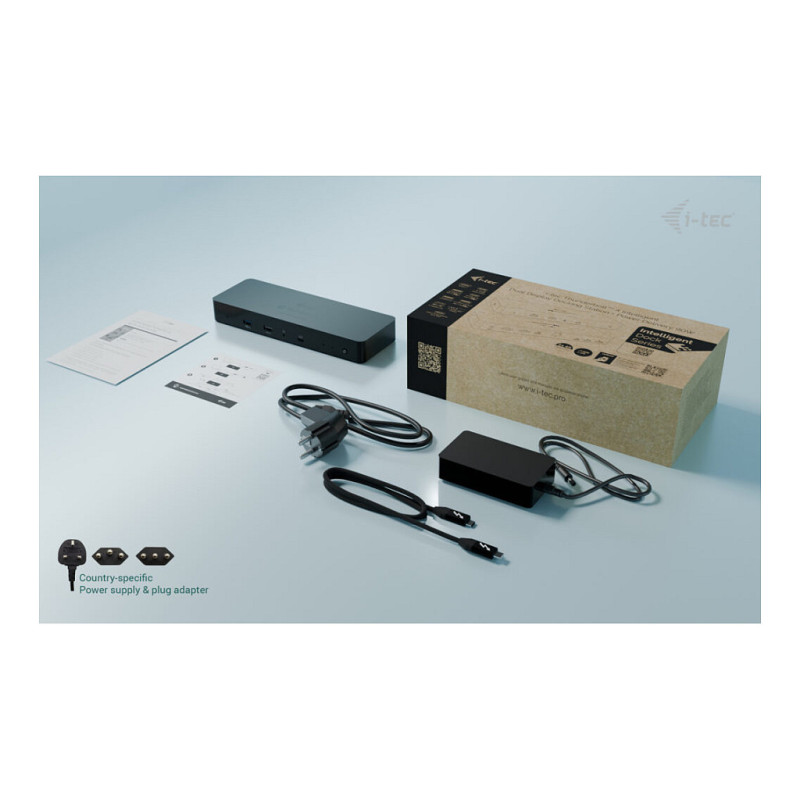

Packaging content

Cables included: DC, Power, Thunderbolt
Feature: AC adapter included
Feature: Manual
