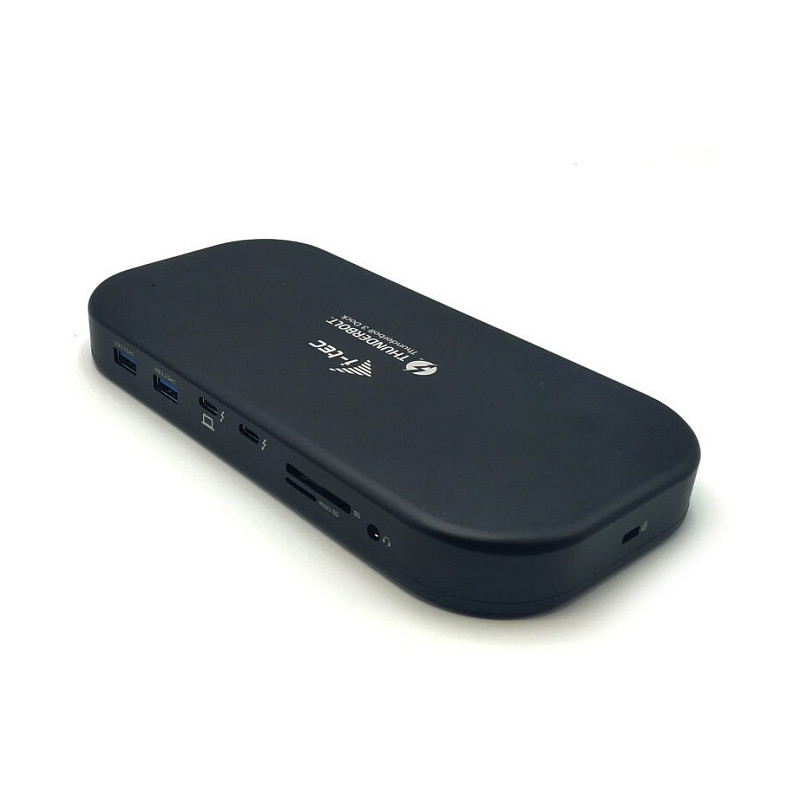

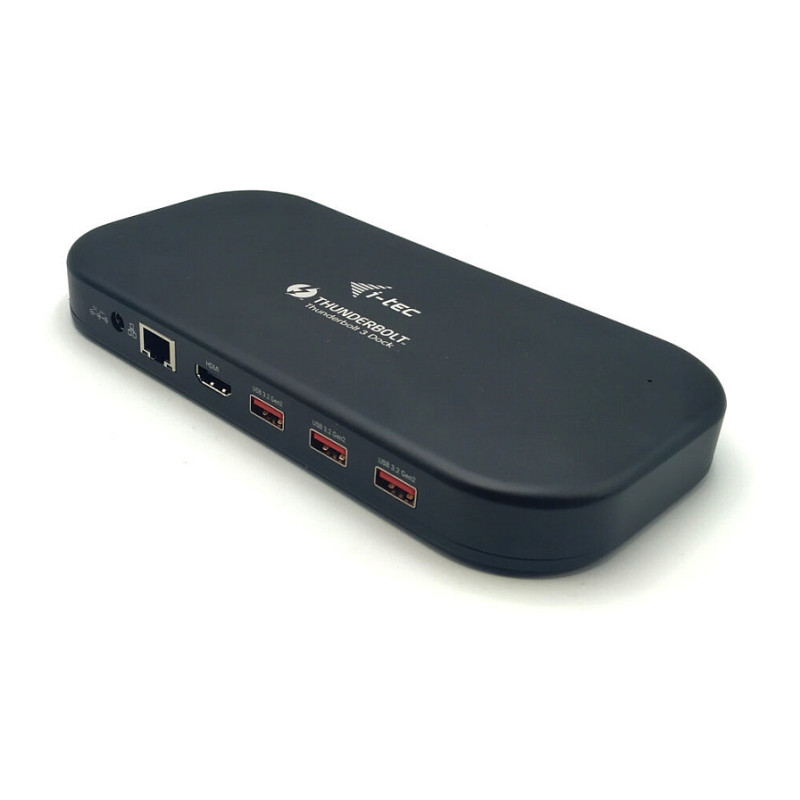

i-tec TB3HDMIDOCKPD laptop dock / port replicator

i-tec Thunderbolt 3/USB-C Dual 4K Docking Station + USB-C to DisplayPort Cable (1,5 m) + Power Delivery 60W. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,1000,100 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Maximum refresh rate: 60 Hz. Compatible power plug types: EU, Power cable length: 1.7 m. Width: 198 mm, Depth: 98 mm, Height: 22 mm

Second-generation Thunderbolt 3 technology delivers exceptional performance, ultra-fast data transfer and support for up to 8K* resolution.

Great image quality, fast internet and the ability to transfer data at speeds of over 1GB per second even when using multiple USB ports simultaneously. You can also, of course, connect your headphones or audio and charge your laptop (60W), all using one single cable.

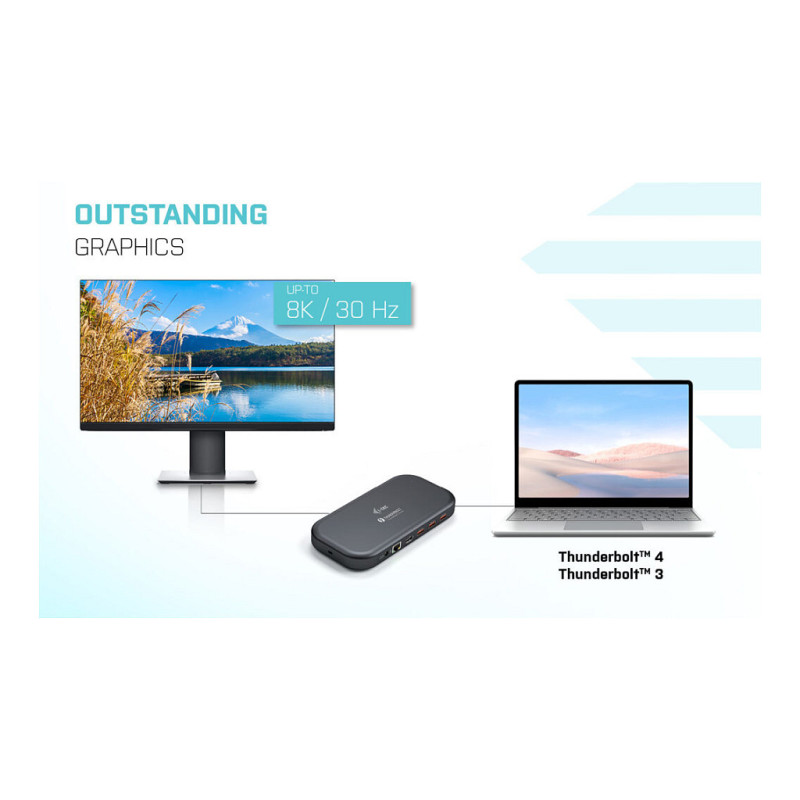

Thanks to the integrated DP 1.4 protocol, you can connect this dock to a monitor with a resolution of up to 8K (7680 x 4320)* with a refresh rate of 30 Hz, which is equivalent to the resolution of four monitors, each at 4K resolution. This makes it the ideal solution for graphic designers, analysts, developers, film editors, or high-definition video enthusiasts and lovers.

The second generation of Thunderbolt 3 technology means that the dock is now compatible not only with Thunderbolt 3 ports, but also USB-C and USB4, making it a flexible solution for businesses and users running laptops and tablets with different ports (however, when connected with USB-C and USB4, only one monitor will work and the Thunderbolt 3 port on the dock will transfer data at USB 2.0 speeds).

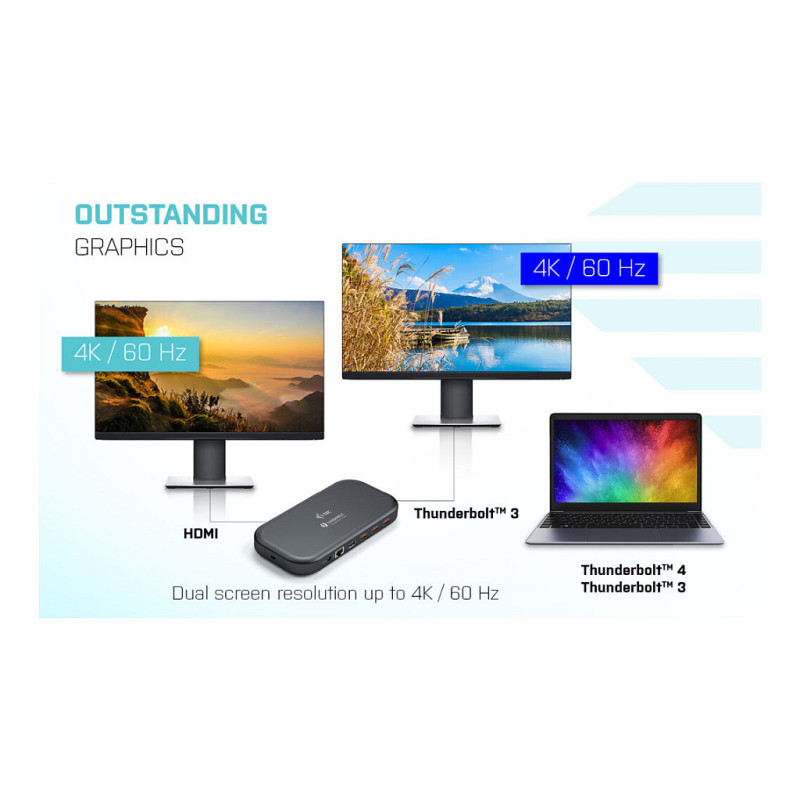

- Connect two 4K/60Hz external monitors, or one 8K/30Hz*

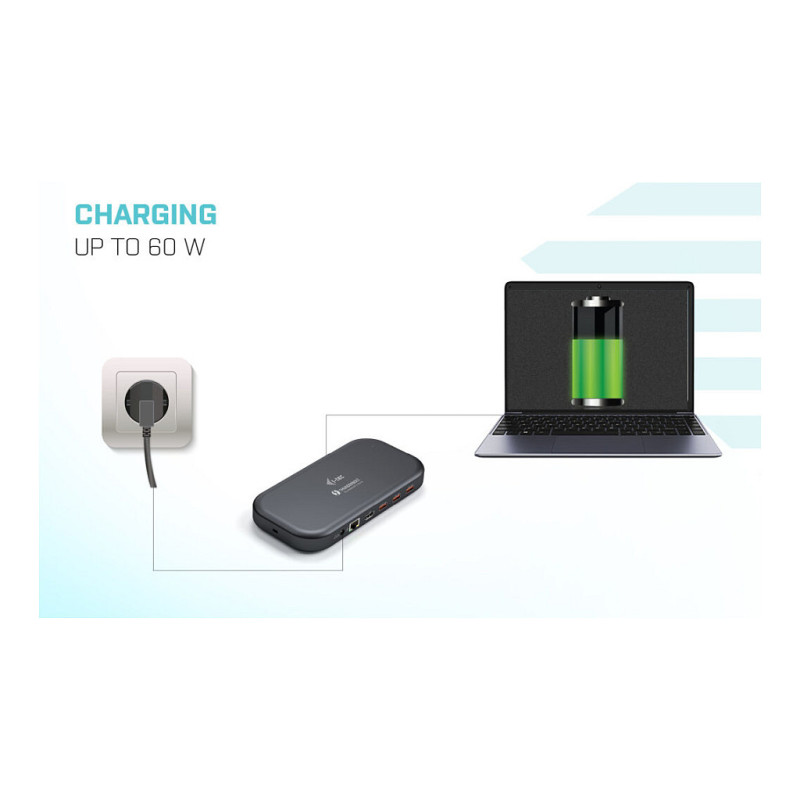

- Power delivery: 60W
- HDMI and Thunderbolt 3 port available**
- 2x USB-A 3.2 Gen 1 and 3x USB-A 3.2 Gen 2 with fast support lets you easily connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust, high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination audio and microphone jack on the front panel
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Supports Windows 10/11, macOS, iPadOS, and Linux

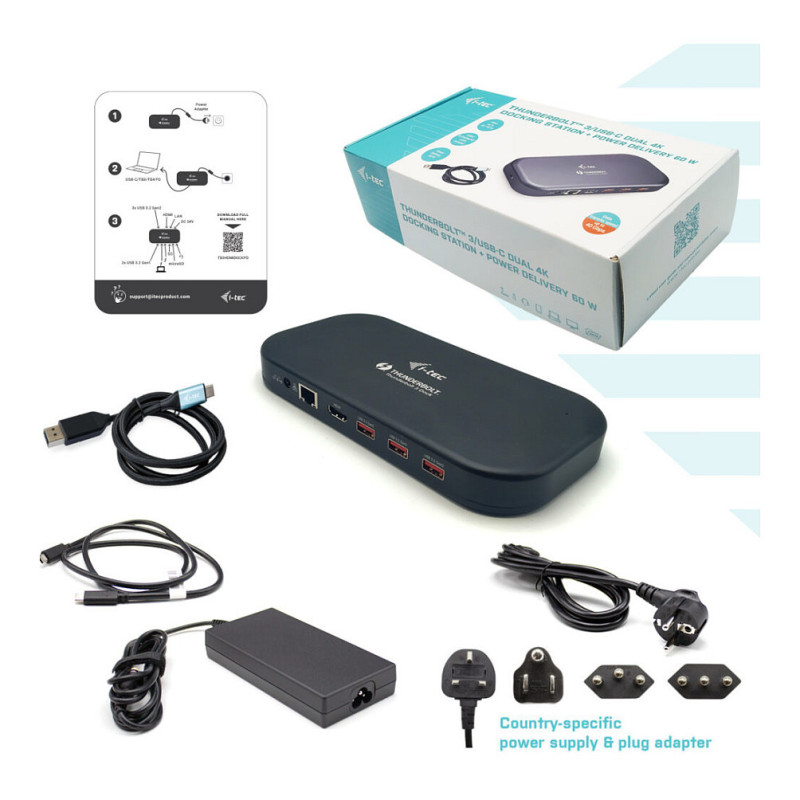

- Includes 134W (24V, 5.6A) professional adapter and 70cm Thunderbolt 3 cable
- 8K resolution must be supported by a connected laptop or tablet.

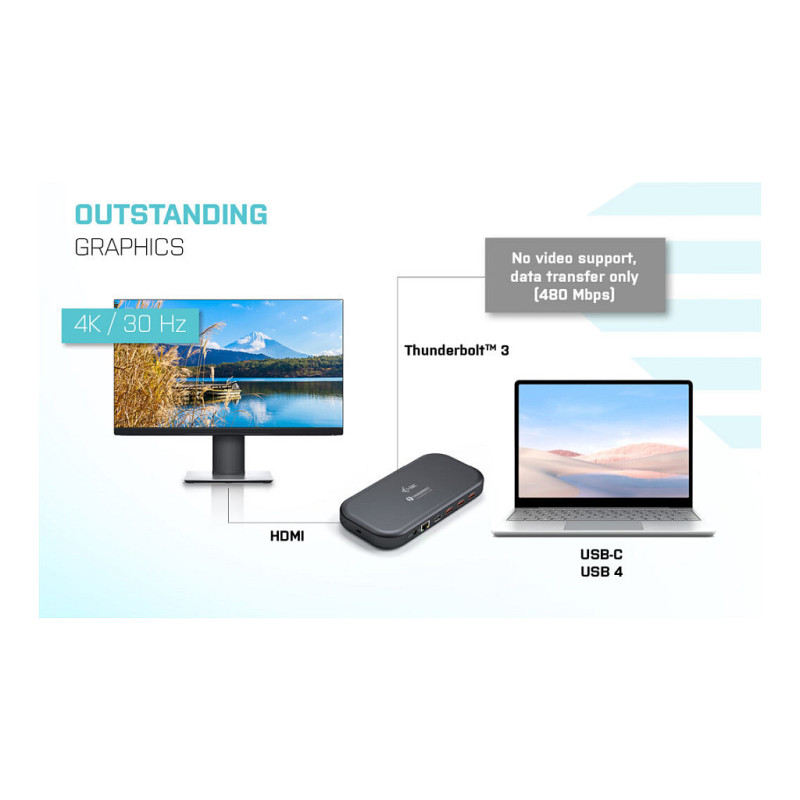

** If connected via USB-C or USB4, only one monitor (HDMI) with 4K/30 Hz resolution is supported

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
HDMI ports quantity: 1
Thunderbolt 3 ports quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,1000,100 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Product colour: Black
Feature: Plug and Play

Power

Compatible power plug types: EU
Power cable length: 1.7 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes

Weight & dimensions

Width: 198 mm
Depth: 98 mm
Height: 22 mm
Weight: 340 g

Packaging data

Package width: 260 mm
Package depth: 130 mm
Package height: 80 mm

Packaging content

Cables included: AC, USB Type-C, Thunderbolt
Feature: AC adapter included
Feature: Manual
