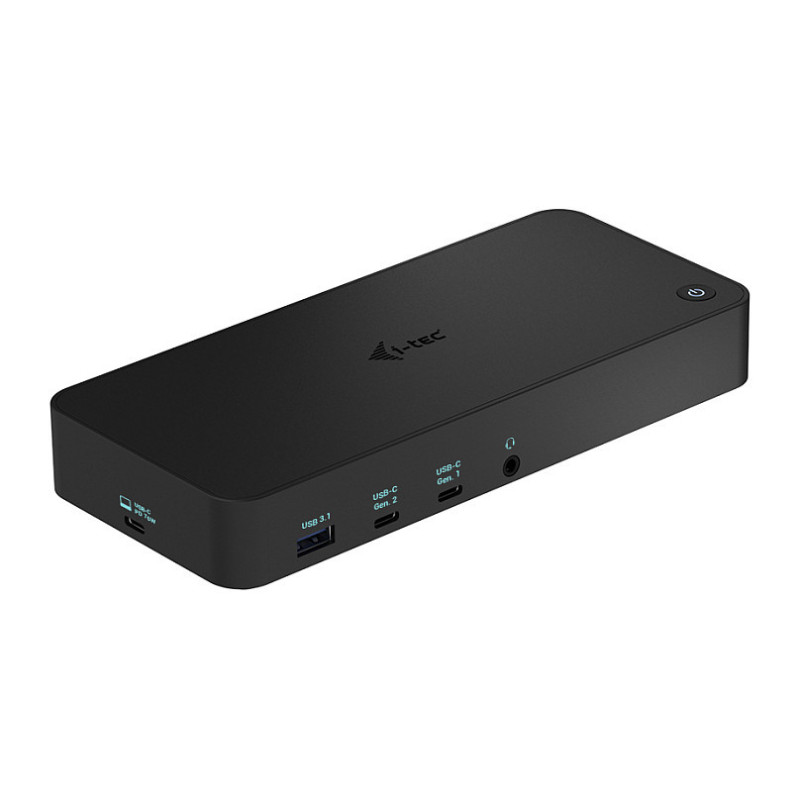

i-tec CATRIPLEDOCKPDPRO laptop dock / port replicator

i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 5K Ultra HD, Maximum digital resolution: 5120 x 2880 pixels. Power source type: AC, Output voltage: 24 V, Output current: 4 A. Other operating systems supported: Android

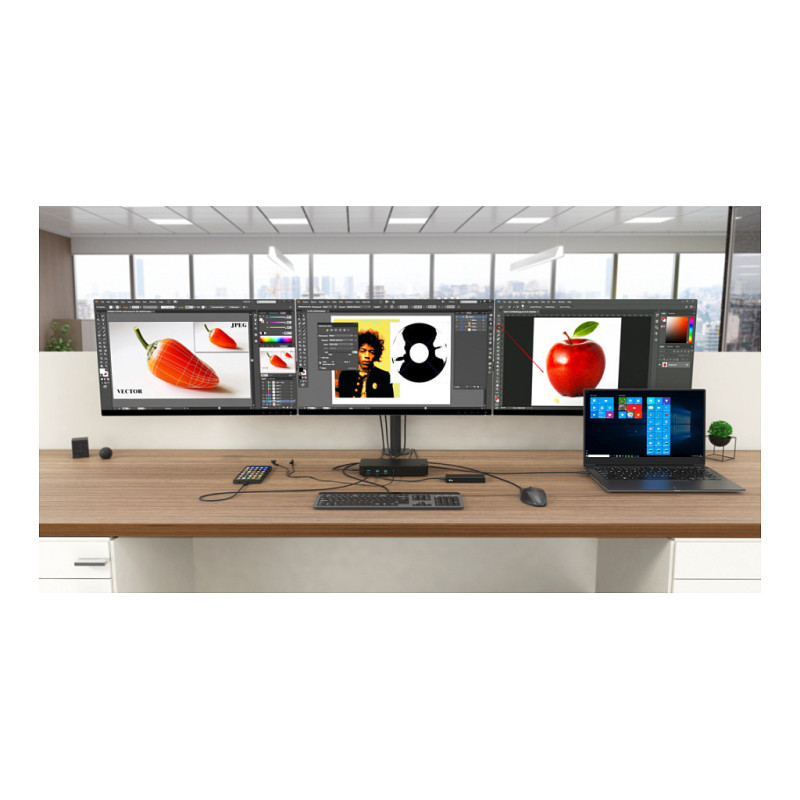

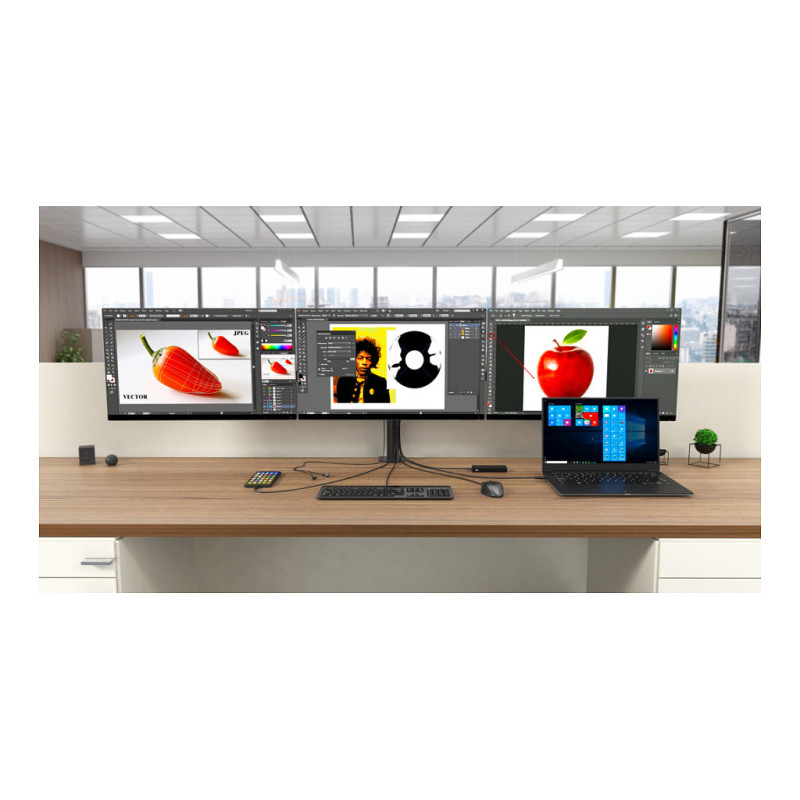

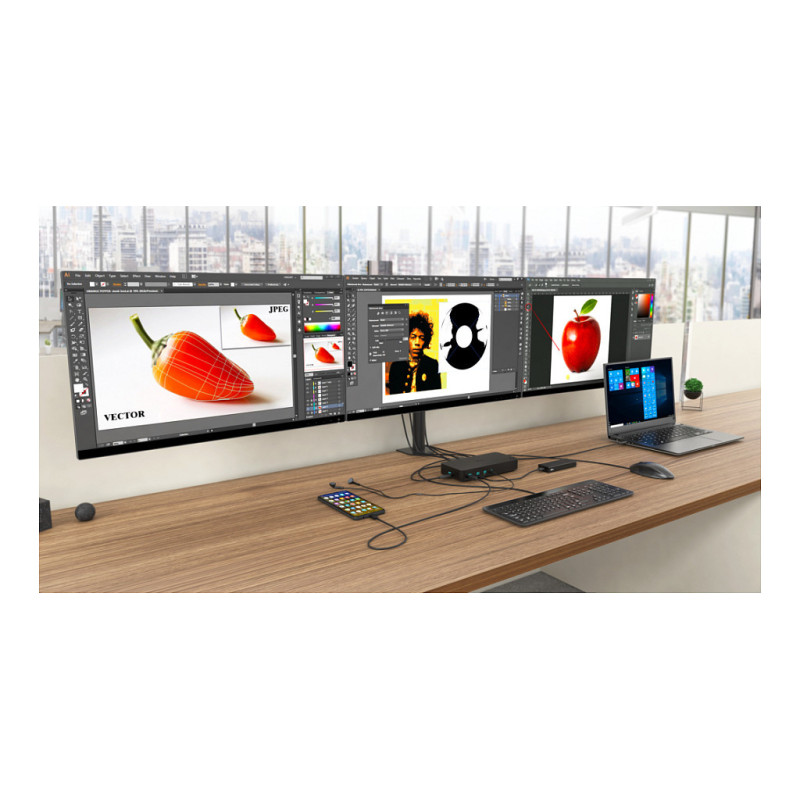

A powerful professional docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible if the laptop has a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode).

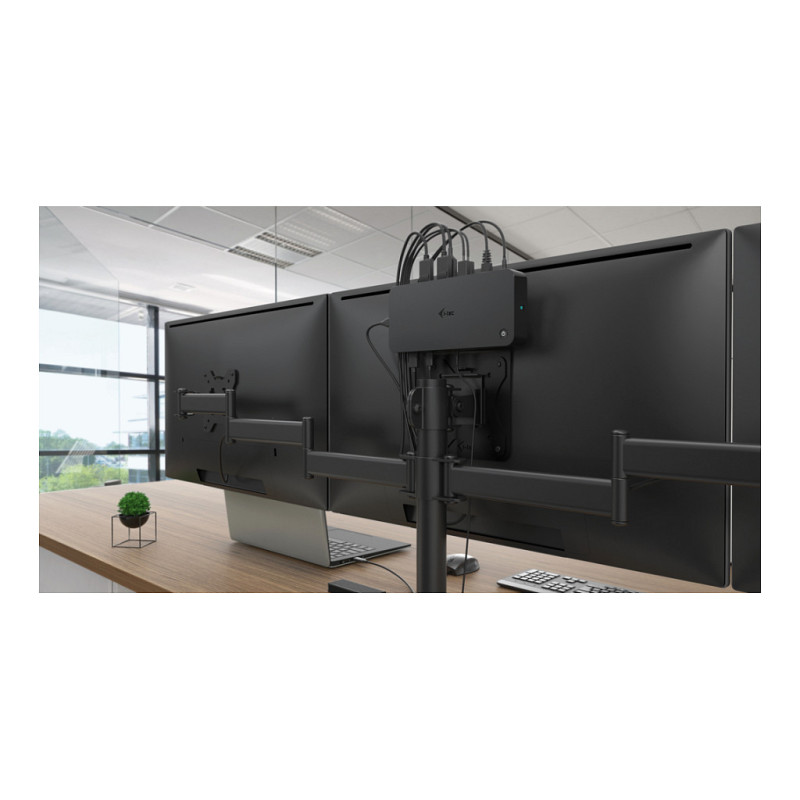

Plenty of USB ports (including those that support speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100W,

*HDMI 3 port will only work when connected to a laptop with Thunderbolt 3/4 port or USB-C port supporting video transfer (called USB-C DP Alt mode)

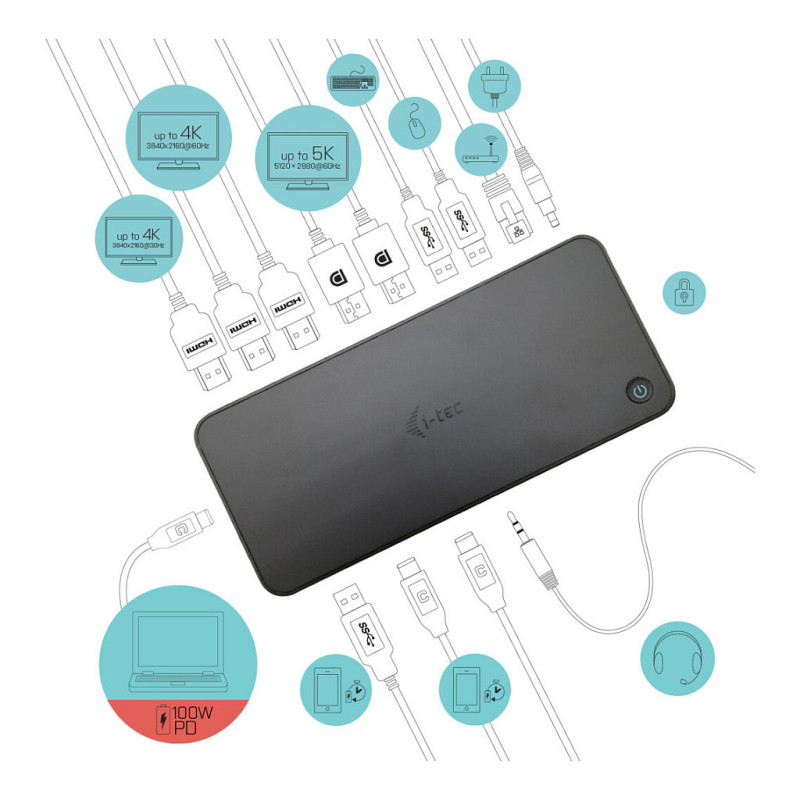

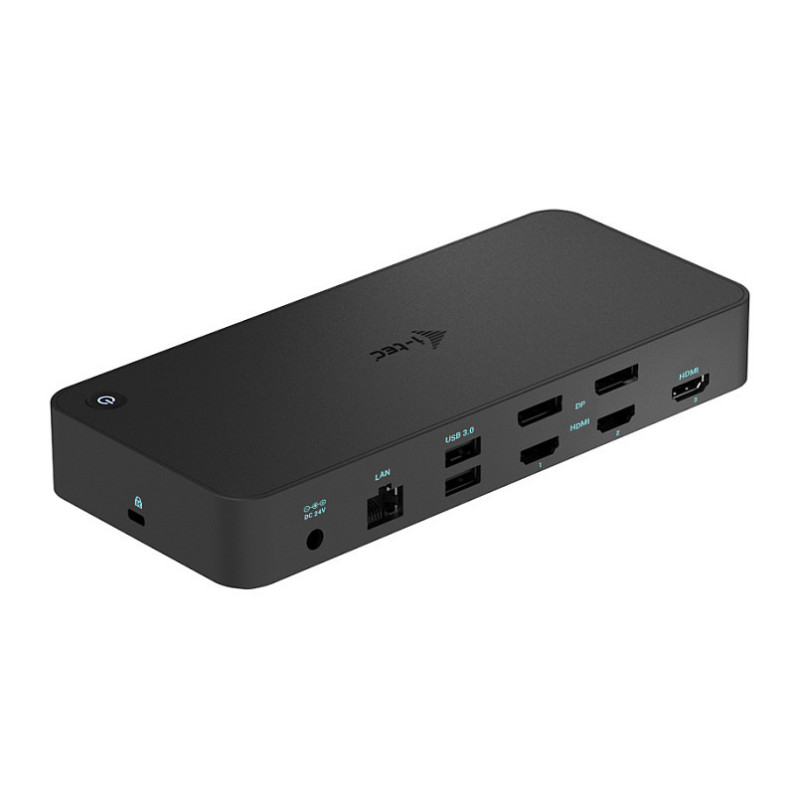

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 3
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

HD type: 5K Ultra HD
Maximum digital resolution: 5120 x 2880 pixels
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product colour: Black
Feature: On/off switch
LED indicators: Yes

Power

Power source type: AC
Output voltage: 24 V
Output current: 4 A
Compatible power plug types: EU

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android

Weight & dimensions

Width: 191 mm
Depth: 85 mm
Height: 31 mm
Weight: 341 g

Packaging data

Package width: 215 mm
Package depth: 260 mm
Package height: 48 mm
Package weight: 1.34 kg

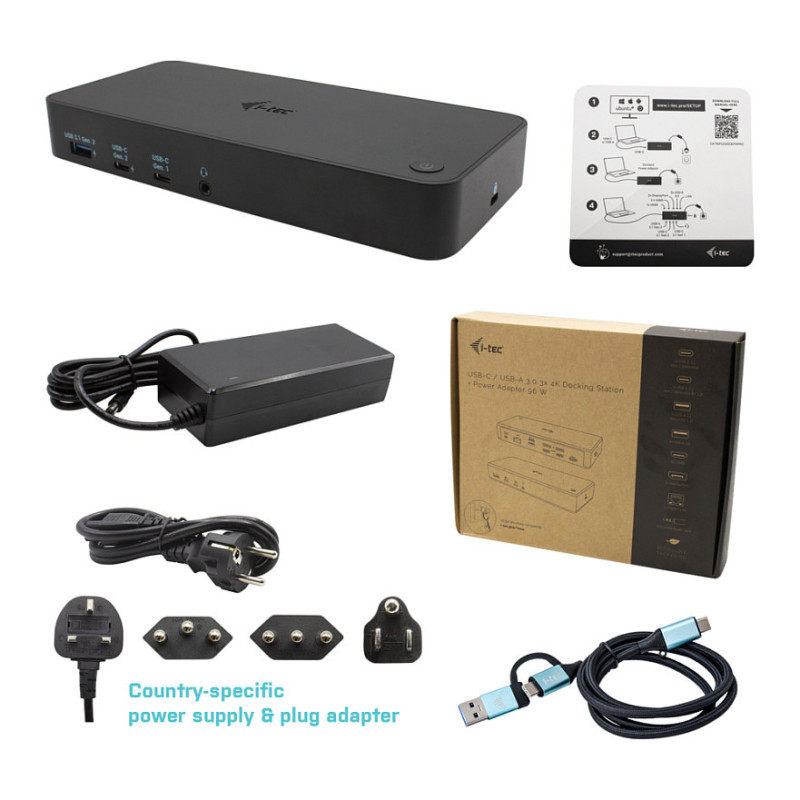

Packaging content

Cables included: AC, USB
Feature: AC adapter included
Feature: Quick start guide

Logistics data

Harmonized System (HS) code: 84733020
