i-tec CATRIPLE4KDOCKPD2 laptop dock / port replicator

i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station Gen 2 + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Data transfer rate: 10 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 20 V, Output current: 8 A, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS

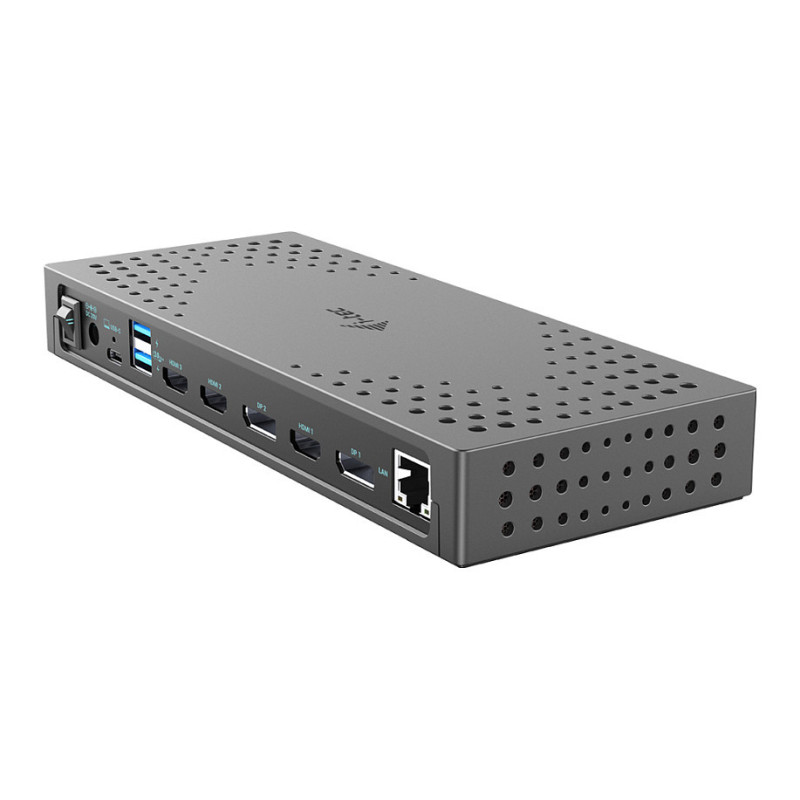

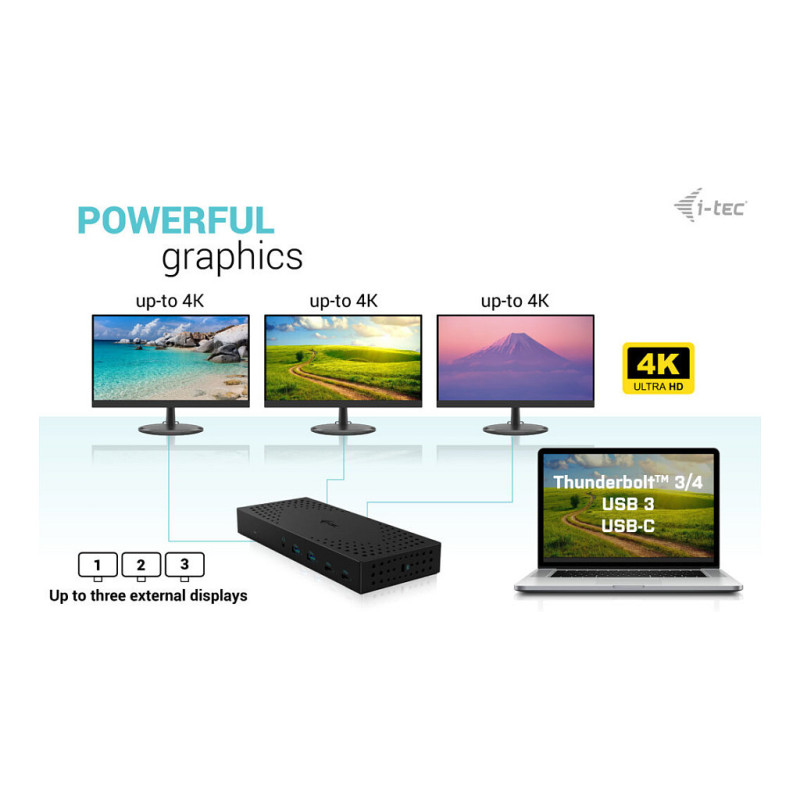

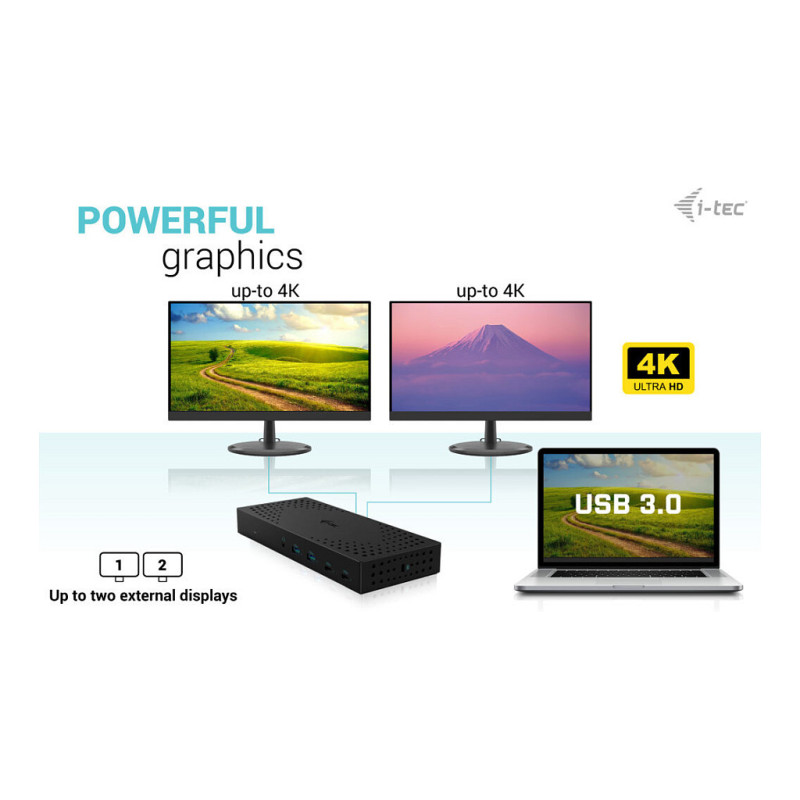

A powerful professional docking station Gen 2 that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually all notebooks as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt" 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible if the laptop has a Thunderbolt" 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode). If connected to notebook with USB 3.0 port, only two monitors will be supported.

Plenty of USB ports (all support Gen 2 speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

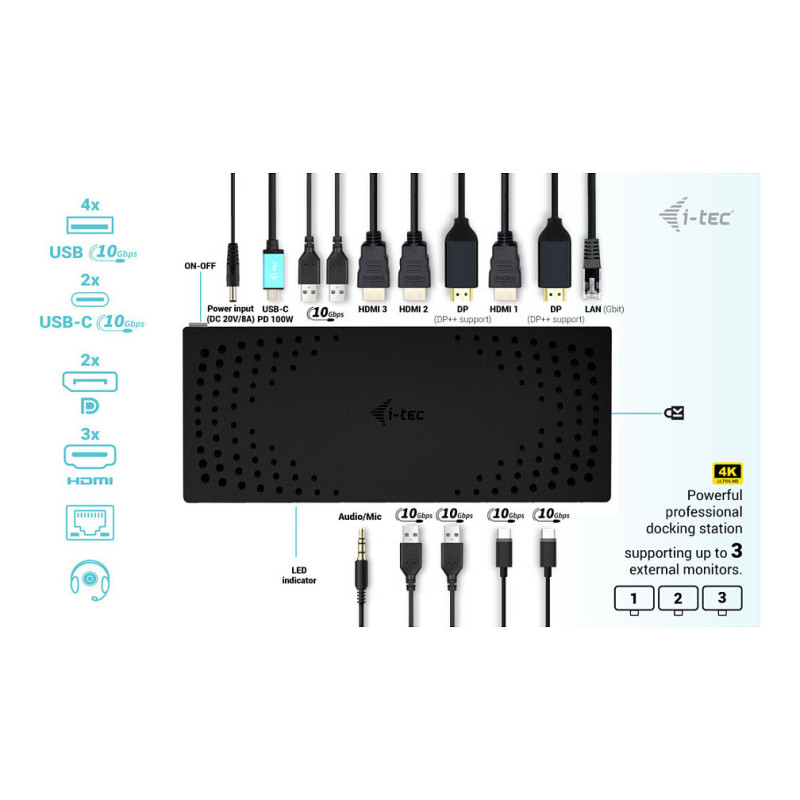

- Connect to 3 external monitors in resolutions up to 4K*
- Power delivery: up to 100 W

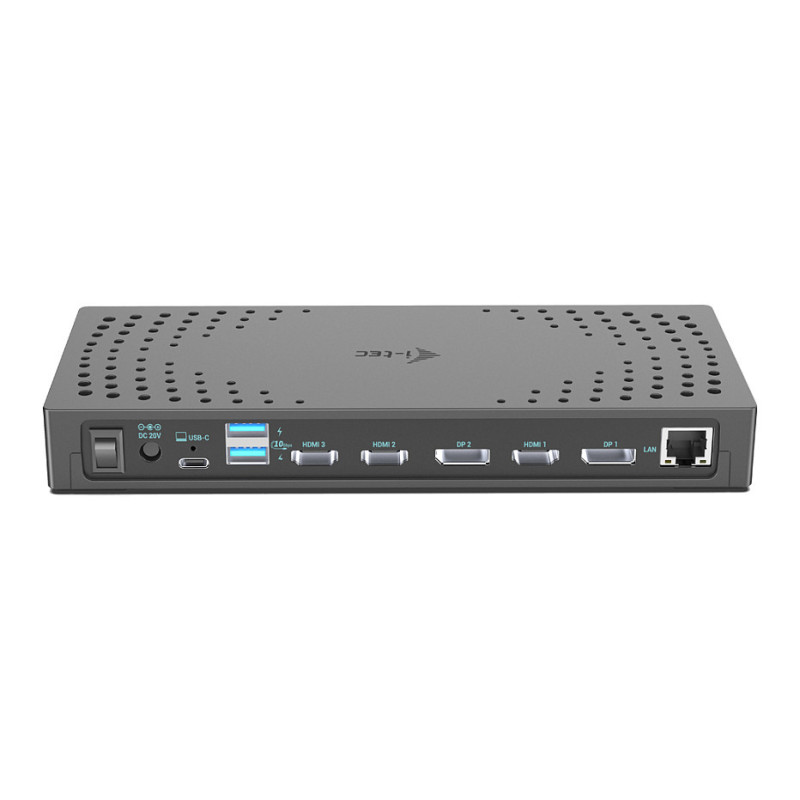

- 2 DisplayPort and 3 HDMI ports available*

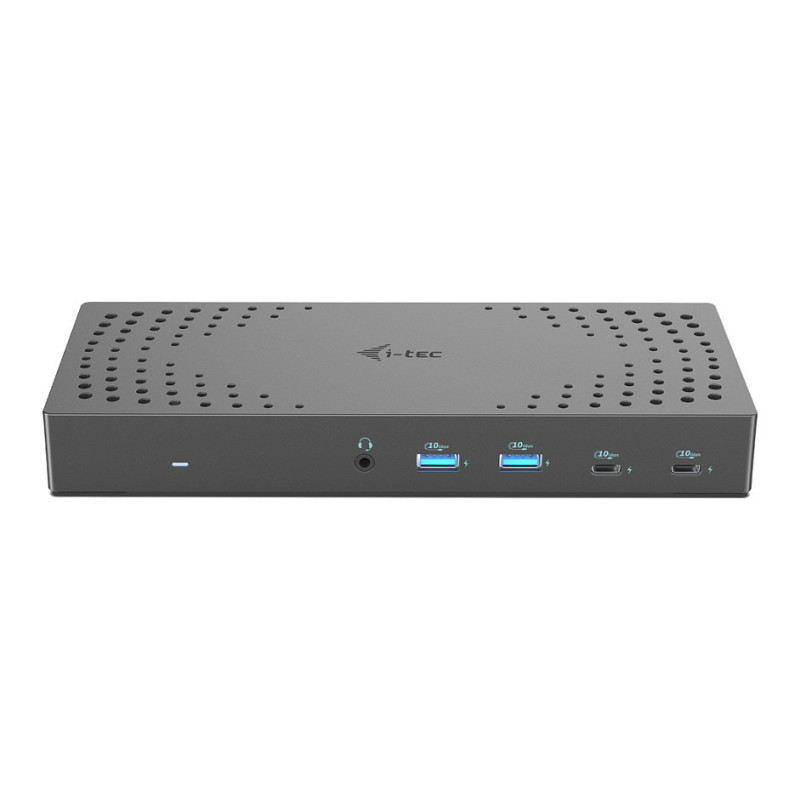

- 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen 2 (10 Gbps) allow you to easily connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds
- Combo jack for audio and microphone
- Kensington lock provides anti-theft protection, especially in shared office environments or public areas
- Docking station power switch allows for maximum power savings

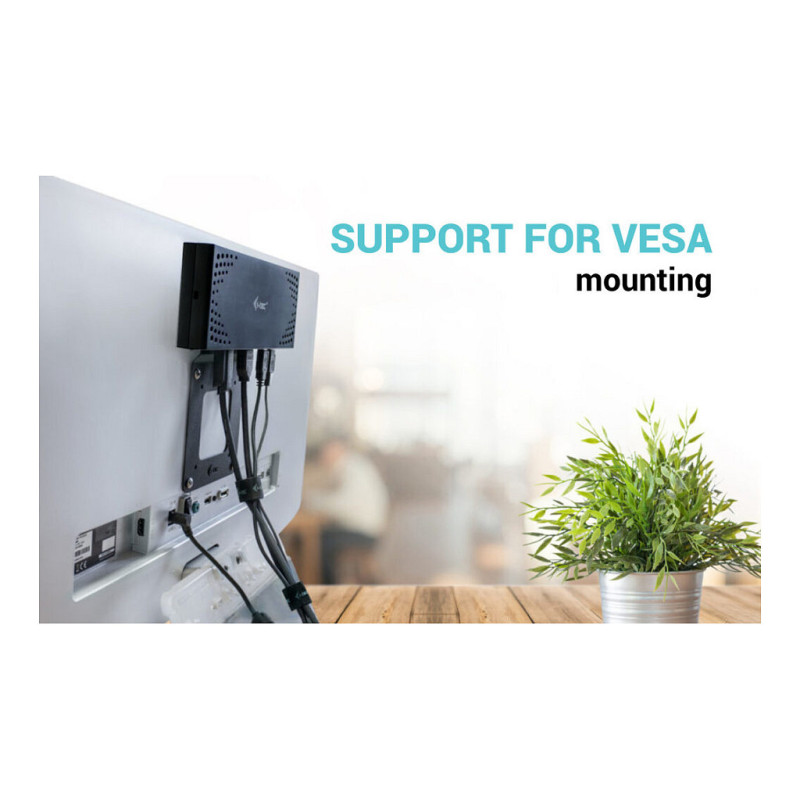

- Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
- Supports Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

*HDMI 3 port will only work when connected to a laptop with Thunderbolt" 3/4 port or USB-C port supporting video transfer (called USB-C DP Alt mode)

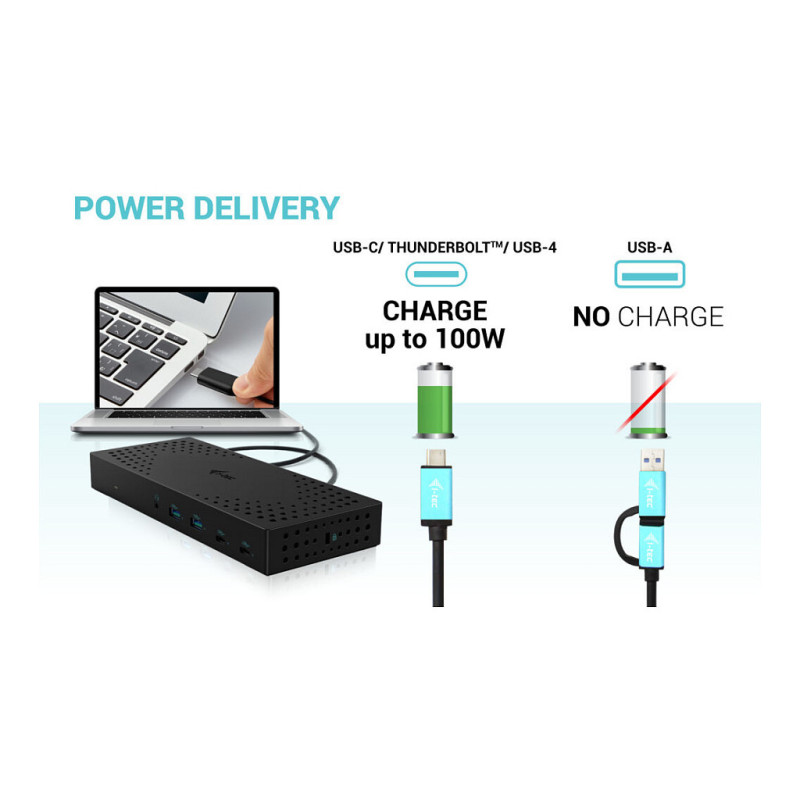

If the docking station is connected via USB 3.0 port, charging is not supported

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 3
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 10 Gbit/s
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product colour: Grey
Feature: On/off switch
LED indicators: Yes

Power

Output voltage: 20 V
Output current: 8 A
Compatible power plug types: EU
USB cable length: 1 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS

Weight & dimensions

Width: 223 mm
Depth: 92 mm
Height: 30 mm
Weight: 365 g

Packaging data

Package width: 260 mm
Package depth: 250 mm
Package height: 50 mm

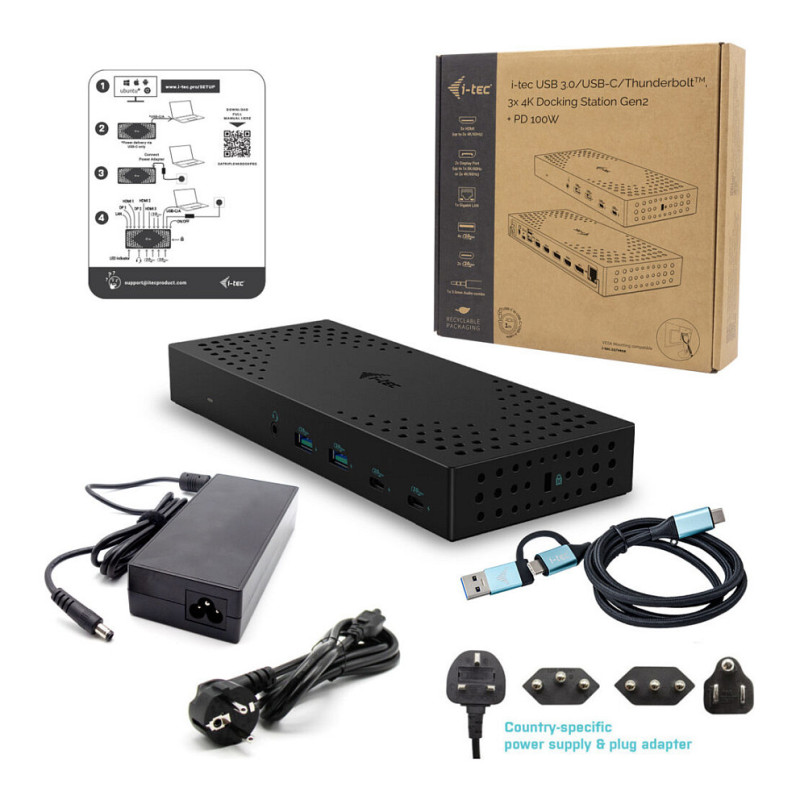

Packaging content

Cables included: USB
Feature: AC adapter included
Feature: Quick start guide
