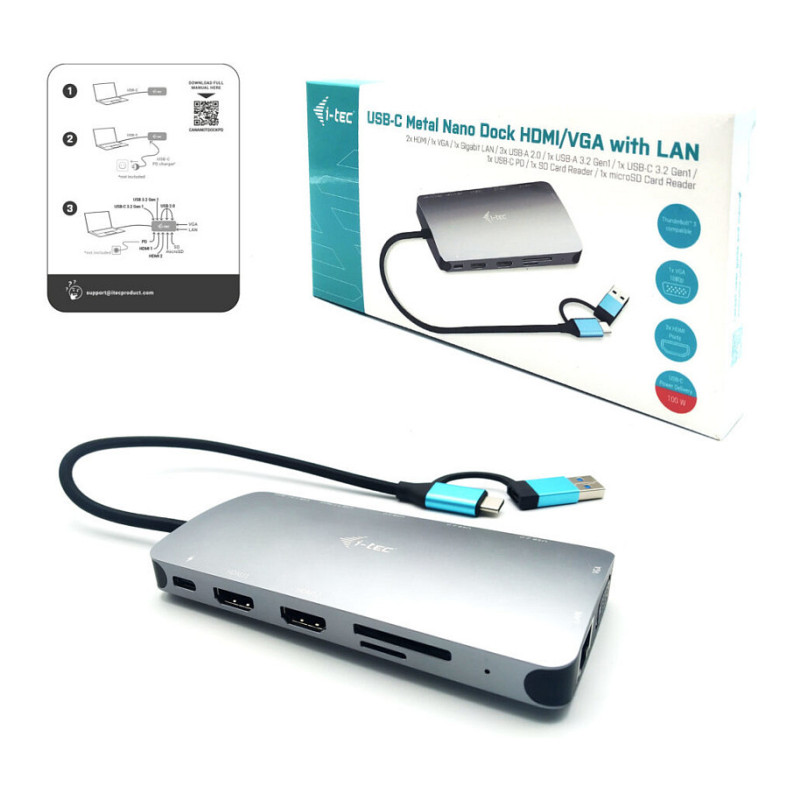

i-tec CANANOTDOCKPD laptop dock / port replicator

i-tec USB 3.0 USB-C/Thunderbolt 3x Display Metal Nano Dock with LAN + Power Delivery 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB. Other operating systems supported: Android

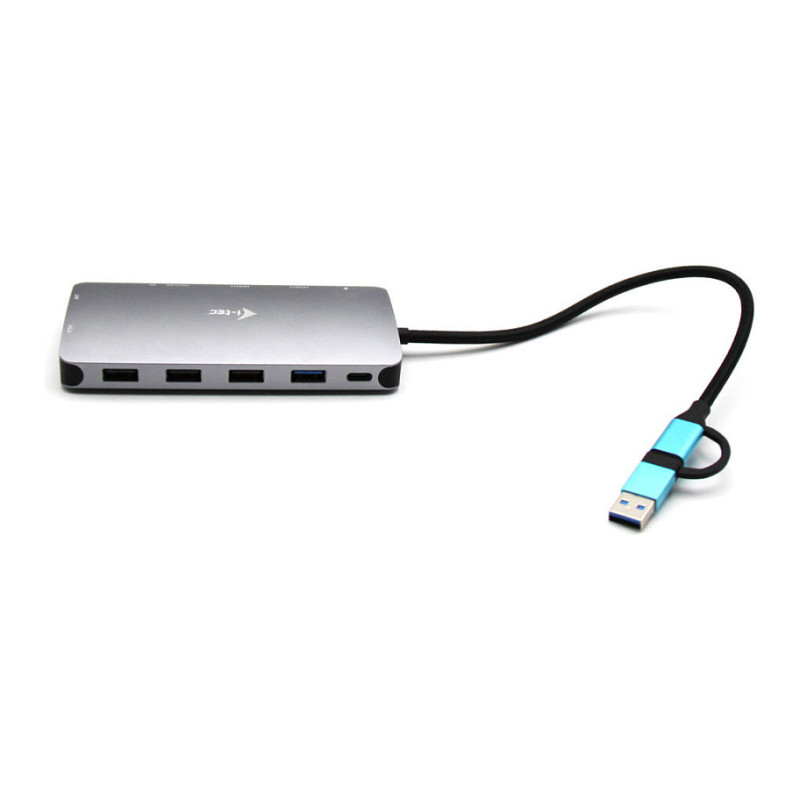

A powerful yet small and portable docking station that supports up to three external monitors. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C, USB4 and Thunderbolt" 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible with a laptop with a Thunderbolt 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode).

The 5 USB ports, reliable and fast connection to the corporate network thanks to the integrated LAN port and native VGA support all make this docking station the ideal companion for professionals who are often on the road and need to connect even to older monitors and projectors. Of course, it supports charging your laptop or tablet (up to 100W).

- Connect up to 3 external monitors*

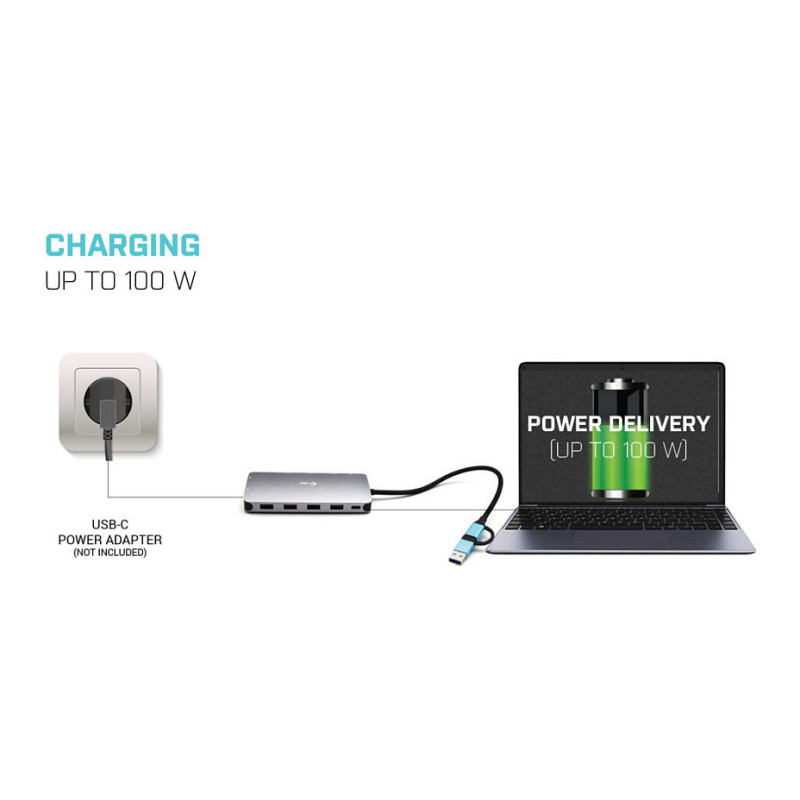

- Power delivery: up to 100 W

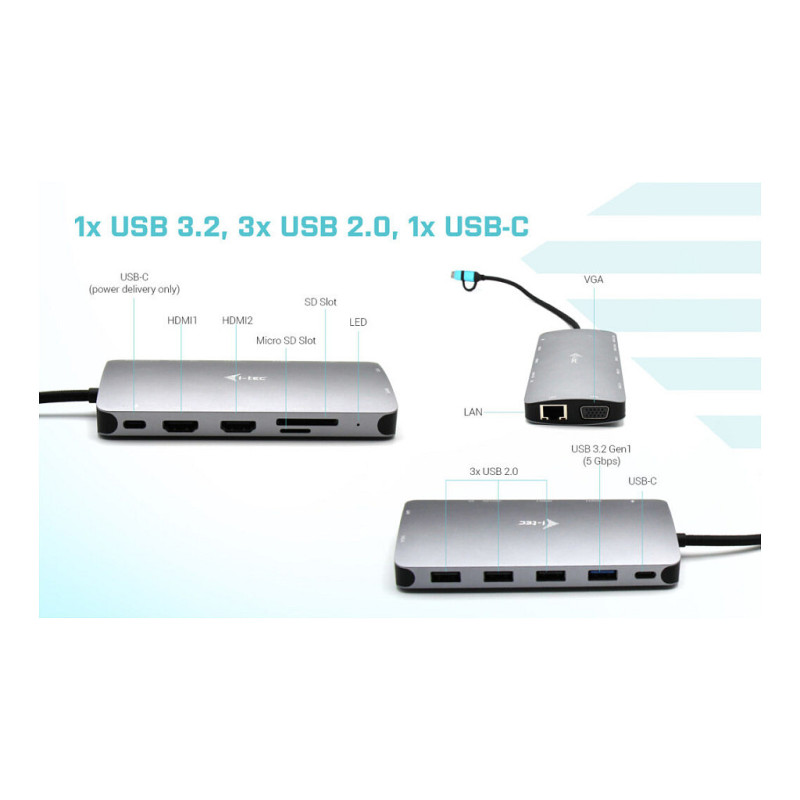

- There are 2 HDMI* ports and one VGA port

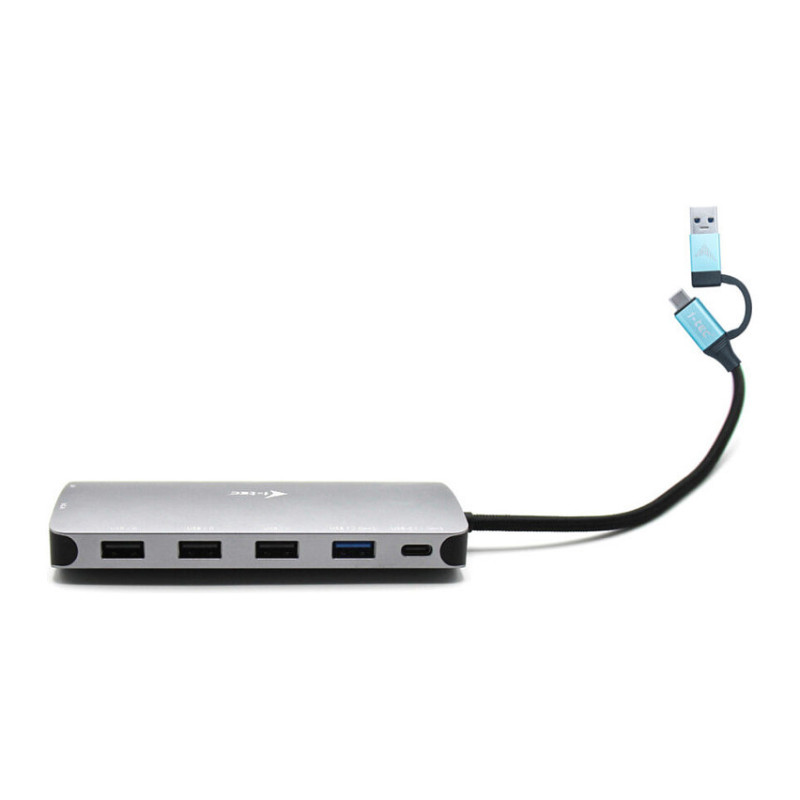

- 1x USB 3.2, 1x USB-C and 3x USB 2.0 allow you to easily connect your USB devices and
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds
- SD and microSD slots for easy data transfer from memory cards
- Supports Windows 10/11, macOS, Android, Linux and ChromeOS
*HDMI 1 port will only work when connected to a laptop with Thunderbolt 3/4, USB4, or USB-C port that supports video transfer (called USB-C DP Alt mode)

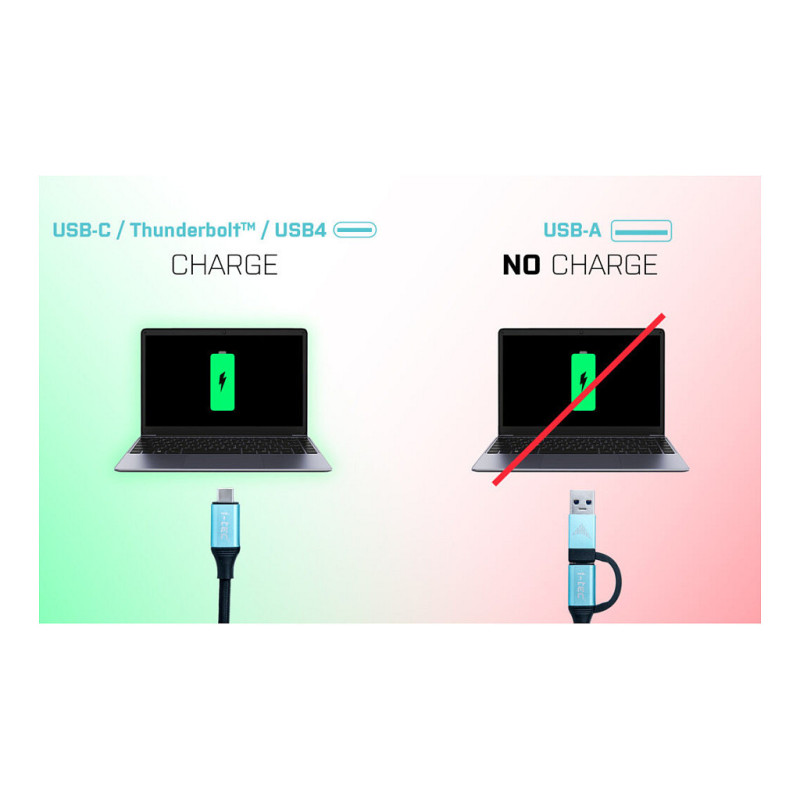

If the dock is connected via USB 3.0, charging of laptops and tablets is not supported

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A + Type-C
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
VGA (D-Sub) ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Silver
LED indicators: Yes

Power

Power source type: USB

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android

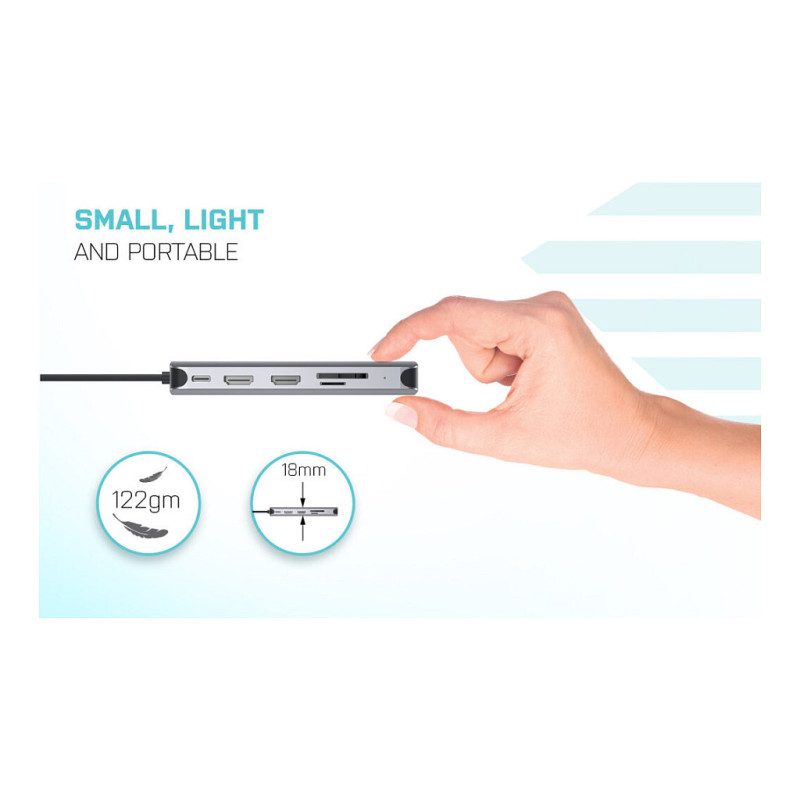

Weight & dimensions

Width: 127 mm
Depth: 60 mm
Height: 18 mm
Weight: 122 g

Packaging data

Package width: 190 mm
Package depth: 98 mm
Package height: 23 mm
Package weight: 140 g

Packaging content

Feature: Quick start guide
