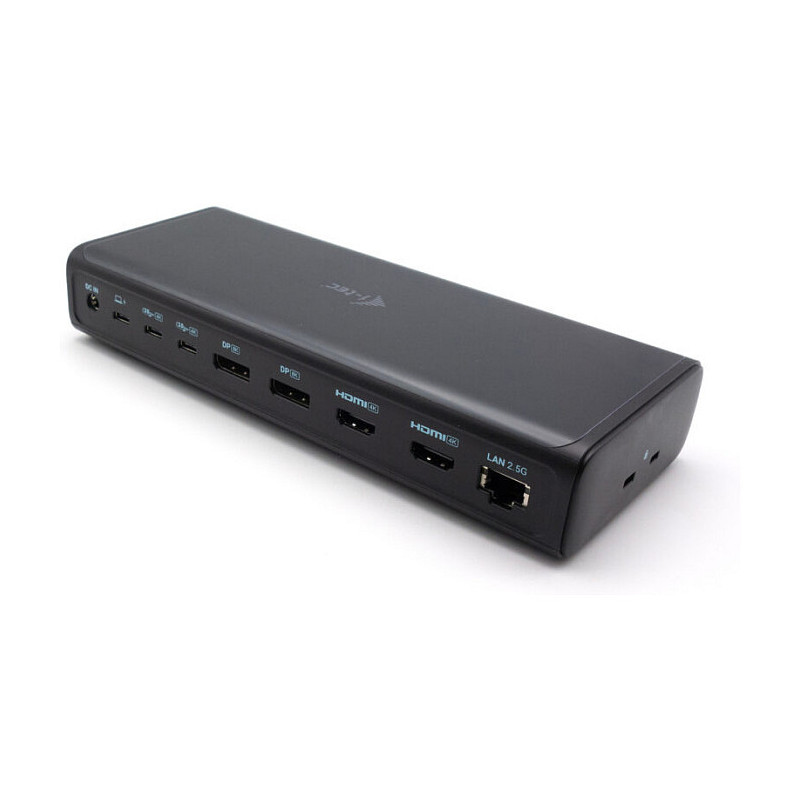

i-tec CA6MONITORDOCKPD laptop dock / port replicator

i-tec Universal 6x 4K/60Hz Display Docking Station + Power Delivery 140W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Output voltage: 24 V, Output current: 10 A, Power consumption (max): 240 W. Other operating systems supported: Android, ChromeOS

The ultimate performance docking station. Supports up to six external monitors* at 4K/60Hz. Or, two can run simultaneously even at 8K! The perfect product for users who require multiple monitors without compromising on image stability, resolution and refresh rate. The dock also features a USB-C fast charging port (with up to 30W charging power), especially for charging smartphones and tablets, fast USB ports, a 2.5 Gbps LAN port, as well as other peripherals.

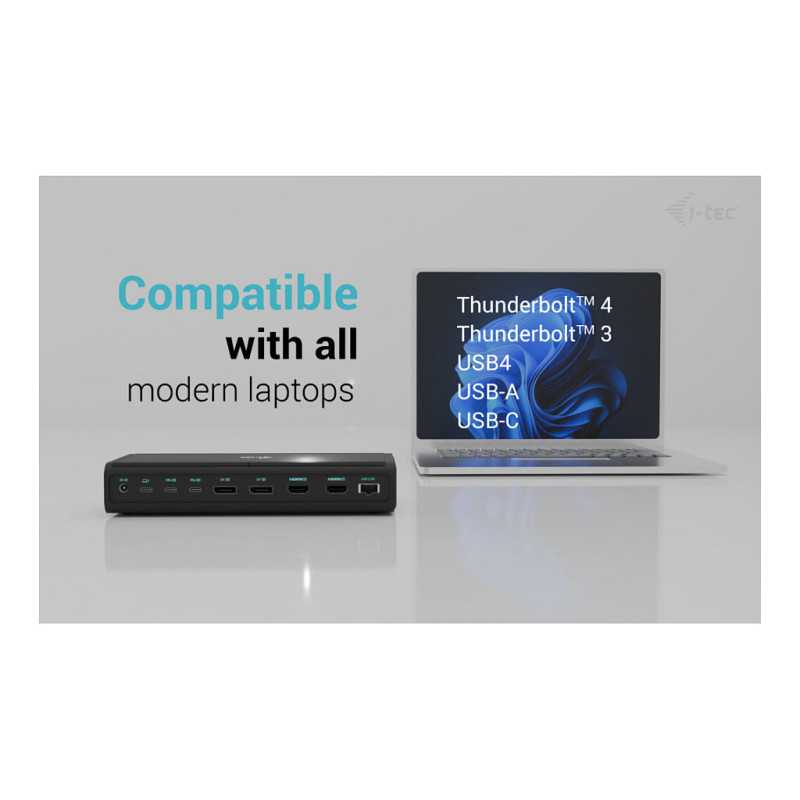

The dock can be connected to virtually any laptop, regardless of make, model or operating system type. Any USB port is sufficient*.

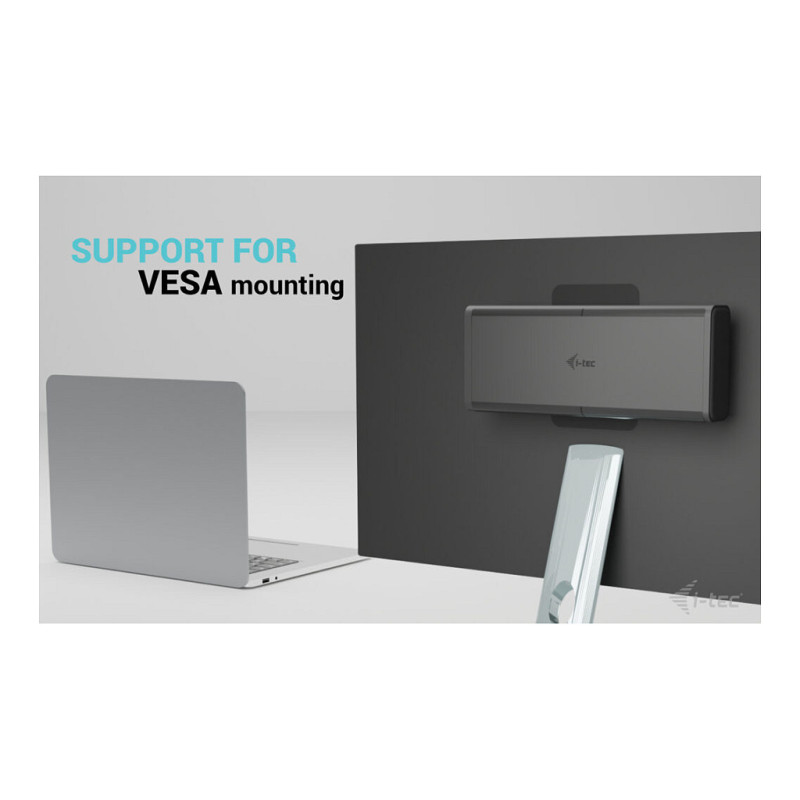

The dock can be installed behind the monitor (if it supports a standard VESA mount), using the i-tec VESA mount.

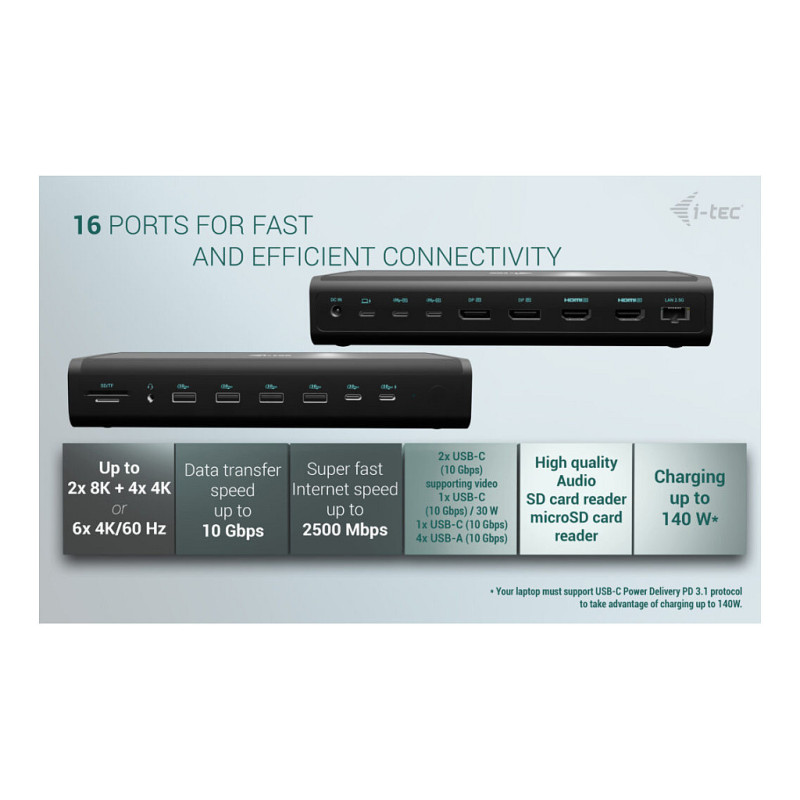

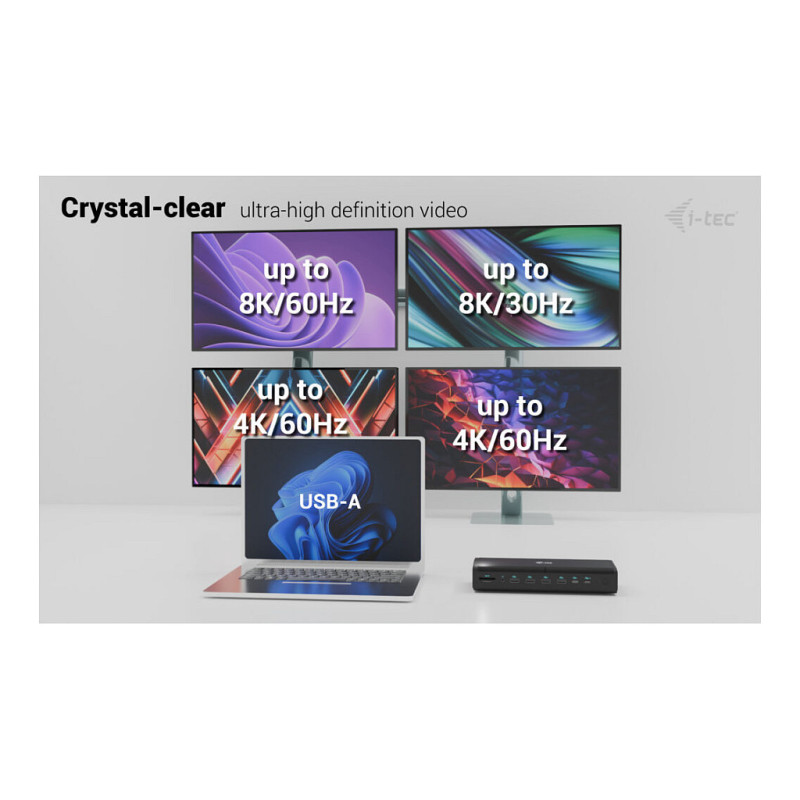

- Support for up to 6 external monitors* with resolutions up to 2x 8k, or 6x 4K/60Hz

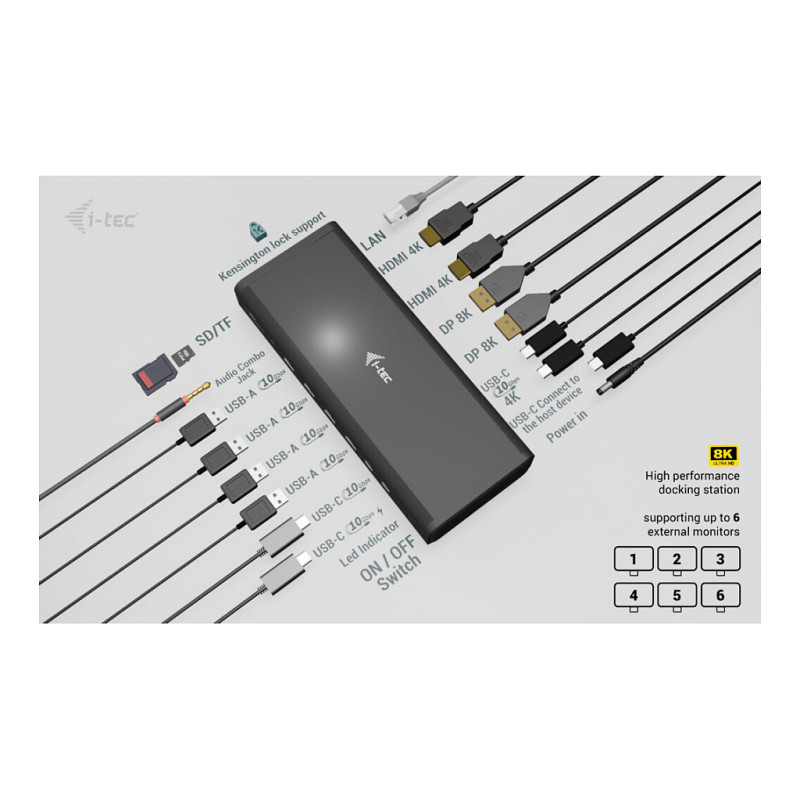

- Video ports: 2x HDMI, 2x DP, 2x USB-C MFDP (supporting video* or 10 Gbps data)
- 2x USB-C (10 Gbps), one supporting up to 30 W charging
- 4x USB-A 3.1 Gen. 1
- LAN port with up to 2.5 Gbps (10/100/1000/2500 Mbit)
- 5 mm audio/mic port
- 1x SD/microSD slot
- Laptop power supply up to 140 W **
- Docking station on/off button
- Support for installation behind a monitor

* If connected via USB-A, only four monitors will be supported via DP and HDMI ports, and laptop/tablet charging will not be possible.

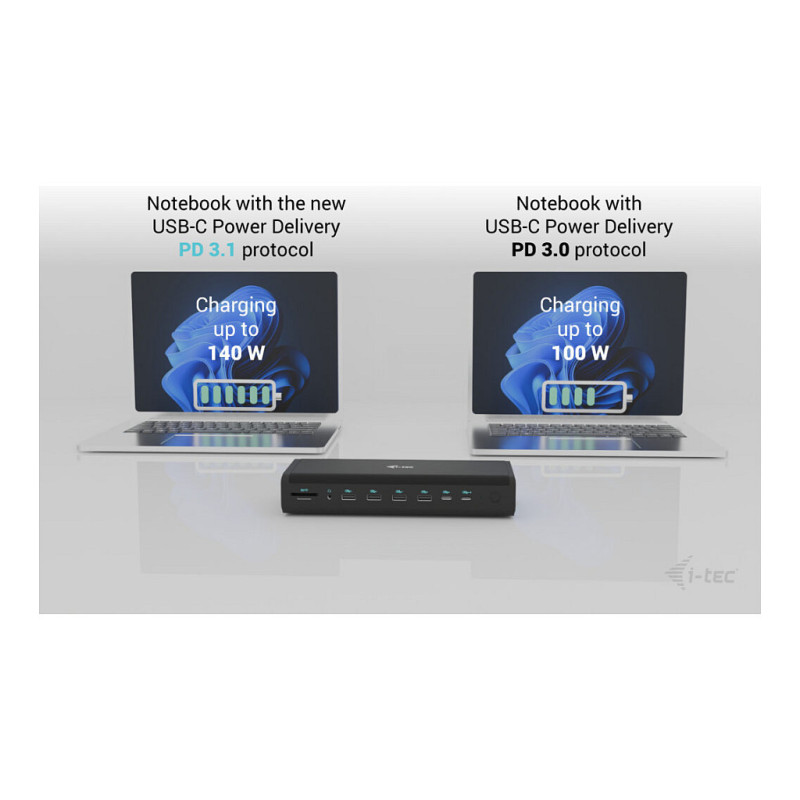

** If your laptop or tablet supports the new and modern USB-C Power Delivery PD 3.1 charging protocol, the docking station will offer charging power up to 140W (if you have PD 3.0, the charging power will be 100W)

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 140 W
HDMI ports quantity: 2
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 10 Gbit/s
Maximum digital resolution: 7680 x 4320 pixels
Number of displays supported: 6
Maximum refresh rate: 144 Hz
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product colour: Black
Feature: On/off switch
LED indicators: Yes

Power

Output voltage: 24 V
Output current: 10 A
Power consumption (max): 240 W
Compatible power plug types: EU
USB cable length: 1 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS

Weight & dimensions

Width: 218 mm
Depth: 88 mm
Height: 37 mm
Weight: 546 g

Packaging data

Package width: 270 mm
Package depth: 181 mm
Package height: 90 mm

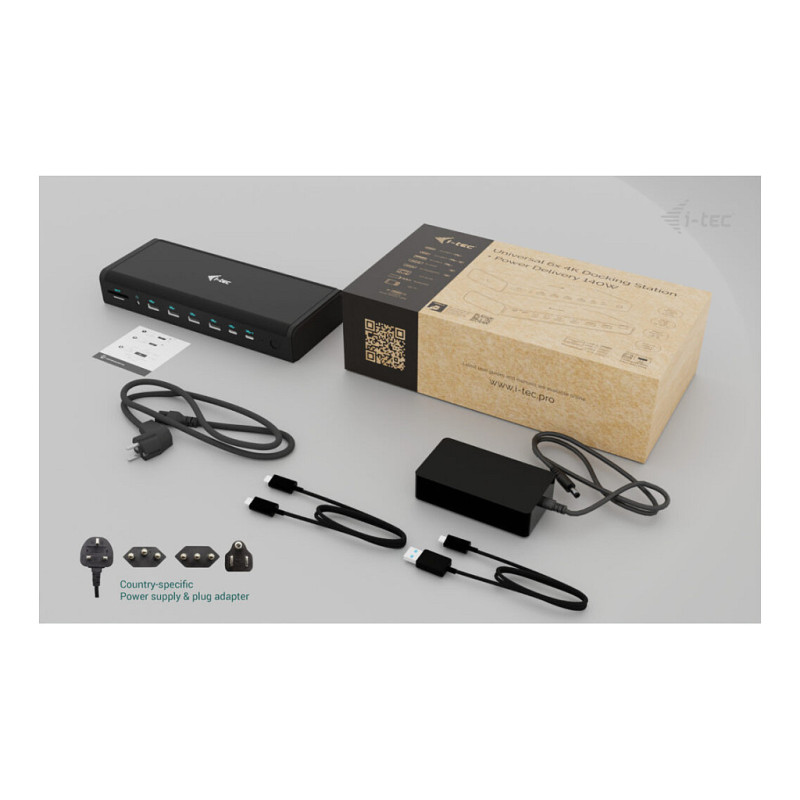

Packaging content

Cables included: AC, USB Type-A to USB Type-C, USB Type-C
Feature: AC adapter included
Feature: Quick start guide
