i-tec C31FLAT2PDPRO100W laptop dock / port replicator

i-tec USB-C Metal Ergonomic 3x 4K Display Docking Station with Power Delivery 100 W + Universal Charger 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Silver, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: AC, AC input voltage: 100-240 V, AC input frequency: 50-60 Hz. Other operating systems supported: Android, ChromeOS

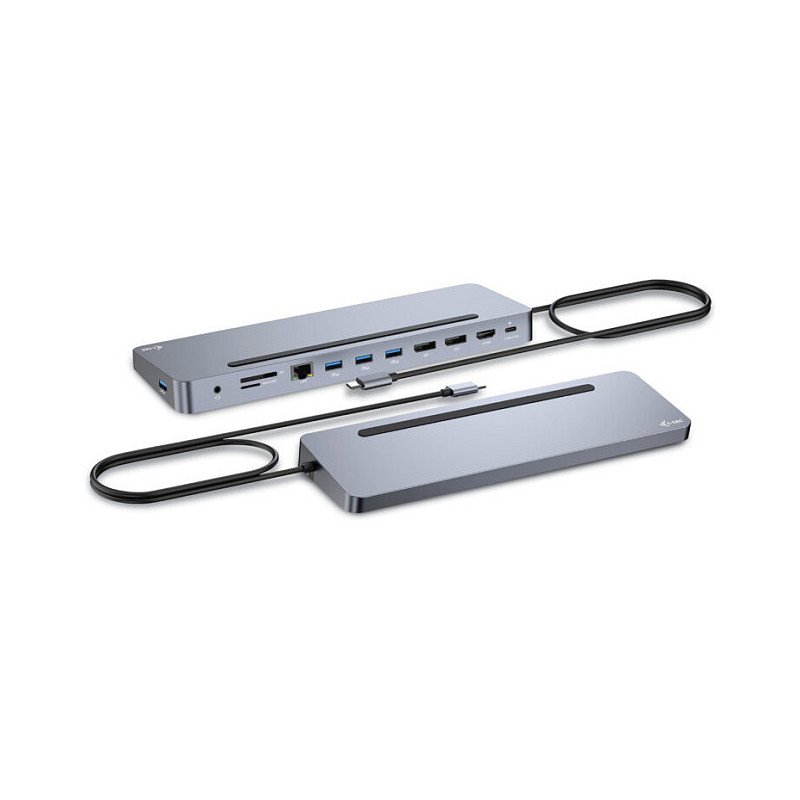

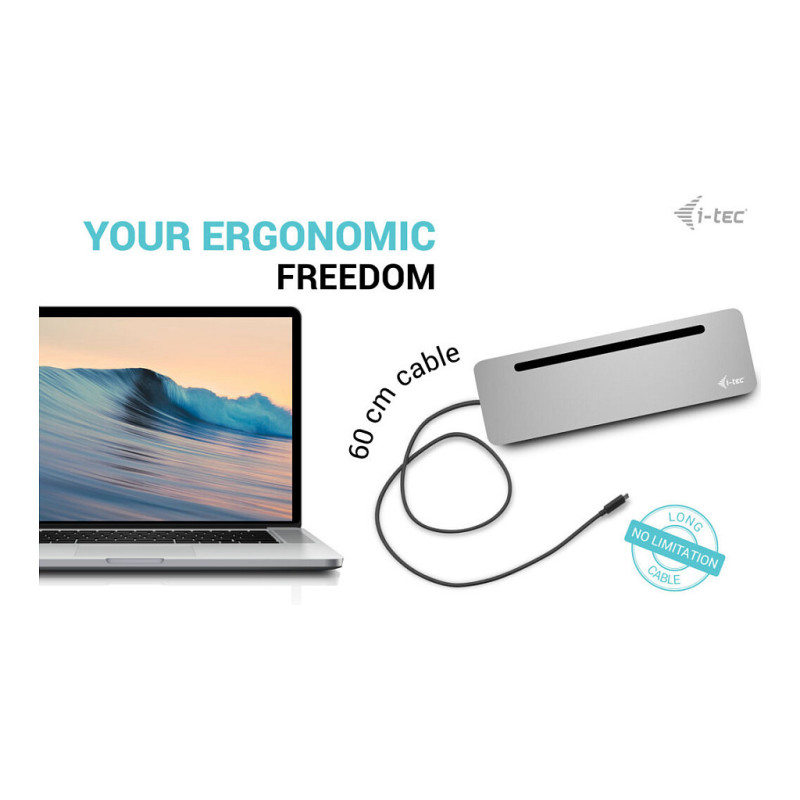

Ergonomic metal USB-C dock with support for up to 3 external monitors. The dock is compatible with any laptop equipped with a USB-C or Thunderbolt port (the 60 cm long integrated cable is long enough to connect all laptops with screens up to 15″). The dock provides 4 USB ports, reliable and fast connectivity to corporate networks thanks to the integrated LAN port and a power supply of up to 100 W. The design of the dock also allows it to be used as a laptop stand.

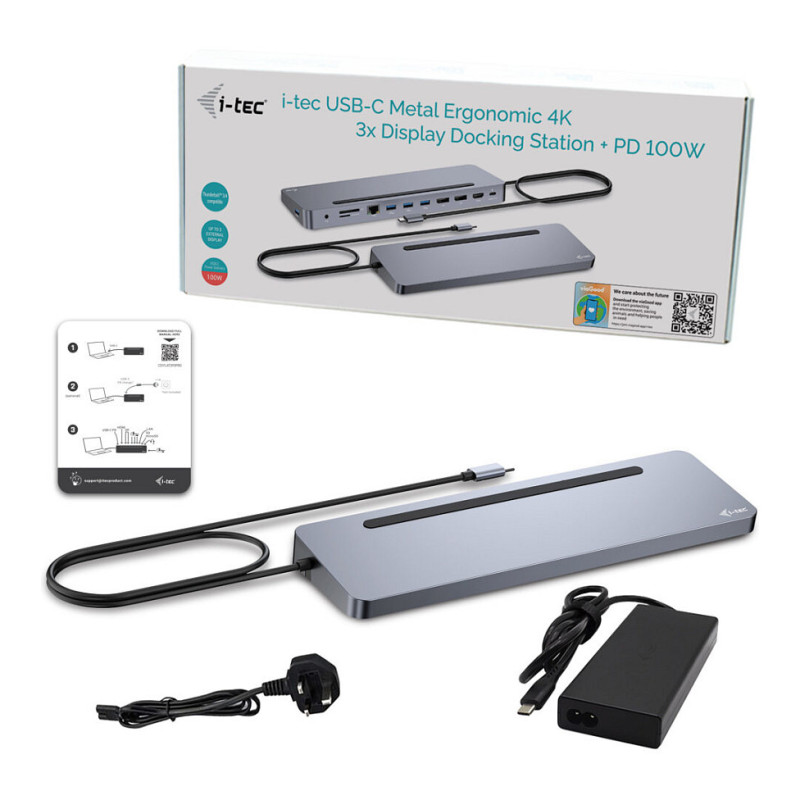

The docking station is available in two versions:
1. without the included USB-C charging adapter (product code C31FLAT2PDPRO)
2. with the included 100W adapter (product code C31FLAT2PDPRO100W/UK).

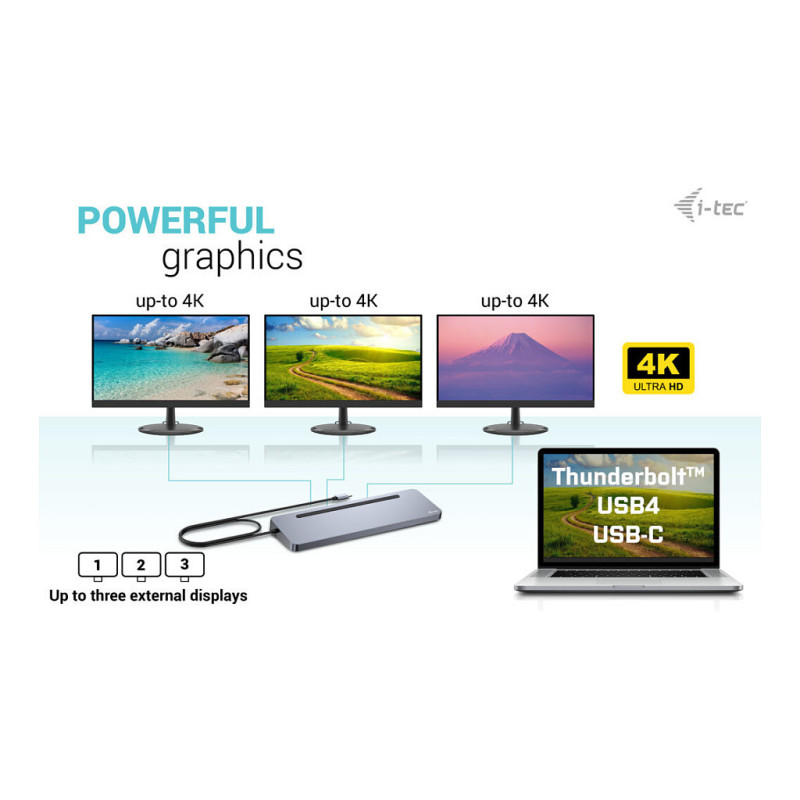

- Connect up to three external monitors with up to 4K resolution*.
- Power: up to 100W

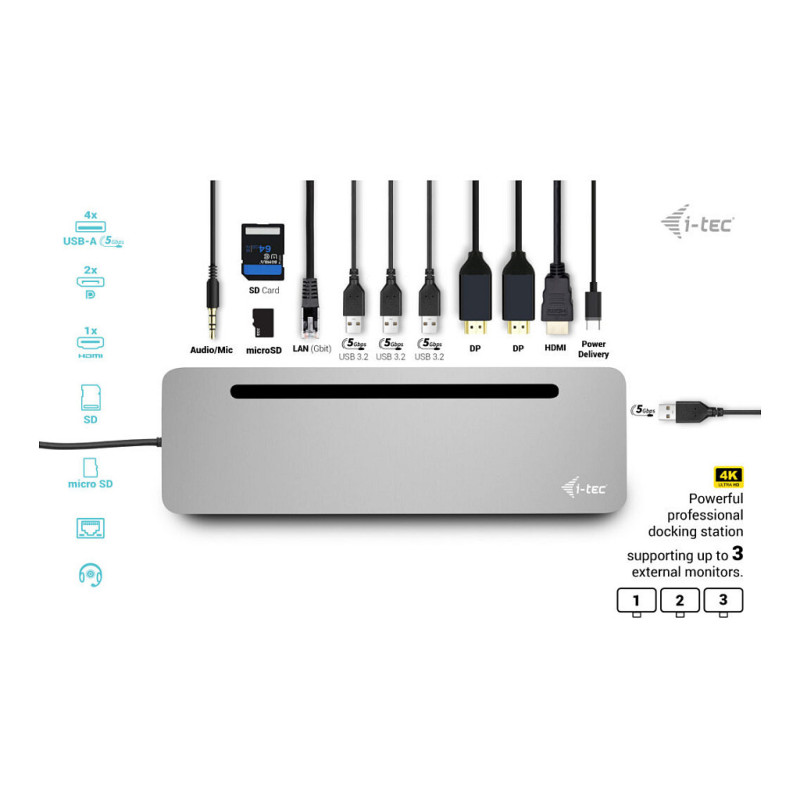

- Provides 2x DisplayPort and HDMI
- 4x USB 3.2 (5 Gbps) ports allow you to easily connect your USB devices and peripherals.
- Gigabit Ethernet RJ-45 provides reliable, robust and high-speed Internet connectivity with support for 10/100/1000 Mbps speeds
- Combination audio and microphone (headset) jack on the front panel
- SD and microSD card readers
- Metal body
- Can also be used as a handy laptop stand

Note: macOS does not support Multi-Stream Transport (MST) technology, which means that when connected to a macOS device, all connected monitors will display the same image.UNIVERSAL CHARGER

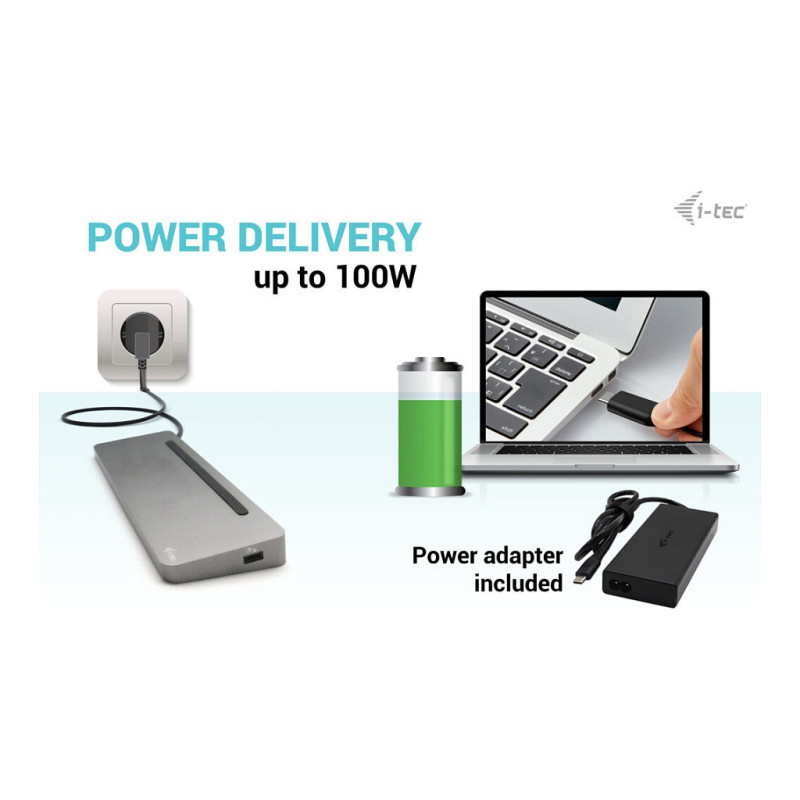

Universal power adapter
This 100W USB-C Universal Power Adapter is a great choice for powering any laptop or other USB-C equipped device that supports USB-C Power Delivery with a maximum power requirement of 100W.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Headphone connectivity: 3.5 mm

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 5 Gbit/s
Number of displays supported: 3
Maximum refresh rate: 60 Hz
Product colour: Silver
Housing material: Aluminium

Power

Power source type: AC
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Input current: 2.3 A
Output voltage: 5/9/12/15/19/20 V
Output current: 5 A
Power consumption (max): 100 W
Compatible power plug types: EU
USB cable length: 0.6 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 100%

Weight & dimensions

Width: 270 mm
Depth: 85 mm
Height: 23 mm
Weight: 268 g

Packaging data

Package width: 316 mm
Package depth: 130 mm
Package height: 30 mm

Packaging content

Feature: AC adapter included
Feature: Manual
Maximum notebook screen size compatibility: 38.1 cm (15")
