I / O HUB USB-C 3PORT / CSV-1549 CLUB3D
Product reference:
2-8719214473167
I / O HUB USB-C 3PORT / CSV-1549 CLUB3D
Product reference:
2-8719214473167
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days
Not available

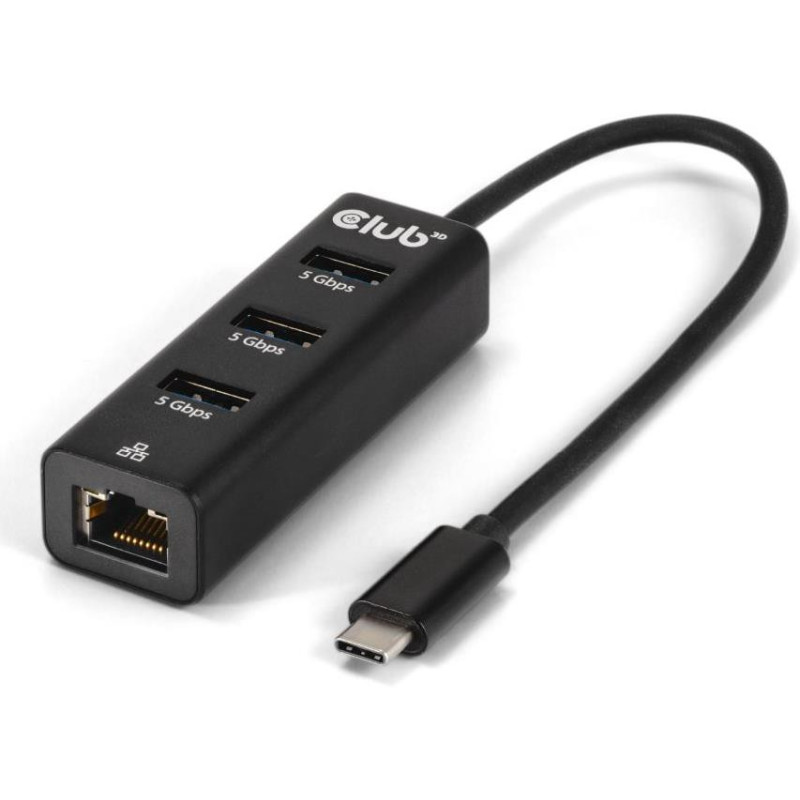

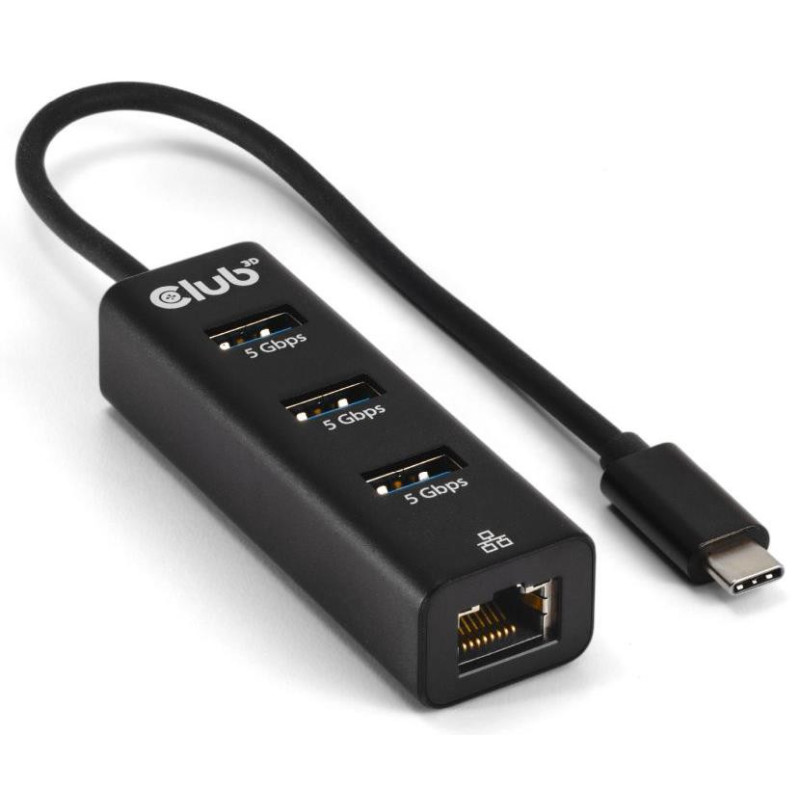

The Club 3D CSV-1549 is an USB 3.2 Gen1 Type-C Hub to 3 USB Type-A Ports with Gigabit Ethernet and is designed in a stylish manner and very slim which makes it easy to carry around. The CSV-1549 allows you simultaneous access to 3 x USB 3.2 Gen1 Type-A ports and the Ethernet 10/100/1000 Port from just one single USB 3.2 Gen1 Type-C up-link. The Device is downwards compatible to USB 2.0 standard, but this will have influence on the performance. The 3 USB ports are all USB Type-A and USB 3.2 Gen1 compliant with max 5Gbps data transmission. The Ethernet port is compliant to Gigabit Ethernet 10/100/1000 (RJ45) and full duplex with flow control.
- Compatible with USB 3.2 Gen1 with max 5Gbps data transmission and downward compatible with lower versions
- Share max 900mA downstream charging for all the USB-A ports - with 12W max combined Bus Power
- Support 10/100 /1000Mbps Ethernet bandwidth
- USB-A port supports plug and play, hot swap
- Compact and slim design
| Cable type | Round cable |
| Card reader integrated | No |
| Compliance certificates | RoHS |
| Data transfer rate | 5000 Mbit/s |
| DC-in jack | No |
| Depth | 25.6 mm |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Harmonized System (HS) code | 84733020 |
| Height | 19 mm |
| Host interface | USB Type-C |
| Hot-swap | Yes |
| Hub interfaces | RJ-45,USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Model name | CSV-1549 |
| Output current | 0.9 A |
| Package depth | 180 mm |
| Package height | 35 mm |
| Package type | Hanging box |
| Package weight | 67 g |
| Package width | 60 mm |
| Paper/cardboard packaging weight | 22 g |
| Plug and Play | Yes |
| Ports quantity | 4 |
| Product colour | Black |
| Product Net Weight | 0.045 kg |
| Shipping Box Depth | 21.5 cm |
| Shipping Box Height | 3.5 cm |
| Shipping Box Weight | 0.07 kg |
| Shipping Box Width | 6 cm |
| Summary | CLUB3D CSV-1549. Host interface: USB Type-C, Hub interfaces: RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, USB Power Delivery up to: 12 W. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Output current: 0.9 A. Width: 78.8 mm, Depth: 25.6 mm, Height: 19 mm |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.215 |
| Unit Box Width | 0.06 |
| Unit Calculated Volume | 0.0004515 cubm |
| Unit Calculated Weight | 0.07 kg |
| Unit Depth | 21.5 cm |
| Unit Height | 3.5 cm |
| Unit Width | 6 cm |
| Units per Shipping Box | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 12 W |
| Vendor Homepage | https://www.club-3d.com/en/detail/2666/usb_type_c_3.2_gen1_to_3_ports_usb_type_a_with_gigabit_ethernet/ |
| Weight | 45 g |
| Width | 78.8 mm |
