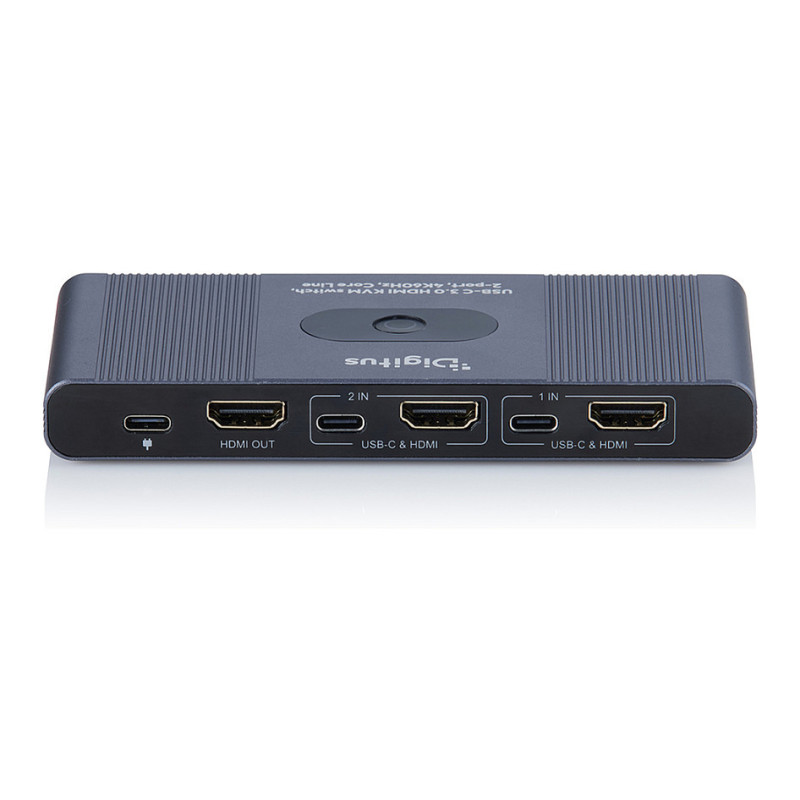

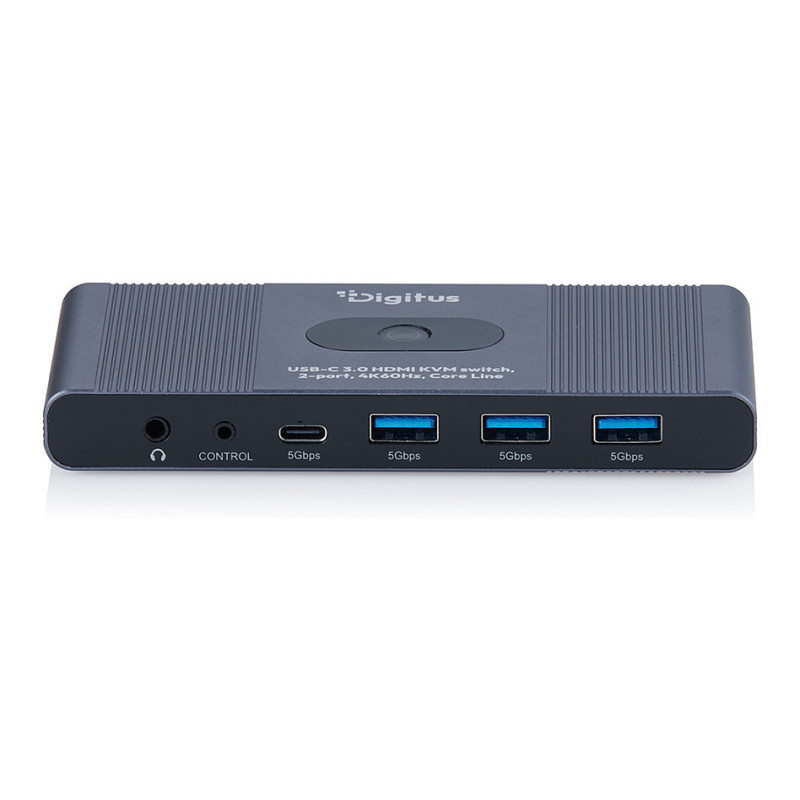

Digitus DS-12855 KVM switch

Digitus USB-C 3.0 HDMI KVM switch, 2-port, 4K60Hz, Core Line. Video port type: HDMI, USB connector type: USB Type-C, USB Type-A, USB version: 3.2 Gen 1 (3.1 Gen 1). HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 18 Gbit/s. Product colour: Grey, Housing material: Aluminium. Power source: USB. Width: 135 mm, Depth: 60 mm, Height: 30 mm

Switch seamlessly between two devices without having to reconnect - 4K@60Hz, USB 3.0, audio and compact design ensure efficient working and a tidy desk environment.

- Control two devices with just one monitor, one mouse and one keyboard - simple and space-saving
- 4K@60Hz resolution for razor-sharp images for work, presentations or gaming
- Switch seamlessly between two devices at the touch of a button or remote control
- USB 3.0 ports for fast data transfer up to 5 Gbps - ideal for SSDs & sticks
- Integrated 3.5 mm audio output for clear stereo sound
- Perfect for home office, office or gaming setups with multiple devices
- Compact aluminum housing - robust and space-saving on any desk
- Easy installation - ready to use immediately without drivers or complicated setup

The DIGITUS® USB-C 3.0 HDMI KVM switch from the Core Line enables convenient control of two HDMITM-enabled devices with just one mouse, one keyboard and a single monitor. With support for resolutions up to 4K@60Hz (YUV 4:4:4), HDCP and HDR, the switch delivers brilliant image quality for demanding applications. Desktop PCs as well as laptops or even games consoles can be connected effortlessly via HDMITM and USB-C 3.0 inputs. In addition, three USB-A 3.0 ports and one USB-C 3.0 port are available for sharing peripherals such as external hard disks or USB sticks - with transfer rates of up to 5 Gbps. For operation with high-performance USB drives or SSDs, the use of an external 5V 2A power supply (not included) is recommended. Switching between the connected devices can be done either directly via the button on the device or via the included wired remote control with magnetic base for flexible placement. An integrated 3.5 mm audio output rounds off the features. Power is supplied via USB-C 3.0 - an optional 5V/2A power adapter (not included) is recommended for powerful peripherals.

Ports & interfaces

Number of computers controlled: 2
Video port type: HDMI
HDMI ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 3
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 3
USB connector type: USB Type-C, USB Type-A
USB version: 3.2 Gen 1 (3.1 Gen 1)
Feature: Audio connections
Headphone outputs: 1

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Data transfer rate (max): 18 Gbit/s
Feature: High Dynamic Range (HDR) supported
Feature: HDCP
HDCP version: 1.4/2.2

Design

Product colour: Grey
Housing material: Aluminium

Power

Power source: USB
Feature: External power adapter
Feature: USB powered

Weight & dimensions

Width: 135 mm
Depth: 60 mm
Height: 30 mm
Weight: 227 g

Packaging data

Package width: 153 mm
Package depth: 190 mm
Package height: 78 mm
Package weight: 510 g

Packaging content

Cables included: USB Type-A to USB Type-C
Feature: Quick installation guide
Feature: Remote control included

Logistics data

Master (outer) case width: 250 mm
Master (outer) case length: 366 mm
Master (outer) case height: 233 mm
Master (outer) case gross weight: 10.1 kg
Products per master (outer) case: 20 pc(s)
