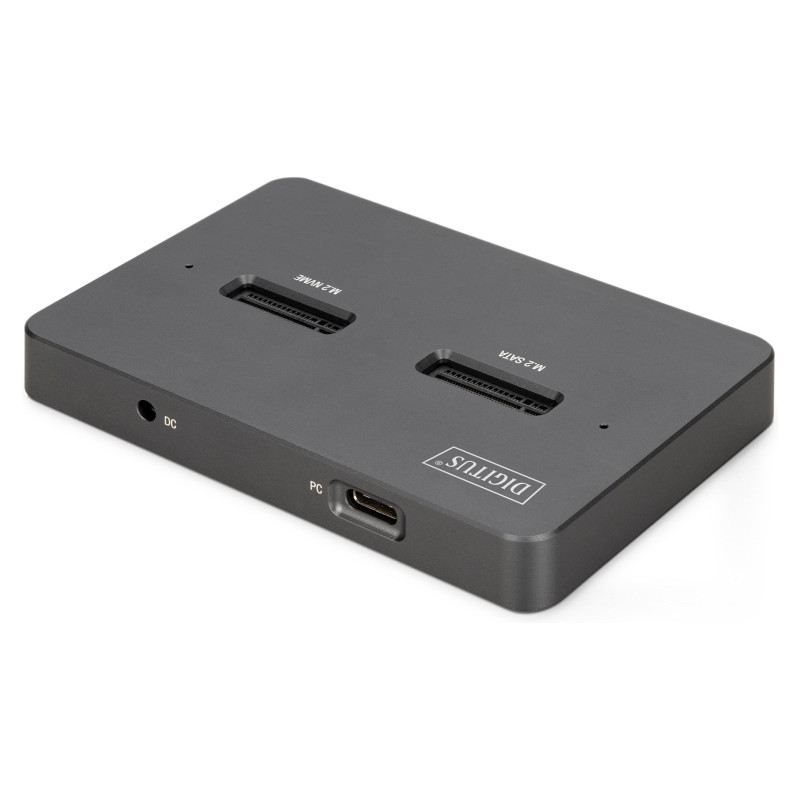

Digitus DA-71546-1 storage drive docking station

Digitus M.2 NVMe + M.2 SATA SSD docking station with SD Express card reader, USB-CTM. Storage media type: SSD, Storage drive interface: M.2, Storage drive sizes supported: M.2. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Product colour: Black, Maximum data transfer rate: 10 Gbit/s, Compatible memory cards: SD. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 102 mm, Depth: 66 mm, Height: 15 mm

Manage M.2 NVMe and M.2 SATA SSDs via a USB-CTM connection - incl. integrated SD Express card reader

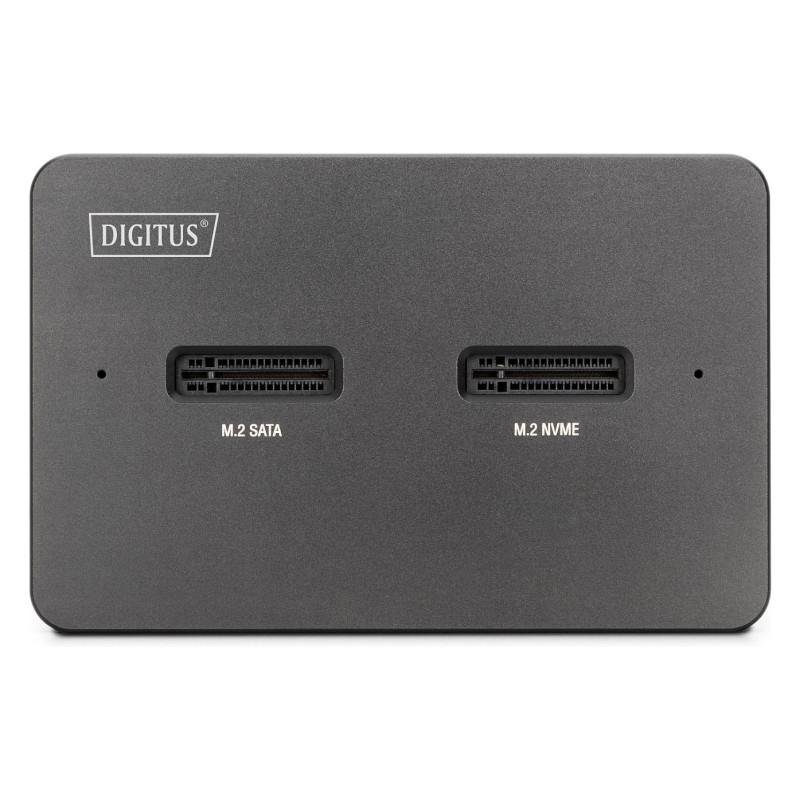

- 1 x M.2 bay for NVMe SSDs (B+M-Key / M-Key)
- 1 x M.2 bay for SATA SSDs (B+M key)

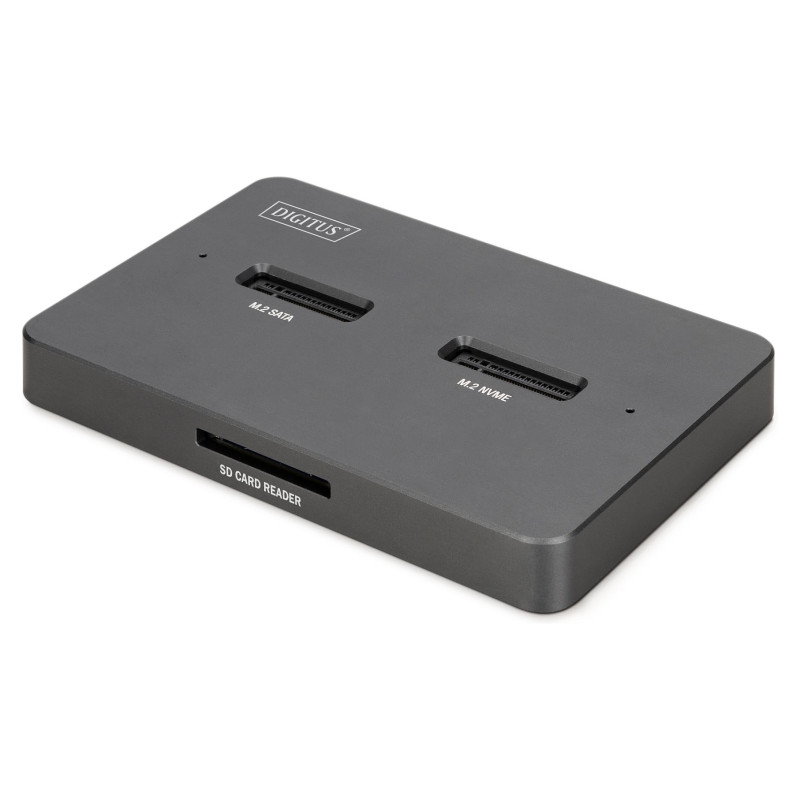

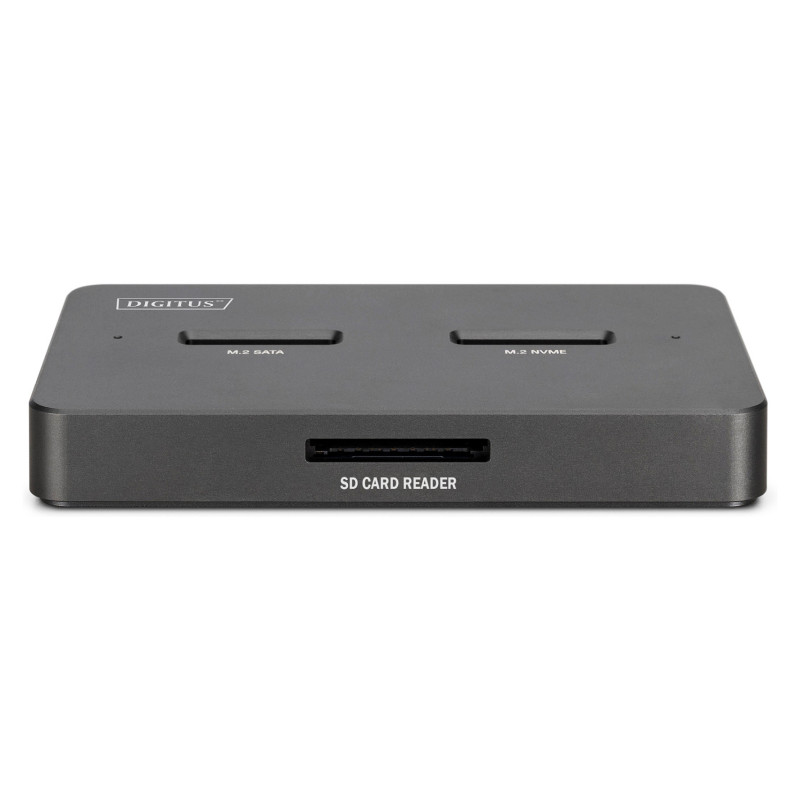

- 1 x SD-Express 7.1 memory card reader / 1000 MB/s max.
- High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M support)
- Supports NVMe & SATA SSDs up to 4 TB capacity
- Supported formats: 2242, 2260, 2280 & 22110
- Can be used as a storage medium for up to 10 TB in total
- USB-CTM connection: USB 3.2 Gen2
- Ideal memory expansion for notebooks, PCs, games consoles, TVs, NAS or routers (USB-CTM)
- Plug and play, no drivers required

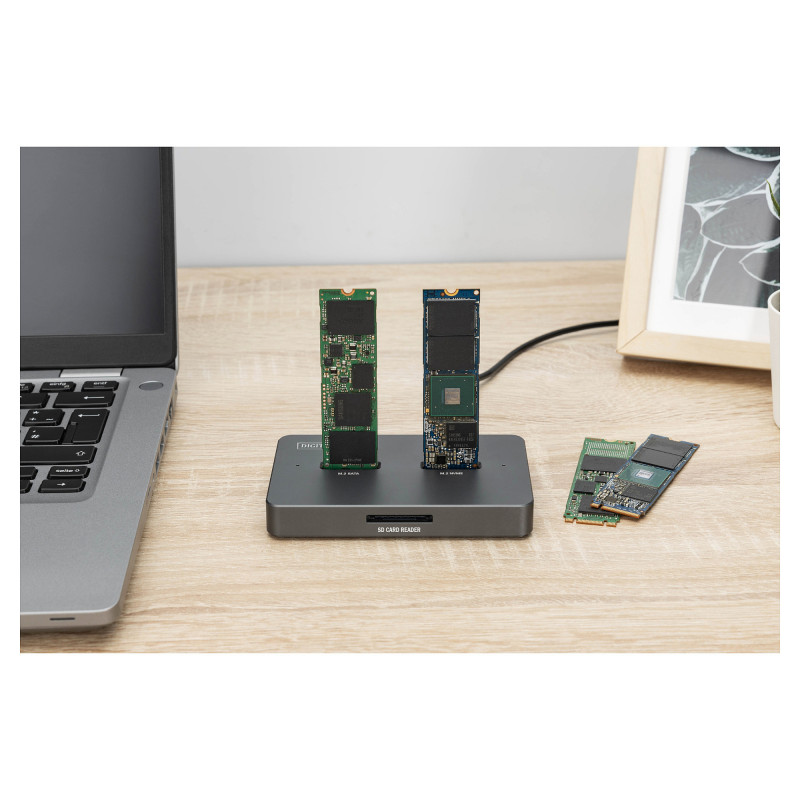

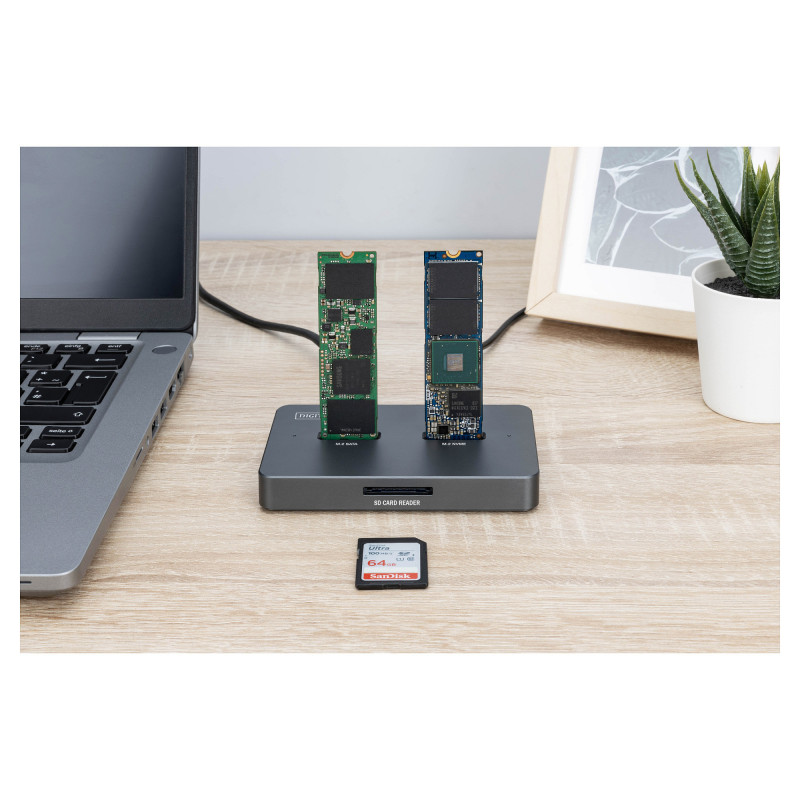

The 3-in-1 docking station from DIGITUS® can accommodate M.2 SSDs in NVMe or SATA technology, and there is also an SD Express 7.1 card reader with the highest data transfer rates on board. Manage M.2 data carriers with up to 4 TB per slot and additional SD cards up to 2 TB. NVMe SSDs with B+M key & M key as well as SATA SSDs with B+M key, each in the formats 2242, 2260, 2280 & 22110 are supported. Easily expand the storage capacity of numerous USB-CTM devices such as PCs, notebooks, TVs, game consoles or routers.

Hard drive

Storage media type: SSD
Storage drive interface: M.2
Storage drive sizes supported: M.2
Maximum storage capacity: 4 TB

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C

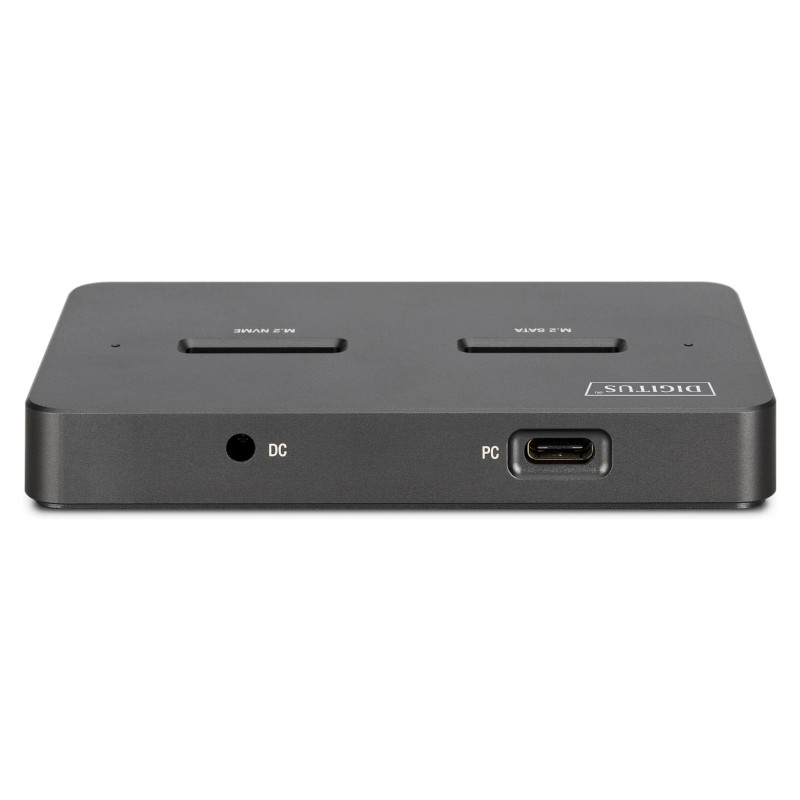

Feature: DC-in jack

Features

Product colour: Black
Maximum data transfer rate: 10 Gbit/s
Feature: Card reader integrated
Compatible memory cards: SD
Feature: Hot-swap
Feature: TRIM support
LED indicators: Yes
I/O ports: USB-C 3.2 Gen2
Feature: UASP support

Power

AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Weight & dimensions

Width: 102 mm
Depth: 66 mm
Height: 15 mm
Weight: 120 g

Packaging data

Package width: 150 mm
Package depth: 106 mm
Package height: 70 mm
Package weight: 350 g
Package type: Box

Packaging content

Feature: AC adapter included
