Digitus DA-70918 laptop dock / port replicator

Digitus USB-C docking station, 13-port. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, HDCP version: 1.4/2.2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: DC, Power consumption (max): 150 W, Power cable length: 1 m. Mobile operating systems supported: Android, iOS, Other operating systems supported: ChromeOS

Our 13-port USB-C docking station expands the connection options for notebooks and offers a complete solution for the entire workplace

- 3x HDMI + 2x DP (4K/60Hz) - Expand your workstation to up to 3 external monitors with a choice of 5 video connections
- Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in MST mode (expand screen) - Windows, macOS, ChromeOS, Linux
- Supports Dual Monitor & Triple Monitor (MST - extend screen) - also with Apple computers with M1, M2, M3 chipset
- Supports dual monitor (2x 4K/60Hz) & triple monitor (3x 4K/60Hz) in SST mode (screen mirroring) - All common operating systems
- 3x USB-A 3.2 Gen 1 (5 Gbit/s) for fast data transfer - one port with additional charging function (1.5A) for mobile devices
- 1x USB-A 3.2 Gen 2 + 1x USB-C 3.2 Gen 2 (10 Gbit/s each) for ultra-fast data transfer and with additional charging function (1.5A) for mobile devices
- 1x Gigabit Ethernet connection 10/100/1000/2500 Mbit/s (RJ45) - connect your notebook to the network via cable
- 1x DC-Jack 150 Watt max. (96W host, 54W dock) - connection for charging the notebook (suitable power supply unit included)
- 1x 3.5 mm audio jack

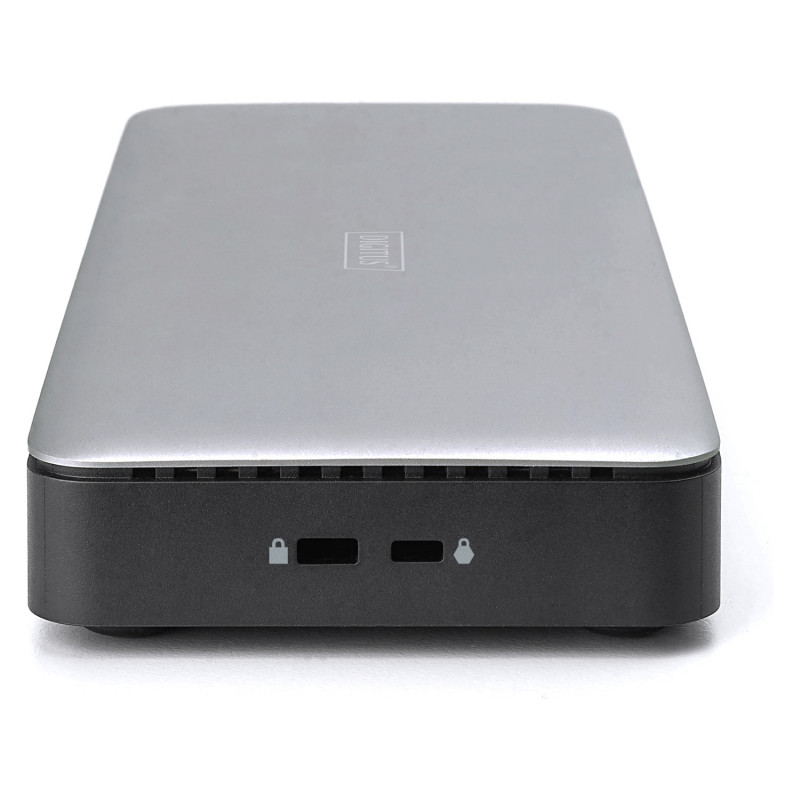

- Anti-theft protection - 1x Standard + 1x Nano

Expand your workplace with 13 additional connection options and take advantage of the wide range of connectivity options. The dock enables dual or triple monitor setups (4K/60Hz on all monitors) in MST mode (screen extension) for Windows, macOS (including M1, M2, M3 chipsets), ChromeOS and Linux PCs. Choose from 3x HDMI or 2x DisplayPort connections and combine them as you wish. Benefit from ultra-fast data transfers thanks to 3x USB-A 3.2 Gen 1 (5 Gbit/s), 1x USB-A 3.2 Gen 2 (10 Gbit/s) and 1x USB-C 3.2 Gen 2 (10 Gbit/s) ports, some of which also support charging mobile devices at 1.5A. A Gigabit Ethernet connection (RJ45) with 2500 Mbit/s ensures a perfect network connection. The supplied power supply unit (21V/7.1A, 150W) provides the docking station and the notebook with sufficient power during use. The 3.5 mm audio jack and the reversible 100 cm USB-C 3.2 Gen 2 connection cable offer additional flexibility. The docking station supports DP 1.4 Alt Mode (backwards compatible with DP 1.2), HDR and HDCP 2.2/1.4. Please note that a manual installation of drivers (DisplayLink) for your operating system is required to use the full functionality (dual/triple monitor and audio) of the dock.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
HDMI ports quantity: 3
DisplayPorts quantity: 2
Feature: Combo headphone/mic port
Feature: DC-in jack
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Feature: Cable lock slot
Product colour: Black, Grey
Feature: High Dynamic Range (HDR) supported
Feature: On/off switch
LED indicators: Yes
Feature: Plug and Play
Housing material: Aluminium, Plastic

Power

Power source type: DC
Power consumption (max): 150 W
Power cable length: 1 m
USB cable length: 1 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 45 °C

Weight & dimensions

Width: 85 mm
Depth: 225 mm
Height: 25 mm
Weight: 446.5 g

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Cables included: AC, USB Type-C
Feature: AC adapter included
Feature: Quick start guide
