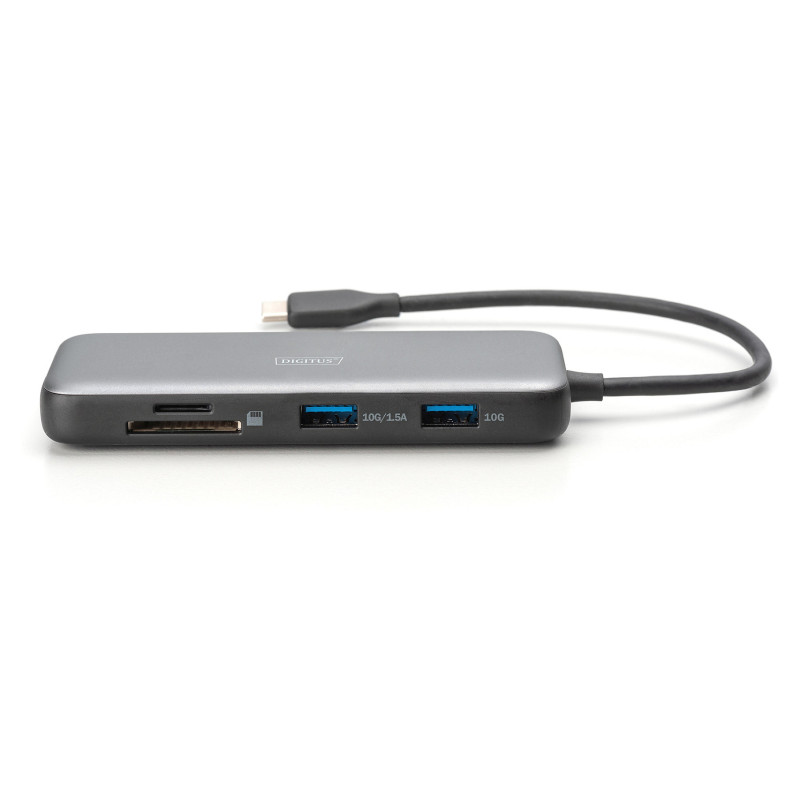

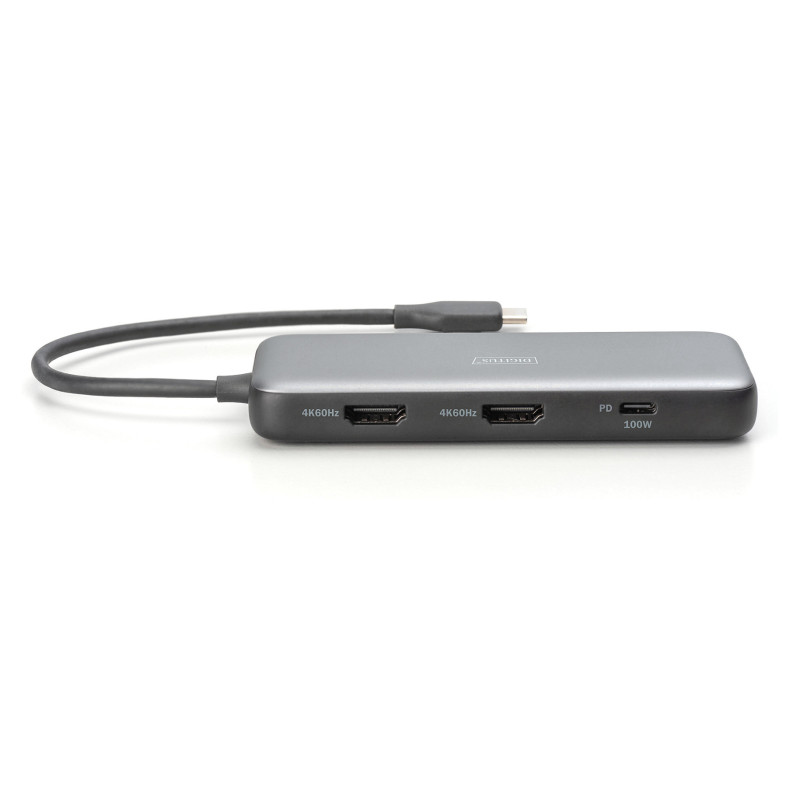

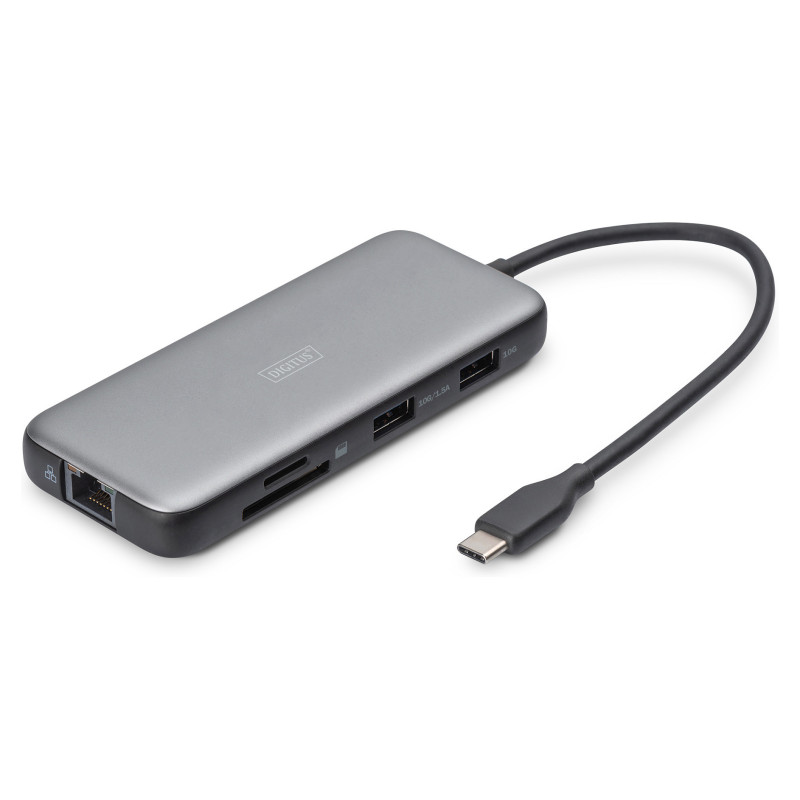

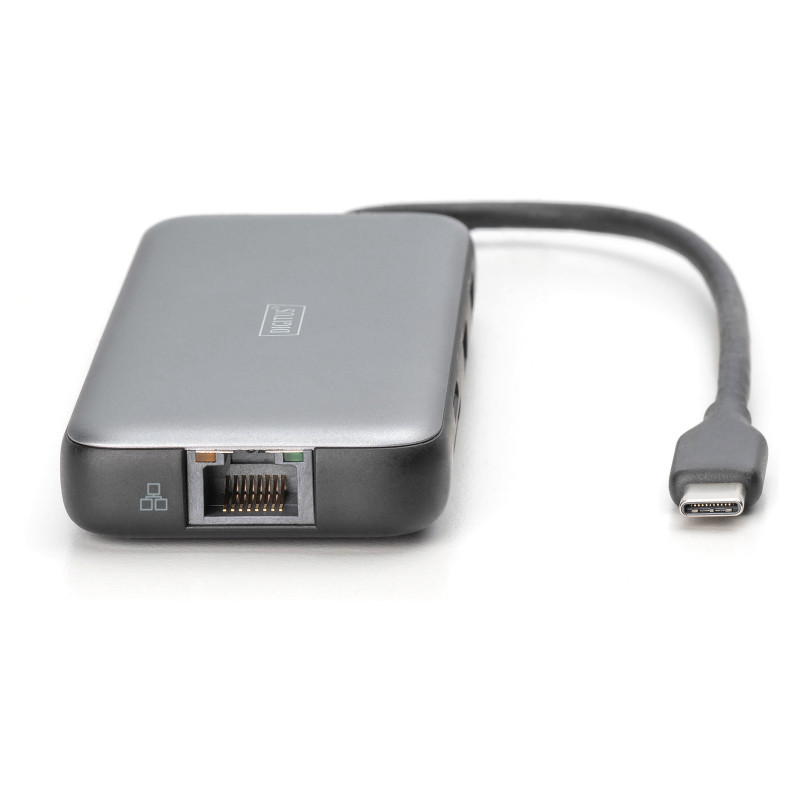

Digitus DA-70915 laptop dock / port replicator

Digitus USB-C docking station, 8-port. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Maximum resolution: 3840 x 2160 pixels. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.2 m

Expand your notebook with 8 additional ports - Optimize your workstation environment by using external monitors, additional peripherals and much more.

- 2x HDMI port (4K/60Hz) - Expand your workstation with two external monitors
- Supports dual monitor with 2x 4K/60Hz in MST mode (expand screen) - Windows, ChromeOS, Linux
- Supports dual monitor with 2x 4K/60Hz in SST mode (screen mirroring) - Windows, macOS, iOS, iPadOS, Android, ChromeOS, Linux
- 2x USB-A 3.2 Gen 2 port (10 Gbit/s) for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices
- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x USB-C Power Delivery (3.0) port for charging the notebook
- Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and notebook is not interrupted when the charger is unplugged
- Integrated USB-C connection cable (20 cm) - Flexible connection to the host PC
- Supports DP 1.4 Alt Mode, backwards compatible to DP 1.2 Alt Mode (DisplayPort Alternate Mode)

Expand your notebook with our USB-C 8-port docking station. With two HDMI ports, you can connect two external monitors in 4K quality and expand your screen space. In SST mode (screen mirroring), the docking station supports dual monitors with 2x 4K/60Hz. In MST mode (screen extend) it supports dual monitor with 2x 4K/60Hz. Work more efficiently by using multiple applications simultaneously on different screens. The two USB-A 3.2 Gen 2 ports (10 Gbit/s) enable ultra-fast data transfer and smooth use of external devices. The Gigabit Ethernet port (RJ45) provides reliable network connections, while the integrated card readers (SD/MicroSD) allow fast data transfer from memory cards. The USB-C Power Delivery port charges your notebook without interrupting the connection thanks to PD 3.0 Fast Role Swap. The integrated 20 cm USB-C connection cable offers flexibility, while HDR support ensures an impressive visual experience.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 2
DisplayPorts quantity: 1
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black, Grey
Feature: High Dynamic Range (HDR) supported
LED indicators: Yes
Feature: Plug and Play
Housing material: Aluminium, Plastic
Country of origin: China

Graphics

Maximum resolution: 3840 x 2160 pixels

Power

Power source type: USB
Power connector: USB Type-C
USB cable length: 0.2 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 50 mm
Depth: 120 mm
Height: 15.5 mm
Weight: 106 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 110 mm
Package depth: 190 mm
Package height: 20 mm
Package weight: 225 g

Packaging content

Feature: Quick start guide

Logistics data

UK Trade Tariff code: 84718000
