Digitus DA-70914 laptop dock / port replicator

Digitus USB-C docking station, 7-port. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.2 m. Mobile operating systems supported: Android, iOS, Other operating systems supported: ChromeOS

Expand your notebook with 7 additional ports - Take advantage of the versatility of numerous connection options and make your working environment more effective

- 1x HDMI port (4K/60Hz) - Expand your workstation with an additional external monitor
- 2x USB-A 3.2 Gen 2 port (10 Gbit/s) for ultra-fast data transfer - one port with additional charging function (1.5A) for mobile devices

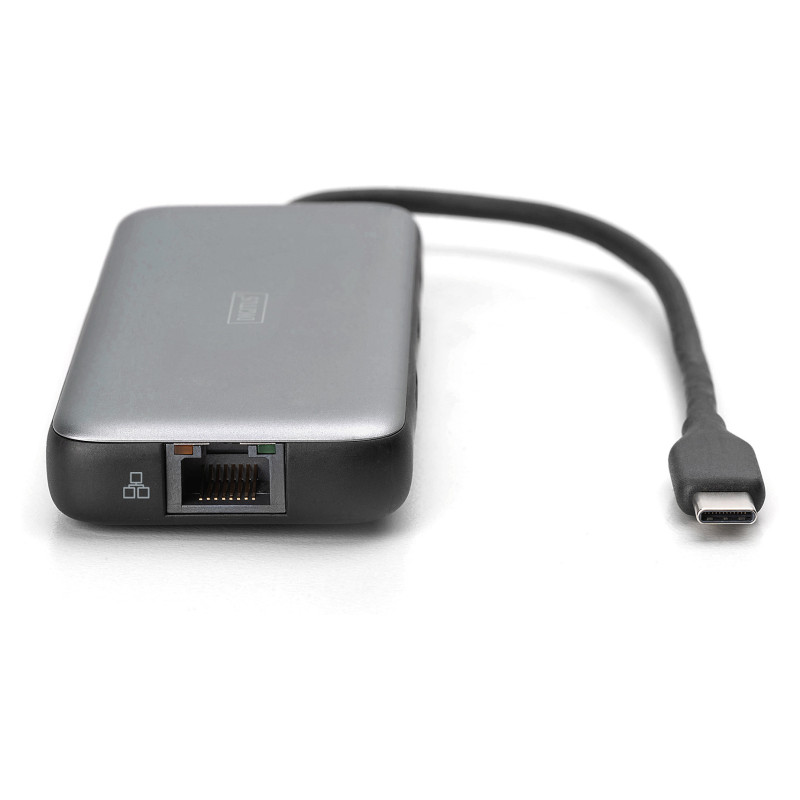

- 1x Gigabit Ethernet connection (RJ45) - connect your notebook to the network via cable
- 2x card reader (SD/MicroSD) - transfer speed of 104 MBps
- 1x USB-C Power Delivery (3.0) port for charging the notebook
- Supports PD 3.0 Fast Role Swap (FRS) - the connection between the docking station and notebook is not interrupted when the charger is unplugged
- Integrated USB-C connection cable (20 cm) - Flexible connection to the host PC
- Aluminum top cover
- Supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode (DisplayPort Alternate Mode)
- Supports HDCP 2.2, HDCP 1.4, HDCP 1.3
- Supports HDR10+

Our 7-port docking station is the ideal solution for expanding and optimizing your workstation. With an HDMI port for an additional external monitor, two fast USB-A 3.2 Gen 2 ports (10 Gbit/s) - one of which has a charging function for mobile devices, a Gigabit Ethernet port (RJ45) for a reliable network connection and two card readers (SD/MicroSD) with high transfer speeds, it offers comprehensive connectivity. It allows you to charge your notebook via the USB-C Power Delivery port and is elegantly and robustly designed with an aluminum top cover. The docking station supports DP 1.4 Alt Mode, backwards compatible with DP 1.2 Alt Mode. HDCP 2.2, 1.4, 1.3 and HDR10+ are also supported for an optimal multimedia experience.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Type-C DisplayPort Alternate Mode

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Data transfer rate: 10 Gbit/s
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Black, Grey
Feature: High Dynamic Range (HDR) supported
LED indicators: Yes
Feature: Plug and Play
Housing material: Aluminium, Plastic

Power

Power source type: USB
Power connector: USB Type-C
USB cable length: 0.2 m

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Other operating systems supported: ChromeOS

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 50 mm
Depth: 120 mm
Height: 15.5 mm
Weight: 109 g

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Quick start guide
