DeLOCK 92000 interface hub

DeLOCK 92000. Host interface: USB Type-C, Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Type-C. Data transfer rate: 5000 Mbit/s, Maximum refresh rate: 60 Hz, Product colour: Blue. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power supply type: USB. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia, Linux operating systems supported: Linux Kernel 6.2, Linux Kernel 6.5

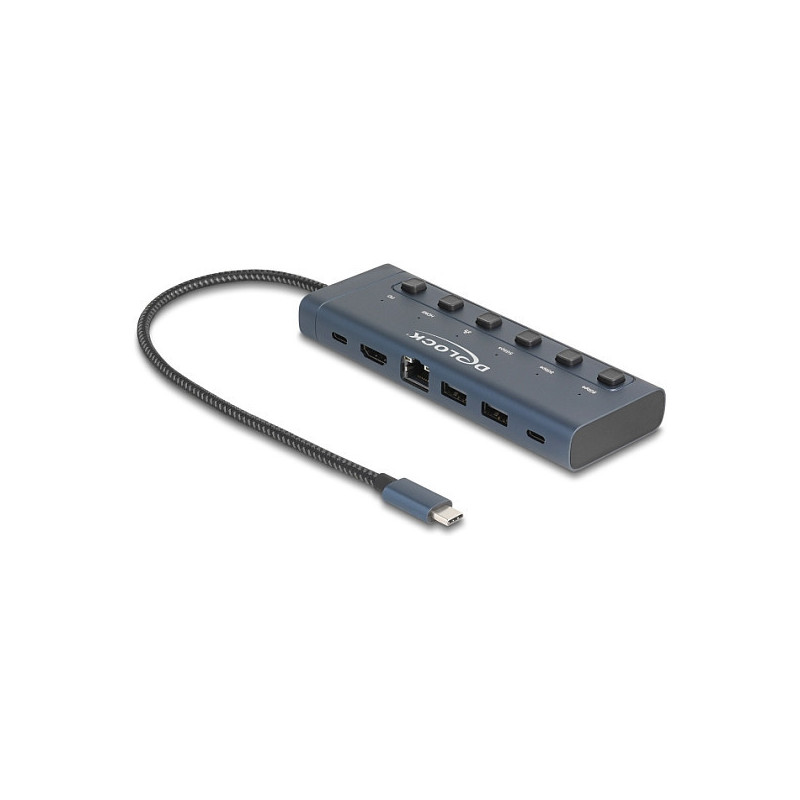

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. A monitor can be operated at the HDMI output port by a maximum resolution up to 4K. Two built-in USB Type-A and one USB-C™ port allow the use of peripherals.

Integrated 10/100/1000 Mbps LAN interface
In addition, the docking station with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.

USB Power Delivery (USB PD 3.0) support up to 90 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 90 watts during operation.

Switches for each port

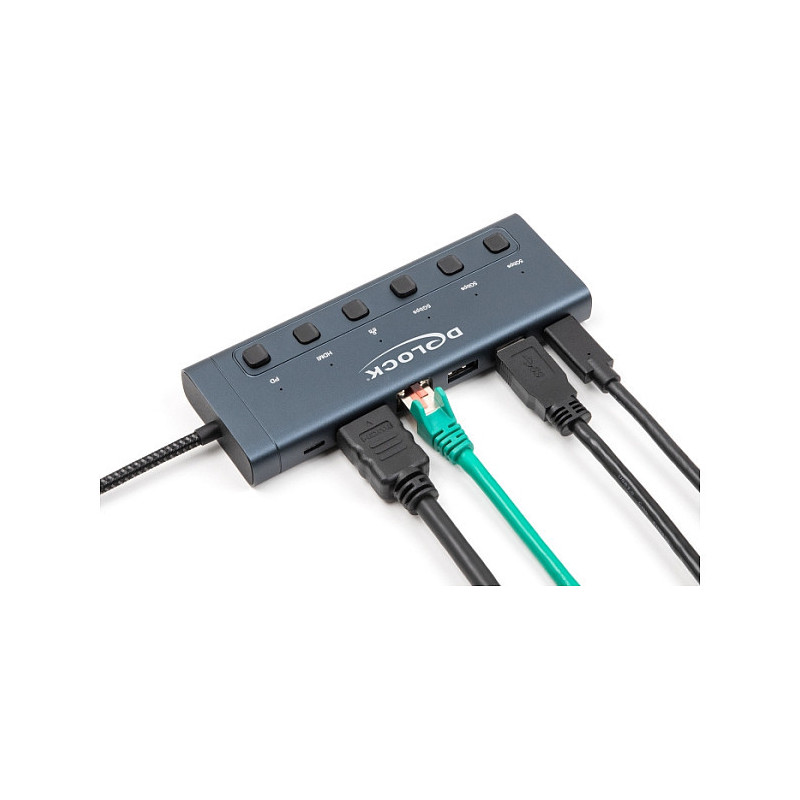

The Delock docking station has switches for each port on the top. This allows each port to be switched on or off individually, which is indicated by an LED on the switch. This can be useful in a meeting, for example, if you want to disconnect the monitor from the connected laptop for a short time.

Ports & interfaces

Host interface: USB Type-C
Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
Ports quantity: 6
Ethernet LAN (RJ-45) ports: 1

Features

Data transfer rate: 5000 Mbit/s
Maximum refresh rate: 60 Hz
Product colour: Blue
Housing material: Metal
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 90 W
HD type: 4K Ultra HD
LED indicators: Yes
Cable type: Round cable
Cable length: 0.28 m
Country of origin: China

Network

Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s

Power

Power supply type: USB

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Mac operating systems supported: Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia
Linux operating systems supported: Linux Kernel 6.2, Linux Kernel 6.5
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 50 mm
Depth: 139 mm
Height: 17 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Hanging box

Packaging content

Feature: Manual
