DeLOCK 88018 mobile device dock station

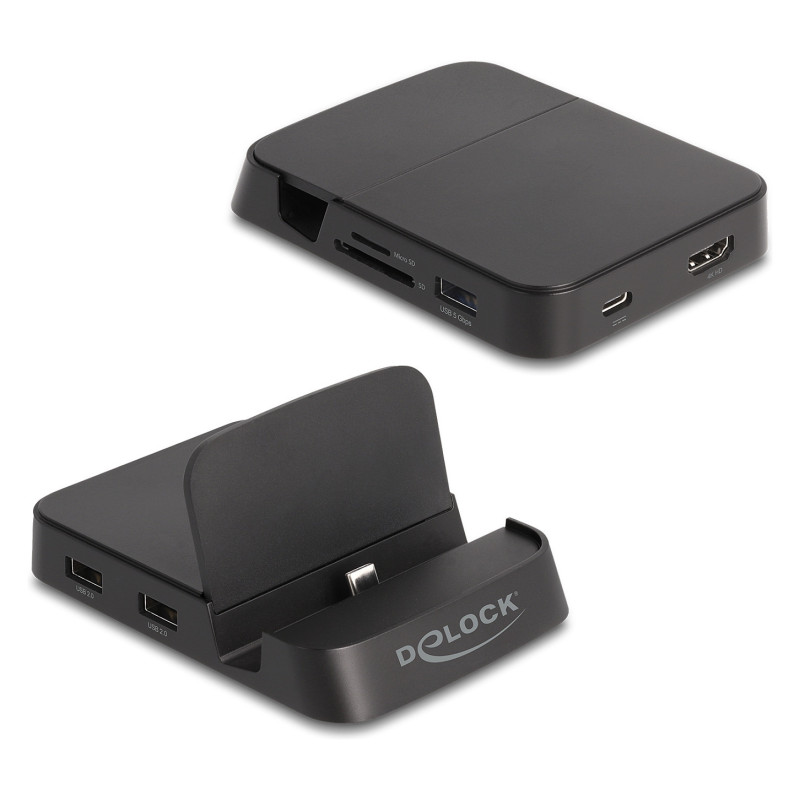

DeLOCK Smartphone Docking Station 4K with integrated holder - HDMI / USB / Hub / SD / Micro SD for Android or Windows. Basic device type: Smartphone, Brand compatibility: Any brand. Docking connector type: USB Type-C. Width: 80 mm, Depth: 109 mm, Height: 20 mm, Weight: 82 g. Product colour: Black

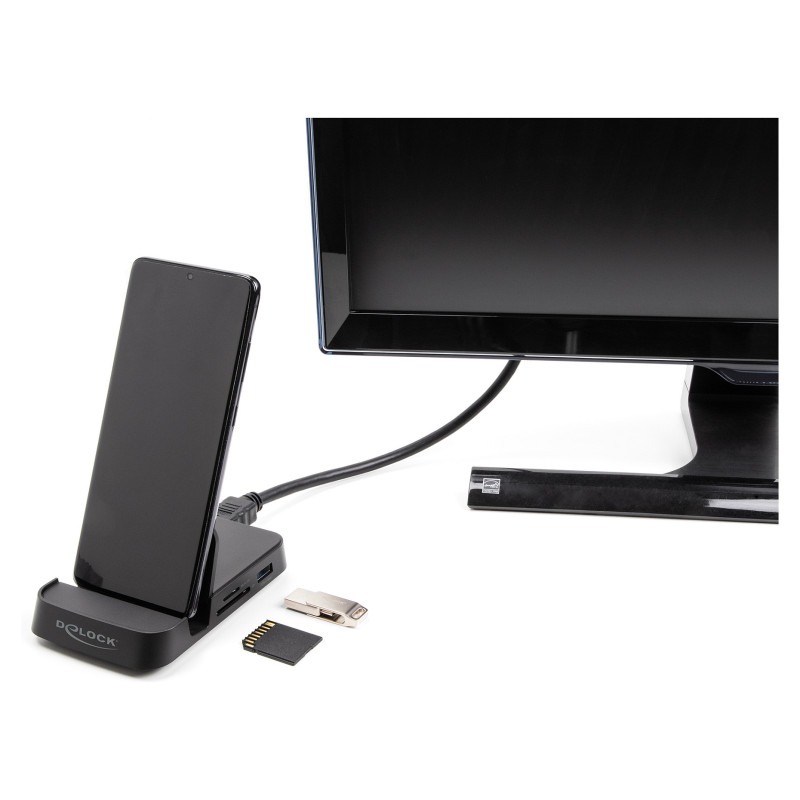

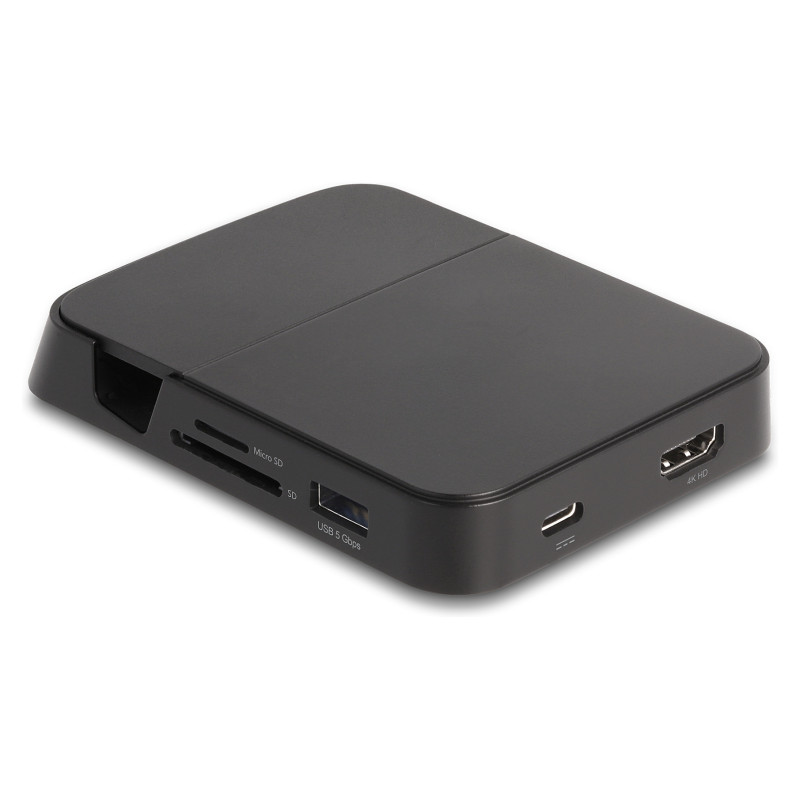

This smartphone docking station by Delock is the ideal addition to your desk or when traveling and turns a smartphone into a full desktop system. In addition to 3 plug & play capable USB Type-A ports, it also offers an HDMI interface, as well as an SD and Micro SD slot for memory cards. A monitor with a maximum resolution of up to 4K 30 Hz can be operated at the HDMI output.

Low power mode
The docking station draws its power from the phone thanks to low the power mode but can also be operated with the smartphone power adapter for more power or to relieve the phone.

Note
The docking station is suitable for Android smartphones that have the USB 5 Gbps standard and a USB Type-C™ port as well as supporting DisplayPort Alternate Mode.

Performance

Basic device type: Smartphone
Brand compatibility: Any brand
Product colour: Black
Material: Plastic
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Feature: HDCP
Data transfer rate: 5 Gbit/s
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Feature: Plug and Play
Feature: USB Type-C DisplayPort Alternate Mode
Windows operating systems supported: Windows 10, Windows 11

Ports & interfaces

Docking connector type: USB Type-C
Feature: USB hub
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 15 W
Audio output: No
Feature: HDMI
HDMI connector type: Full-size
HDMI ports quantity: 1

Power

Power source type: USB
DC input voltage: 12 V

Weight & dimensions

Width: 80 mm
Depth: 109 mm
Height: 20 mm
Weight: 82 g

Packaging data

Quantity: 1
Package type: Retail Box

Packaging content

Feature: User guide
