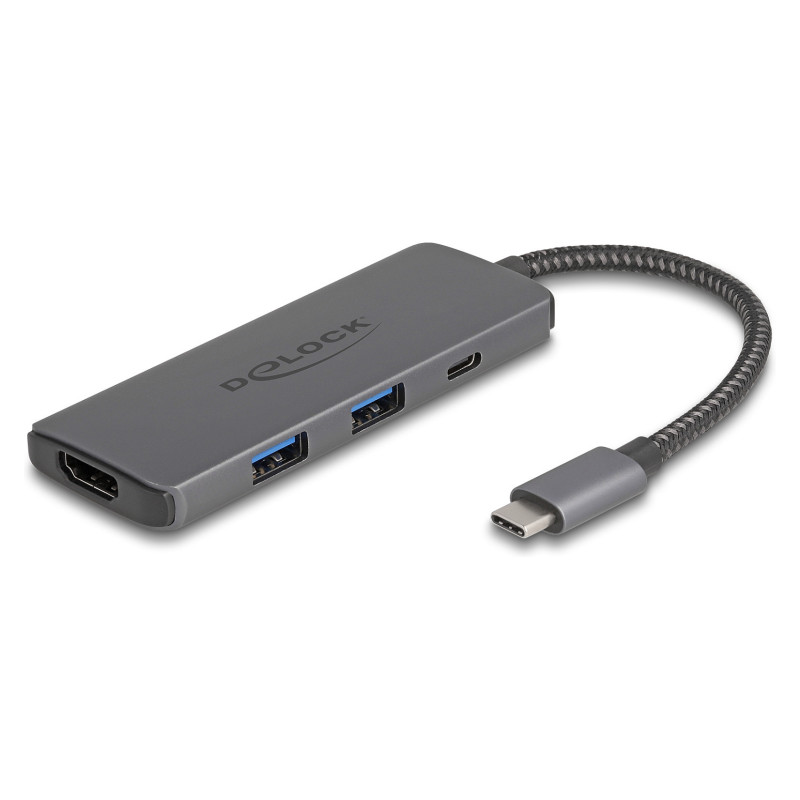

DeLOCK 87804 laptop dock / port replicator

DeLOCK USB Type-C Docking Station 8K - HDMI / USB / PD 3.0 100 W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Grey, Data transfer rate: 5 Gbit/s, HD type: 8K Ultra HD. Power source type: USB, USB cable length: 0.15 m. Windows operating systems supported: Windows 10, Windows 11, Windows 8.1, Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Linux operating systems supported: Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15. Width: 37 mm, Depth: 97 mm, Height: 10 mm

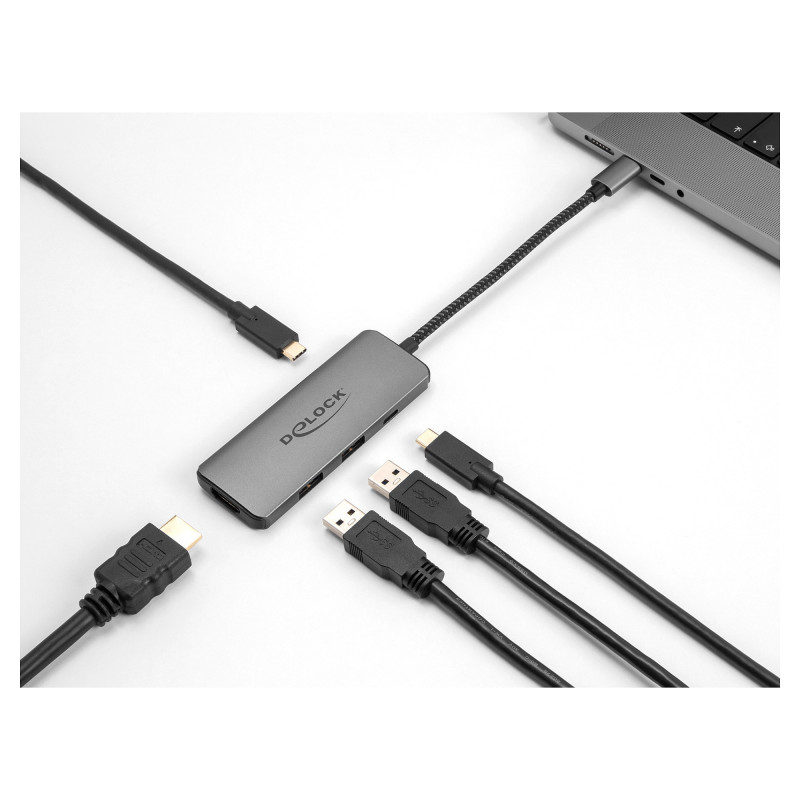

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 or Thunderbolt™ 4 port and provides a variety of interfaces. A monitor can be operated at the HDMI output port by a maximum resolution up to 8K Ultra HD (7680 x 4320 @ 30 Hz). Two built-in USB Type-A and one USB-C™ port allow the use of peripherals.

USB Power Delivery (USB PD 3.0) support up to 100 watt

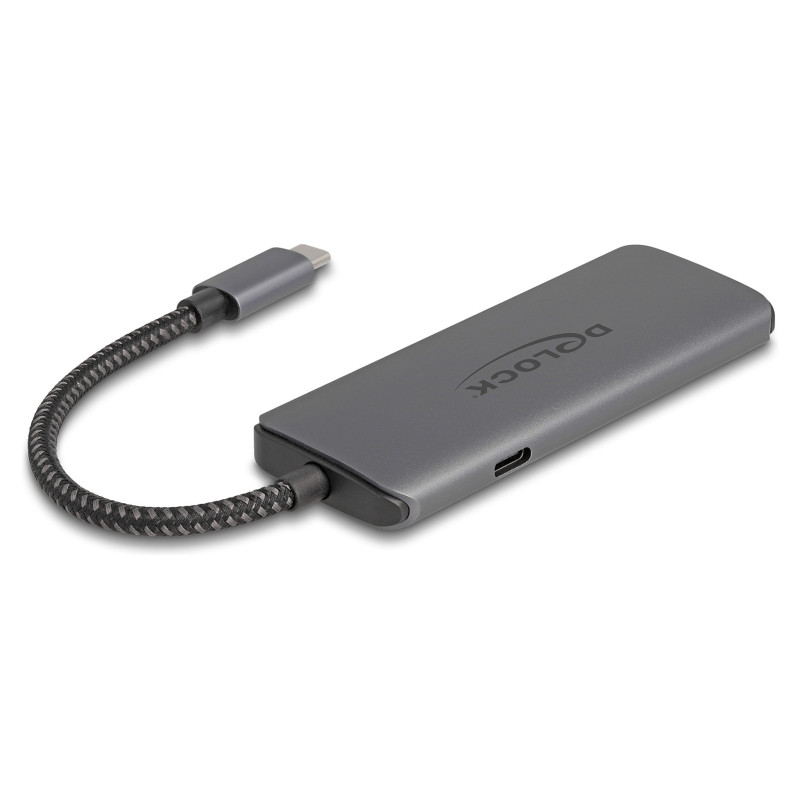

The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 100 watts during operation.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
HDMI ports quantity: 1
Feature: HDCP
HDCP version: 1.4/2.2
Feature: USB Type-C DisplayPort Alternate Mode

Performance

Data transfer rate: 5 Gbit/s
HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Maximum refresh rate: 30 Hz
Product colour: Grey
Feature: High Dynamic Range (HDR) supported
Feature: Plug and Play
Housing material: Aluminium
Country of origin: China

Power

Power source type: USB
USB cable length: 0.15 m

Software

Windows operating systems supported: Windows 10, Windows 11, Windows 8.1
Mac operating systems supported: Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported: Linux Kernel 5.11, Linux Kernel 5.12, Linux Kernel 5.13, Linux Kernel 5.14, Linux Kernel 5.15
Mobile operating systems supported: Android 11.0, Android 12.0, Android 13.0, iOS
Other operating systems supported: ChromeOS

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 37 mm
Depth: 97 mm
Height: 10 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE
