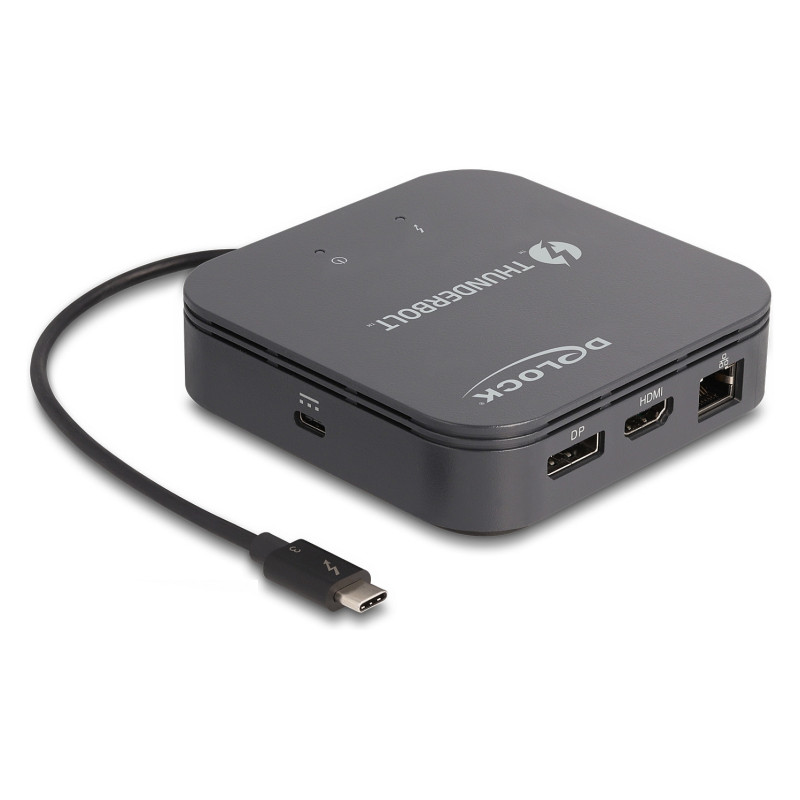

DeLOCK 87789 laptop dock / port replicator

DeLOCK Thunderbolt 3 Mini Docking Station 8K - DisplayPort / HDMI / USB / LAN / Audio / PD 3.0. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 8K Ultra HD, Maximum digital resolution: 7680 x 4320 pixels. Power source type: Thunderbolt 3, USB cable length: 0.2 m. Windows operating systems supported: Windows 10, Windows 11, Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

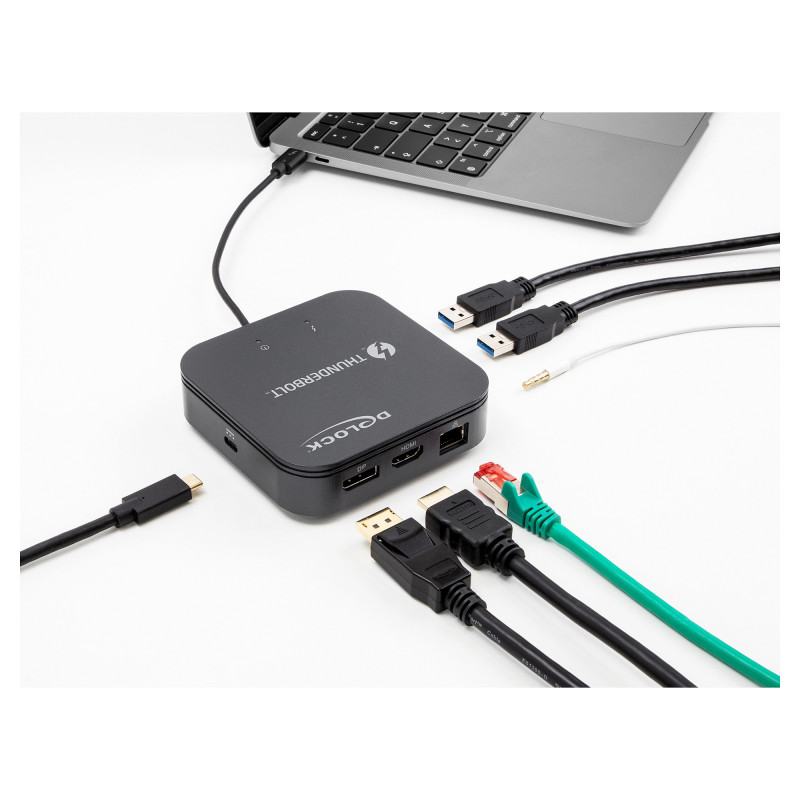

This Thunderbolt™ 3 mini docking station by Delock can be connected to a computer with a Thunderbolt™ 3 port and provides a variety of interfaces. The DisplayPort output allows the connection of an 8K display, the HDMI output a connection of a 4K display, two monitors with 4K resolution can be operated simultaneously. Two built-in USB ports allow the use of peripherals, connections for headset and Gigabit network complete the features.


Certified

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 4K 60 Hz per monitor.

USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Plug & Play
This device can simply be plugged in and is immediately ready for use. No extra power supply is needed when using the docking station.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 60 W
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Combo headphone/mic port
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: HDCP
HDCP version: 2.2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

HD type: 8K Ultra HD
Maximum digital resolution: 7680 x 4320 pixels
Maximum refresh rate: 60 Hz
Product colour: Black
Feature: High Dynamic Range (HDR) supported
Feature: High Dynamic Range 10 (HDR10)
Display modes: Extended, Mirror
LED indicators: Yes
Feature: Plug and Play
Feature: Charging function
Housing material: Plastic
Country of origin: China

Power

Power source type: Thunderbolt 3
USB cable length: 0.2 m

Software

Windows operating systems supported: Windows 10, Windows 11
Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 100 mm
Depth: 100 mm
Height: 25 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE
