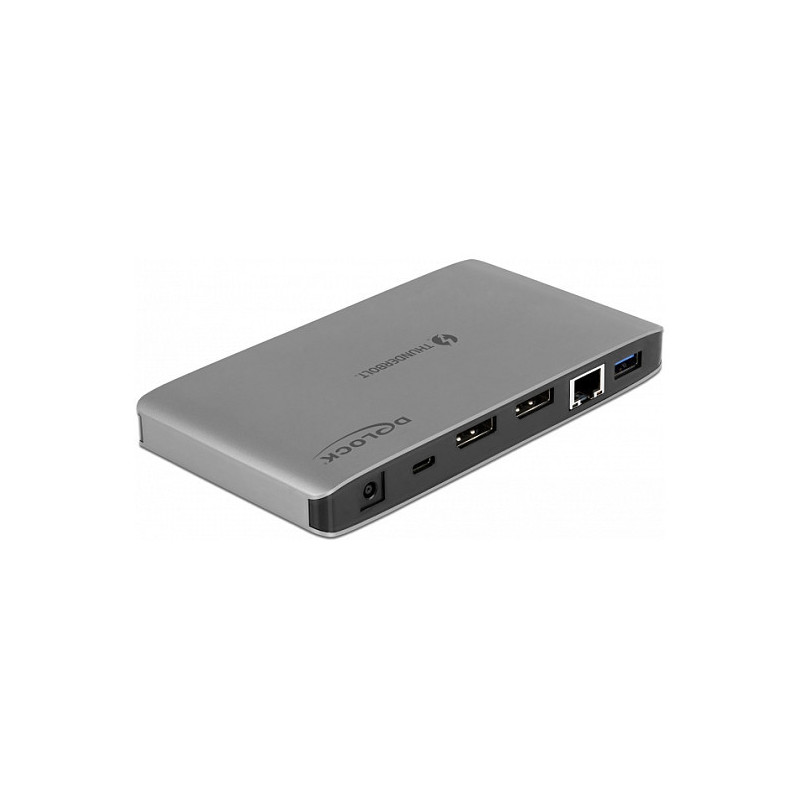

DeLOCK 87777 laptop dock / port replicator

DeLOCK Thunderbolt 3 Docking Station 8K - Dual DisplayPort / USB / LAN / SD / Audio / PD 3.0. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Windows operating systems supported: Windows 10, Windows 8.1, Mac operating systems supported: Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

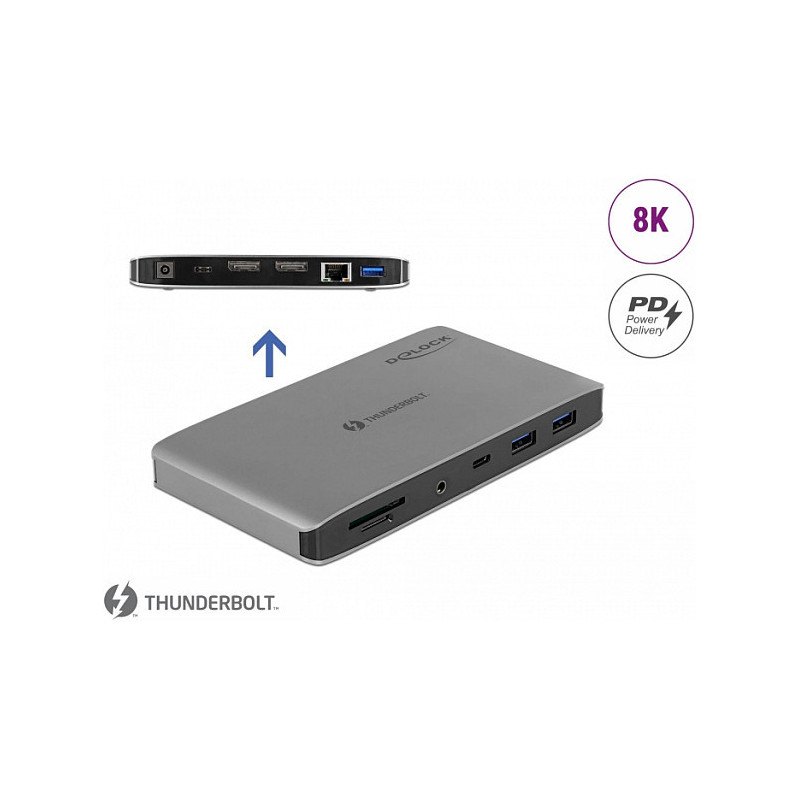

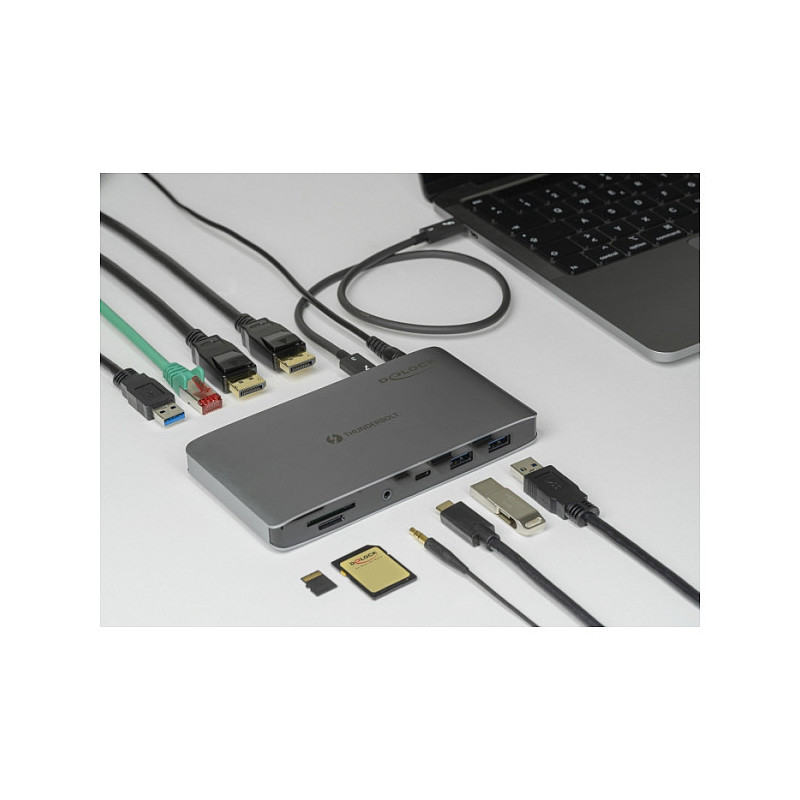

This Thunderbolt 3 docking station by Delock can be connected to a computer with a Thunderbolt 3 port and provides a variety of interfaces. Up to two monitors can be operated simultaneously at the DisplayPort outputs. Four built-in USB ports allow the use of peripherals, connections for headset and Gigabit network, as well as SD and Micro SD slot complete the features.

Multi-Stream Transport (MST)

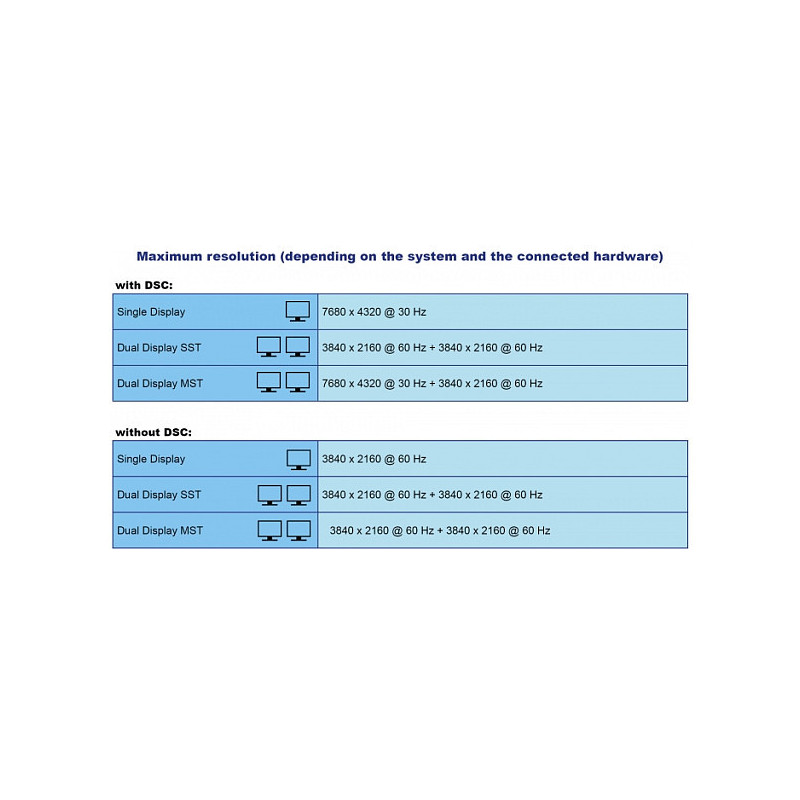

The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.

USB Power Delivery (USB PD 3.0) support up to 60 watt
The docking station has a USB Type-C Power Delivery port to connect the power supply of the laptop or tablet to charge it.

Ports & interfaces

Connectivity technology: Wired
Host interface: Thunderbolt 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 60 W
DisplayPorts quantity: 2
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack
Feature: HDCP
HDCP version: 2.2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD
Product colour: Grey
Feature: Plug and Play

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 3 A
Output voltage: 20 V
Output current: 6 A

Software

Windows operating systems supported: Windows 10, Windows 8.1
Mac operating systems supported: Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

Weight & dimensions

Width: 147 mm
Depth: 80 mm
Height: 17 mm

Packaging content

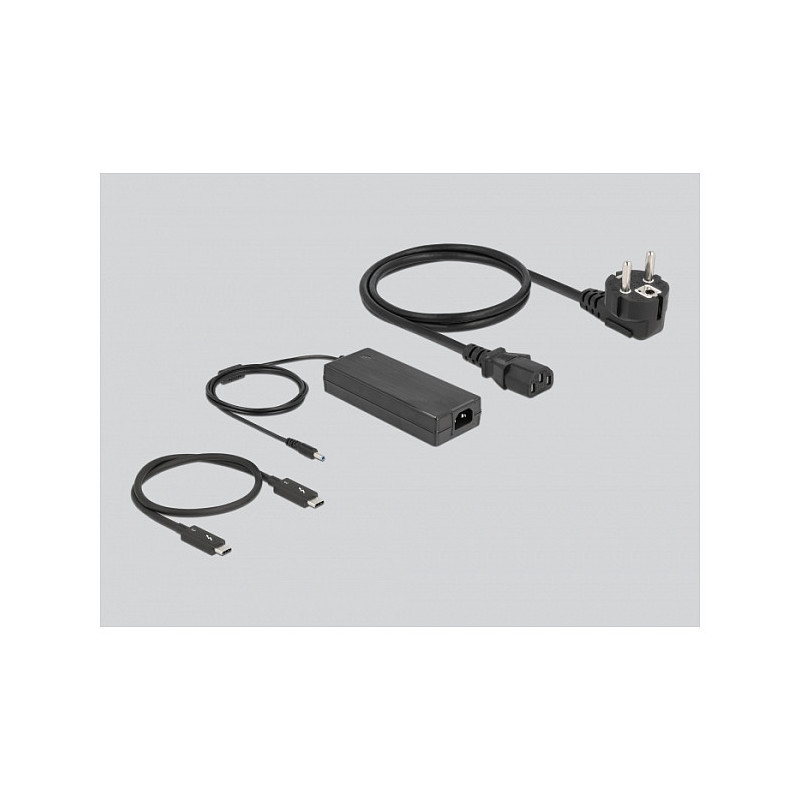

Feature: AC adapter included
Feature: Manual
