DeLOCK 87771 laptop dock / port replicator

DeLOCK USB Docking Station Dual HDMI Full-HD / USB 3.2 / LAN / Audio. Connectivity technology: Wired, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, White, Maximum digital resolution: 2560 x 1440 pixels. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 0.8 A. Width: 38 mm, Depth: 78 mm, Height: 190 mm

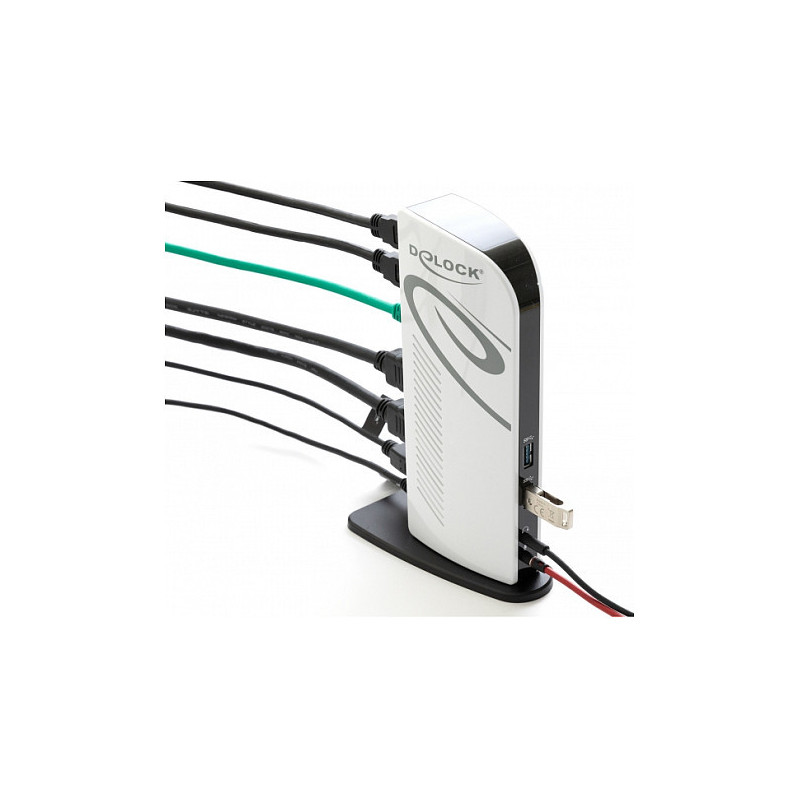

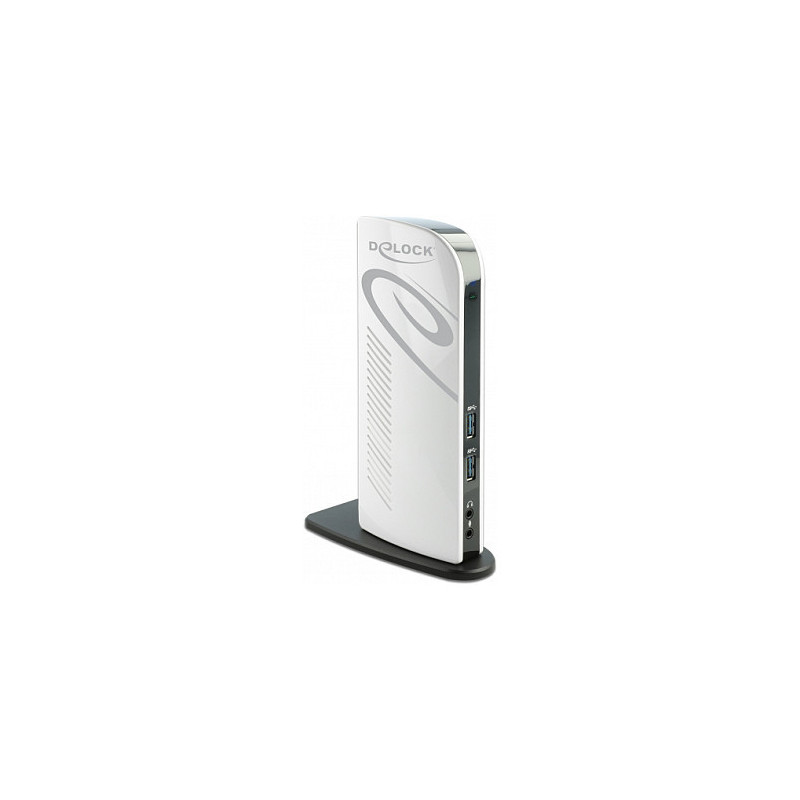

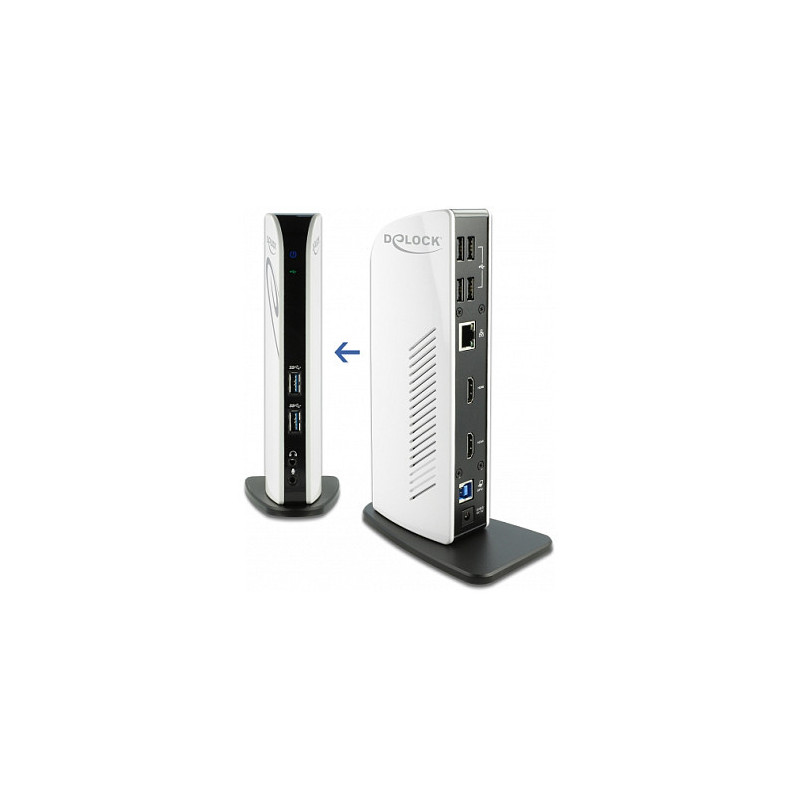

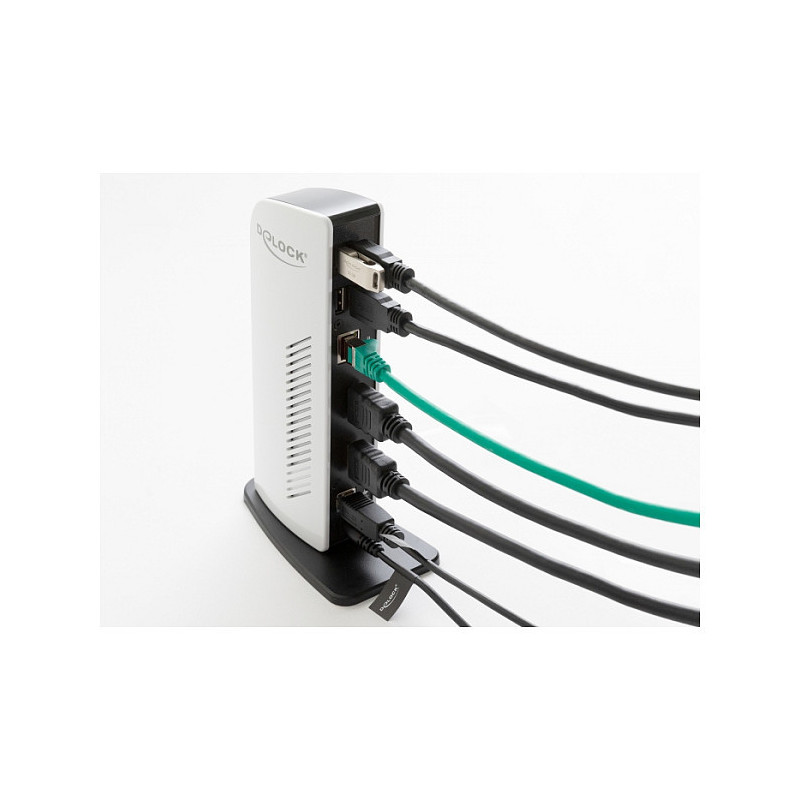

This docking station by Delock can be connected to a computer with a USB-C™ or USB Type-A port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Four built-in USB 2.0 ports and two USB 3.2 Gen 1 ports allow the use of peripherals, and connections for microphone and speaker and Gigabit network complete the features.

Full-HD resolution
Full-HD (1080p) resolution is possible when using only one monitor and also when using both HDMI outputs at the same time.

Ports & interfaces

Connectivity technology: Wired
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 1
HDMI ports quantity: 2
Feature: Microphone in
Headphone outputs: 1
Headphone connectivity: 3.5 mm

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Maximum digital resolution: 2560 x 1440 pixels
Product colour: Black, White

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 0.8 A
Output voltage: 5 V
Output current: 4 A

Software

Windows operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 38 mm
Depth: 78 mm
Height: 190 mm

Packaging content

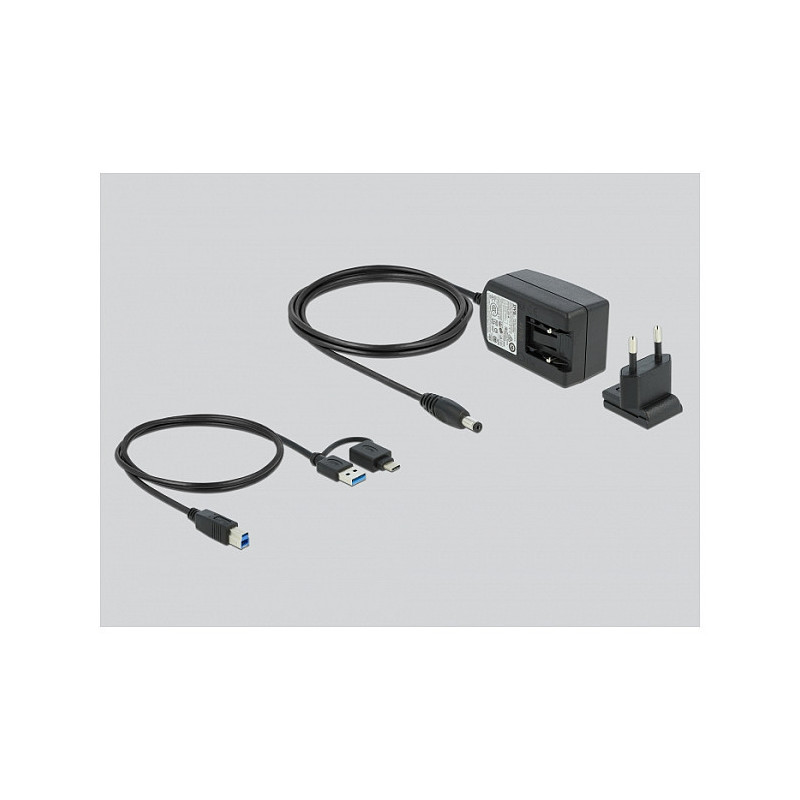

Cables included: USB Type-A to USB Type-B
Feature: AC adapter included
Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
