DeLOCK 87757 laptop dock / port replicator

DeLOCK Docking Station for MacBook Pro / MacBook Air Thunderbolt 4 with 5K Resolution / 100 W PD / 10 Gbps Hub / LAN / Audio. Connectivity technology: Docking, Host interface: Thunderbolt 4, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, HD type: 5K Ultra HD. Power source type: Thunderbolt 4, USB. Width: 29 mm, Depth: 108 mm, Height: 13 mm

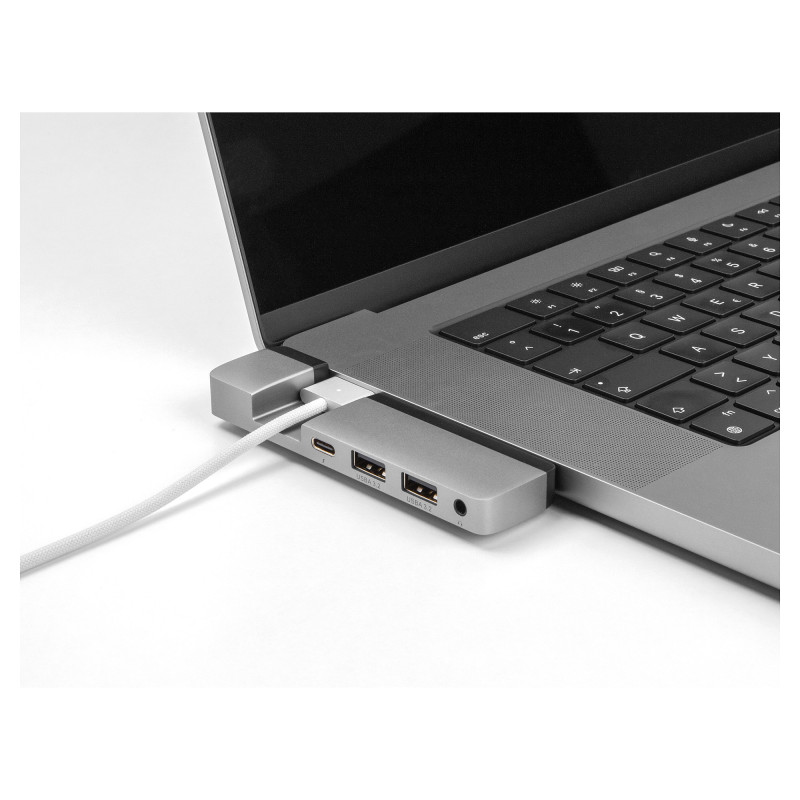

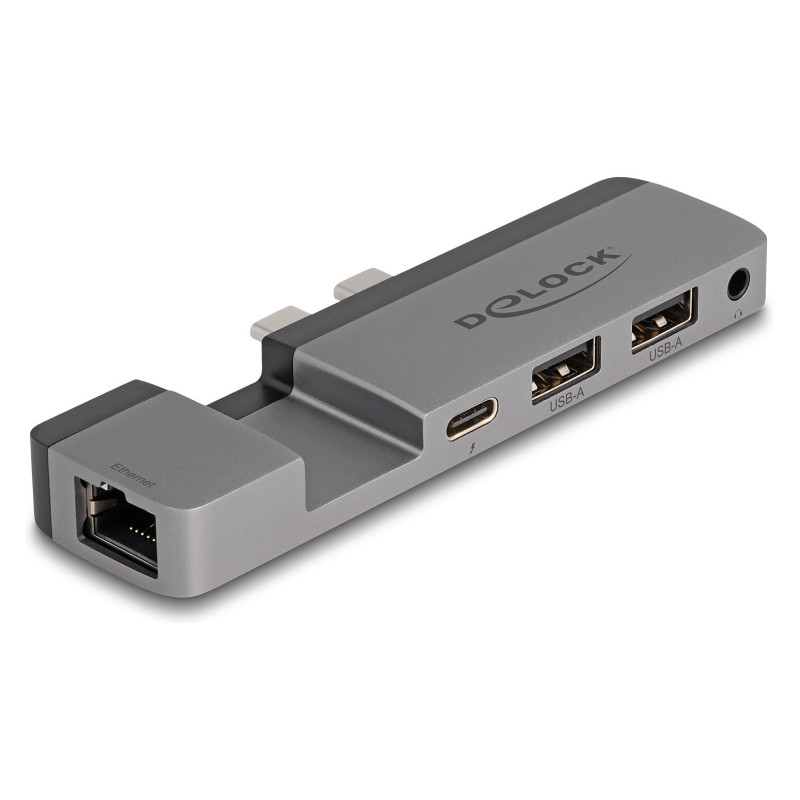

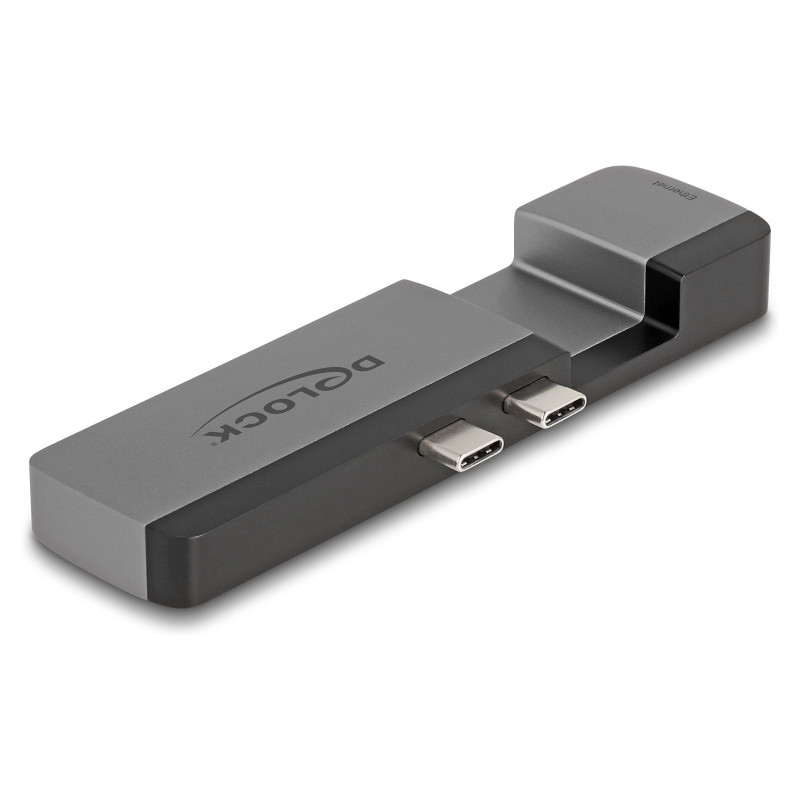

This docking station by Delock can be connected to a MacBook Pro with two adjacent Thunderbolt™ 4 ports. A Thunderbolt™ device can be connected to the Thunderbolt™ 4 port (pass-through). Two built-in USB Type-A ports allow the use of peripherals. Connections for headset and Gigabit network complete the features.

Thunderbolt™ 4 port
All Thunderbolt™ devices, such as docking stations, SSDs or monitors, can still be connected to the Thunderbolt™ 4 pass-through connector. In addition, Thunderbolt™ supports DP Alternate Mode, allowing HDMI, DisplayPort or DVI monitors to be connected with appropriate adapters. This port can also be used to charge the MacBook, since thePower Delivery function (USB PD 3.0) is also supported with up to 100 watts.

Gap for MagSafe 3
The docking station is specially designed with a gap at the point where the MagSafe charging port is located on the MacBook. This allows the MagSafe power supply to continue to be used, even if the Delock docking station on the MacBook is used.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop and used as needed.

Ports & interfaces

Connectivity technology: Docking
Host interface: Thunderbolt 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100 W
Thunderbolt 4 ports quantity: 1
Feature: Combo headphone/mic port
Headphone outputs: 1

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Data transfer rate: 10 Gbit/s
HD type: 5K Ultra HD
Maximum digital resolution: 5120 x 2880 pixels
Maximum refresh rate: 30 Hz
Product colour: Black, Grey
Display modes: Extended, Mirror
Feature: Plug and Play
Housing material: Metal
Country of origin: China
Compatibility: MacBook Pro 14″ (2021), MacBook Pro 16″ (2021), MacBook Air (M2 2022) with two adjacent Thunderbolt4 ports

Power

Power source type: Thunderbolt 4, USB

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 29 mm
Depth: 108 mm
Height: 13 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual

Technical details

Compliance certificates: CE
