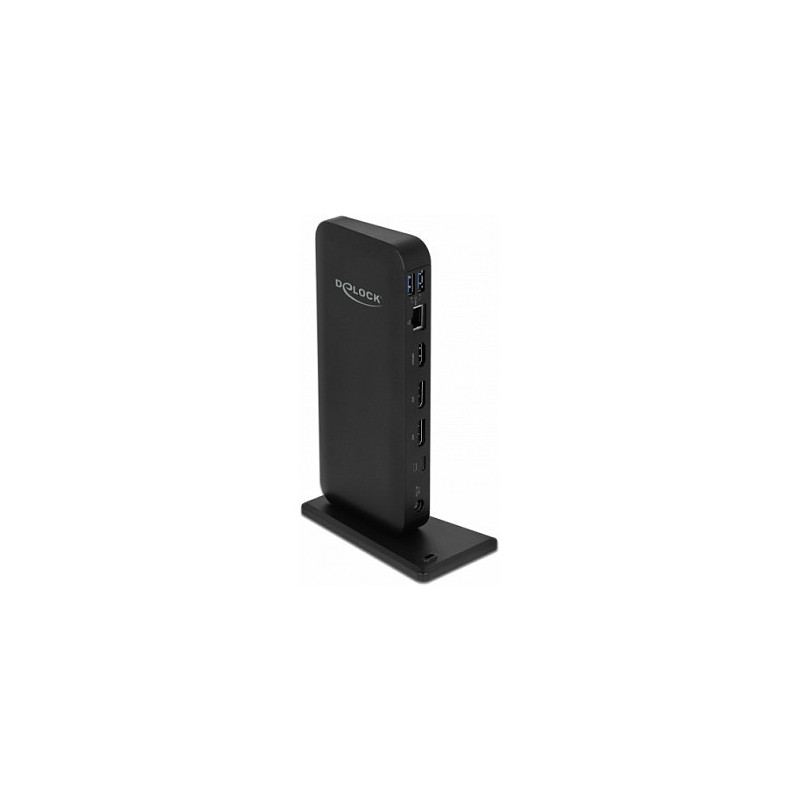

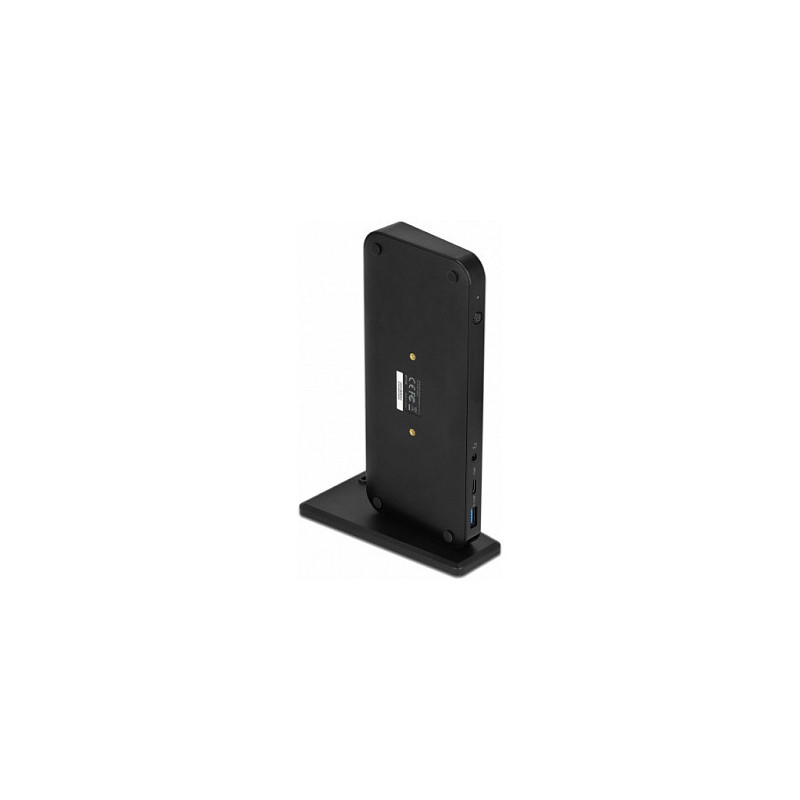

DeLOCK 87746 laptop dock / port replicator

DeLOCK 87746. Connectivity technology: Wired, USB Power Delivery up to: 85 W, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Cable lock slot type: Kensington, Certification: CE, FC. Power source type: AC, Power connector: USB Type-C, AC input voltage: 100 - 240 V. Width: 85 mm, Depth: 190 mm, Height: 27 mm

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Up to three monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Four built-in USB ports allow the use of peripherals, and connections for headset and Gigabit network complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. The maximum resolution for simultaneous playback on two or three monitors depends on the system and connected hardware.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port. If this port is connected to the host device, such as the MacBook, it will charge up to 85 watts during operation.

Stand, security and VESA mounting
The Delock docking station can be operated either horizontally or vertically. A stand is included for vertical operation. Further the docking station can also be mounted to a 50 mm VESA bracket. The corresponding screw threads are provided on the bottom for this purpose.
A safety cable can be attached to the Kensington socket to protect the docking station from theft.

Ports & interfaces

Connectivity technology: Wired
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 85 W
HDMI ports quantity: 1
DisplayPorts quantity: 2
Thunderbolt 3 ports quantity: 1
Headphone outputs: 1
Headphone connectivity: 3.5 mm
Feature: DC-in jack

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: VESA mounting
Product colour: Black
Feature: On/off switch
Feature: Charging function
Certification: CE, FC

Power

Power source type: AC
Power connector: USB Type-C
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.8 A
Output voltage: 20 V
Output current: 6.75 A

Weight & dimensions

Width: 85 mm
Depth: 190 mm
Height: 27 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Mounting brackets included
Cables included: USB Type-C
Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
