DeLOCK 87683 laptop dock / port replicator

DeLOCK 87683. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: SD, SDHC, SDXC, HD type: 4K Ultra HD. Power source type: USB, Power cable length: 0.2 m. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1, Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Other operating systems supported: ChromeOS

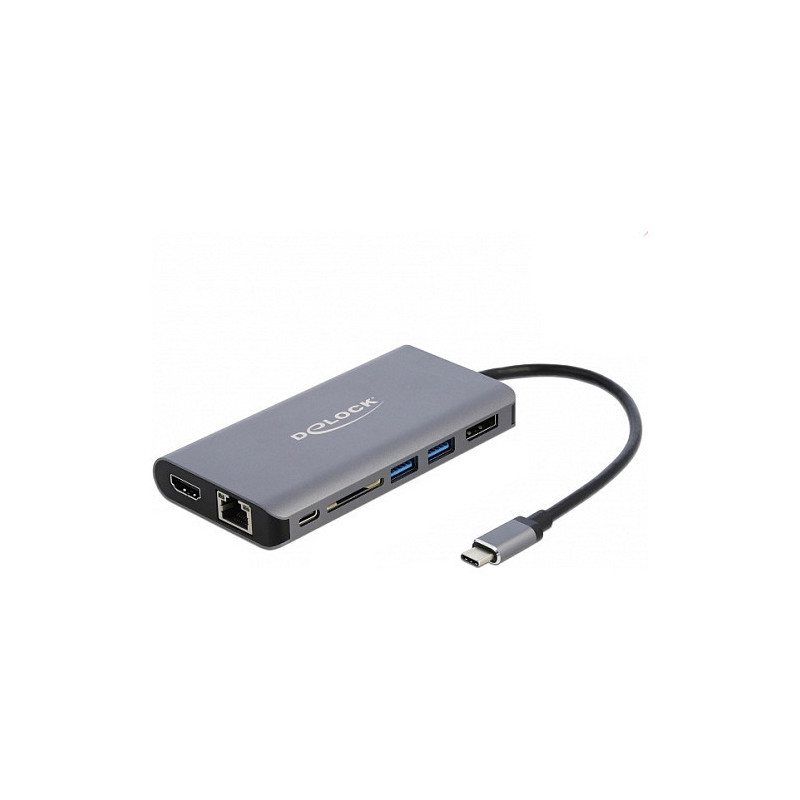

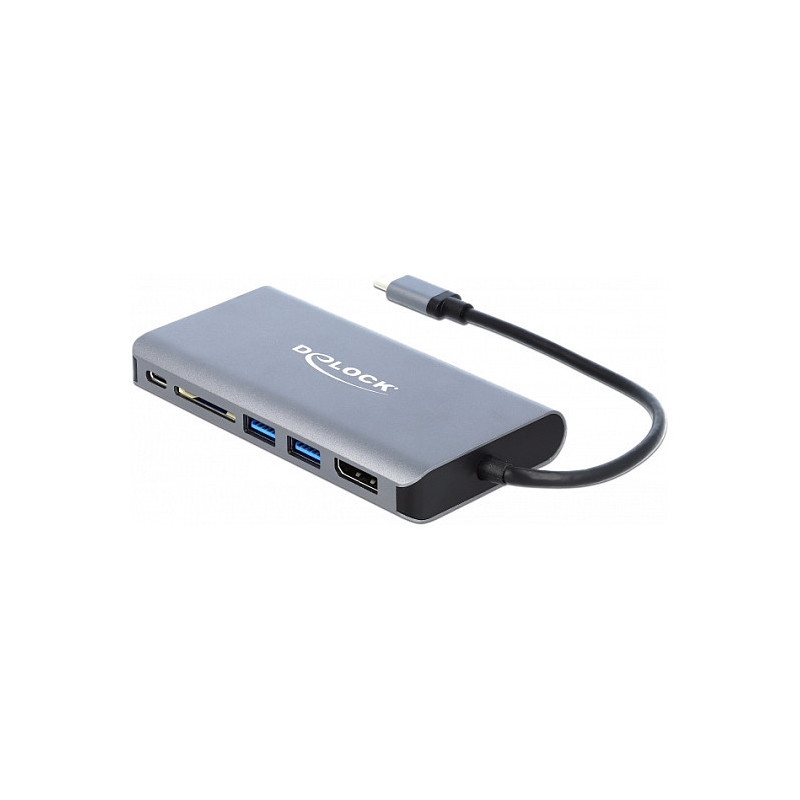

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the DisplayPort and HDMI outputs. Three built-in USB ports allow the use of peripherals, and connections for Gigabit network, as well as an SD card reader, complete the features.

Multi-Stream Transport (MST)
The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 1080p per monitor.

USB Power Delivery (USB PD 3.0) support up to 100 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. In addition it also supplies the USB ports with power. The docking station can also be used without a power supply.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
DisplayPorts quantity: 1

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: SD, SDHC, SDXC
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Product colour: Grey
Feature: Charging function
Country of origin: China
Brand compatibility: Any brand

Power

Power source type: USB
Power cable length: 0.2 m

Software

Windows operating systems supported: Windows 10, Windows 7, Windows 8.1
Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Other operating systems supported: ChromeOS

Weight & dimensions

Width: 60 mm
Depth: 117 mm
Height: 16 mm

Packaging data

Quantity per pack: 1 pc(s)

Packaging content

Feature: Manual

Logistics data

Harmonized System (HS) code: 84733020
