DeLOCK 87004 laptop dock / port replicator

DeLOCK USB Type-C Docking Station 4K - Dual HDMI MST / USB 3.2 / SD / LAN / PD 3.0. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, SDHC, SDXC, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Power cable length: 0.2 m. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64, Mac operating systems supported: Mac OS X 10.15 Catalina

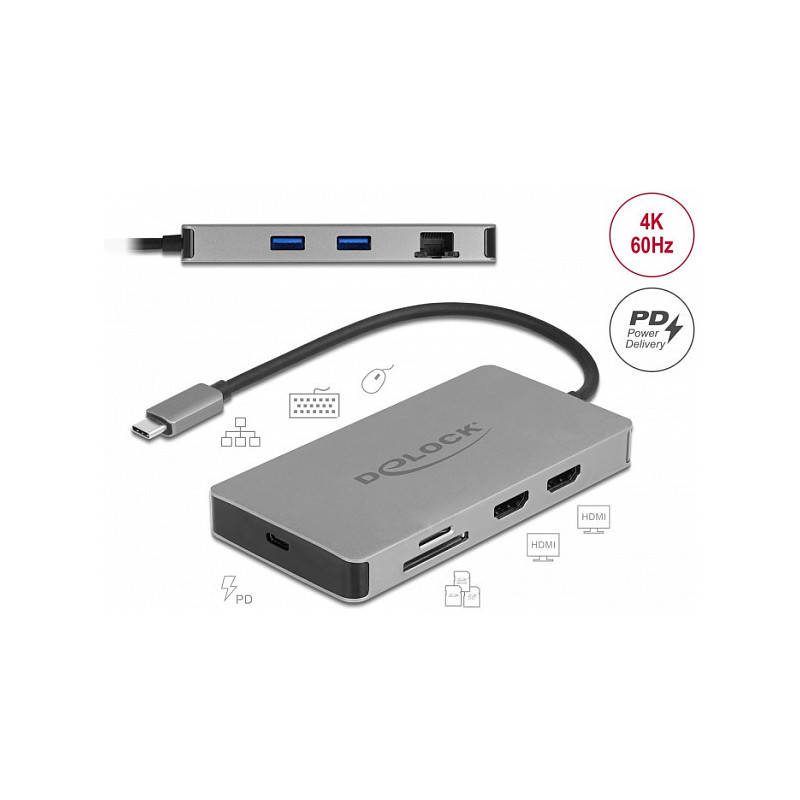

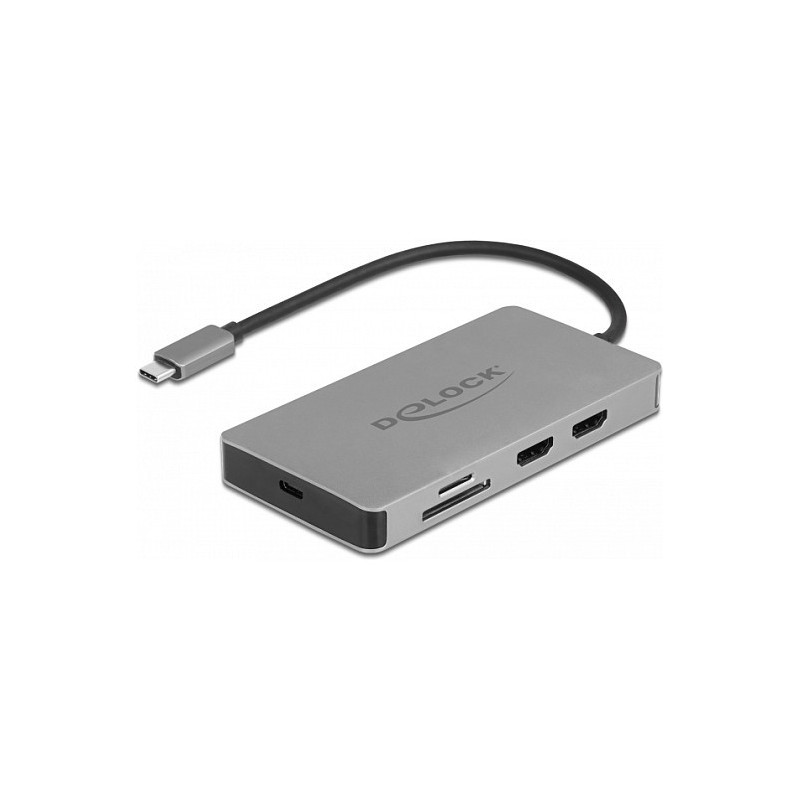

This docking station by Delock can be connected to a computer with a USB-C™ DP Alt Mode or Thunderbolt™ 3 port and provides a variety of interfaces. Two monitors can be operated simultaneously at the HDMI output ports. Two built-in USB ports allow the use of peripherals, and connections for Gigabit network, as well as an SD and Micro SD card reader, complete the features.

Multi-Stream Transport (MST)

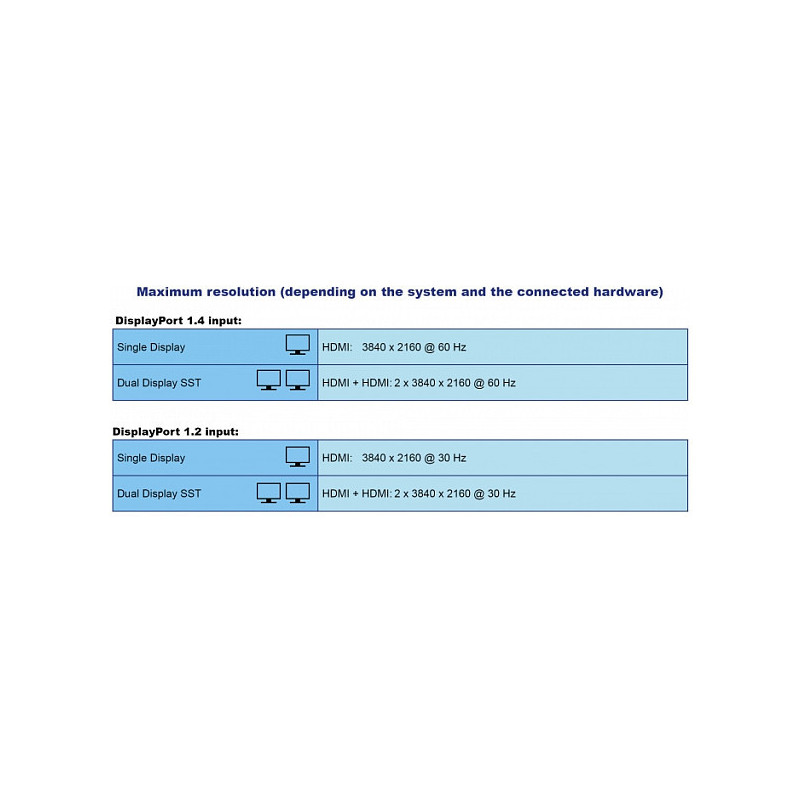

The product is an MST hub and supports the extended desktop configuration of DisplayPort. This allows multiple monitors to be combined into one large display. Thereby the docking station supports a maximum resolution of up to 4K 60 Hz per monitor.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The docking station has a USB Type-C™ Power Delivery port to connect the power supply of the laptop or tablet to charge it. In addition it also supplies the USB ports with power. The docking station can also be used without a power supply.

Small sturdy helper
Due to its small dimensions and its sturdy housing, this Delock docking station is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 85 W
HDMI ports quantity: 2
DisplayPorts quantity: 2
DisplayPort version: 1.4
Feature: HDCP
HDCP version: 1.4/2.2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100,1000 Mbit/s

Performance

Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash), SD, SDHC, SDXC
HD type: 4K Ultra HD
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Product colour: Grey
Feature: High Dynamic Range (HDR) supported
Display modes: Extended, Mirror
Feature: Plug and Play
Housing material: Metal

Power

Power source type: USB
Power connector: USB Type-C
Power cable length: 0.2 m

Software

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Windows 8.1, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.15 Catalina
Linux operating systems supported: Yes

Weight & dimensions

Width: 59 mm
Depth: 115 mm
Height: 14 mm
