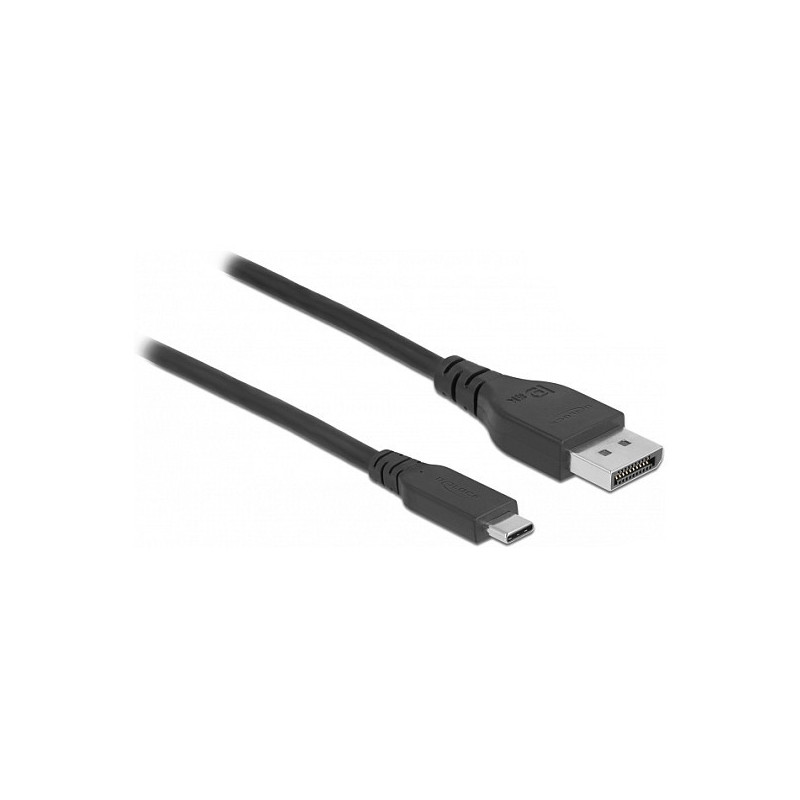

DeLOCK 86038 video cable adapter

DeLOCK Bidirectional USB Type-C to DisplayPort Cable (DP Alt Mode) 8K 60 Hz 1 m DP 8K certified. Cable length: 1 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Cable diameter: 4.8 mm. Package type: Box. Quantity per pack: 1 pc(s)

This DP 8K certified USB-C™ to DisplayPort cable by Delock enables the connection between different devices with USB Type-C™ and DisplayPort connectors.

Versatile applications
The bidirectional cable works in both signal directions and therefore offers a variety of possible applications. It can be used, for example, to connect a monitor or TV with DisplayPort socket to a laptop or smartphone with USB Type-C™ port. Alternatively it is possible to connect a USB Type-C™ monitor to a device with DisplayPort output.

8K Ultra HD resolution and HDR support
By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.
Due to the HDR support colours are realistically displayed with impressive depth, brightness and contrast are optimally reproduced.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Connector contacts plating: Gold
Sample rate: 1536 kHz
Cable length: 1 m
Connector 1: USB Type-C
Connector 2: DisplayPort
Connector 1 gender: Male
Connector 2 gender: Male
Feature: HDCP
HDCP version: 1.4/2.2
DisplayPort version: 1.4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: High Dynamic Range (HDR) supported
Maximum resolution: 7680 x 4320 pixels
Data transfer rate: 32.4 Gbit/s
Number of shielding layers: 3
Product colour: Black
Chipset: Chrontel CH7213
AWG wire size: 32
Feature: Plug and Play
Country of origin: China

Weight & dimensions

Cable diameter: 4.8 mm

Packaging data

Package type: Box

Packaging content

Quantity per pack: 1 pc(s)
