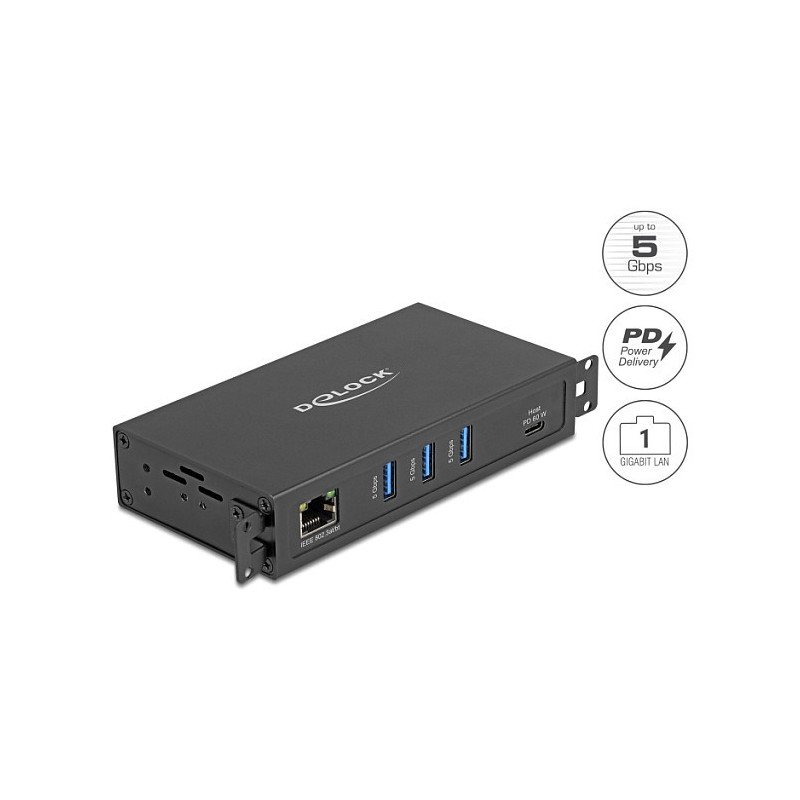

DeLOCK 64336 interface hub

DeLOCK 3 Port USB 5 Gbps Hub + RJ45 Gigabit LAN PoE++ Port with USB Type-C host-connector in metal case and 1.5 kV Isolation. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Hub interfaces: RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Metal. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u. Power supply type: USB. Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11, Mac operating systems supported: Mac OS 14.5, Mac OS X 15.0 Sequoia, Linux operating systems supported: Linux Kernel 6.5

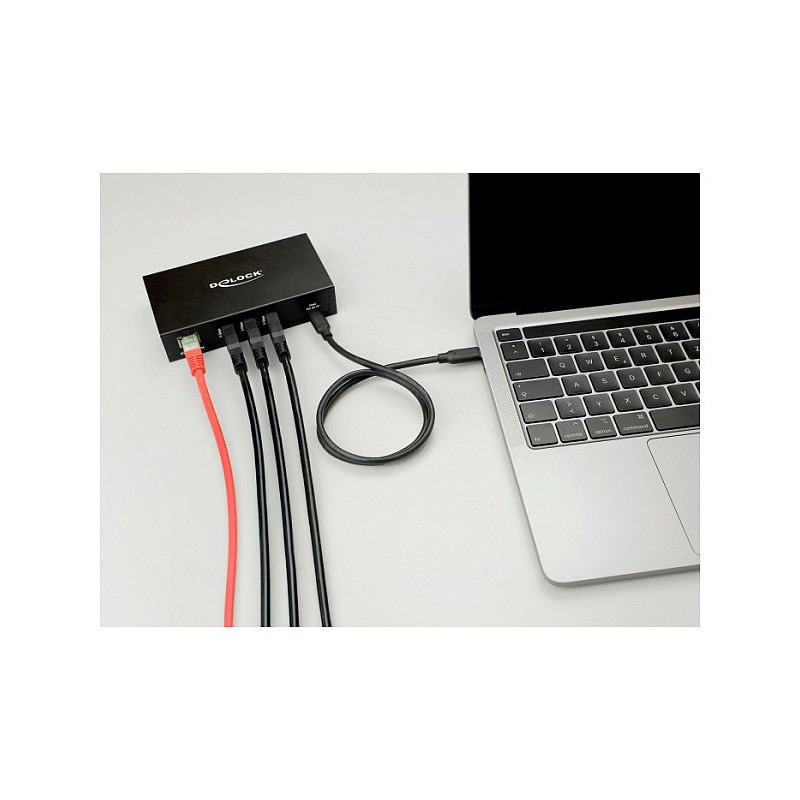

This solid USB hub by Delock with metal housing can be connected to a computer, laptop or mobile device via the USB-C™ interface. Up to 3 USB devices can be connected to the hub.

Integrated 10/100/1000 Mbps LAN PoE++ interface
In addition, the hub with integrated RJ45 Gigabit LAN connection expands a PC or laptop by a network interface.
The port also serves to power a device connected to the hub. Up to 60 W can be made available for the host device. Thus, the host device can be used continuously when a power source is available at the network port.

Electrical protection
The hub has a built-in DC/DC converter that supports a wide input voltage range. All outputs have overvoltage protection, short circuit protection and overtemperature protection, as well as 1500 V electrical isolation.

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces: RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ports quantity: 5
Ethernet LAN (RJ-45) ports: 1

Features

Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Metal
Feature: Surge protection
Feature: Plug and Play
Country of origin: China

Network

Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Flow control support
Feature: Wake-on-LAN
Feature: Jumbo frames support
Jumbo frames: 4000

Power

Power supply type: USB

System requirements

Windows operating systems supported: Windows 10, Windows 10 x64, Windows 11
Mac operating systems supported: Mac OS 14.5, Mac OS X 15.0 Sequoia
Linux operating systems supported: Linux Kernel 6.5
Other operating systems supported: Android, ChromeOS

Weight & dimensions

Width: 68 mm
Depth: 127 mm
Height: 28 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Box

Packaging content

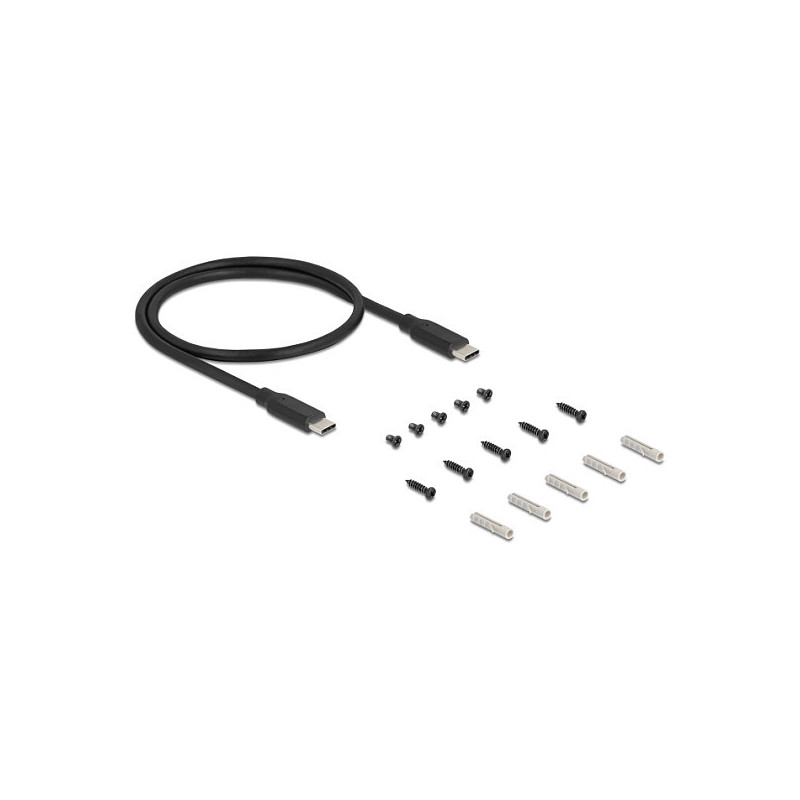

Cables included: USB Type-C to USB Type-C
Feature: Manual

Other features

Chipset: VIA VL817, Realtek RTL8153
