DeLOCK 64280 storage drive docking station

DeLOCK USB 10 Gbps Docking Station for 2.5″ / 3.5″ SATA HDD / SSD or M.2 NVMe PCIe or SATA SSD with fan. Storage media type: HDD, SSD, Storage drive interface: M.2, Serial ATA III, Storage drive sizes supported: 2.5,3.5,M.2. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Product colour: Black, Maximum data transfer rate: 10 Gbit/s. Number of fans: 1 fan(s), Fan diameter: 8 cm. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 1.5 A

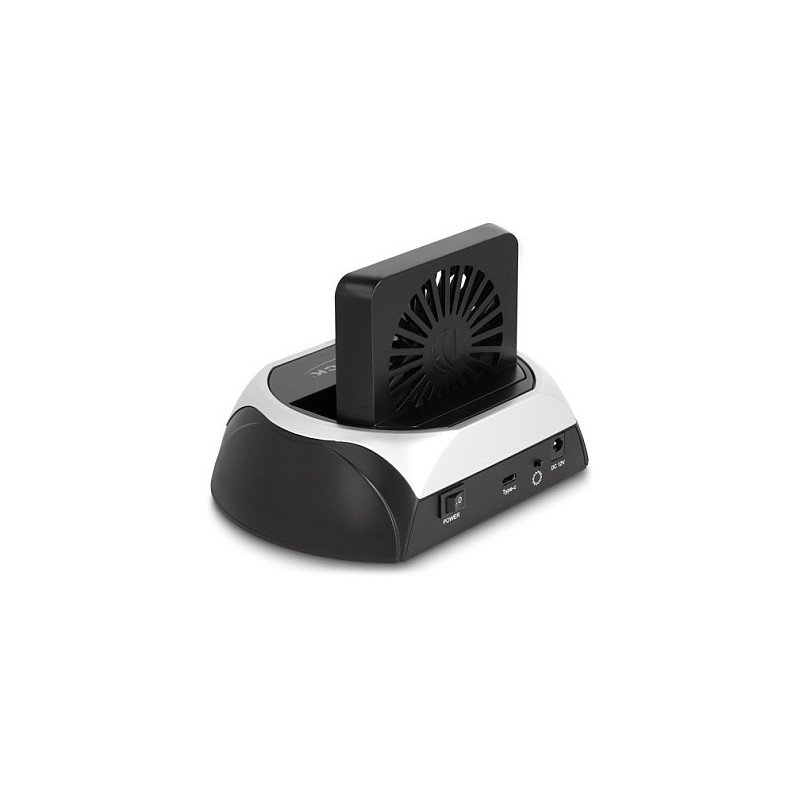

This docking station by Delock enables an external connection of one 2.5″ or 3.5″ SATA HDD or SSD or one M.2 NVMe or SATA SSD through the USB interface. This solution does not require an external enclosure since the drive can be plugged into the docking station directly.

Good cooling
A large fan, which is located directly behind the inserted memory, ensures sufficient cooling of the SSD or HDD. The fan can be switched on or off separately.

Extensive connectivity
Due to the specially designed adapter, the Delock docking station can be quickly and easily connected to the USB Type-A socket. Thus, it can be easily connected to new devices with USB Type-C™ female and older devices that only have a USB Type-A connector. The adapter is located directly on the cable and therefore it cannot be lost.

Hard drive

Storage media type: HDD, SSD
Storage drive interface: M.2, Serial ATA III
Storage drive sizes supported: 2.5,3.5,M.2
Number of storage drives supported: 1

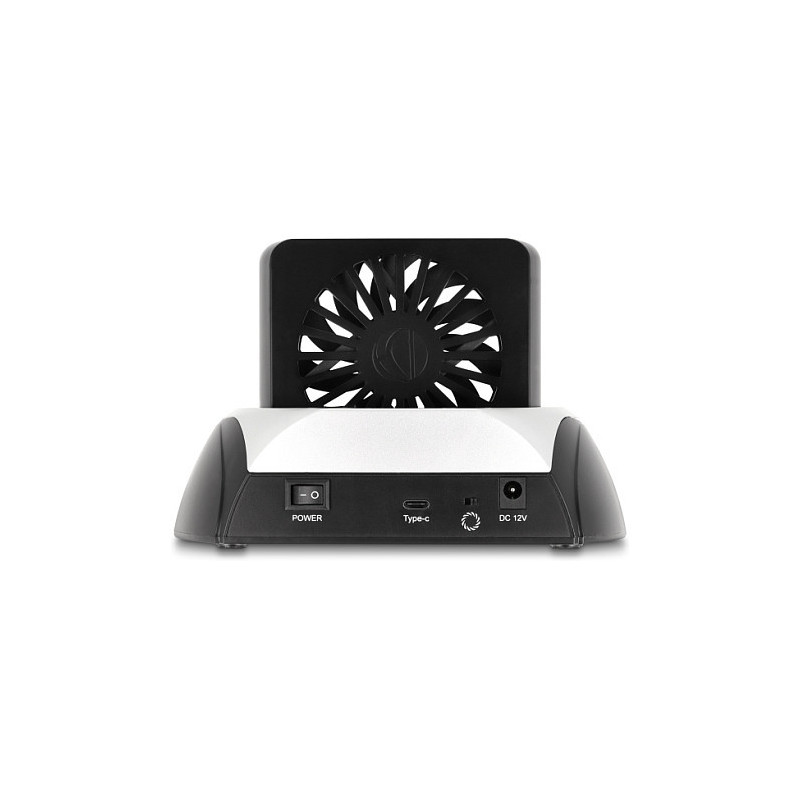

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) ports quantity: 2
Feature: DC-in jack

Features

Product colour: Black
Maximum data transfer rate: 10 Gbit/s
LED indicators: Yes

Cooling

Feature: Built-in fan
Number of fans: 1 fan(s)
Fan diameter: 8 cm

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 1.5 A
Output voltage: 12 V
Output current: 2 A

Software

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Mac operating systems supported: Yes

Weight & dimensions

Width: 110 mm
Depth: 166 mm
Height: 108 mm

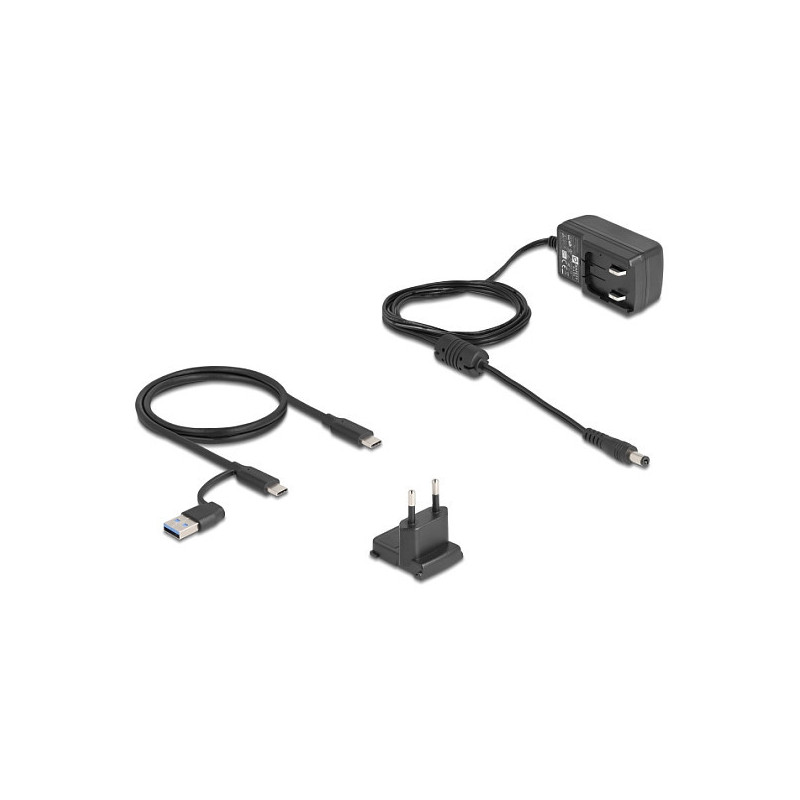

Packaging content

Feature: AC adapter included
Cables included: USB Type-C to USB Type-C
Feature: Manual

Other features

Chipset: Realtek RTL9210B
