DeLOCK 64226 serial converter / repeater / isolator

DeLOCK 4 Port USB 2.0 Isolator Hub with 5 kV Isolation for data lines. Width: 73 mm, Depth: 90 mm, Height: 31 mm. Operating voltage: 5 V. Housing material: Metal. LED indicators: Power. Package type: Box

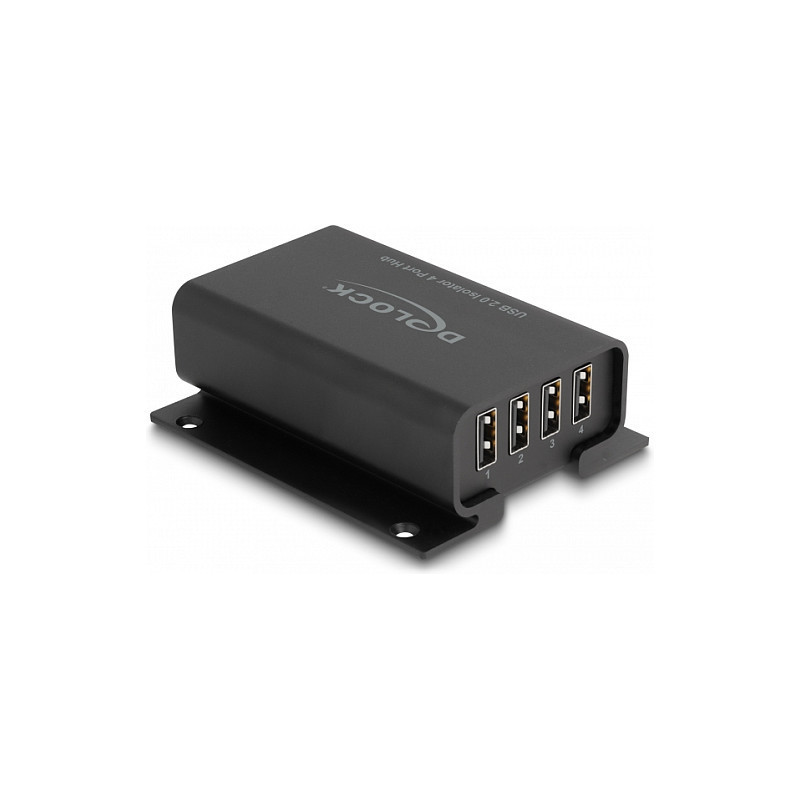

The USB hub isolator by Delock expands the host by four USB Type-A ports and separates the electrical connection of the data lines between Host-PC and USB devices. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field. The compact device supports the USB 2.0 specification with Low-, Full and High-Speed.

Converter for voltage supply
A DC to DC converter inside the USB isolator allows the separation between host and device of the USB power lines.

Sturdy metal housing
The sturdy metal housing has four holes for mounting e.g. to machines and is therefore also suitable for industrial applications.

Secure stand
The rubber pads on the bottom prevent the hub from slipping when, e.g. a USB stick or USB cable is plugged in.

Technical details

Host interface: USB 2.0
Output interface: USB 2.0
Connector 1: USB Type-B
Connector 2: USB Type-A
Connector gender: Female/Female
Isolation: 5 kV
Product colour: Black

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 0 - 60 °C

Weight & dimensions

Width: 73 mm
Depth: 90 mm
Height: 31 mm

Power

Operating voltage: 5 V

Material

Housing material: Metal

Indication

LED indicators: Power

Packaging content

Package type: Box

Packaging data

Feature: Manual
