DeLOCK 64110 interface hub

DeLOCK 10 Gbps USB Hub with 2.5 Gigabit LAN port and PD 85 Watt. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Networking standards: IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x. Other operating systems supported: Android, iOS. Width: 34 mm, Depth: 118 mm, Height: 15 mm

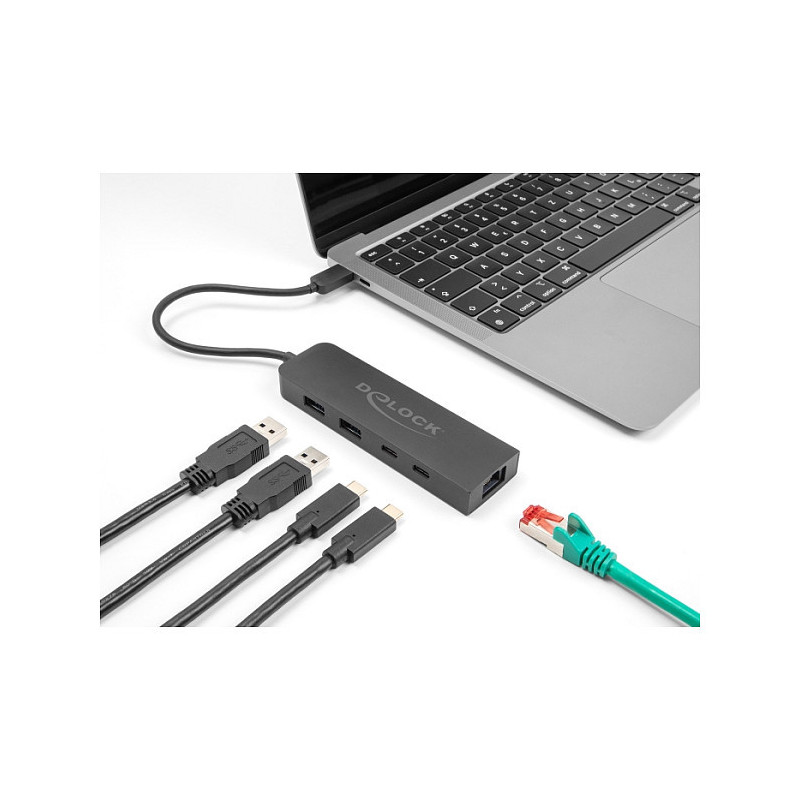

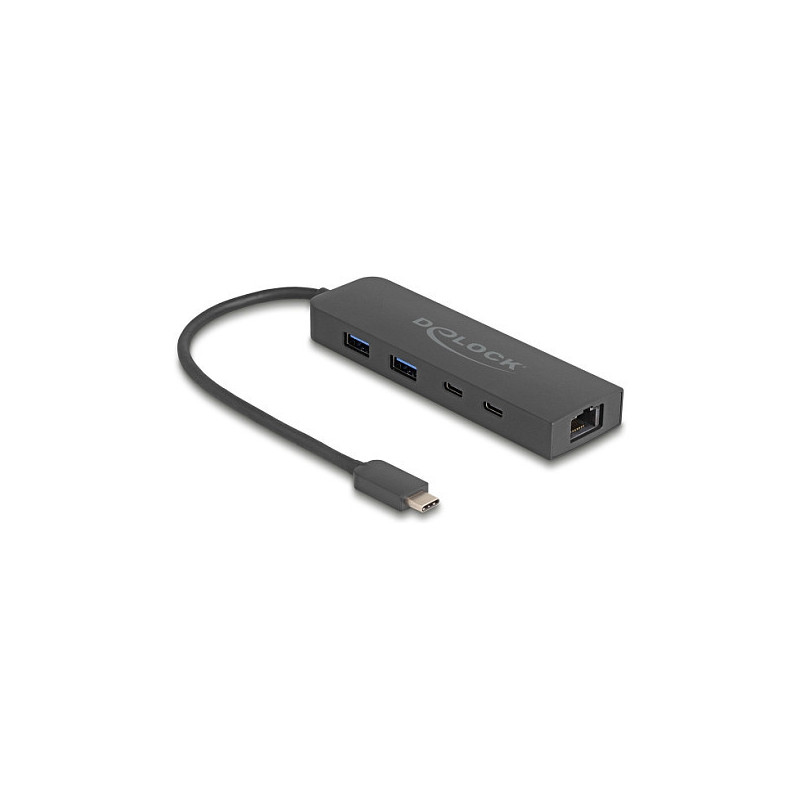

The USB hub by Delock can be connected via USB Type-C™ interface to a PC or laptop. It has two USB Type-A connectors as well as two USB Type-C™ connectors. Up to 3 USB devices can be connected to the hub.

Integrated 10/100/1000/2500 Mbps LAN interface
In addition, the hub with integrated RJ45 2.5 Gigabit LAN connection expands a PC or laptop by a network interface via the USB Type-C™ connection.

NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.

USB Power Delivery (USB PD 3.0) support up to 85 watt
The hub has a USB Type-C™ Power Delivery port to connect the laptop or tablet to charge it. The hub can also be used without a power supply.

Ports & interfaces

Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces: RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Ports quantity: 5
Ethernet LAN (RJ-45) ports: 1

Features

Data transfer rate: 10000 Mbit/s
Product colour: Black
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.0
USB Power Delivery up to: 85 W
Cable type: Round cable
Cable length: 0.2 m
Feature: Plug and Play

Network

Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3az, IEEE 802.3x
Feature: Full duplex
Feature: Auto MDI/MDI-X
Feature: Flow control support

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Android, iOS

Weight & dimensions

Width: 34 mm
Depth: 118 mm
Height: 15 mm

Packaging data

Quantity per pack: 1 pc(s)
Package type: Box

Packaging content

Feature: Manual
