DeLOCK 64063 storage drive docking station

DeLOCK 64063. Storage media type: HDD, SSD, Storage drive interface: Serial ATA, Storage drive sizes supported: 2.5,3.5". Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B. Product colour: Black, Maximum data transfer rate: 6 Gbit/s, LED indicators: Power, Status. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Input current: 2 A. Width: 127 mm, Depth: 166 mm, Height: 65 mm

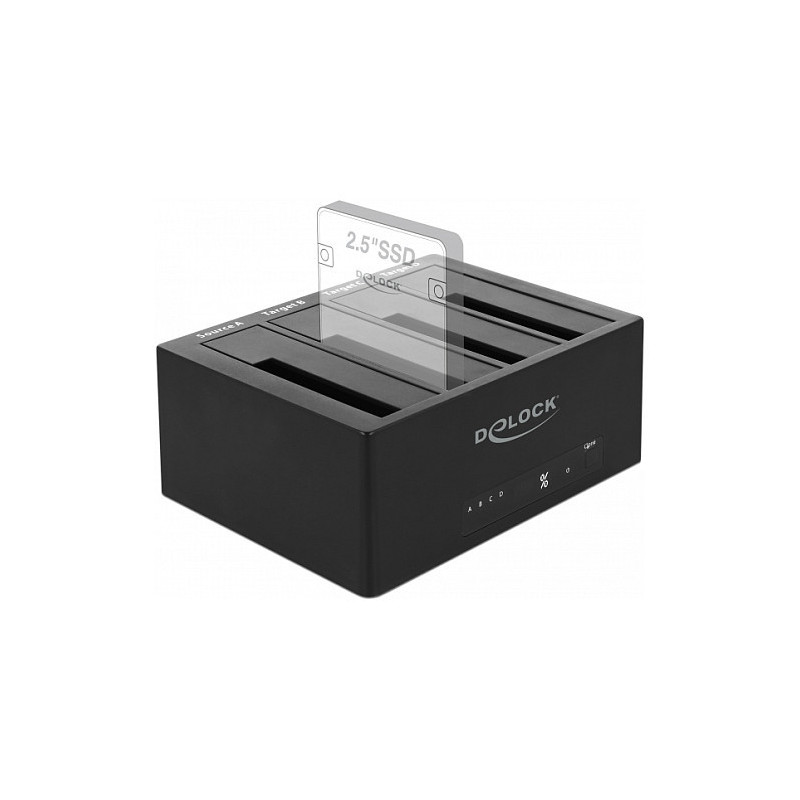

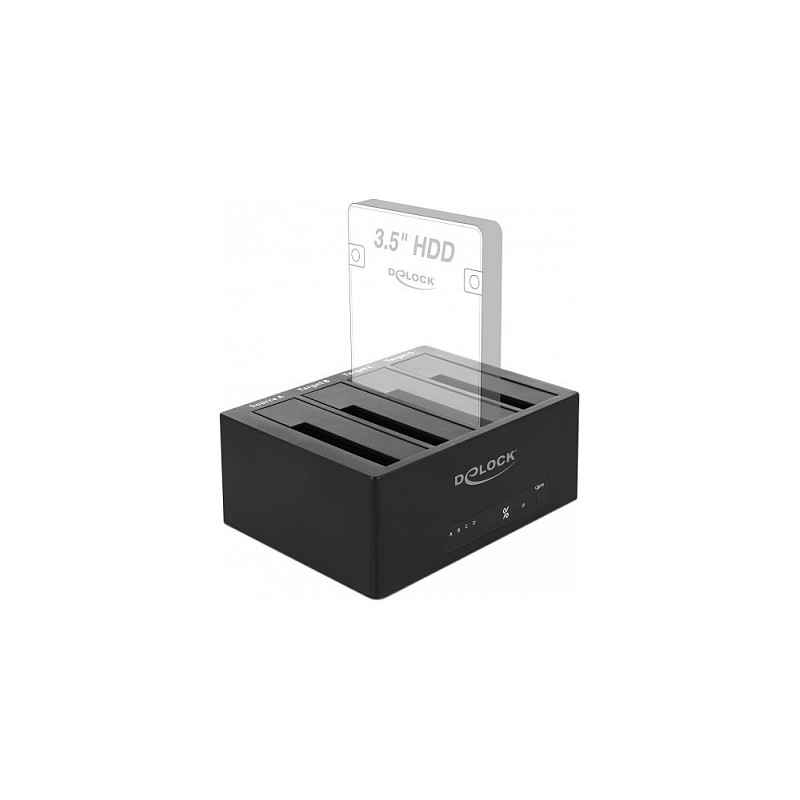

This HDD / SSD Docking Station in by Delock enables an external connection of up to four 2.5″ or 3.5″ SATA HDDs / SSDs through the USB interface, as well as the simple exchange of the drives by Hot Swap.
It is also possible to connect a single hard disk to the computer by using the eSATA connector.

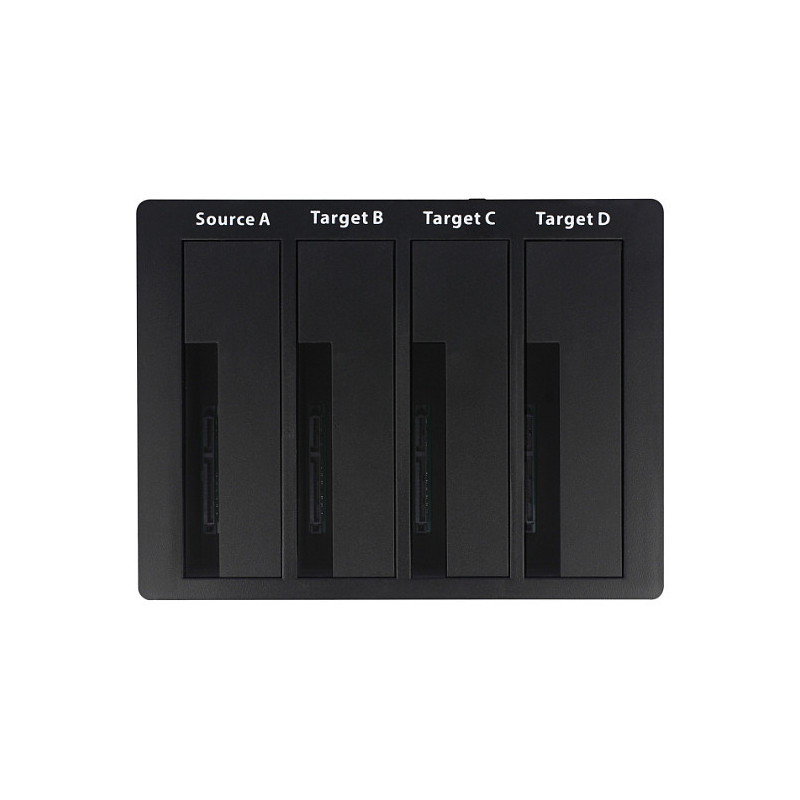

Four bays for HDD / SSD with clone function
Up to four HDDs or SSDs can be inserted and accessed simultaneously.
The clone function enables to copy the content of one HDD / SSD to one or more others without using a PC.

USB Type-C™ connection and separate power supply
Due to the USB port and the included USB cable, the docking station can easily be connected to the computer. In addition, the power supply included in the delivery content ensures a supply for the storage devices used.

Hard drive

Storage media type: HDD, SSD
Storage drive interface: Serial ATA
Storage drive sizes supported: 2.5,3.5"
Number of storage drives supported: 4

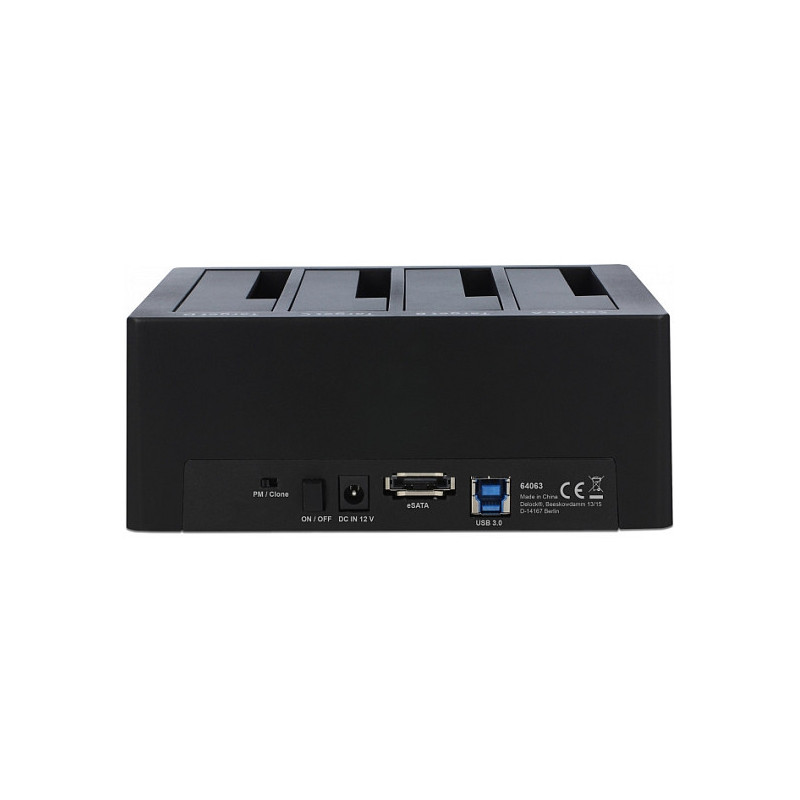

Ports & interfaces

Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Feature: DC-in jack

Features

Product colour: Black
Maximum data transfer rate: 6 Gbit/s
Feature: Plug and Play

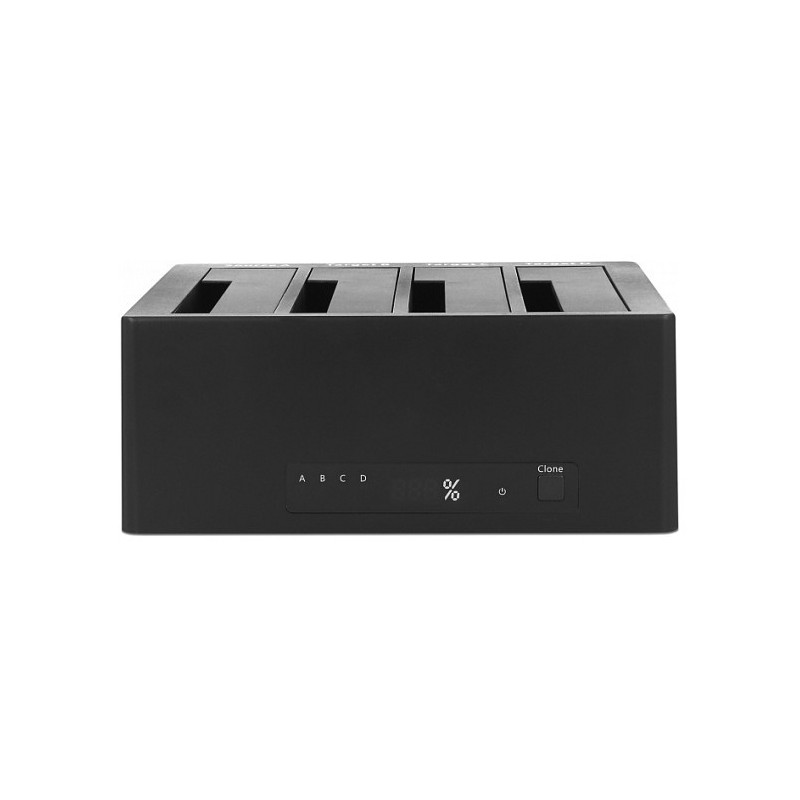

LED indicators: Power, Status
Feature: On/off switch

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2 A
Output voltage: 12 V
Output current: 6.5 A

Software

Windows operating systems supported: Yes
Linux operating systems supported: Yes
Feature: Mac compatibility
Mac operating systems supported: Yes

Weight & dimensions

Width: 127 mm
Depth: 166 mm
Height: 65 mm

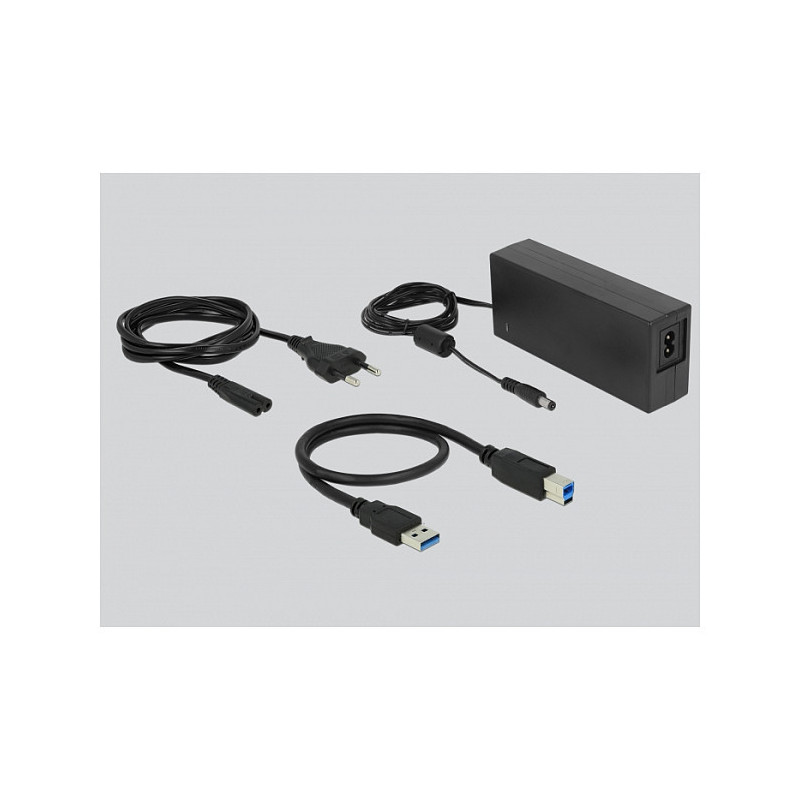

Packaging content

Feature: AC adapter included
Cables included: AC, USB
Feature: Manual

Other features

Feature: Connection to PC

Logistics data

Harmonized System (HS) code: 84733080
