DeLOCK 41473 mobile device charger

DeLOCK 41473. Charger type: Indoor, Power source type: AC, Charger compatibility: Laptop, Smartphone, Tablet. Input voltage: 100 - 240 V. USB Type-C ports quantity: 3, Fast charging, Power protection features: Over current, Overheating, Overload, Short circuit. Cable length: 1.2 m, Product colour: Black

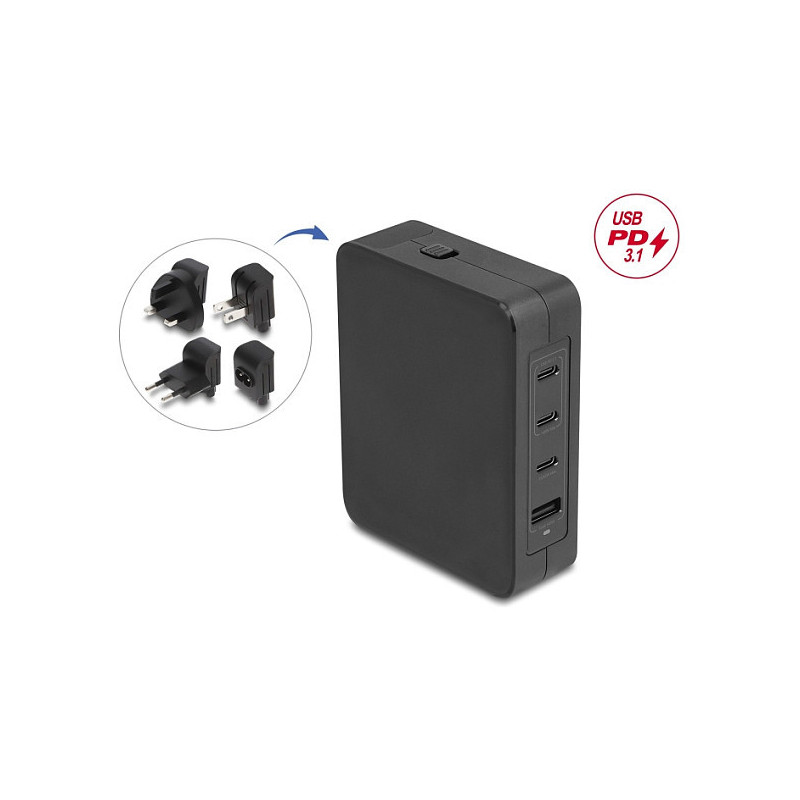

This USB charger by Delock can be used to charge four USB devices. Three ports are equipped with a USB Type-C™ Power Delivery (PD 3.1), thereby supported devices can be charged with up to 145 watt. In addition, one USB Type-A port with fast charging technology up to 18 watt is available for smartphones.

USB-PD Version 3.1
The USB PD 3.1 specification defines the voltage levels 28, 36 and 48 volts with support for Extended Power Range (EPR) with 5 amps each. Due to a calculated maximum power of 240 W (48 V / 5 A), other device classes can be supplied with power in addition to powerful laptops and desktop PCs. The Delock charger features an output power of 28 V and 5 A.

GaN technology
The use of GaN (gallium nitride) transistors increases efficiency compared to conventional silicon technology. Even with very compact dimensions a high output power can be achieved.

Ideal travel companion
This charger by Delock is also the ideal companion when travelling. With the three included adapters, the charger can be used in many countries around the world.
An adapter with a small appliance plug and a suitable connection cable are also included, allowing the power supply unit to be placed anywhere within reach.

Performance

Charger compatibility: Laptop, Smartphone, Tablet
Power source type: AC
USB Type-C ports quantity: 3
Feature: Fast charging
Charger type: Indoor
Number of simultaneously connected devices (max): 4
Feature: USB Power Delivery (USB PD)
USB Power Delivery revision: 3.1
USB Power Delivery up to: 145 W
Power protection features: Over current, Overheating, Overload, Short circuit

Design

Product colour: Black
Cable length: 1.2 m
Feature: Gallium nitride (GaN) transistors

Power

Input voltage: 100 - 240 V
Input frequency: 50 - 60 Hz
Input current: 2 A
Maximum power: 145 W
Port 3 output power: 45 W
Port 4 output power: 18 W
Average active efficiency: 86.42%
Feature: Efficiency at low load (10%)
Efficiency (@10 %): 75.38%

Weight & dimensions

Width: 76 mm
Depth: 97 mm
Height: 31 mm

Packaging data

Package type: Hanging box

Packaging content

Quantity per pack: 1 pc(s)

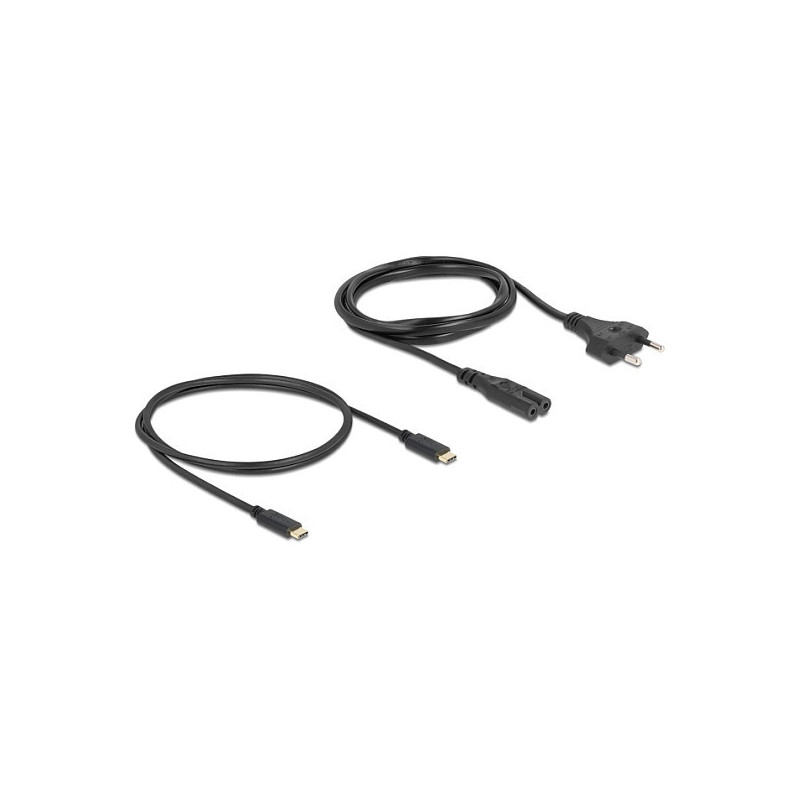

Cables included: AC, USB Type-C to USB Type-C
Feature: Manual
Included power plug types: CN, EU, JP, UK, US

Logistics data

Country of origin: China
