DeLOCK 12773 network card

DeLOCK Wi-Fi 6E Dual Band WLAN USB Adapter AX3000 (2 x 1201 + 574 Mbps). Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1201 Mbit/s, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz). Product colour: Black

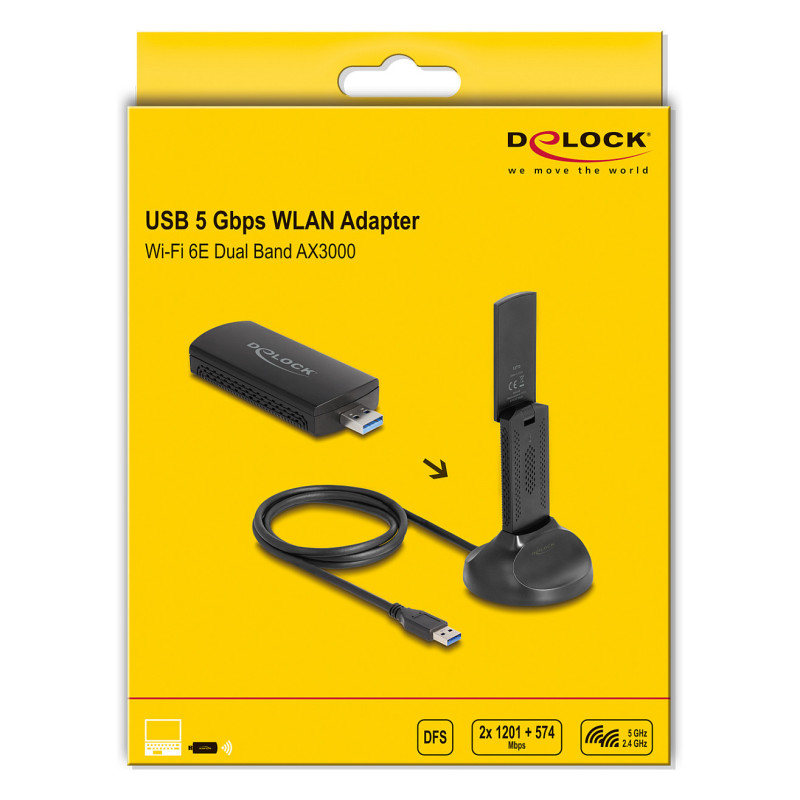

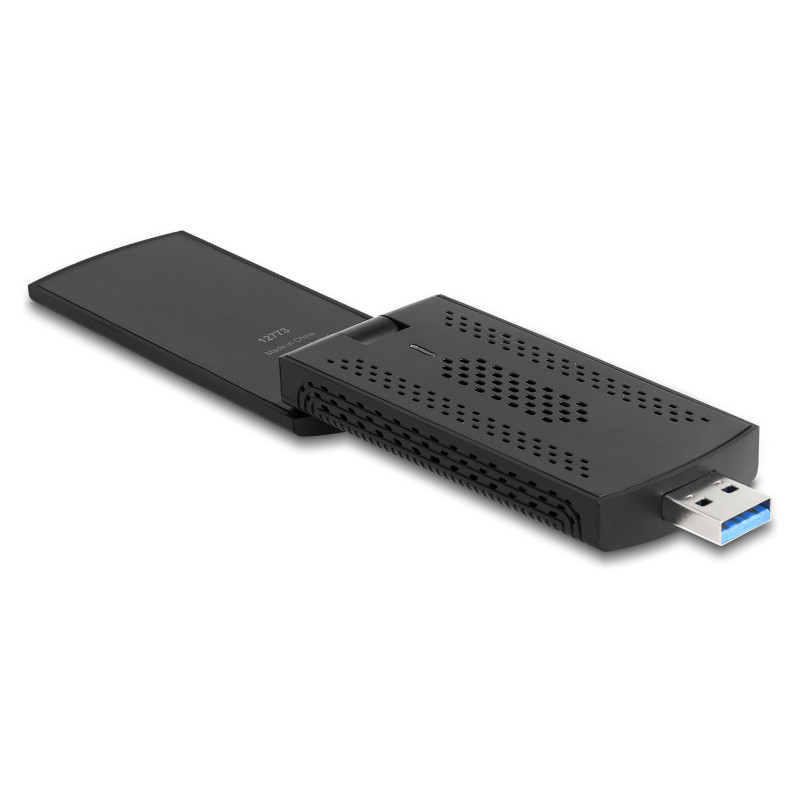

Wi-Fi 6E adapter with foldable antenna and magnetic base

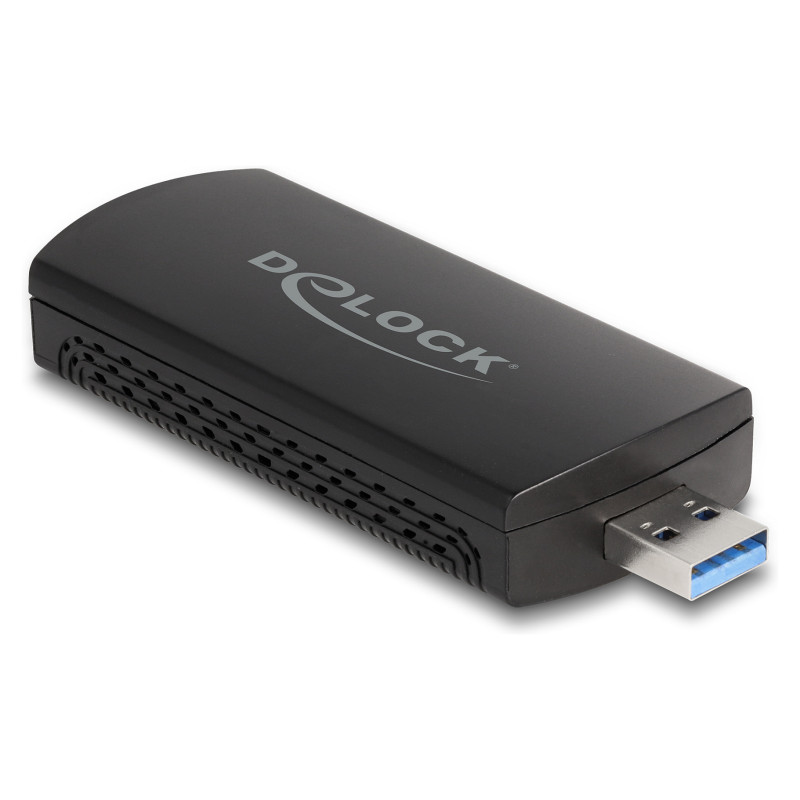

This Wireless LAN USB stick by Delock can be connected to a computer for the connection to a WLAN network. The WLAN stick can be used with an access point or WLAN router in the 2.4 GHz, 5 GHz and 6 GHz band.

Wi-Fi 6E
The 802.11ax technology enables higher data rates, especially in environments with many devices. The additional Wi-Fi frequencies in the 6 GHz band enable higher throughput and more stable connections for high-bit-rate applications such as video telephony, gaming or streaming.

Magnetic base
With the help of the variable inclination of the antenna tilt and the magnetic base, the antenna can be positioned individually.

Note
To use the 6 GHz band, Windows 11 is required.

Ports & interfaces

Connectivity technology: Wireless
Host interface: USB
Interface: WLAN

Network

Maximum data transfer rate: 1201 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Feature: Wi-Fi
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Frequency range: 2.4 - 6.425 GHz
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported: 574,1200 Mbit/s
Modulation: 1024-QAM, OFDMA
Security algorithms: WEP, WPA, WPA2, WPA3

Design

Component for: PC/Laptop
Product colour: Black
Antenna gain level (max): 2 dBi
Chipset: Mediatek MTK7921AU
LED indicators: Activity
Country of origin: China

System requirements

Windows operating systems supported: Windows 10, Windows 11

Weight & dimensions

Width: 37 mm
Depth: 94 mm
Height: 16 mm

Packaging content

Cables included: USB
Feature: Manual
